Siemens SM 322 Digital Output Module (Industrial-Grade 16-Channel Controller)

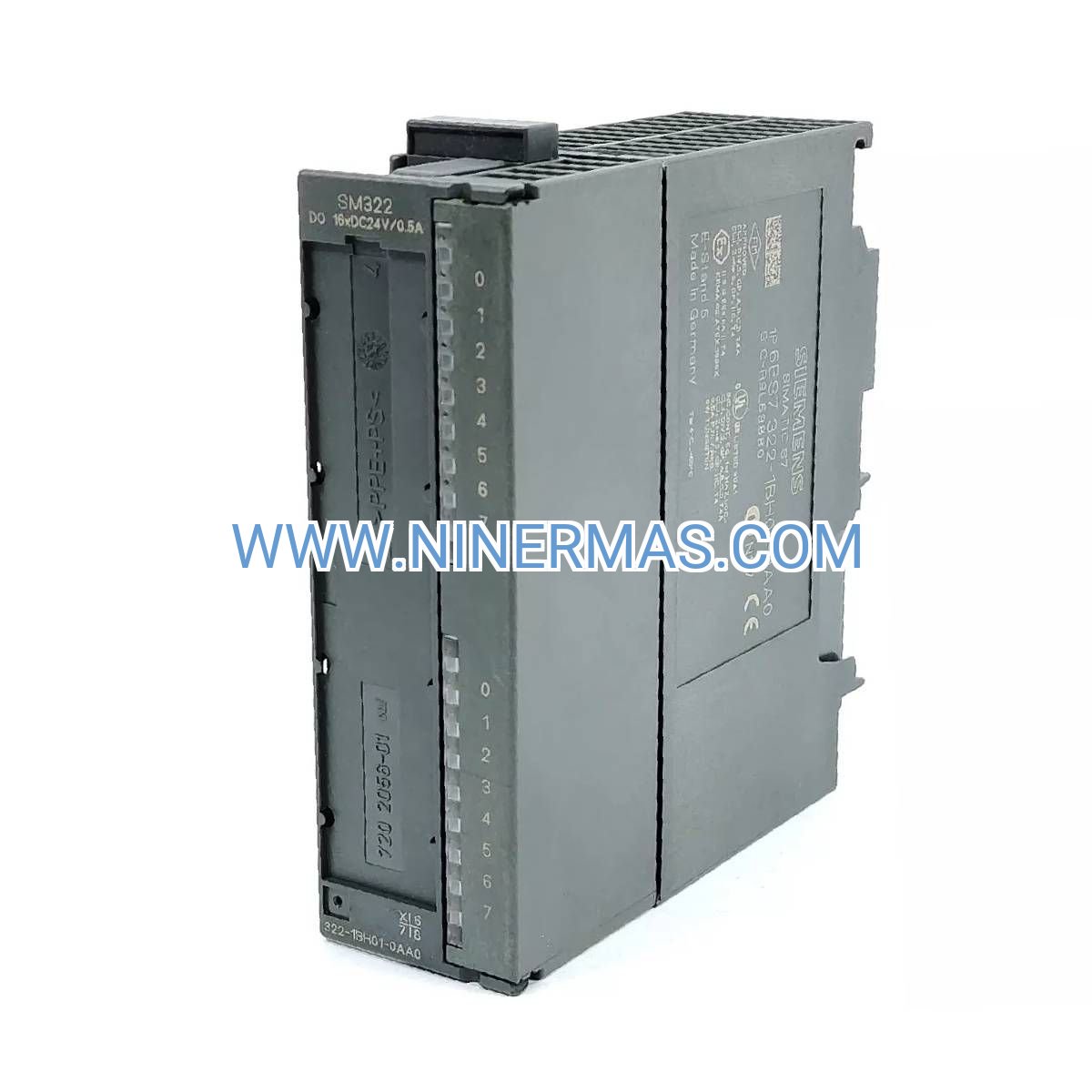

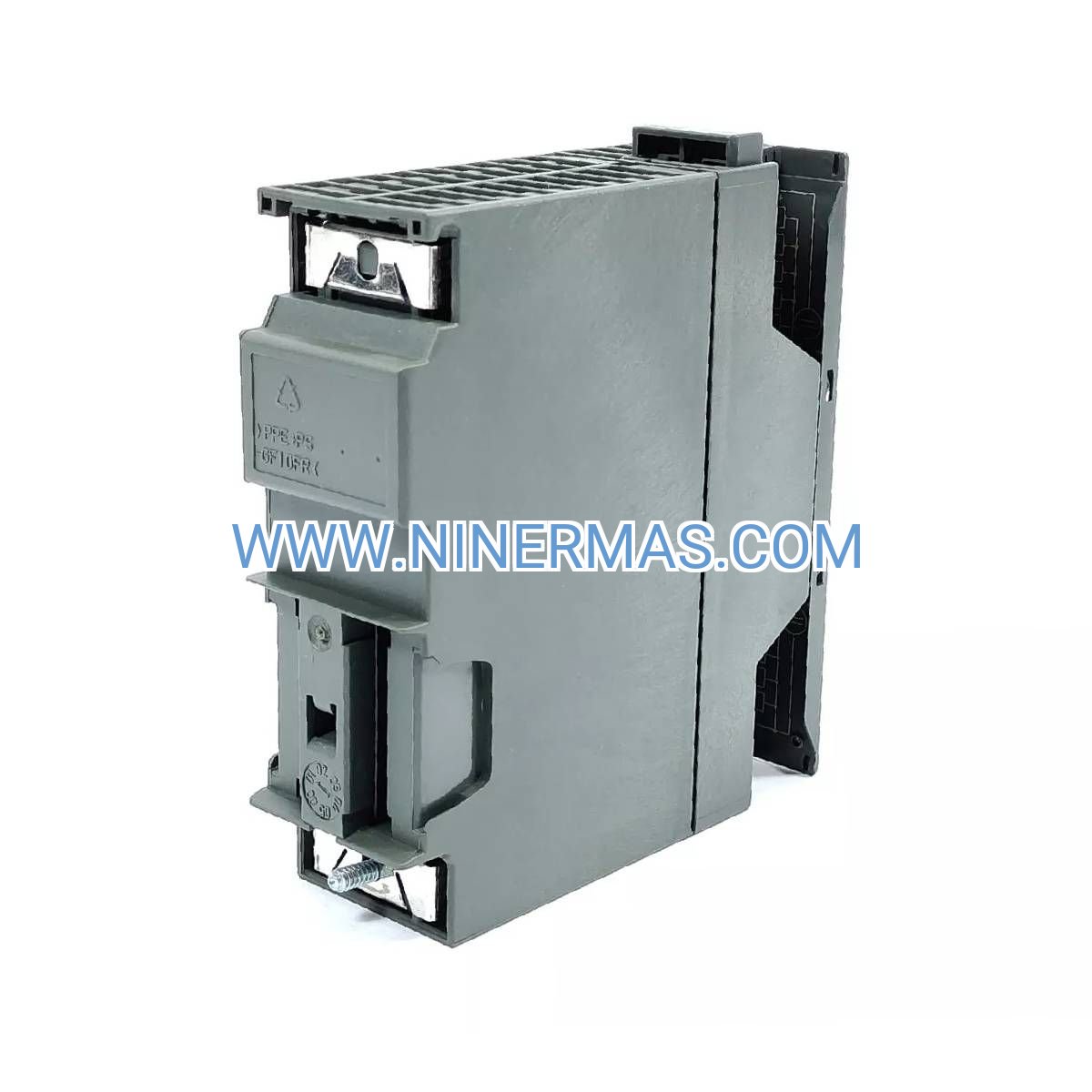

The Siemens 6ES7322-1BH01-0AA0 SM 322 is a high-performance digital output module engineered for demanding industrial automation environments. This 16-channel controller delivers precise signal management for S7-300 PLC systems, enabling reliable control of actuators, valves, motors, and indicator lights across manufacturing, process control, and building automation applications.

Designed for system integrators and automation engineers who require dependable I/O expansion, this module addresses critical challenges in discrete manufacturing and process industries—from managing complex production sequences to coordinating multi-zone control systems. Built-in electronic short-circuit protection and inductive load handling ensure operational continuity even in electrically noisy industrial settings.

Key advantages include compact 40mm width for space-efficient cabinet installation, hot-swappable design for minimal downtime during maintenance, and proven compatibility with legacy and modern S7-300 architectures. Whether you're retrofitting existing lines or designing new control systems, the SM 322 provides the robust digital output foundation your automation infrastructure demands.

Core Features & Technical Advantages

✓ 16 Independent Digital Output Channels
Control up to 16 discrete devices simultaneously with isolated outputs, reducing wiring complexity and cabinet space requirements by up to 40% compared to relay-based solutions.

✓ 24V DC Industrial Power Standard
Operates within 20.4-28.8V range for compatibility with global industrial power supplies, eliminating voltage regulation concerns and supporting direct integration with existing 24V infrastructure.

✓ Electronic Short-Circuit Protection
Automatic current limiting at 1A threshold protects both module and connected loads without external fuses, reducing maintenance costs and preventing cascading failures during fault conditions.

✓ Inductive Load Suppression (-53V)
Built-in voltage clamping safeguards against back-EMF from solenoids, contactors, and motor starters, extending relay life by 3-5x and preventing logic corruption in adjacent modules.

✓ Compact Modular Design (40mm Width)
Slim profile enables high-density I/O configurations in space-constrained control panels, supporting up to 8 modules per standard 19-inch rack with integrated DIN rail mounting.

✓ Low Power Consumption (4.9W Typical)
Energy-efficient operation reduces heat generation in enclosed cabinets, minimizing cooling requirements and supporting green manufacturing initiatives with measurable energy savings.

Industrial Application Scenarios

→ Automotive Assembly Line Control
Manage pneumatic actuators, conveyor gates, and part presence indicators across multi-station assembly cells. The module's fast switching capability (typical 0.5ms response) ensures precise timing for high-speed pick-and-place operations, while short-circuit protection prevents line stoppages from damaged wiring or actuator failures.

→ Chemical Process Valve Sequencing
Orchestrate complex batch processes requiring coordinated valve actuation with fail-safe interlocking. Electronic protection eliminates nuisance trips from inrush currents when energizing large solenoid valves, and the wide voltage tolerance accommodates voltage drops in long cable runs to remote field devices.

→ Packaging Machine Zone Control
Drive labeling heads, reject gates, and product diverters in multi-lane packaging systems. The 16-channel capacity supports complete machine control from a single module, reducing spare parts inventory and simplifying troubleshooting with standardized I/O architecture.

→ Building HVAC System Integration
Control damper actuators, pump starters, and alarm indicators in commercial building automation. Hot-swap capability allows module replacement during occupied hours without system shutdown, and the compact footprint fits existing retrofit panels without cabinet modifications.

→ Water Treatment Plant Automation
Operate chemical dosing pumps, mixer motors, and level control valves in municipal water facilities. Robust construction withstands high-humidity environments, while diagnostic LEDs per channel accelerate fault isolation during emergency response scenarios.

Technical Specifications & Selection Guide

Selection Criteria: Choose the SM 322 when your application requires reliable switching of 24V DC loads up to 0.5A per channel. For higher current requirements (2A+), consider the SM 322 relay output variant. If controlling AC loads or requiring galvanic isolation, specify relay-based output modules. This solid-state version excels in applications demanding fast switching speeds, silent operation, and extended service life in high-cycle-count scenarios.

Extended Capabilities & System Integration

Diagnostic Intelligence: Individual channel status LEDs provide instant visual feedback for output state verification and fault diagnosis. Group fault indication simplifies troubleshooting in distributed I/O configurations, reducing mean time to repair (MTTR) by up to 60% compared to non-diagnostic modules.

S7-300 Ecosystem Compatibility: Seamless integration with STEP 7 programming environment enables drag-and-drop configuration and symbolic addressing. Hardware interrupt capability supports event-driven programming for time-critical control sequences, while consistent module footprint allows standardized panel layouts across multiple machine builds.

Redundancy & Hot-Swap Support: Module replacement during operation (with appropriate safety precautions) minimizes unplanned downtime. Keyed connectors prevent incorrect module insertion, and automatic address recognition eliminates manual DIP switch configuration during commissioning or replacement.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Expedited same-day shipping available for critical breakdown situations (order by 2 PM CST).

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship. Extended warranty options available for OEM integrators and high-volume projects.

Technical Support: Direct access to automation specialists for application engineering, wiring diagrams, and troubleshooting assistance. Phone and email support available during business hours (8 AM - 6 PM CST, Monday-Friday).

Documentation Package: Each module ships with installation manual, wiring diagrams, and STEP 7 GSD file for rapid commissioning. CAD drawings and 3D models available for download to support panel design and documentation.

Frequently Asked Questions

Q: Can the SM 322 digital output module interface directly with 24V PLC inputs for signal distribution?
A: Yes, the module's outputs can directly drive digital inputs on other PLCs or remote I/O systems. Each output sources sufficient current (0.5A) to reliably switch typical 24V DC inputs, which draw 5-10mA. This capability is ideal for inter-PLC handshaking or distributed control architectures.

Q: What is the maximum cable length between the SM 322 and field devices?
A: For 24V DC loads, cable runs up to 100 meters are supported using 0.75mm² (18 AWG) wire. Longer distances require voltage drop calculations—the module's wide input tolerance (20.4-28.8V) provides margin for cable losses. Shielded cable is recommended in electrically noisy environments to prevent false triggering.

Q: How much energy savings can I expect compared to relay-based output modules?
A: The SM 322's solid-state design consumes approximately 4.9W versus 8-12W for equivalent relay modules. In a typical installation with 4 modules operating continuously, this translates to 50-85 kWh annual savings—reducing both energy costs and cabinet cooling requirements by 15-20%.

Q: Does this module require external fusing for short-circuit protection?
A: No external fuses are needed. The integrated electronic current limiting automatically protects each channel at the 1A threshold, resetting automatically when the fault clears. This eliminates fuse replacement costs and reduces troubleshooting time, though external circuit breakers may still be required per local electrical codes.

Q: Is remote diagnostics supported for predictive maintenance programs?
A: Yes, when integrated with S7-300 CPUs featuring communication processors (CP 343-1 or similar), output status and fault conditions can be monitored via PROFINET or Ethernet. This enables SCADA integration for real-time dashboards and automated alert generation when output failures occur.

Q: Can I mix SM 322 modules with different output configurations on the same S7-300 rack?
A: Absolutely. The S7-300 architecture supports heterogeneous I/O mixing—combine digital outputs, digital inputs, analog modules, and specialty cards in any sequence. The backplane automatically assigns addresses, and STEP 7 software provides unified configuration regardless of module mix.

Get Your Siemens SM 322 Module Today

Upgrade your S7-300 control system with proven digital output technology trusted by automation professionals worldwide. Contact our technical sales team for application-specific recommendations, volume pricing, or integration support for your next project.

Ready to order? Add to cart for immediate checkout, or reach out for custom configurations and OEM partnership opportunities.
