Siemens 6ES7322-1BF01-0AA0 | SM 322 Digital Output Module 8DO 24VDC | S7-300 PLC

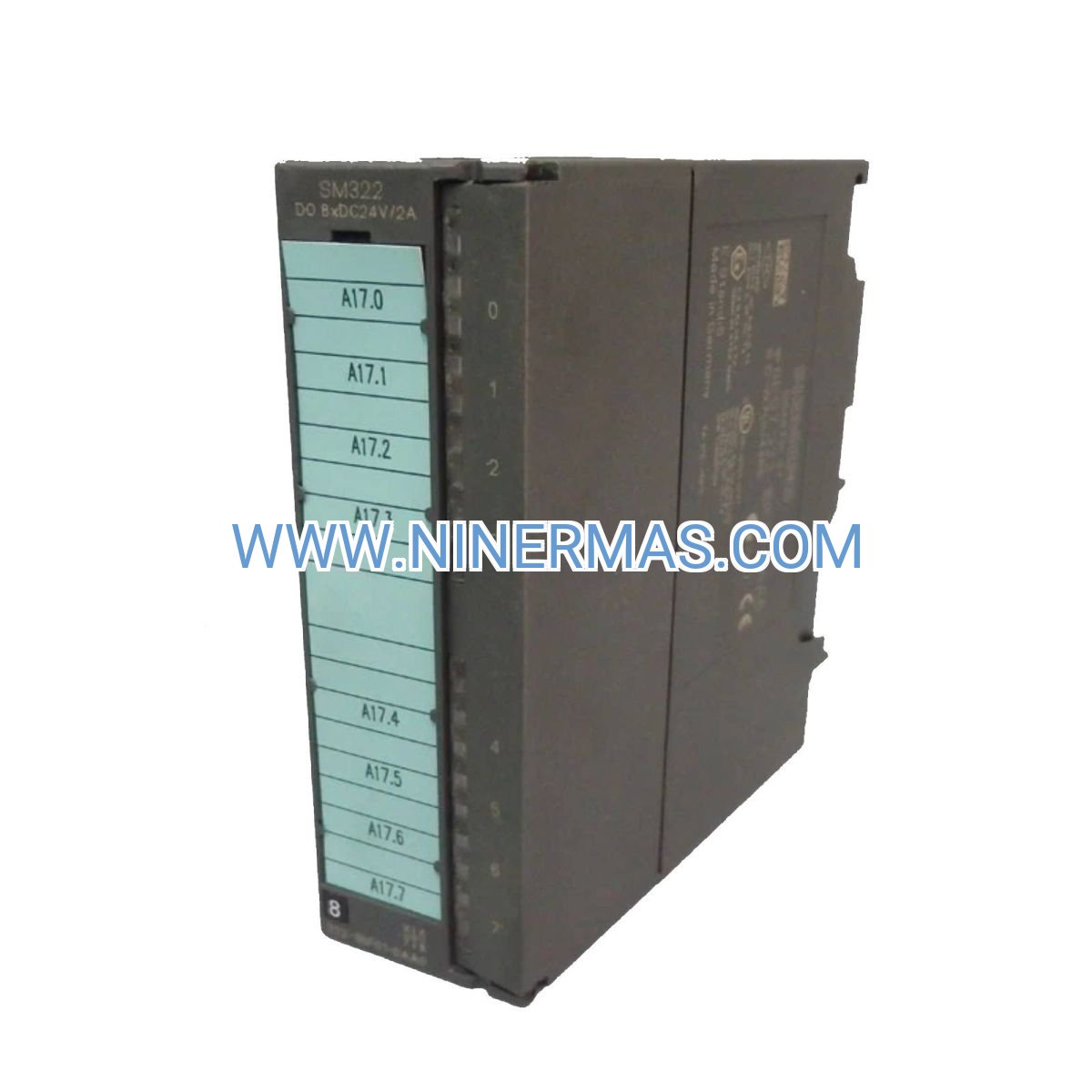

Siemens SM 322 Digital Output Module (Industrial-Grade Control Solution)

The Siemens 6ES7322-1BF01-0AA0 SM 322 is an industrial digital output module designed for SIMATIC S7-300 PLC systems. Through optically isolated output channels and robust circuit protection, it delivers reliable 24V DC switching control for actuators, solenoids, contactors, and indicator lights in demanding automation environments.

Ideal for manufacturing plants, process control systems, building automation, and machine control applications, this module addresses challenges such as output signal interference, load switching reliability, and system expandability. It helps engineers achieve precise control over field devices while maintaining electrical isolation between control logic and power circuits.

With standardized S7-300 mounting and flexible configuration options, the SM 322 offers dependable performance, straightforward diagnostics, and seamless integration with STEP 7 programming software. Suitable for design engineers, system integrators, OEM manufacturers, and plant maintenance teams. Contact our application engineers for configuration assistance and technical specifications.

Core Features & Advantages

• 8 Independent Digital Outputs
  Provides eight optically isolated 24V DC output channels rated at 0.5A each, enabling simultaneous control of multiple field devices with electrical separation between channels for enhanced noise immunity.
• Optical Isolation Protection
  Each output channel features galvanic isolation up to 500V AC, protecting the PLC CPU from voltage spikes, ground loops, and electrical faults originating from field wiring or connected loads.
• Comprehensive Diagnostic Capabilities
  Built-in diagnostics detect short circuits, overload conditions, and wire breaks, with status LEDs providing immediate visual feedback and diagnostic data accessible through STEP 7 for rapid troubleshooting.
• Robust Output Drive Capability
  Capable of directly driving inductive loads such as relay coils, solenoid valves, and small contactors, with integrated freewheeling diodes to suppress voltage transients during load switching.
• Hot-Swappable Design
  Supports module replacement during system operation (with appropriate safety precautions), minimizing downtime in critical production environments and simplifying maintenance procedures.
• Compact DIN Rail Mounting
  Standard S7-300 form factor with 40mm width allows high-density installation on standard DIN rails, optimizing panel space utilization in control cabinets.

Typical Application Scenarios

This module excels in applications requiring reliable digital output control with electrical isolation and diagnostic feedback:

• Manufacturing & Assembly Lines
  Controls pneumatic actuators, conveyor motors, part ejectors, and process indicators in automotive, electronics, and packaging production lines where cycle times and reliability are critical.
• Process Control & Chemical Plants
  Operates motorized valves, pump starters, alarm annunciators, and safety interlocks in water treatment, petrochemical, pharmaceutical, and food processing facilities requiring certified industrial components.
• Building Automation & HVAC Systems
  Manages damper actuators, fan contactors, lighting circuits, and alarm outputs in commercial buildings, data centers, and industrial facilities with centralized control requirements.
• Machine Control & Robotics
  Drives brake releases, gripper solenoids, status lamps, and auxiliary equipment in CNC machines, material handling systems, and automated test equipment where precise timing is essential.
• Energy & Utilities Infrastructure
  Controls switchgear indicators, breaker trip circuits, pump stations, and remote terminal units in power distribution, water supply, and renewable energy installations.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide key electrical and mechanical parameters. Custom configurations available for specific project requirements.

Selection Considerations: When specifying this module, verify load current requirements (ensure each output stays within 0.5A continuous rating), confirm 24V DC power supply capacity for total connected loads, check ambient temperature in the control cabinet (derating may apply above 40°C), and ensure front connector type matches your wiring preference (screw terminals for field wiring, spring terminals for quick maintenance). For assistance with load calculations or system architecture, provide your application details and our engineers will recommend the optimal configuration.

Extended Functionality

• STEP 7 Integration: Fully supported in STEP 7 V5.x and TIA Portal with pre-configured hardware catalog entries, enabling drag-and-drop configuration, automatic address assignment, and integrated diagnostics within the programming environment.
• Redundancy Support: Compatible with S7-300 redundant controller configurations (when used with appropriate CPU models), allowing seamless failover in high-availability applications.
• Distributed I/O Capability: Can be deployed in ET 200M distributed I/O stations via PROFIBUS DP or PROFINET, enabling remote installation closer to field devices to reduce wiring costs.
• Forced Control Mode: Supports output forcing for commissioning and troubleshooting, allowing manual override of program logic to test individual outputs without modifying PLC code.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from stock. Custom-configured modules or large quantity orders may require 2-3 weeks—contact us for expedited options.

Warranty: All modules carry a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Comprehensive support includes remote configuration assistance, on-site commissioning services (region-dependent), and access to certified Siemens technical documentation. We provide complete electrical schematics, terminal connection diagrams, STEP 7 GSD files, and multilingual operation manuals with each order.

Quality Certifications: Products sourced through authorized distribution channels with full traceability. Compliance documentation (CE declarations, UL certificates, RoHS statements) available upon request for regulatory submissions.

Frequently Asked Questions (FAQ)

Q: How do I connect the SM 322 digital output module to my existing S7-300 system?
A: The module mounts directly onto the S7-300 DIN rail next to your CPU or other I/O modules. Connect the 20-pin front connector to your field wiring (observing polarity for 24V DC loads), configure the module address in STEP 7 hardware configuration, download the configuration to the CPU, and verify operation through the status LEDs and diagnostic buffer.

Q: What is the maximum number of SM 322 modules I can install in one S7-300 rack?
A: This depends on your CPU model and power supply capacity. Most S7-300 CPUs support up to 8 modules per rack (including the CPU). Check your CPU's maximum I/O capacity and ensure your power supply can provide sufficient current for all modules plus connected loads.

Q: Can this module drive 230V AC loads like contactors or solenoid valves?
A: No, the SM 322 6ES7322-1BF01-0AA0 is designed for 24V DC loads only. To control 230V AC devices, use an intermediate relay or contactor with a 24V DC coil that the SM 322 can drive, which then switches the higher voltage load.

Q: What diagnostic information does the module provide when an output fault occurs?
A: The module detects short circuits and overload conditions on each channel. Faults are indicated by the channel status LED turning red, a diagnostic interrupt is sent to the CPU, and detailed fault information (including the affected channel number) is logged in the CPU's diagnostic buffer, accessible through STEP 7.

Q: Is the SM 322 compatible with PROFINET-based S7-300 systems?
A: The SM 322 is designed for the S7-300 backplane bus. For PROFINET applications, you can use the module in an ET 200M distributed I/O station with a PROFINET interface module (IM 153-x PN), allowing integration into PROFINET networks while maintaining the same functionality.

Q: What is the expected service life of the output channels under normal operating conditions?
A: With proper load sizing (staying within the 0.5A rating) and appropriate inductive load suppression, the solid-state output transistors typically provide 100,000+ switching cycles. Actual lifespan depends on load type, switching frequency, ambient temperature, and electrical environment quality.

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or project quotations, please provide the following information: project name and industry, application description (machine type or process), number of digital outputs required, load specifications (voltage, current, inductive/resistive), switching frequency requirements, environmental conditions (temperature, humidity, vibration), and any specific certifications needed (ATEX, IECEx, marine, etc.). Our application engineers will respond within 24 hours with tailored recommendations and pricing.
