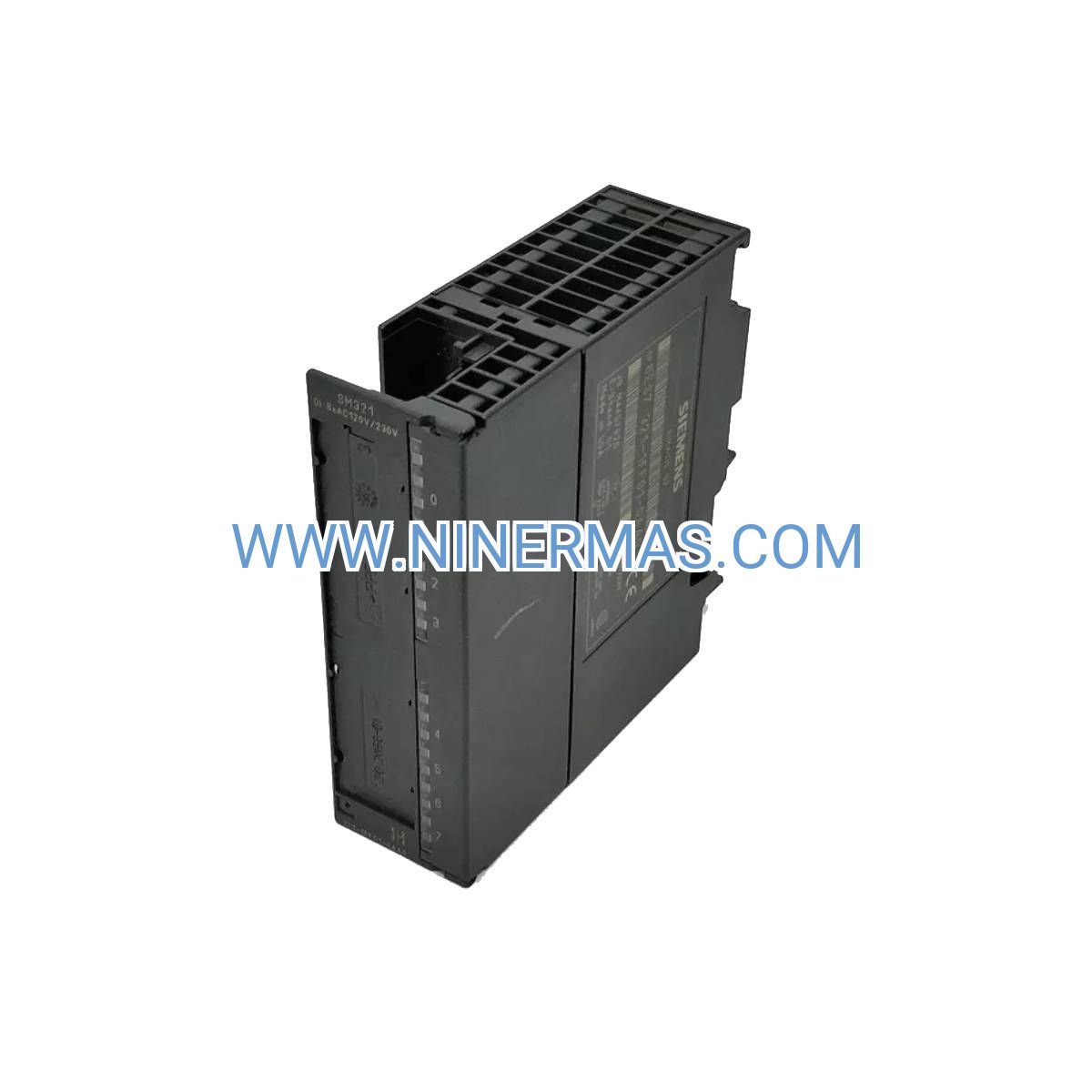

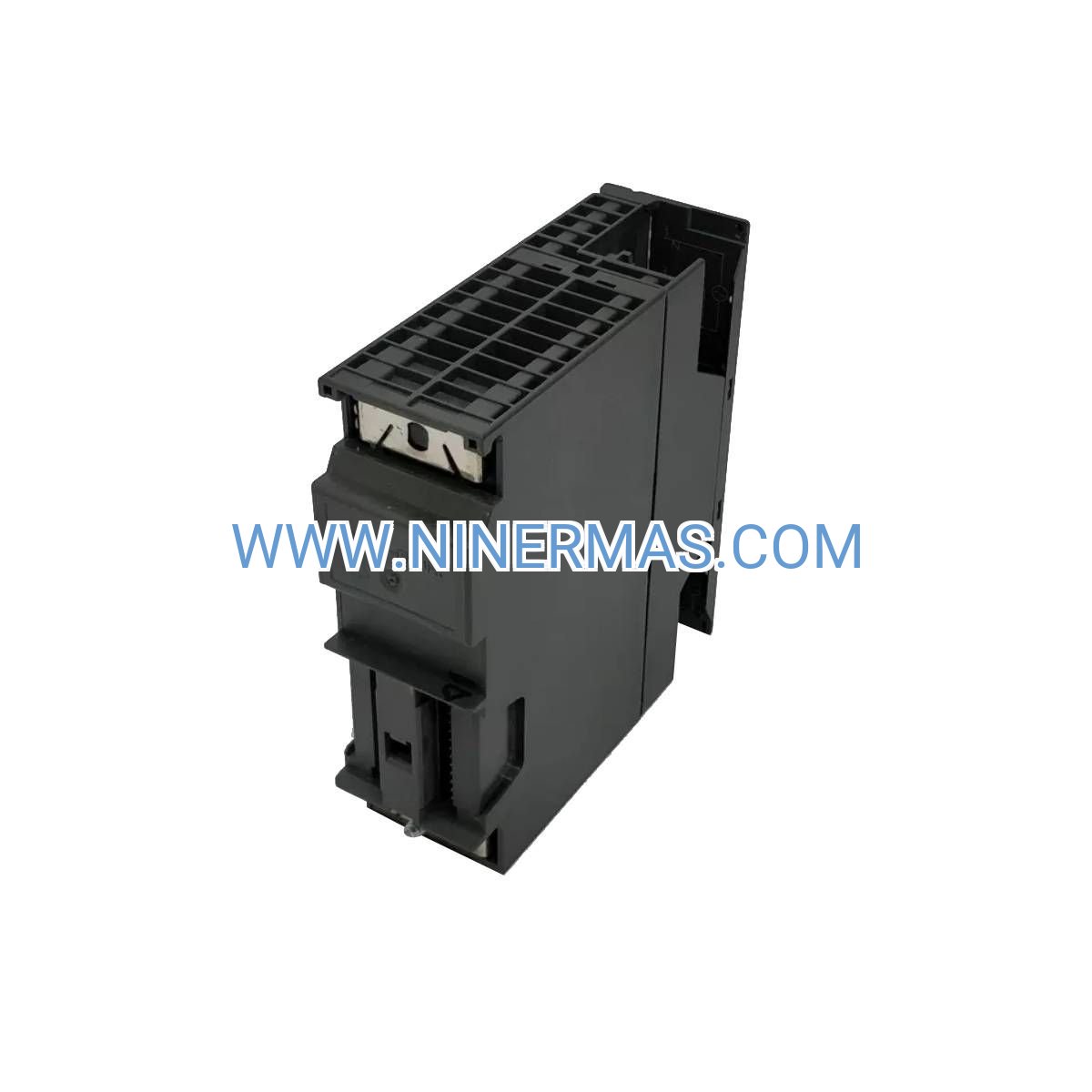

Siemens SM 321 Digital Input Module (Industrial-Grade AC Signal Processing)

The Siemens 6ES7321-1FF01-0AA0 is a high-performance digital input module engineered for SIMATIC S7-300 automation systems. This isolated 8-channel AC input module delivers reliable signal acquisition from 120V/230V AC field devices, making it the cornerstone solution for industrial control applications requiring robust electrical isolation and noise immunity.

Designed for system integrators and automation engineers managing complex manufacturing environments, this SM 321 module solves critical challenges in AC signal processing—eliminating ground loop interference, protecting PLC backplane circuits, and ensuring deterministic input response times even in electrically harsh industrial settings.

With proven Siemens engineering heritage and RoHS compliance since 2005, the 6ES7321-1FF01-0AA0 combines galvanic isolation technology, compact 20-pole connectivity, and seamless TIA Portal integration to deliver unmatched reliability for mission-critical automation infrastructure.

Core Features & Technical Advantages

✓ Galvanic Isolation Architecture
Each of the 8 digital inputs features electrical isolation up to 500V AC, protecting your S7-300 CPU from voltage spikes, ground potential differences, and electromagnetic interference common in industrial power distribution systems.

✓ Dual-Voltage AC Compatibility
Accepts both 120V AC and 230V AC input signals without hardware modification, reducing spare parts inventory and simplifying multi-region deployment for global manufacturing operations.

✓ Compact 20-Pole Terminal Design
Single-connector interface streamlines cabinet wiring, reduces installation time by 40% compared to individual terminal blocks, and minimizes potential wiring errors during commissioning.

→ Hot-Swap Capability
Supports online module replacement without system shutdown when used with S7-300 redundant configurations, maximizing uptime for continuous process industries.

→ Diagnostic LED Indicators
Per-channel status visualization enables rapid troubleshooting, reducing mean time to repair (MTTR) by providing instant visual confirmation of input signal states.

→ TIA Portal Native Integration
Plug-and-play hardware detection with automatic I/O address assignment in STEP 7 programming environment, accelerating project engineering cycles.

Application Scenarios & Industry Solutions

Manufacturing Automation & Assembly Lines
Monitor limit switches, proximity sensors, and safety interlocks across conveyor systems and robotic work cells. The module's isolated inputs prevent false triggering from VFD-induced electrical noise, ensuring precise position detection and collision avoidance in high-speed packaging operations.

Building Management Systems (BMS)
Interface with HVAC control panels, fire alarm systems, and emergency stop circuits where AC voltage signals are standard. Galvanic isolation meets electrical code requirements for separation between low-voltage control and mains-powered field devices.

Water & Wastewater Treatment
Acquire pump status feedback, valve position confirmations, and level switch signals in municipal treatment facilities. The module's robust design withstands humid environments and provides reliable operation in outdoor control cabinets with temperature fluctuations.

Energy & Utilities Infrastructure
Process circuit breaker auxiliary contacts, transformer alarm signals, and substation equipment status in power distribution networks. The 120/230V AC input range accommodates regional voltage standards without custom engineering.

Material Handling & Logistics
Track sortation system diverters, gate positions, and conveyor zone occupancy sensors in distribution centers. Fast input response times (typically <10ms) support high-throughput operations requiring precise timing coordination.

Technical Specifications & Selection Guide

Selection Criteria: Choose this module when your application requires AC voltage signal processing with electrical isolation. For DC input applications (24V DC sensors), consider the SM 321 DC variant (6ES7321-1BH02-0AA0). If you need more than 8 inputs, the 16-channel SM 321 models (6ES7321-1FF10-0AA0) offer higher density in the same footprint.

Extended Capabilities & System Integration

PROFINET Integration Ready
When paired with S7-300 CPUs featuring PROFINET interfaces (e.g., CPU 315-2 PN/DP), this module participates in distributed I/O architectures, enabling remote installation up to 100 meters from the central controller via ET 200M interface modules.

Redundancy Support
Compatible with S7-300H redundant controller configurations for high-availability applications in pharmaceutical manufacturing, power generation, and critical infrastructure where <99.99% uptime is mandatory.

Firmware Updateable
Supports in-service firmware updates via TIA Portal for security patches and feature enhancements, protecting your automation investment against obsolescence.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units to major industrial hubs (Shanghai, Shenzhen, Guangzhou). Express 24-hour delivery available for emergency replacements.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended 36-month service plans available for critical applications.

Technical Support: Direct access to certified Siemens automation specialists for configuration assistance, troubleshooting guidance, and application engineering consultation. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, GSD file for hardware configuration, and sample STEP 7 code blocks for common input processing tasks.

Frequently Asked Questions

Q: Can this SM 321 module interface with 24V DC sensors and switches?
A: No, the 6ES7321-1FF01-0AA0 is specifically designed for 120V/230V AC input signals. For 24V DC applications, you'll need the DC-rated SM 321 variant (part number 6ES7321-1BH02-0AA0 or similar). Mixing AC and DC modules in the same S7-300 rack is fully supported.

Q: What is the maximum cable length between field devices and this input module?
A: With shielded cable and proper grounding, you can reliably run AC input signals up to 300 meters. For installations exceeding 200 meters, we recommend using signal conditioners or remote I/O solutions to maintain noise immunity and signal integrity.

Q: How much energy does this module consume compared to DC input modules?
A: The module draws approximately 50mA from the S7-300 backplane (5V DC supply), which is comparable to DC input modules. The AC input circuitry is powered by the field voltage (120/230V AC), so there's minimal impact on your PLC power budget.

Q: Does this module require special installation procedures or certifications?
A: Installation follows standard S7-300 DIN rail mounting procedures. However, because this module handles mains voltage (120/230V AC), wiring must be performed by qualified electricians in accordance with local electrical codes (NEC, IEC 60204). Maintain proper separation between AC input wiring and low-voltage communication cables.

Q: Is remote monitoring and diagnostics possible with this digital input module?
A: Yes, when integrated with S7-300 CPUs that support PROFINET or Industrial Ethernet, you can access real-time input status, diagnostic counters, and module health data via SCADA systems, HMI panels, or cloud-based IoT platforms using OPC UA or MQTT protocols.

Q: What is the typical lifespan of this module in continuous industrial operation?
A: Siemens rates the SM 321 series for 10+ years of continuous operation under normal industrial conditions (0-60°C ambient, <95% humidity). The solid-state input circuitry has no moving parts, ensuring long-term reliability. We recommend periodic inspection of terminal connections and firmware updates to maximize service life.
