Siemens CPU 317-2 DP 6ES7317-2AK14-0AB0 | Industrial PLC Controller with Dual DP Interface | SIMATIC S7-300

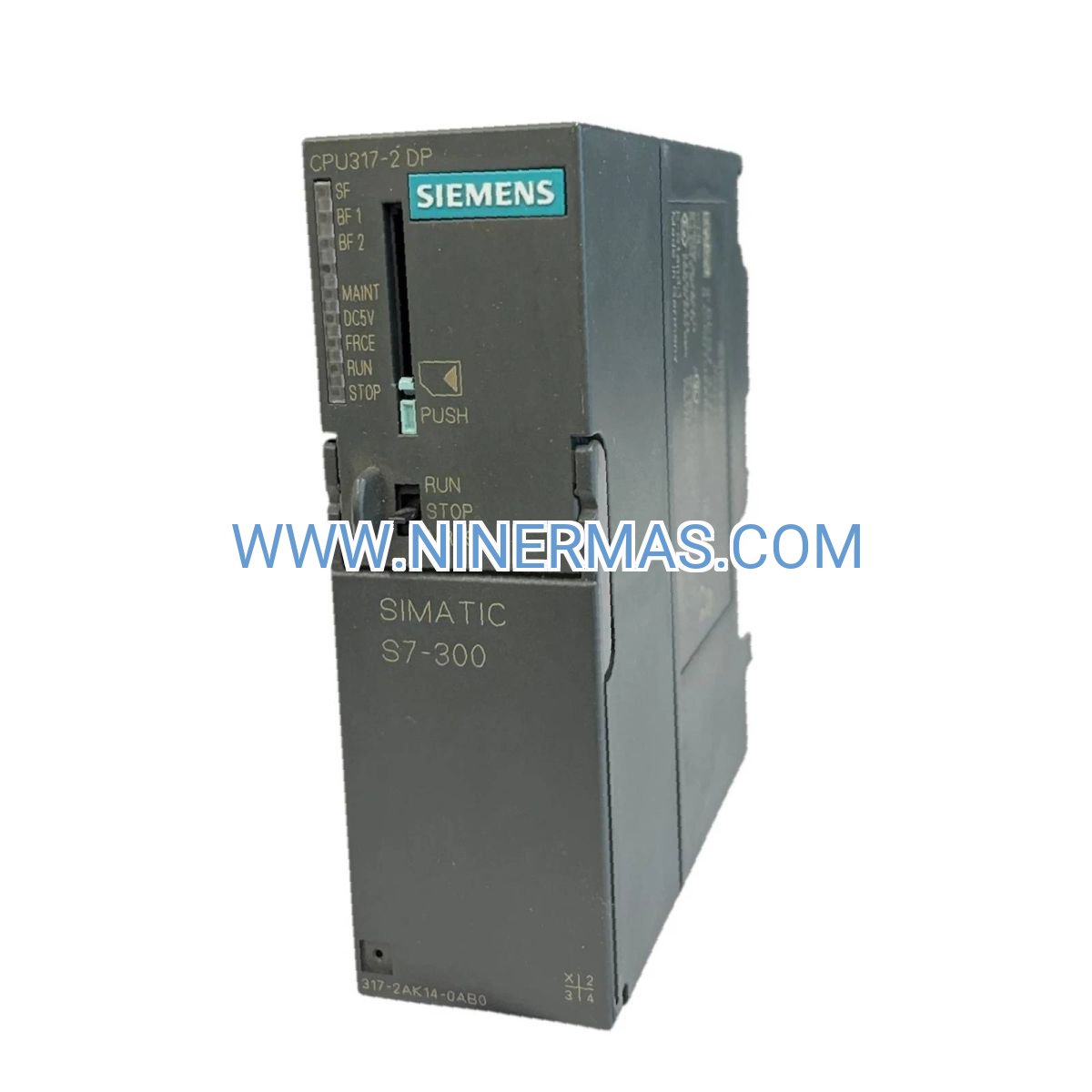

Siemens CPU 317-2 DP (Industrial-Grade Programmable Logic Controller)

The Siemens CPU 317-2 DP (6ES7317-2AK14-0AB0) is a high-performance programmable logic controller designed for complex automation tasks in industrial environments. Through advanced processing capabilities, dual PROFIBUS-DP interfaces, and 1 MB work memory, this CPU module delivers reliable control, seamless distributed I/O integration, and real-time data processing for mission-critical applications.

Suitable for manufacturing automation, process control systems, chemical plants, energy facilities, and industrial DCS integration scenarios, this controller helps solve challenges such as limited I/O expansion capacity, slow communication response, insufficient program memory, lack of redundancy options, and complex multi-network coordination requirements.

With standardized design and flexible configuration options, the CPU 317-2 DP offers superior processing speed, extensive connectivity, proven reliability, excellent scalability, and comprehensive diagnostic capabilities—making it ideal for system integrators, automation engineers, plant maintenance teams, and OEM equipment manufacturers. Contact our engineering team for application consultation and technical specifications.

Core Features & Advantages

• High-Performance Processing
  Equipped with 1 MB work memory and optimized instruction execution speed, enabling complex logic operations, data handling, and real-time control tasks with minimal scan time for time-sensitive industrial processes.
• Dual PROFIBUS-DP Interfaces
  Features two integrated DP master/slave interfaces supporting distributed I/O networks, remote field devices, and multi-segment communication architectures, reducing wiring costs while improving system flexibility and diagnostic transparency.
• Extensive I/O Expansion Capability
  Supports connection of up to 32 signal modules and 8 communication processors via S7-300 backplane, accommodating diverse sensor types, actuator controls, and specialized function modules for comprehensive process automation.
• Robust Industrial Design
  Built to withstand harsh environments with wide operating temperature range, EMC compliance, and vibration resistance, ensuring stable operation in manufacturing plants, outdoor installations, and heavy industrial facilities.
• Integrated Diagnostics & Monitoring
  Provides comprehensive system diagnostics including module status, communication errors, program execution monitoring, and buffer event logging, reducing troubleshooting time and minimizing unplanned downtime.
• Seamless SIMATIC Integration
  Fully compatible with STEP 7 programming software, SIMATIC HMI panels, WinCC SCADA systems, and TIA Portal engineering environment, enabling efficient project development, commissioning, and lifecycle management.

Typical Application Scenarios

This CPU module is engineered for applications demanding high reliability, extensive I/O capacity, and distributed control architecture, particularly in:

• Manufacturing Automation & Assembly Lines
  Controls multi-station production equipment, robotic work cells, material handling systems, and quality inspection stations, coordinating distributed I/O across factory floors while maintaining precise timing and synchronization.
• Process Control & Chemical Plants
  Manages continuous process variables including temperature, pressure, flow, and level control in chemical reactors, distillation columns, and batch processing systems, ensuring safety interlocks and regulatory compliance.
• Energy & Utilities Infrastructure
  Operates power generation facilities, water treatment plants, HVAC systems, and building automation networks, providing reliable control for pumps, valves, motors, and monitoring equipment across distributed locations.
• Packaging & Material Handling
  Coordinates high-speed packaging lines, conveyor systems, sorting equipment, and warehouse automation, integrating barcode scanners, vision systems, and motion controllers for optimized throughput.
• OEM Machine Builders
  Serves as the control platform for specialized machinery including CNC systems, textile equipment, printing presses, and food processing machines, offering standardized hardware with customizable programming.

Technical Parameters & Selection Guide

To facilitate system design and component selection, we provide key technical specifications for the CPU 317-2 DP. Custom configurations and extended modules are available based on project requirements.

Selection Recommendations: When selecting this CPU, consider maximum I/O point count, required communication protocols, program complexity, scan time requirements, and environmental conditions. For applications requiring redundancy, Ethernet connectivity, or safety functions, consult our engineering team with your process description, I/O list, communication architecture, and installation environment details for optimized system configuration.

Extended Capabilities

• Multi-Network Communication: Supports simultaneous operation on MPI, PROFIBUS-DP, and Industrial Ethernet (via CP module), enabling integration with SCADA systems, remote I/O, and enterprise networks.
• Data Logging & Recipe Management: Stores production data, alarm histories, and process recipes on MMC or network drives for quality traceability and batch documentation.
• Remote Access & Diagnostics: Compatible with SIMATIC teleservice adapters and VPN routers for secure remote programming, monitoring, and troubleshooting.
• Third-Party Integration: Communicates with non-Siemens devices via open protocols including Modbus RTU/TCP, OPC DA/UA, and custom serial interfaces.

Delivery, Service & Quality Assurance

Standard catalog items are typically available from stock with 3–7 business days delivery; custom-configured systems or project packages require 10–15 business days lead time. All products carry a minimum 12-month warranty covering manufacturing defects and component failures. We provide remote technical consultation, on-site commissioning support (region-dependent), and comprehensive documentation including wiring diagrams, I/O configuration templates, sample programs, and operation manuals to streamline installation and maintenance activities.

Frequently Asked Questions (FAQ)

Q: How does the CPU 317-2 DP integrate with existing PROFIBUS-DP networks?
A: The CPU features two integrated DP interfaces that can operate as DP master or DP slave. Connect to existing networks via standard PROFIBUS connectors, configure network addresses and baud rates (9.6 kbps to 12 Mbps) in STEP 7 hardware configuration, and assign I/O modules to respective DP segments. Both interfaces support redundant communication paths for enhanced reliability.

Q: What is the maximum number of I/O points this CPU can handle?
A: The CPU 317-2 DP supports up to 8,192 digital inputs, 8,192 digital outputs, 1,024 analog inputs, and 1,024 analog outputs through local modules and distributed PROFIBUS-DP slaves. Actual capacity depends on module types, communication load, and scan time requirements.

Q: Can this CPU be programmed with TIA Portal or only STEP 7 Classic?
A: The CPU 317-2 DP is primarily designed for STEP 7 V5.x (Classic) programming environment. While TIA Portal can communicate with S7-300 systems for diagnostics and HMI integration, full programming functionality is optimized in STEP 7 Classic. Migration tools are available for future upgrades to S7-1500 platforms.

Q: What environmental conditions are required for installation?
A: Install in a clean, dry control cabinet with IP20 minimum protection, ambient temperature 0–60°C (horizontal mounting) or 0–40°C (vertical mounting), relative humidity 5–95% non-condensing, and adequate ventilation. Avoid direct sunlight, corrosive gases, excessive vibration, and electromagnetic interference sources.

Q: Does this CPU support remote monitoring and data acquisition?
A: Yes, when combined with CP 343-1 Ethernet module or similar communication processors, the CPU enables remote SCADA connectivity via Industrial Ethernet, OPC servers, web-based diagnostics, and secure VPN access. PROFIBUS-DP interfaces also support distributed I/O data exchange with remote field devices.

Q: What memory card is required and how is it used?
A: The CPU requires a Siemens MMC (Micro Memory Card) for load memory, available in capacities from 64 KB to 8 MB. The MMC stores the complete project including program blocks, data blocks, hardware configuration, and can serve as a portable backup or for transferring programs between identical CPUs without a programming device.

Contact & Technical Support

For detailed application engineering, system quotations, or technical assistance, please provide the following information: project name, application industry, required I/O count and types, communication protocols needed, environmental conditions, and any special functional requirements. Our automation specialists will deliver customized recommendations, configuration proposals, and competitive pricing within 24–48 hours.
