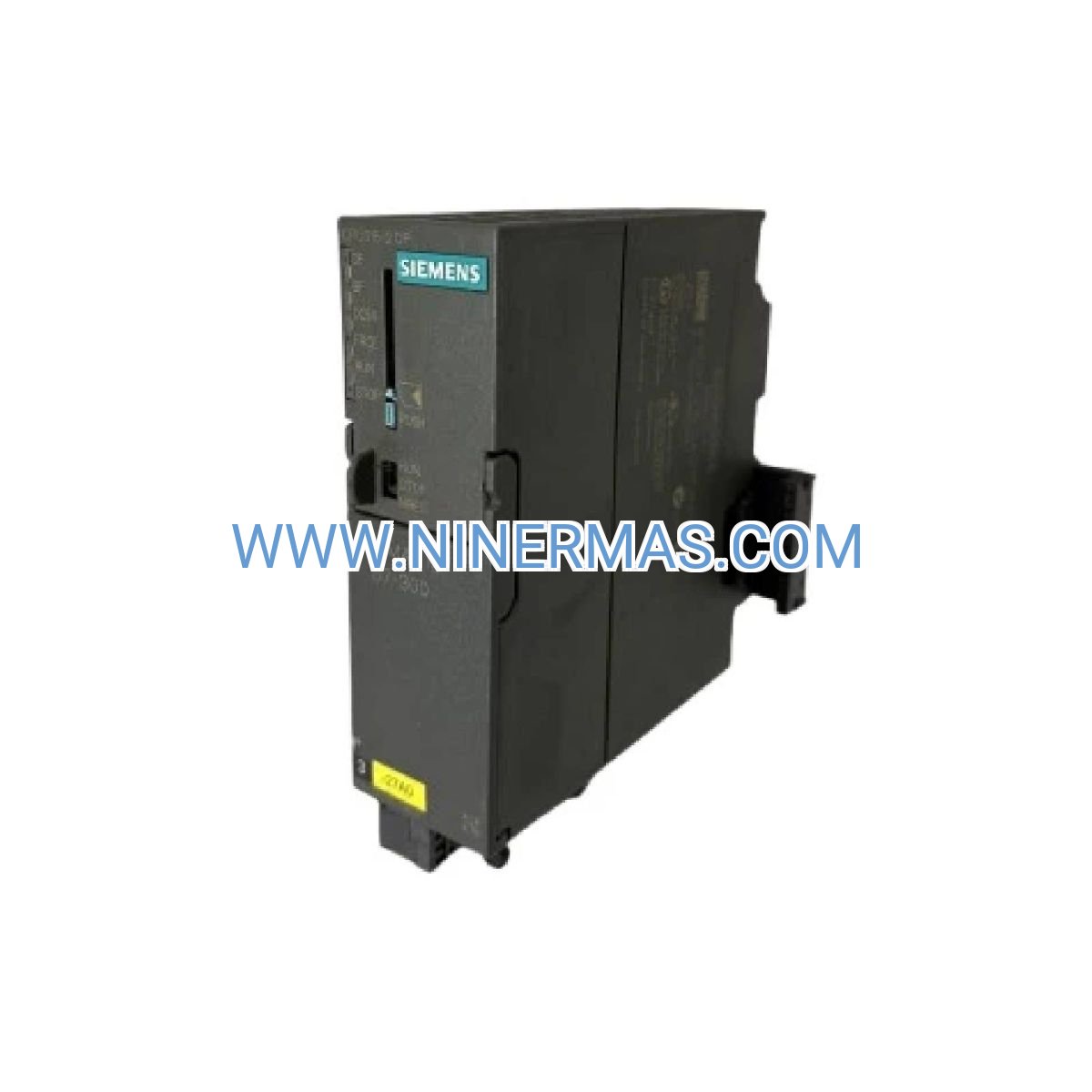

Siemens CPU 314C-2 DP (6ES7314-6EH04-0AB0) – Compact PLC Controller with Integrated I/O

The Siemens SIMATIC S7-300 CPU 314C-2 DP is an industrial-grade programmable logic controller designed for medium-scale automation applications. Through its integrated digital and analog I/O channels combined with dual PROFIBUS DP interfaces, it delivers reliable process control, real-time monitoring, and seamless distributed I/O expansion. This compact CPU module eliminates the need for separate I/O modules in space-constrained installations while maintaining the robust performance expected from Siemens automation platforms.

Ideal for manufacturing automation, process control systems, building management, and industrial data acquisition scenarios, the CPU 314C-2 DP addresses common challenges such as limited cabinet space, complex wiring requirements, high integration costs, and the need for flexible fieldbus communication. It is particularly suited for machine builders, system integrators, OEM equipment manufacturers, and plant maintenance teams seeking a balance between functionality and footprint.

With standardized programming environments and extensive customization options, this controller offers fast commissioning, proven reliability, straightforward maintenance, and excellent compatibility with existing Siemens ecosystems. Engineering firms, automation contractors, and end-user facilities can contact our technical team for application-specific configuration guidance and quotations.

Core Features & Advantages

• Integrated I/O for Space Efficiency
  Built-in 24 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs reduce module count and simplify wiring, making it ideal for compact control cabinets and retrofit projects.
• Dual PROFIBUS DP Interfaces
  Two independent PROFIBUS DP ports enable flexible network topologies, support distributed I/O expansion up to 125 nodes per interface, and facilitate redundant communication architectures for enhanced system availability.
• High Processing Performance
  128 KB work memory and optimized instruction execution ensure fast scan cycles, suitable for time-critical control loops, complex logic operations, and data-intensive applications in process and discrete manufacturing.
• Comprehensive Diagnostic Capabilities
  Integrated diagnostics with LED status indicators, system fault logging, and PROFIBUS network diagnostics minimize downtime, accelerate troubleshooting, and reduce maintenance costs through proactive fault detection.
• Flexible Programming & Integration
  Fully compatible with STEP 7 programming software, supporting LAD, FBD, STL, and SCL languages. Seamless integration with SIMATIC HMI panels, SCADA systems, and third-party devices via standard industrial protocols.
• Robust Industrial Design
  Designed for harsh environments with wide operating temperature range (-25°C to +60°C), high electromagnetic immunity (EMC), and conformal coating options for protection against dust, moisture, and chemical exposure.

Typical Application Scenarios

This CPU module is engineered for applications demanding reliable control, compact design, and fieldbus connectivity, including:

• Manufacturing Automation & Machine Control
  Controls packaging lines, assembly stations, material handling systems, and CNC machine tools where integrated I/O reduces wiring complexity and cabinet footprint while maintaining precise motion and process control.
• Process Control & Chemical Industries
  Manages temperature regulation, pressure control, flow metering, and batch processing in chemical plants, pharmaceutical production, and food & beverage facilities, ensuring stable process parameters and regulatory compliance.
• Building Automation & HVAC Systems
  Coordinates HVAC equipment, lighting control, access systems, and energy management in commercial buildings, data centers, and industrial facilities, optimizing energy consumption and occupant comfort.
• Water & Wastewater Treatment
  Operates pump stations, filtration systems, chemical dosing, and level control in municipal water treatment plants and industrial wastewater facilities, providing reliable 24/7 operation with remote monitoring capabilities.
• Energy & Utilities Infrastructure
  Supports substation automation, renewable energy systems, and distributed generation control, interfacing with SCADA networks for real-time data acquisition and supervisory control.

Technical Specifications & Selection Guide

To facilitate engineering design and product selection, we provide key technical parameters for the CPU 314C-2 DP. Custom configurations are available based on project-specific requirements.

Selection Recommendations: When specifying this CPU, consider the following factors: total I/O point count (local + distributed), required scan cycle time, network topology and node count, environmental conditions (temperature, humidity, vibration), power supply architecture, and programming software version compatibility. For complex applications or multi-CPU configurations, our application engineers can provide detailed system architecture recommendations and bill of materials.

Advanced Functionality & Customization

• Redundancy & High Availability: Can be configured in hot-standby or fault-tolerant architectures using S7-400H redundancy modules for mission-critical applications requiring 99.99%+ uptime.
• Remote Access & Diagnostics: Supports remote programming, monitoring, and diagnostics via Ethernet/IP gateways, enabling predictive maintenance and reducing on-site service visits.
• Data Logging & Historian Integration: Compatible with SIMATIC WinCC, Wonderware, Ignition, and other SCADA/historian platforms for long-term trend analysis and production reporting.
• Safety Integration: Can interface with SIMATIC Safety systems (F-modules) for SIL 2/3 safety functions in accordance with IEC 61508 and ISO 13849 standards.
• Custom Panel Design: We offer custom control panel assembly services including CPU integration, I/O wiring, HMI mounting, UPS backup, and factory acceptance testing (FAT).

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days; custom-configured panels require 10-15 business days depending on complexity and current workload.

Warranty: All Siemens CPUs carry a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts are available upon request.

Technical Support: Our team provides remote technical assistance for programming, commissioning, and troubleshooting. On-site startup and training services are available for major projects (subject to location and scope).

Documentation Package: Each unit ships with complete technical documentation including datasheet, wiring diagrams, GSD files for PROFIBUS configuration, sample STEP 7 programs, and quick-start guide in English and Chinese.

Quality Certifications: All products are sourced through authorized Siemens distribution channels and include full traceability documentation, certificates of conformity, and compliance with RoHS and REACH directives.

Frequently Asked Questions (FAQ)

Q: How does the CPU 314C-2 DP integrate with existing S7-300 systems?
A: The CPU 314C-2 DP is fully compatible with standard S7-300 rack systems and can be mixed with other S7-300 CPUs and I/O modules on the same backplane. It uses the same STEP 7 programming environment and shares hardware configuration databases, making integration straightforward. Verify power budget and slot assignments during system expansion.

Q: What is the maximum I/O capacity when using both PROFIBUS DP interfaces?
A: Each PROFIBUS DP interface supports up to 125 nodes (slaves), allowing a theoretical maximum of 250 distributed I/O devices. Practical limits depend on network cycle time requirements, data volume per node, and bus topology. For large systems, consult PROFIBUS network planning guidelines or contact our engineering team.

Q: What energy savings can be achieved compared to relay-based control systems?
A: PLC-based control typically reduces energy consumption by 15-30% compared to traditional relay logic through optimized sequencing, variable speed drive integration, and intelligent load management. Actual savings depend on application type, duty cycle, and control strategy implementation.

Q: What are the environmental requirements for installation?
A: The CPU operates reliably in ambient temperatures from -25°C to +60°C with IP20 protection rating (standard). For harsh environments (high humidity, corrosive atmospheres, extreme vibration), specify conformal coating, sealed connectors, and NEMA 4/4X enclosures. Ensure adequate ventilation and avoid direct sunlight exposure.

Q: Does this CPU support remote monitoring and Industrial IoT connectivity?
A: Yes, through optional CP 343-1 Ethernet communication processors or third-party gateways (Modbus TCP, OPC UA, MQTT), the CPU can connect to cloud platforms, mobile apps, and enterprise MES/ERP systems. Native PROFIBUS DP also supports integration with SCADA systems for real-time data visualization and alarm management.

Q: Can I upgrade from an older S7-300 CPU to the 314C-2 DP without major reprogramming?
A: In most cases, yes. STEP 7 programs are largely portable across S7-300 CPU families. However, verify memory requirements, I/O addressing schemes, and communication block compatibility. We recommend thorough simulation and testing before deployment. Migration assistance is available as a professional service.

Request a Quote or Technical Consultation

To receive a detailed application proposal, pricing quotation, or technical support, please provide the following information: project name and industry, application description (process type, control objectives), estimated I/O count (digital/analog, local/distributed), number of CPUs required, power supply specifications, environmental conditions, delivery timeline, and any special certifications or documentation needs. Our application engineers will respond within one business day with tailored recommendations and commercial terms.
