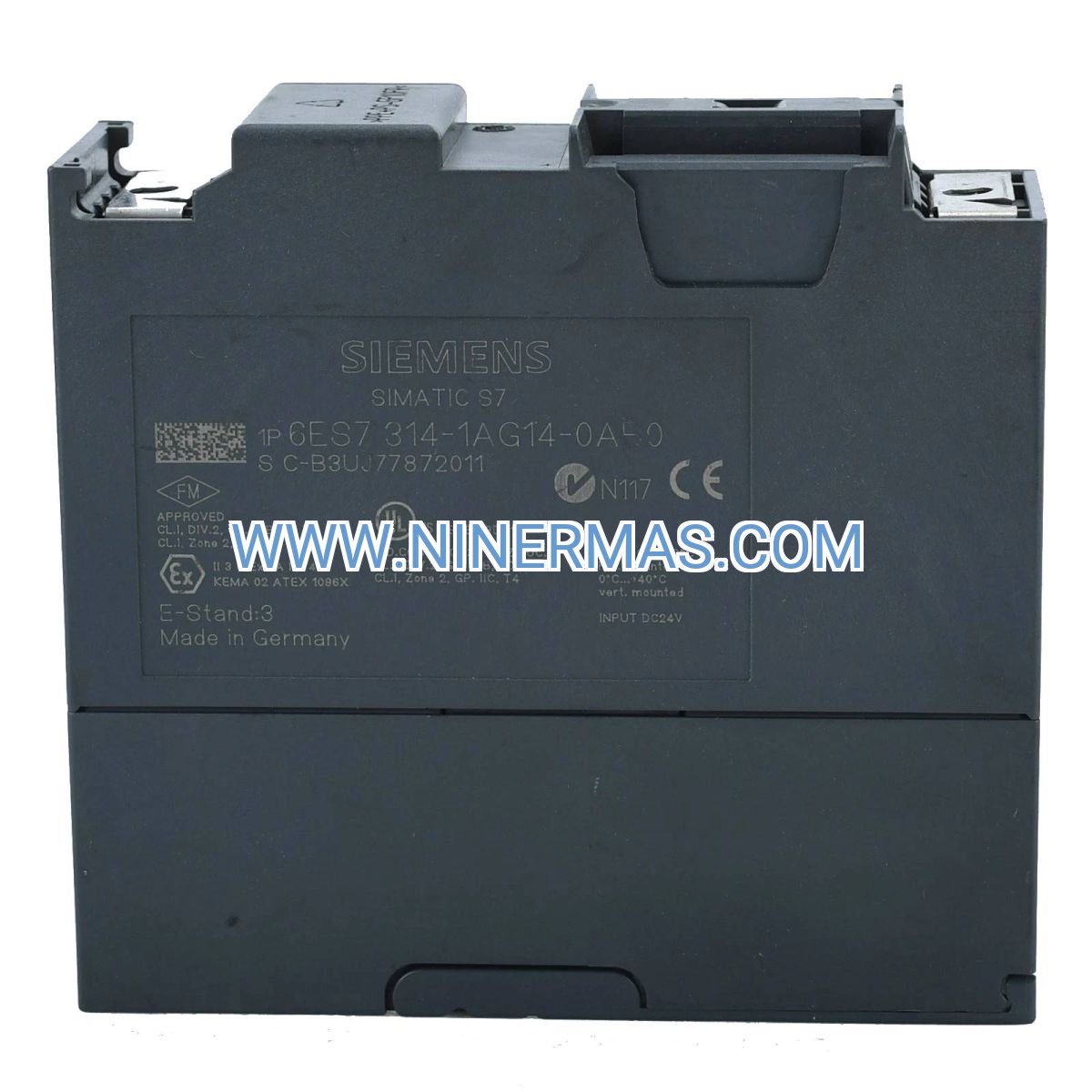

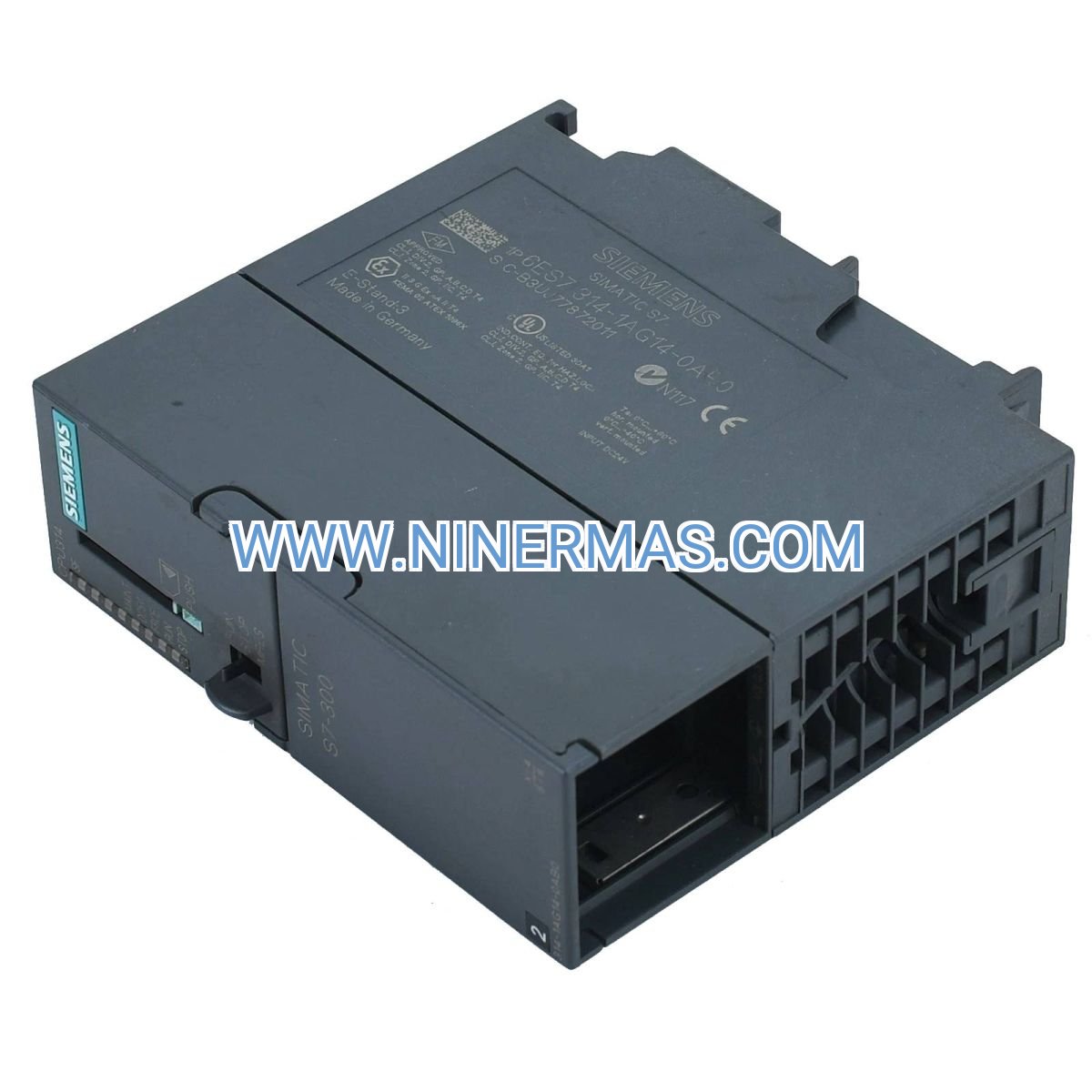

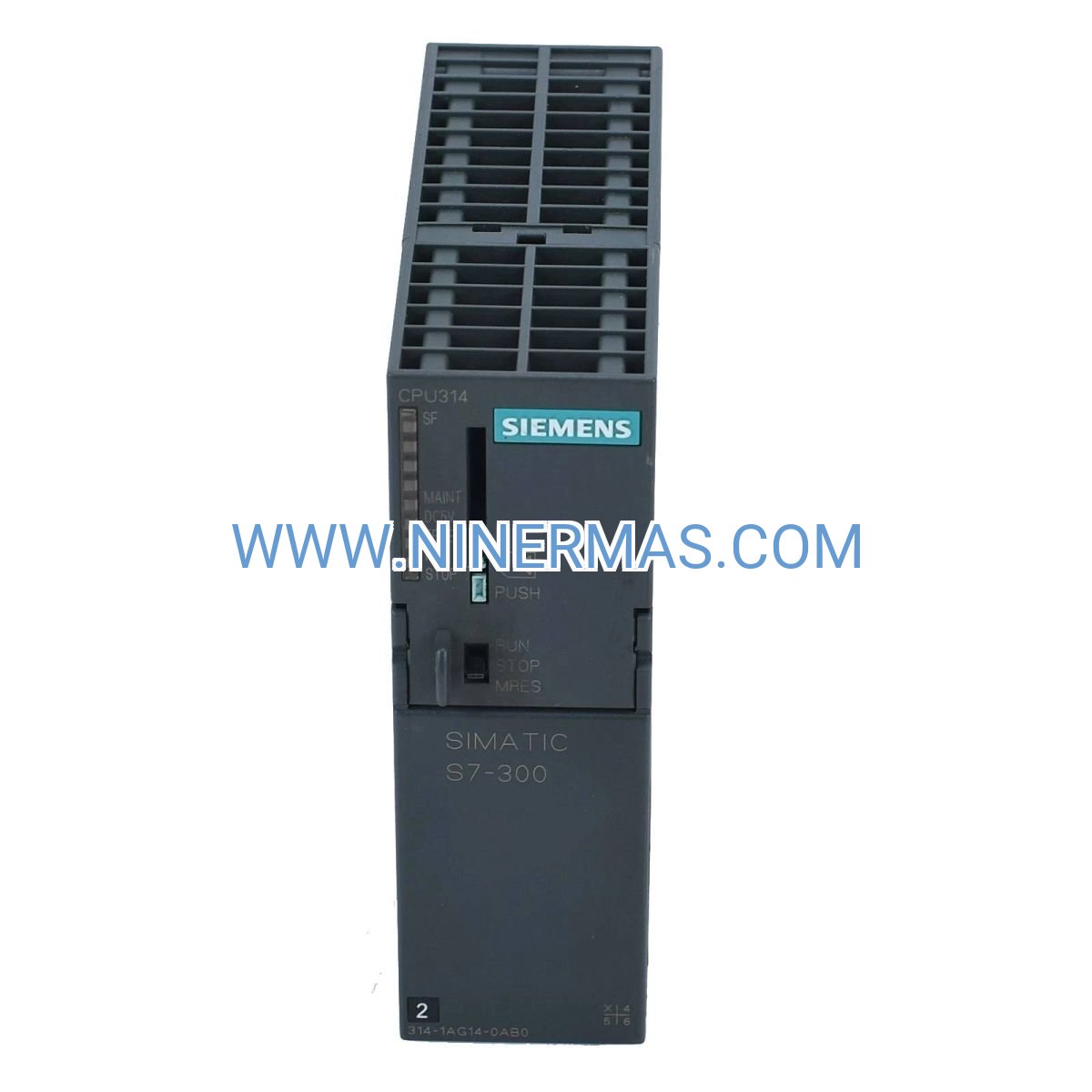

Siemens SIMATIC S7-300 CPU 314 (Industrial-Grade PLC Controller)

The Siemens SIMATIC S7-300 CPU 314 (6ES7314-1AG13-0AB0) is a compact programmable logic controller designed for standard to medium-complexity automation tasks. Leveraging proven S7-300 architecture with integrated MPI communication interface, this CPU delivers reliable real-time control for discrete manufacturing, process automation, and infrastructure systems.

Engineered for industrial environments including automotive assembly lines, chemical batch processing, water treatment facilities, and packaging machinery, the CPU 314 addresses challenges such as inconsistent control logic execution, limited I/O scalability, communication bottlenecks, and inadequate diagnostic visibility that can lead to unplanned downtime.

Through standardized programming (STEP 7) and modular expansion capability, this controller offers deterministic scan cycles, robust fault handling, seamless integration with SIMATIC HMI panels, and field-proven reliability. Suitable for system integrators, OEM machine builders, plant engineers, and maintenance teams requiring IEC 61131-compliant automation solutions. Contact our application engineers for system configuration and technical consultation.

Core Features & Technical Advantages

• Optimized Processing Performance
  Equipped with 24 KB work memory and 48 KB load memory, the CPU executes bit operations in 0.1 μs and word operations in 0.2 μs, ensuring fast response times for time-critical control loops and sequential logic.
• Flexible I/O Expansion Architecture
  Supports up to 1,024 digital I/O and 128 analog I/O through signal modules, function modules, and communication processors, accommodating system growth without controller replacement.
• Integrated MPI Communication
  Built-in Multi-Point Interface (MPI) enables programming device connection, HMI data exchange, and peer-to-peer communication at up to 187.5 kbit/s, reducing wiring complexity and commissioning time.
• Comprehensive Diagnostic Capabilities
  Real-time system diagnostics with LED status indicators, buffer memory for event logging, and STEP 7 diagnostic tools facilitate rapid troubleshooting and minimize mean time to repair (MTTR).
• Industrial-Grade Reliability
  Conformal-coated PCB, wide operating temperature range (-25°C to +60°C), and immunity to electromagnetic interference (EMC) ensure stable operation in harsh factory environments with dust, vibration, and electrical noise.
• Standardized Programming Environment
  Fully compatible with SIMATIC STEP 7 software supporting LAD, FBD, STL, and SCL programming languages, enabling code reusability and simplified engineer training across S7-300/400 platforms.

Typical Application Scenarios

This controller is engineered for applications demanding reliable logic execution, moderate I/O density, and deterministic communication:

• Discrete Manufacturing & Assembly Lines
  Controls conveyor systems, robotic pick-and-place stations, and quality inspection gates in automotive, electronics, and consumer goods production, ensuring synchronized motion and cycle time optimization.
• Process Automation & Batch Control
  Manages mixing, heating, and dosing sequences in chemical processing, food & beverage production, and pharmaceutical manufacturing, maintaining recipe accuracy and regulatory compliance (FDA 21 CFR Part 11 ready with additional modules).
• Building & Infrastructure Systems
  Orchestrates HVAC control, lighting management, and access control in commercial buildings, data centers, and transportation hubs, balancing energy efficiency with occupant comfort.
• Water & Wastewater Treatment
  Automates pump control, valve sequencing, and level monitoring in municipal water distribution, sewage treatment plants, and industrial effluent systems, reducing operator intervention and ensuring regulatory discharge limits.
• Material Handling & Warehousing
  Coordinates sortation systems, automated storage/retrieval systems (AS/RS), and palletizing equipment in logistics centers, maximizing throughput and inventory accuracy.

Technical Specifications & Selection Guide

To ensure optimal system design, review the following key parameters:

Selection Considerations: When specifying this CPU, evaluate total I/O count requirements, communication protocol needs (consider CP modules for PROFIBUS/Ethernet), program complexity (function block count), and environmental conditions (temperature, enclosure IP rating). For systems requiring redundancy, hot-swap capability, or integrated safety functions, consult our engineering team for S7-400 or S7-1500 alternatives.

System Integration & Expansion Options

• Communication Processors: Add CP 343-1 for Industrial Ethernet, CP 342-5 for PROFIBUS DP master/slave, or CP 340/341 for serial RS232/RS422/RS485 connectivity to legacy devices and SCADA systems.
• Function Modules: Integrate FM 350 for high-speed counting, FM 352 for cam control, or FM 355 for closed-loop PID regulation of temperature, pressure, and flow without burdening CPU scan time.
• Signal Modules: Select from 60+ digital/analog I/O modules (SM 321, SM 331, SM 332, etc.) with various voltage/current ranges, isolation levels, and diagnostic features to match sensor/actuator specifications.
• HMI Integration: Pair with SIMATIC HMI Basic Panels (KTP series) or Comfort Panels (TP/MP series) for operator visualization, alarm management, and recipe handling via MPI or PROFINET connection.
• Software Tools: Program with STEP 7 V5.x (TIA Portal compatibility via migration tools), simulate with S7-PLCSIM, and diagnose with ProAgent for predictive maintenance insights.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days; custom-configured systems (pre-programmed, panel-mounted) require 10–15 business days depending on scope.

Warranty: Backed by a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and spare parts programs available for critical infrastructure applications.

Technical Support: Complimentary remote commissioning assistance (email/phone) for initial setup and troubleshooting. On-site startup services and training workshops available upon request (regional availability applies).

Documentation Package: Each unit includes hardware installation manual, technical specifications datasheet, wiring diagrams, and sample STEP 7 project templates. Multilingual documentation (EN/DE/FR/ES/CN) provided in PDF format.

Compliance & Certifications: Manufactured in ISO 9001-certified facilities with full traceability. Products meet IEC 61131-2, UL 508, and CE Low Voltage Directive (2014/35/EU) requirements. ATEX Zone 2 certification for use in potentially explosive atmospheres (with appropriate enclosures).

Frequently Asked Questions (FAQ)

Q: How do I integrate the SIMATIC S7-300 CPU 314 with existing automation systems?
A: The CPU 314 connects via MPI interface for programming and local HMI communication. For integration with distributed I/O, add a PROFIBUS DP communication processor (CP 342-5). For Ethernet/IP or Modbus TCP connectivity, use CP 343-1. Confirm your field device protocols, network topology, and data exchange requirements before selecting communication modules.

Q: What is the maximum number of I/O modules this CPU can support?
A: The CPU 314 supports up to 8 expansion racks (including the central rack), accommodating a maximum of 32 signal/function modules. Total addressable I/O is 1,024 digital points and 128 analog channels. For larger systems, consider CPU 315-2 DP or migrate to S7-1500 series.

Q: Can this controller be used in safety-critical applications?
A: The standard CPU 314 is not safety-rated (SIL/PLr). For safety functions (emergency stop, light curtains, safety gates), integrate with SIMATIC Safety Integrated components (F-modules + F-CPU) or use dedicated safety PLCs like S7-1500F. The CPU 314 can handle standard control logic alongside a separate safety system.

Q: What programming software is required, and is it compatible with modern Windows OS?
A: Use SIMATIC STEP 7 V5.6 or later (Classic STEP 7, not TIA Portal native). STEP 7 V5.7 supports Windows 10/11 (64-bit). For TIA Portal users, export/import via migration tools. Software licenses are sold separately; trial versions available for evaluation.

Q: What are the typical energy consumption and heat dissipation figures?
A: The CPU 314 draws approximately 800 mA at 24 VDC (≈19 W) from the backplane power supply. Heat dissipation is roughly 6.5 W. Ensure adequate ventilation in control cabinets; maintain ambient temperature below 55°C for continuous operation. For enclosed panels, consider forced-air cooling or heat exchangers.

Q: Does this CPU support remote monitoring and IoT connectivity?
A: Native MPI interface does not support direct cloud connectivity. For remote access, add a CP 343-1 Ethernet module and configure VPN/firewall rules, or use SIMATIC Cloud Connect gateways for secure data upload to MindSphere or third-party IoT platforms. OPC UA servers can be implemented via additional software modules.

Request Technical Consultation & Quotation

To receive a tailored system proposal, please provide the following project details:

• Application description and control objectives
• Total I/O count (digital inputs/outputs, analog inputs/outputs)
• Communication requirements (PROFIBUS, Ethernet, serial protocols)
• Environmental conditions (temperature range, enclosure IP rating, hazardous area classification)
• Preferred delivery timeline and installation support needs

Our application engineers will respond within 24 hours with a detailed Bill of Materials (BOM), pricing, and technical recommendations.
