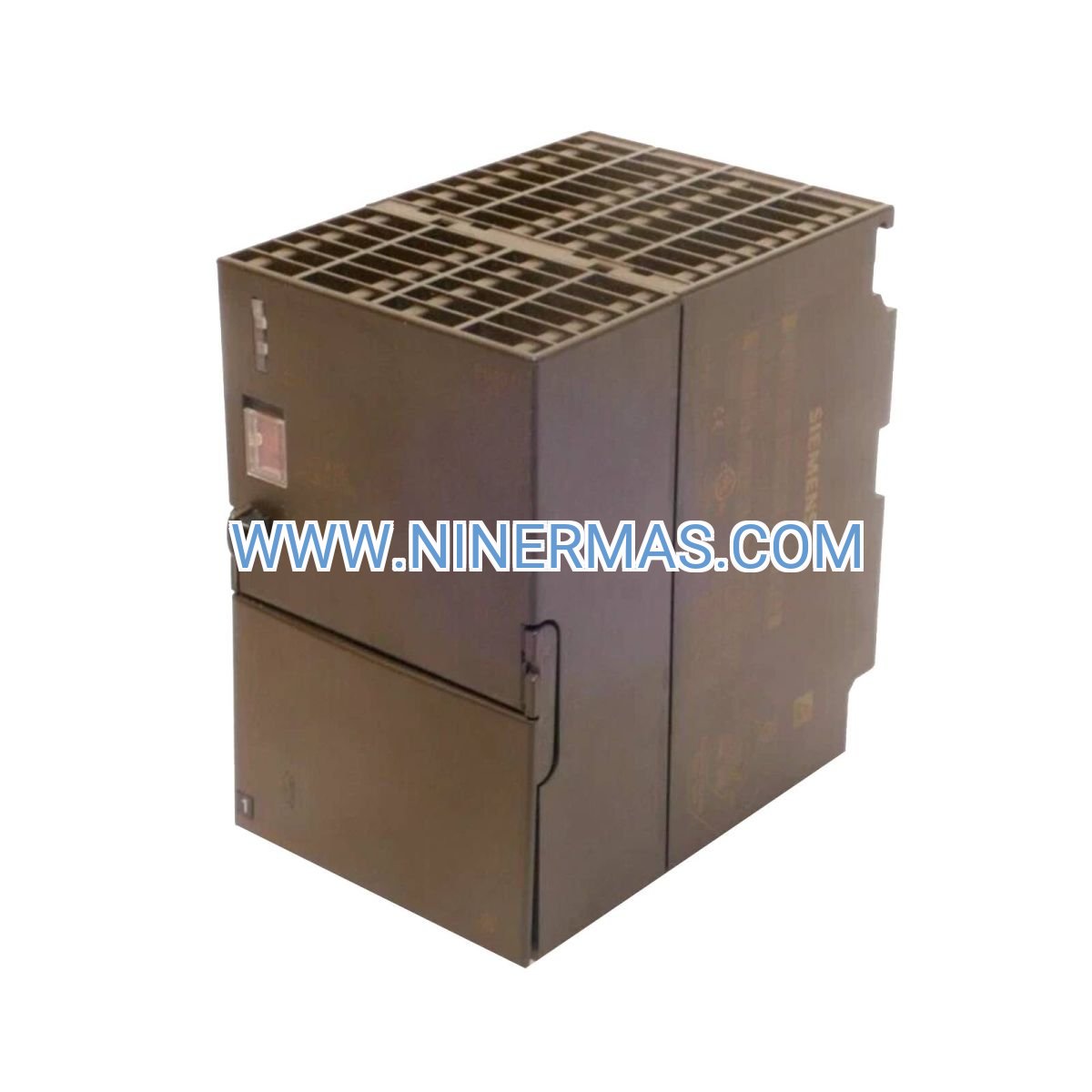

Siemens 6ES7307-1EA01-0AA0 Power Supply Module | 24V DC 5A PS 307 for S7-300 PLC Systems

Siemens 6ES7307-1EA01-0AA0 PS 307 Power Supply Module (Industrial-Grade 24V DC Solution for S7-300 Systems)

The Siemens 6ES7307-1EA01-0AA0 PS 307 5A is a high-performance power supply module engineered specifically for SIMATIC S7-300 programmable logic controller (PLC) systems. Through precision voltage regulation and robust overcurrent protection, this module delivers stable 24V DC output at 5A continuous current, ensuring reliable operation of automation control systems in demanding industrial environments.

Designed for manufacturing facilities, process automation plants, building management systems, and industrial control cabinets where power stability and system uptime are critical. This power supply addresses common challenges including voltage fluctuations, electrical noise interference, insufficient current capacity for multi-module configurations, and the need for hot-swappable redundancy in mission-critical applications.

With standardized S7-300 mounting compatibility and field-proven reliability, the PS 307 5A offers seamless integration, wide input voltage tolerance, compact footprint, and comprehensive diagnostic capabilities. Ideal for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our automation engineers for application-specific configuration guidance and technical specifications.

Core Features & Technical Advantages

• Precision Voltage Regulation
  Advanced switching power supply technology maintains stable 24V DC ±3% output across varying load conditions, protecting sensitive PLC I/O modules and field devices from voltage-induced errors or damage.
• High Current Capacity
  Delivers continuous 5A output current with peak capability up to 6A for brief inrush periods, supporting configurations with multiple CPU modules, communication processors, and analog I/O cards on a single power rail.
• Wide Input Voltage Range
  Accepts 120-230V AC input with automatic voltage detection, eliminating manual switching and reducing installation errors across global deployment sites with varying electrical standards.
• Comprehensive Protection Functions
  Integrated safeguards include short-circuit protection, overload shutdown, overvoltage cutoff, and thermal management, minimizing downtime risk and extending system service life in harsh industrial conditions.
• Tool-Free DIN Rail Installation
  Standard 35mm DIN rail mounting with snap-lock mechanism enables rapid installation and removal without tools, reducing commissioning time and simplifying maintenance procedures in densely packed control cabinets.
• Visual Diagnostic Indicators
  Front-panel LED status indicators provide instant visibility of power output status and fault conditions, accelerating troubleshooting and reducing mean time to repair (MTTR) during system diagnostics.

Typical Application Scenarios

This power supply module is engineered for industrial environments requiring continuous operation, precise voltage control, and high reliability standards, particularly in:

• Manufacturing Automation & Production Lines
  Powers PLC control systems managing conveyor systems, robotic work cells, assembly stations, and quality inspection equipment in automotive, electronics, food processing, and pharmaceutical manufacturing facilities.
• Process Control & SCADA Systems
  Supports distributed control systems (DCS) and supervisory control installations in chemical plants, water treatment facilities, oil & gas processing, and power generation stations where system availability directly impacts production output.
• Building Automation & Infrastructure
  Energizes HVAC control panels, elevator management systems, lighting control networks, and access control installations in commercial buildings, hospitals, airports, and data centers requiring 24/7 operational reliability.
• Machine Control Panels & OEM Equipment
  Integrated into custom machinery control cabinets for packaging equipment, material handling systems, CNC machine tools, and industrial printing presses where compact footprint and standardized interfaces accelerate design cycles.

Technical Specifications & Selection Guide

To ensure optimal system performance and longevity, the PS 307 5A power supply is specified with the following electrical and mechanical parameters. For custom configurations or multi-power-supply architectures, please provide your system load requirements for engineering review.

Selection Recommendations: When sizing your power supply, calculate total current draw from all connected modules (CPU, I/O cards, communication modules) and add 20-30% safety margin. For systems requiring redundancy, consider dual power supply configurations with OR-ing diodes. Ensure adequate ventilation clearance (minimum 25mm above and below unit) for thermal management. For assistance with load calculations or system architecture design, our application engineers can review your bill of materials and provide validated power budgets.

Extended Capabilities & System Integration

• Redundant Power Configurations
  Compatible with Siemens redundancy modules (e.g., 6ES7307-1BA01-0AA0) for N+1 power supply architectures in critical applications requiring zero-downtime operation during maintenance or component failure scenarios.
• Remote Monitoring Integration
  Output status can be monitored via S7-300 system diagnostics and integrated with SCADA/HMI platforms for centralized power management, predictive maintenance alerts, and automated fault notification to maintenance personnel.
• Global Voltage Compatibility
  Universal input voltage acceptance eliminates need for voltage-specific inventory, simplifying spare parts management for multinational operations and reducing procurement complexity for global equipment deployments.
• EMC Compliance & Noise Immunity
  Designed to meet industrial electromagnetic compatibility (EMC) standards EN 61000-6-2 and EN 61000-6-4, ensuring reliable operation in electrically noisy environments with VFDs, welding equipment, and high-power motor starters.

Delivery, Service & Technical Support

Lead Time: Standard catalog items typically ship within 3-5 business days from regional distribution centers. For volume orders or project-specific requirements, please contact our sales team for expedited delivery options and project scheduling coordination.

Warranty & Support: All Siemens power supply modules include manufacturer's standard warranty coverage. We provide comprehensive technical documentation including dimensional drawings, wiring diagrams, load calculation worksheets, and integration guides with your order. Remote technical consultation and on-site commissioning support available for large-scale installations (subject to location and project scope).

Documentation Package: Each unit ships with complete technical documentation including installation manual, electrical specifications, terminal connection diagrams, and troubleshooting flowcharts in multiple languages, ensuring smooth integration and long-term maintainability.

Frequently Asked Questions (FAQ)

Q: How do I calculate if the PS 307 5A power supply has sufficient capacity for my S7-300 system?
A: Sum the current consumption of all modules in your configuration (found in each module's datasheet under "Power Consumption from 24V DC"). Add 20-30% safety margin for inrush currents and future expansion. If total exceeds 4A continuous, consider the PS 307 5A. For loads above 5A, use multiple power supplies or upgrade to the PS 307 10A model.

Q: Can this power supply be used with S7-400 or S7-1200 PLC systems?
A: The 6ES7307-1EA01-0AA0 is mechanically and electrically optimized for S7-300 systems. While the 24V DC output is compatible with other Siemens PLCs, mounting dimensions and connector interfaces differ. For S7-400 systems, use PS 407 series; for S7-1200/1500, use PM 1207 or SITOP PSU series power supplies.

Q: What is the typical energy efficiency and can it help reduce operational costs?
A: The PS 307 5A achieves approximately 85-88% efficiency at rated load, significantly higher than older linear power supplies (50-60%). In continuous operation scenarios (8760 hours/year), this translates to measurable energy savings and reduced heat generation, lowering cooling requirements in control cabinets.

Q: What are the environmental requirements for installation and operation?
A: The module is rated IP20 for installation inside control cabinets with ambient temperature range 0°C to +60°C (horizontal mounting). Ensure minimum 25mm clearance above and below for convection cooling. For harsh environments with dust, moisture, or extreme temperatures, install within appropriately rated enclosures (IP54 or higher).

Q: Does this power supply support remote monitoring or diagnostic protocols?
A: The PS 307 5A provides hardware status indication via front-panel LED. For advanced diagnostics, the power supply status can be monitored through the S7-300 CPU's system diagnostics functions and integrated into SCADA systems via PROFIBUS, PROFINET, or Ethernet communication modules for centralized monitoring and predictive maintenance programs.

Q: Is this module suitable for safety-related applications or SIL-rated systems?
A: The standard PS 307 5A is designed for general automation applications and is not certified for safety-integrity level (SIL) functions. For safety-related control systems requiring TÜV-certified components, please specify Siemens SITOP PSE200U safety power supplies or consult our safety system specialists for compliant alternatives.

Request Technical Consultation & Quotation

For detailed application engineering support, custom configuration recommendations, or project-specific pricing, please provide the following information to our automation specialists:

• Project name and application type (manufacturing, process control, building automation, etc.)
• Complete S7-300 system configuration (CPU model, number and types of I/O modules, communication cards)
• Total calculated 24V DC current requirement and any redundancy requirements
• Installation environment conditions (ambient temperature, enclosure type, altitude)
• Required delivery timeline and destination location
• Quantity required (single unit, spare parts inventory, or project volume)

Our application engineers will provide validated power budget calculations, recommended system architecture, and detailed quotations within 24-48 hours for standard configurations.
