Siemens S7-200 SMART EM QR16 Digital Output Module (Industrial-Grade Relay Control Solution)

The Siemens 6ES7288-2QR16-0AA0 EM QR16 is a high-performance digital output expansion module designed for S7-200 SMART PLC systems. Through 16 isolated relay output channels, it enables precise control of external loads such as motors, valves, contactors, and indicator lights, delivering reliable switching performance for industrial automation applications.

This module is specifically engineered for environments requiring robust electrical isolation and high switching capacity, including manufacturing production lines, building automation systems, water treatment facilities, and energy management installations. It addresses critical challenges such as insufficient I/O points, electrical noise interference, load compatibility issues, and the need for flexible system expansion.

With standardized design and flexible configuration options, the EM QR16 module offers key advantages including electrical isolation protection, wide load compatibility (AC/DC switching), hot-swappable capability, and seamless integration with SIMATIC ecosystem. It serves design engineers, system integrators, OEM manufacturers, and facility maintenance teams. Contact our application engineers for customized I/O configuration and technical specifications.

Core Features & Technical Advantages

16 Independent Relay Outputs
Each channel features mechanically isolated relay contacts rated for 2A resistive load, providing true galvanic isolation between control logic and field devices. This design eliminates ground loop issues and protects sensitive PLC circuitry from voltage spikes.

Universal Load Switching Capability
Relay contacts support both AC (up to 250V) and DC (up to 30V) loads without additional interface modules, making it compatible with solenoid valves, pilot lights, small motors, and legacy control equipment across diverse voltage systems.

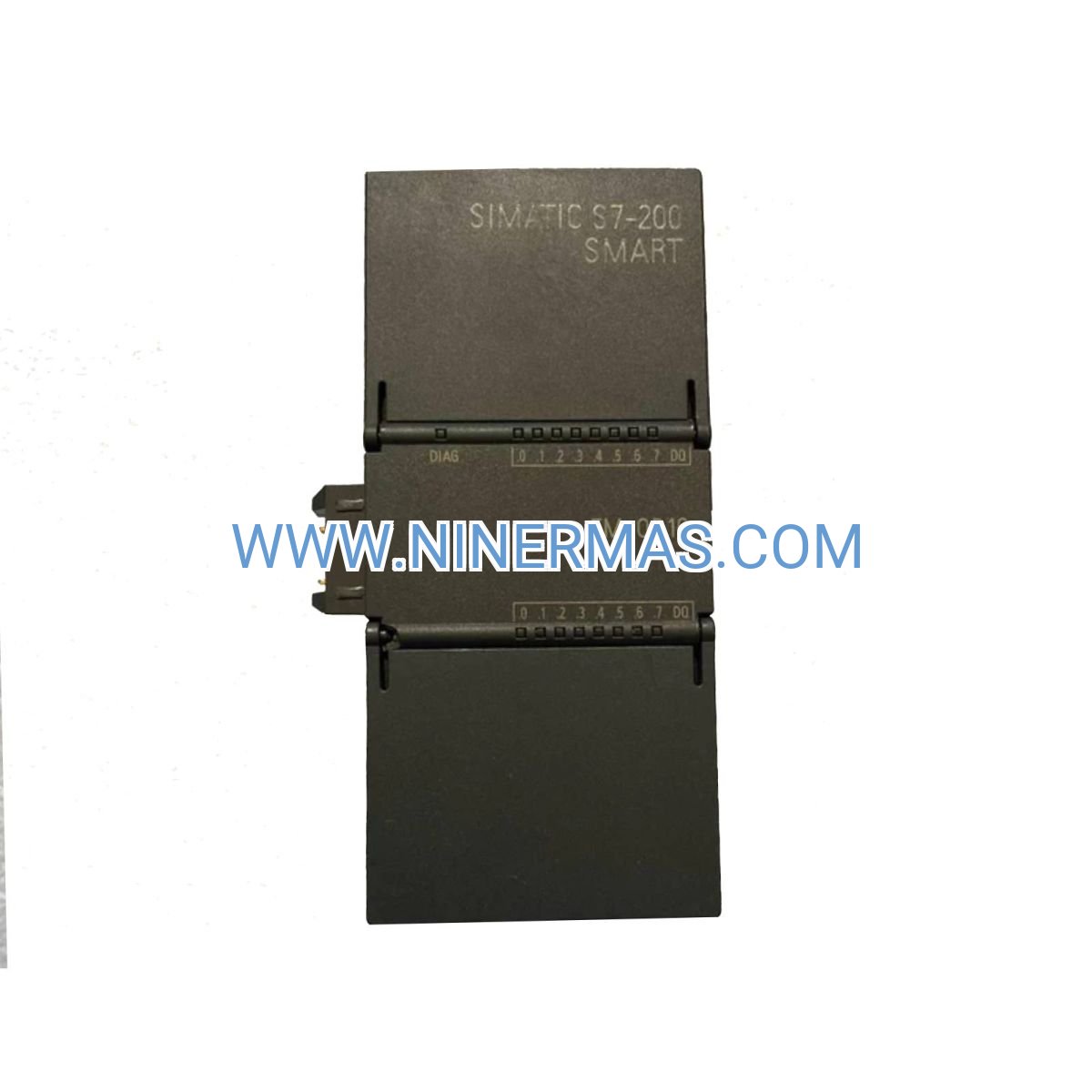

Diagnostic LED Indicators
Individual status LEDs for each output channel enable rapid troubleshooting and real-time monitoring of output states, reducing commissioning time and simplifying maintenance procedures in complex control panels.

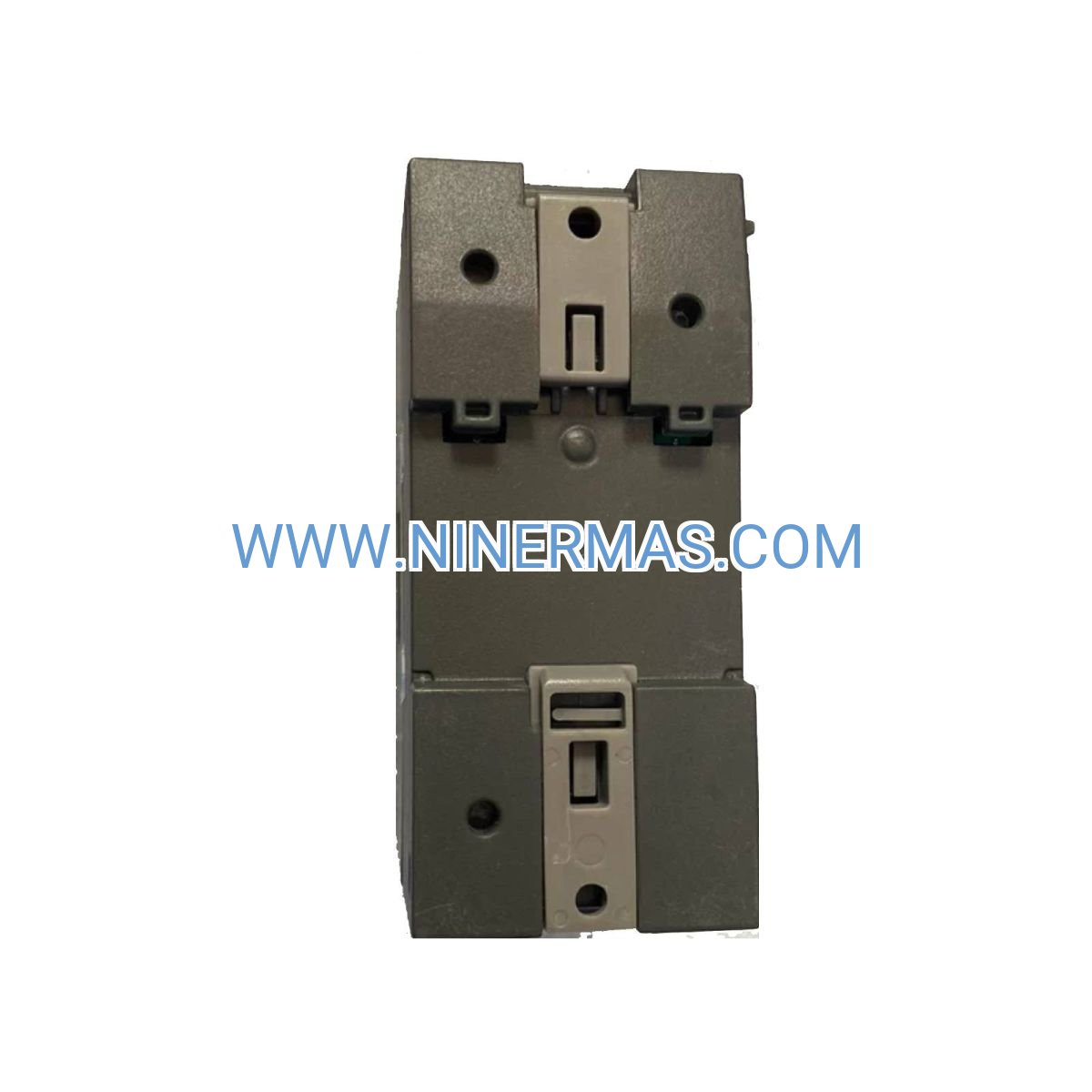

Compact DIN-Rail Mounting
Space-efficient design (approximately 70mm width) allows high-density I/O installation in standard control cabinets. The module connects to S7-200 SMART CPU via high-speed backplane bus without external cabling for I/O signals.

Industrial Environmental Rating
Operates reliably in ambient temperatures from 0°C to 55°C with conformal coating protection against humidity, dust, and chemical vapors. Meets CE, UL, and RoHS compliance standards for global industrial deployment.

Simplified Configuration & Programming
Fully integrated with STEP 7-Micro/WIN SMART software, the module auto-recognizes upon connection and maps I/O addresses automatically. Supports standard ladder logic, function block diagrams, and structured text programming methods.

Typical Application Scenarios

The EM QR16 module excels in applications demanding reliable switching control with electrical isolation and flexible load handling:

Manufacturing Production Lines
Controls pneumatic actuators, conveyor motors, and process valves in packaging, assembly, and material handling systems. Relay isolation prevents electrical noise from variable frequency drives affecting PLC operation.

Building HVAC & Utility Systems
Manages pump starters, damper actuators, and fan contactors in commercial buildings and data centers. Supports both 24VAC control circuits and 230VAC power switching within a single module.

Water & Wastewater Treatment
Operates chemical dosing pumps, motorized valves, and alarm indicators in municipal and industrial water systems. Relay contacts withstand inductive loads and provide visual confirmation of output status.

Energy Management & Distribution
Switches lighting circuits, backup generator controls, and load shedding contactors in power distribution panels. Enables integration of legacy relay-based systems with modern PLC control architecture.

Machine Tool & CNC Equipment
Interfaces with coolant pumps, tool changers, and safety interlocks in metalworking machinery. Relay outputs provide fail-safe operation and compatibility with 24VDC safety circuits.

Technical Specifications & Selection Guide

To facilitate system design and component selection, we provide comprehensive technical parameters for the EM QR16 module:

Key Electrical Parameters:

• Output Channels: 16 relay outputs (Form A, normally open contacts)
• Contact Rating: 2A @ 250VAC / 2A @ 30VDC (resistive load)
• Inductive Load: 80VA @ 250VAC / 80W @ 30VDC
• Switching Frequency: Maximum 1 Hz (mechanical relay limitation)
• Isolation Voltage: 1500VAC between channels and logic circuit
• Response Time: Typical 10ms turn-on, 10ms turn-off

Mechanical & Environmental:

• Mounting: 35mm DIN rail (EN 50022 standard)
• Dimensions: Approx. 70mm (W) × 100mm (H) × 81mm (D)
• Operating Temperature: 0°C to +55°C (horizontal installation)
• Storage Temperature: -40°C to +70°C
• Humidity: 5% to 95% RH (non-condensing)
• Protection Rating: IP20 (requires enclosure for outdoor use)

System Integration:

• Compatible CPUs: All S7-200 SMART CPU models (CR20s, CR30s, CR40s, CR60s, ST20, ST30, ST40, ST60)
• Maximum Expansion: Up to 6 modules per CPU (subject to power budget)
• Power Consumption: Typical 1.5W from backplane (relay coils powered separately)
• Programming Software: STEP 7-Micro/WIN SMART V2.0 or later

Selection Recommendations:
When specifying the EM QR16 module, consider the following factors: total number of discrete outputs required, load voltage and current characteristics, switching frequency demands, cabinet space constraints, and environmental conditions. For high-frequency switching (>1Hz), consider transistor output modules (EM DT series). For loads exceeding 2A, use external contactors or solid-state relays. Our application engineers can review your I/O list and recommend optimal module combinations—please provide load schedules, wiring diagrams, and environmental specifications.

Advanced Integration Capabilities

Distributed I/O Architecture
Combine multiple EM QR16 modules with analog input/output modules to create scalable control systems. The S7-200 SMART backplane supports mixed I/O configurations without complex addressing schemes.

Remote Monitoring & Diagnostics
When paired with Ethernet-enabled S7-200 SMART CPUs, output status can be monitored via SCADA systems, HMI panels, or mobile devices using standard industrial protocols (Modbus TCP, S7 communication).

Safety Circuit Integration
Relay outputs can interface with safety PLCs and emergency stop circuits, providing hardwired interlocks that complement software-based safety logic for compliance with machinery safety standards.

Delivery, Documentation & Technical Support

Product Availability: Standard catalog item with typical lead time of 3-5 business days for stock orders. Custom-configured control panels incorporating EM QR16 modules available with 10-15 day lead time depending on complexity.

Warranty & Service: Backed by Siemens factory warranty (minimum 12 months from delivery). Technical support includes remote troubleshooting assistance, replacement part coordination, and access to certified service partners in major industrial regions.

Technical Documentation Package: Each module ships with installation manual, wiring diagrams, I/O address mapping tables, and sample ladder logic programs. Complete datasheet, CAD drawings (DXF/STEP formats), and certification documents available for download or upon request.

Training & Commissioning: On-site startup assistance and operator training available for large-scale installations. Remote commissioning support via video conference for standard applications.

Frequently Asked Questions (FAQ)

Q: How do I connect the EM QR16 relay output module to my existing S7-200 SMART PLC system?
A: The module mounts directly onto the DIN rail adjacent to your S7-200 SMART CPU or other expansion modules. Connect via the built-in backplane connector (no separate I/O cable required). Field wiring connects to removable terminal blocks on the module front. Ensure total expansion module power consumption does not exceed CPU power supply capacity. Refer to S7-200 SMART system manual chapter 4 for detailed expansion guidelines.

Q: What is the maximum number of EM QR16 modules I can connect to a single S7-200 SMART CPU?
A: You can connect up to 6 expansion modules total per CPU, limited by backplane power budget and physical space. Each EM QR16 consumes approximately 1.5W. For example, an ST40 CPU can typically support 4-5 EM QR16 modules depending on other connected modules. Use STEP 7-Micro/WIN SMART configuration tool to verify power budget compliance.

Q: Can the relay outputs switch both AC and DC loads simultaneously in the same module?
A: Yes, each relay contact is electrically isolated and can switch different voltage types. However, observe proper wiring practices: separate AC and DC circuits, use appropriate wire gauges, and follow local electrical codes. Avoid mixing high-voltage AC and low-voltage DC on adjacent terminals to prevent accidental cross-connection.

Q: What is the expected relay contact lifespan, and how does it affect maintenance planning?
A: Mechanical relay life depends on load type and switching frequency. At rated resistive load (2A), expect 100,000+ operations. Inductive loads reduce lifespan to 30,000-50,000 operations. For applications requiring >10,000 cycles/day, consider transistor output modules or use external solid-state relays to extend service intervals. Monitor output diagnostics for contact degradation indicators.

Q: Does the module support remote monitoring and data logging capabilities?
A: The EM QR16 itself does not have built-in networking. However, when connected to Ethernet-enabled S7-200 SMART CPUs (ST series), output states can be accessed via Modbus TCP, S7 protocol, or OPC UA for integration with SCADA systems, cloud platforms, and mobile monitoring apps. Output status changes can trigger email/SMS alarms through HMI or gateway devices.

Q: What environmental protection measures are needed for installation in harsh industrial environments?
A: The module has IP20 rating (finger-safe, no water/dust ingress protection). For dusty, humid, or outdoor locations, install in NEMA 4/4X or IP65-rated enclosures with adequate ventilation. Maintain ambient temperature within 0-55°C range. In corrosive atmospheres, use conformal coating service or specify sealed relay variants. Ensure proper grounding and surge protection on field wiring.

Get Expert Selection Assistance

To receive a customized I/O configuration proposal, technical datasheet, or pricing quotation, please provide the following project details: application description, total digital output requirements, load specifications (voltage/current/type), switching frequency, environmental conditions (temperature/humidity/enclosure type), and preferred delivery timeline. Our automation engineers will respond within 24 hours with tailored recommendations and supporting documentation.
