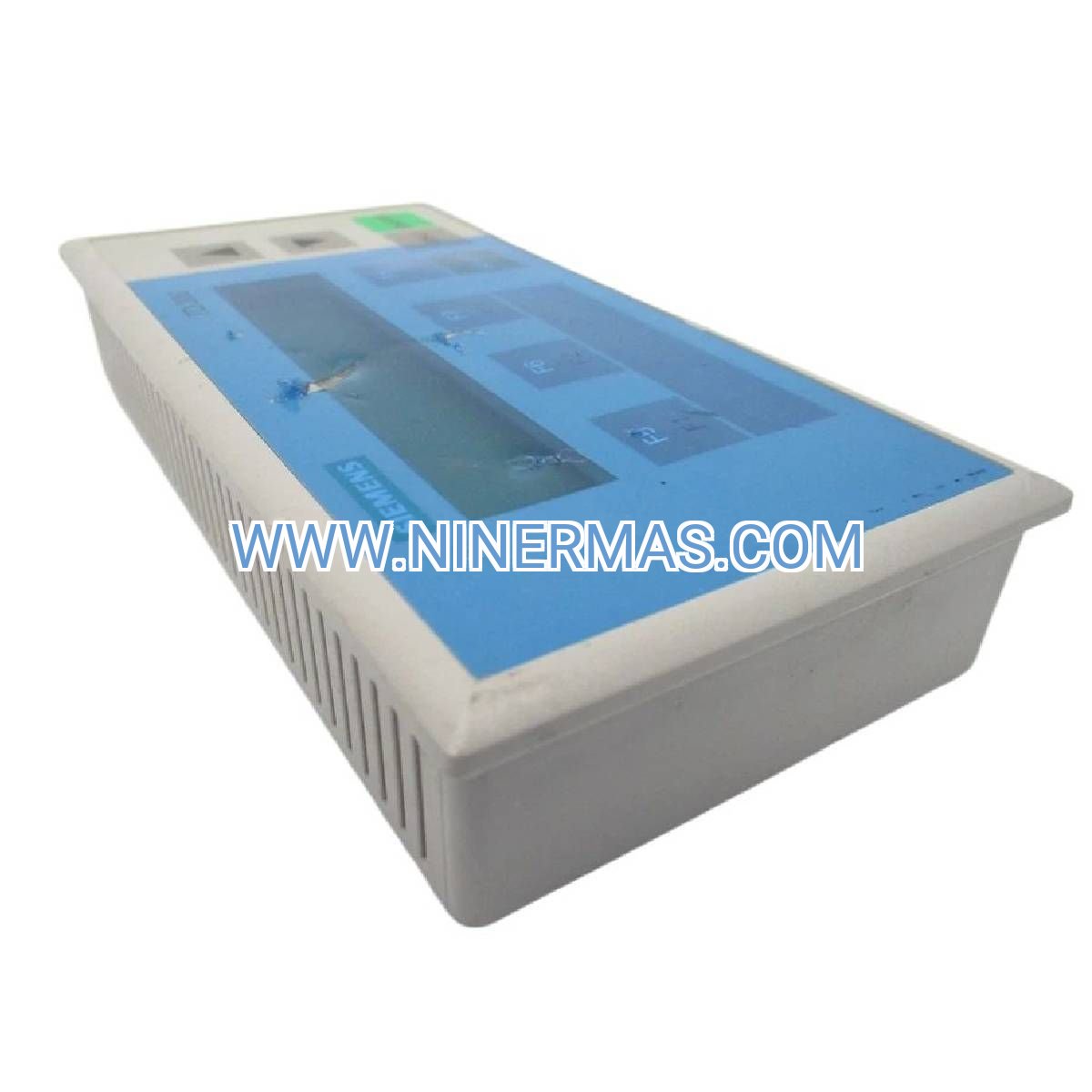

TD 200 Text Display Panel (Industrial-Grade S7-200 HMI Interface)

The Siemens TD 200 text display transforms your S7-200 PLC into an interactive operator interface, delivering real-time machine status, alarm notifications, and parameter adjustments through a compact 2-line display. Engineered for harsh industrial environments, this plug-and-play HMI solution eliminates the need for costly touchscreen panels while maintaining full operational visibility. Whether you're managing packaging lines, material handling systems, or process control applications, the TD 200 provides the essential human-machine interface your automation system demands.

Designed for system integrators and maintenance engineers who require reliable, cost-effective operator interfaces, this text display integrates seamlessly with existing S7-200 installations. The included 2.5-meter cable and mounting accessories ensure rapid deployment, while STEP 7-Micro/WIN configuration software enables custom message libraries and navigation structures tailored to your specific application requirements.

With proven Siemens reliability and straightforward programming, the TD 200 delivers industrial-grade performance at a fraction of the cost of graphical HMI panels—making it the intelligent choice for budget-conscious automation projects that refuse to compromise on quality or functionality.

Core Features & Technical Advantages

✓ Plug-and-Play S7-200 Integration
Direct connection to S7-200 CPU via dedicated interface port—no additional communication modules required. The 2.5m shielded cable provides flexible mounting options while maintaining signal integrity in electrically noisy environments.

✓ Dual-Line LCD Display Technology
High-contrast 2-line × 20-character LCD ensures readability in variable lighting conditions, from dimly lit control rooms to brightly illuminated production floors. Backlit display option enhances visibility during night shifts and low-light operations.

✓ STEP 7-Micro/WIN Configuration Platform
Intuitive software environment enables rapid development of custom operator interfaces with multi-language support, alarm management, and password-protected parameter access. Pre-built function blocks accelerate commissioning timelines by up to 40%.

→ Membrane Keypad Navigation
Robust 6-key interface withstands over 1 million actuations, providing reliable menu navigation and data entry in demanding industrial settings. Tactile feedback ensures accurate operator input even when wearing work gloves.

→ Compact Panel-Mount Design
Space-efficient footprint (92mm × 71mm cutout) fits standard DIN enclosures and custom control panels. IP65-rated front bezel protects against dust ingress and water spray, meeting industrial washdown requirements.

→ Multi-Language Message Support
Store up to 80 custom text messages in multiple languages, enabling global equipment deployment without hardware modifications. Dynamic message switching supports operator preference selection and regional compliance requirements.

Industrial Application Scenarios

Packaging & Material Handling Systems
Conveyor operators monitor production counts, adjust speed setpoints, and acknowledge jam alarms without accessing the main control cabinet. Real-time batch counters and shift production totals improve operational transparency and reduce downtime during changeovers.

Water & Wastewater Treatment Facilities
Field technicians view pump status, flow rates, and tank levels at remote lift stations where full-size HMI panels are cost-prohibitive. Alarm notifications guide troubleshooting procedures, reducing mean time to repair by 30% compared to indicator-light-only systems.

HVAC & Building Automation
Facility managers adjust temperature setpoints, view filter status, and reset fault conditions from equipment rooms without laptop connectivity. Energy consumption displays support sustainability initiatives and utility cost optimization programs.

Food & Beverage Processing
Production supervisors modify recipe parameters, track batch progress, and verify CIP (clean-in-place) cycle completion through washdown-rated interface panels. Audit trail functionality supports HACCP compliance and quality management system requirements.

Machine Tool & CNC Applications
Machine operators monitor tool life counters, part counts, and maintenance intervals without interrupting machining cycles. Password-protected calibration menus prevent unauthorized adjustments while maintaining accessibility for qualified technicians.

Technical Specifications & Selection Guide

Selection Criteria: Choose the TD 200 when your application requires basic operator interaction (status monitoring, setpoint adjustment, alarm acknowledgment) without the complexity and cost of graphical HMI panels. Ideal for distributed control points, remote equipment locations, and retrofit projects where existing S7-200 PLCs need enhanced operator interfaces. For applications requiring trend displays, recipe management, or touchscreen operation, consider upgrading to Siemens KTP or TP series HMI panels.

Extended Functionality & Integration Options

Multi-Station Networking: Connect multiple TD 200 displays to a single S7-200 CPU using MPI network expansion, enabling operator interfaces at different machine zones or production areas. Each display can show unique messages or share common status information based on application requirements.

SCADA System Integration: While the TD 200 operates independently, S7-200 PLC data remains accessible to WinCC, Ignition, or other SCADA platforms via Ethernet communication modules. This hybrid approach provides local operator control with centralized monitoring and data logging capabilities.

Custom Enclosure Solutions: Panel-mount design accommodates integration into OEM machinery, custom control panels, or NEMA-rated enclosures. Mounting hardware and gasket included for IP65-rated installations when properly sealed.

Firmware Upgradability: Display firmware updates via STEP 7-Micro/WIN ensure compatibility with future S7-200 CPU firmware revisions and enable access to enhanced features as Siemens releases software improvements.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days (North America/Europe), 5-7 business days (Asia-Pacific).

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring guaranteed uptime.

Technical Support: Pre-sales application engineering assistance and post-sales configuration support included. Access to STEP 7-Micro/WIN programming examples, sample projects, and troubleshooting guides via dedicated customer portal.

Documentation Package: Each unit includes installation manual, quick-start guide, mounting template, and digital access to configuration software documentation. Multi-language documentation supports global deployment requirements.

Frequently Asked Questions

Q: Can the TD 200 text display connect to S7-300 or S7-1200 PLCs?
A: No, the TD 200 is specifically designed for S7-200 CPU series (21x, 22x models). For S7-300/400 systems, consider Siemens OP or MP series operator panels. S7-1200/1500 systems require KTP Basic or Comfort Panel HMI devices with PROFINET connectivity.

Q: What is the maximum cable length between the TD 200 and S7-200 CPU?
A: The standard cable is 2.5 meters. While custom cable extensions up to 10 meters are technically feasible, Siemens recommends the supplied cable length to ensure signal integrity and avoid communication errors in electrically noisy environments.

Q: How many TD 200 displays can operate on a single S7-200 PLC?
A: One TD 200 connects directly to the S7-200 CPU's dedicated TD port. Additional displays require MPI network configuration, supporting up to 4 total operator interfaces when using appropriate network addressing and communication settings.

Q: Does the TD 200 support real-time clock and date/time stamping?
A: The display itself does not include an RTC module, but it can show date/time information from the S7-200 CPU's internal clock (if equipped with battery-backed RTC). Time-stamped alarm logs require external data logging via SCADA or memory card solutions.

Q: Is STEP 7-Micro/WIN configuration software included with the TD 200?
A: Configuration software is sold separately. STEP 7-Micro/WIN V4.0 SP9 (or newer) is required for TD 200 programming. Demo versions are available from Siemens for evaluation purposes, with full licenses required for commercial deployment.

Q: Can the TD 200 display operate in hazardous (ATEX/Class I Div 2) locations?

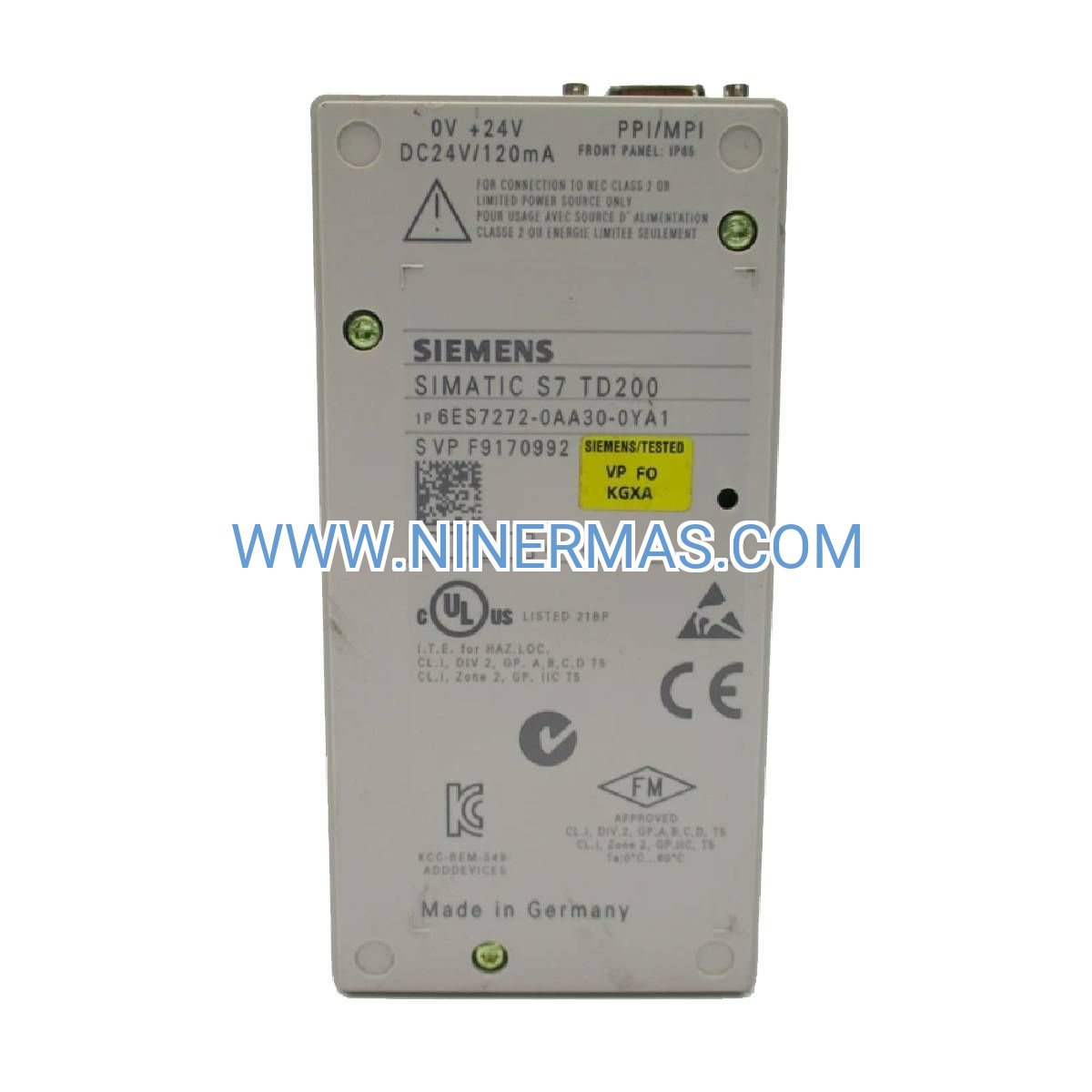

A: This model (6ES7272-0AA30-0YA1) does NOT carry ATEX or hazardous location certifications. For explosive atmosphere applications, consult Siemens for ATEX-certified HMI alternatives or implement intrinsically safe barrier solutions with appropriate engineering controls.
