Siemens 6ES7232-0HB22-0XA0 | S7-200 Analog Output Module EM 232 | 2-Channel 12-Bit

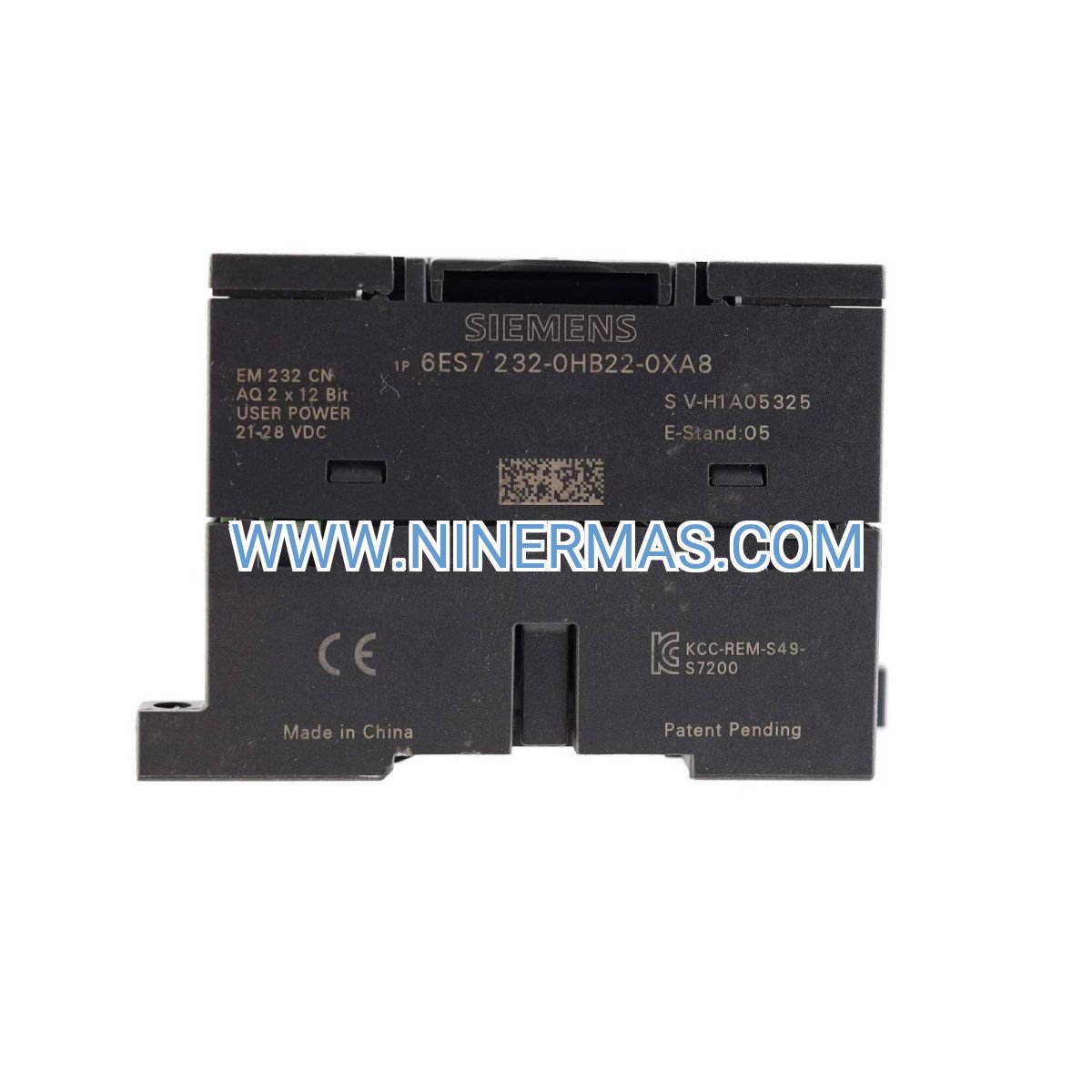

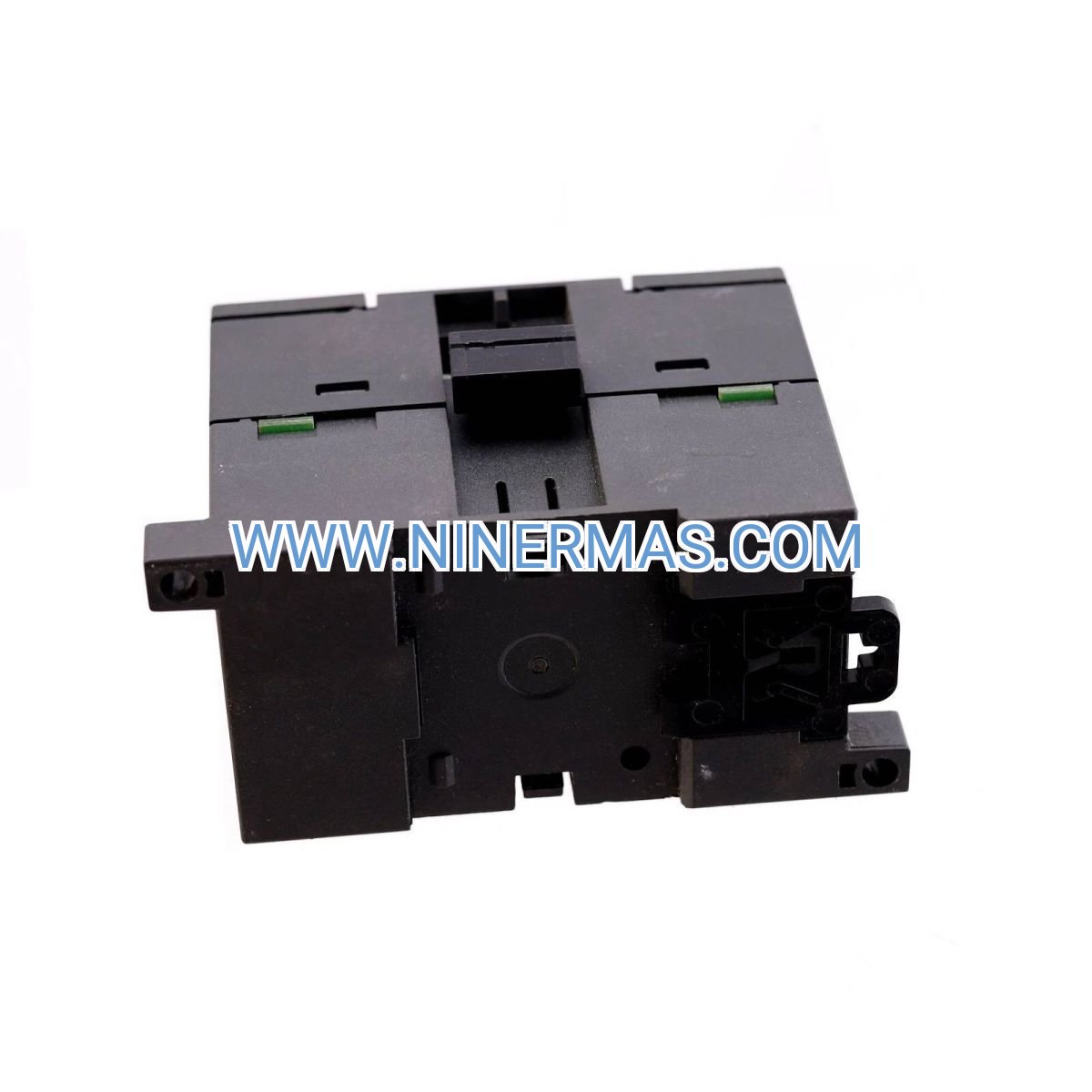

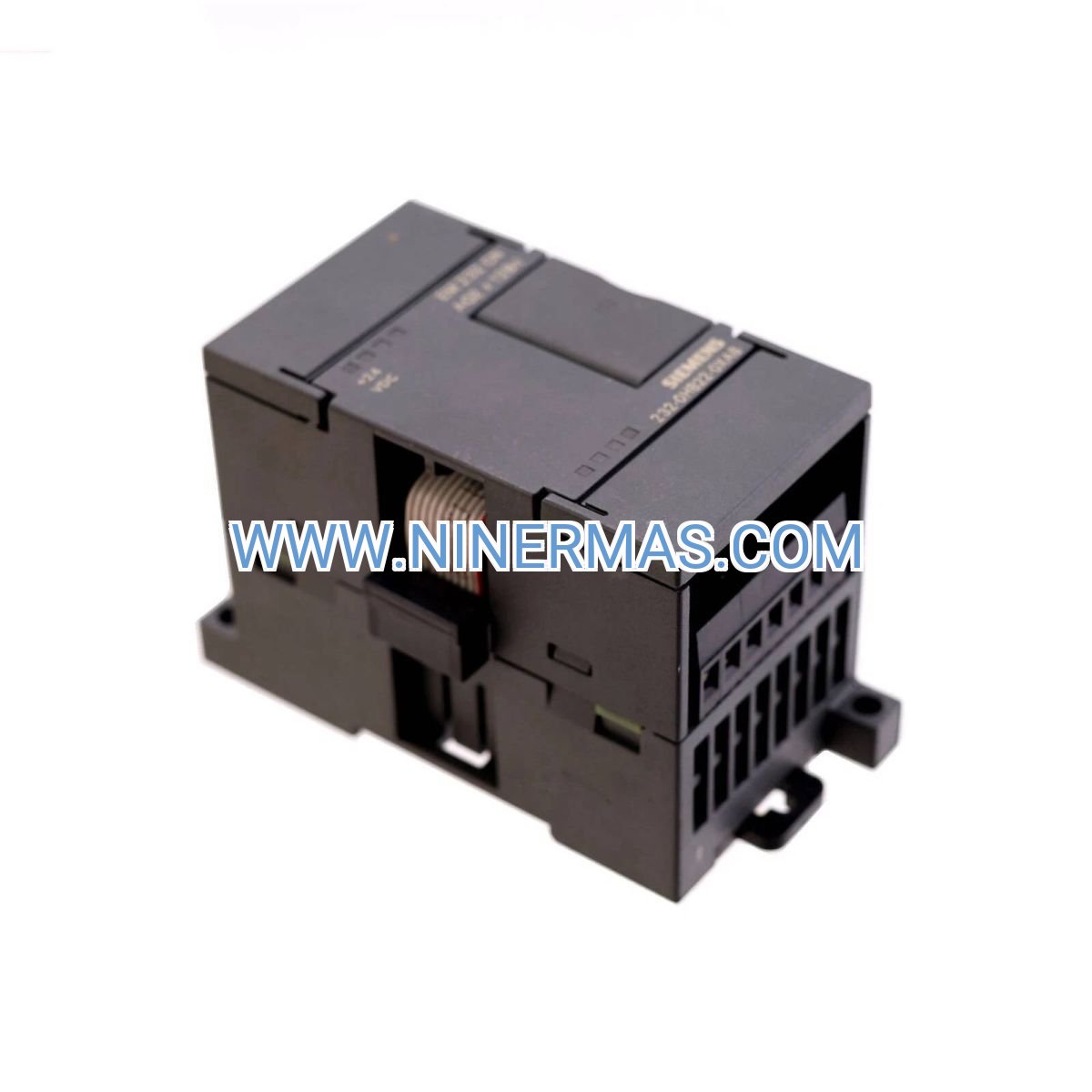

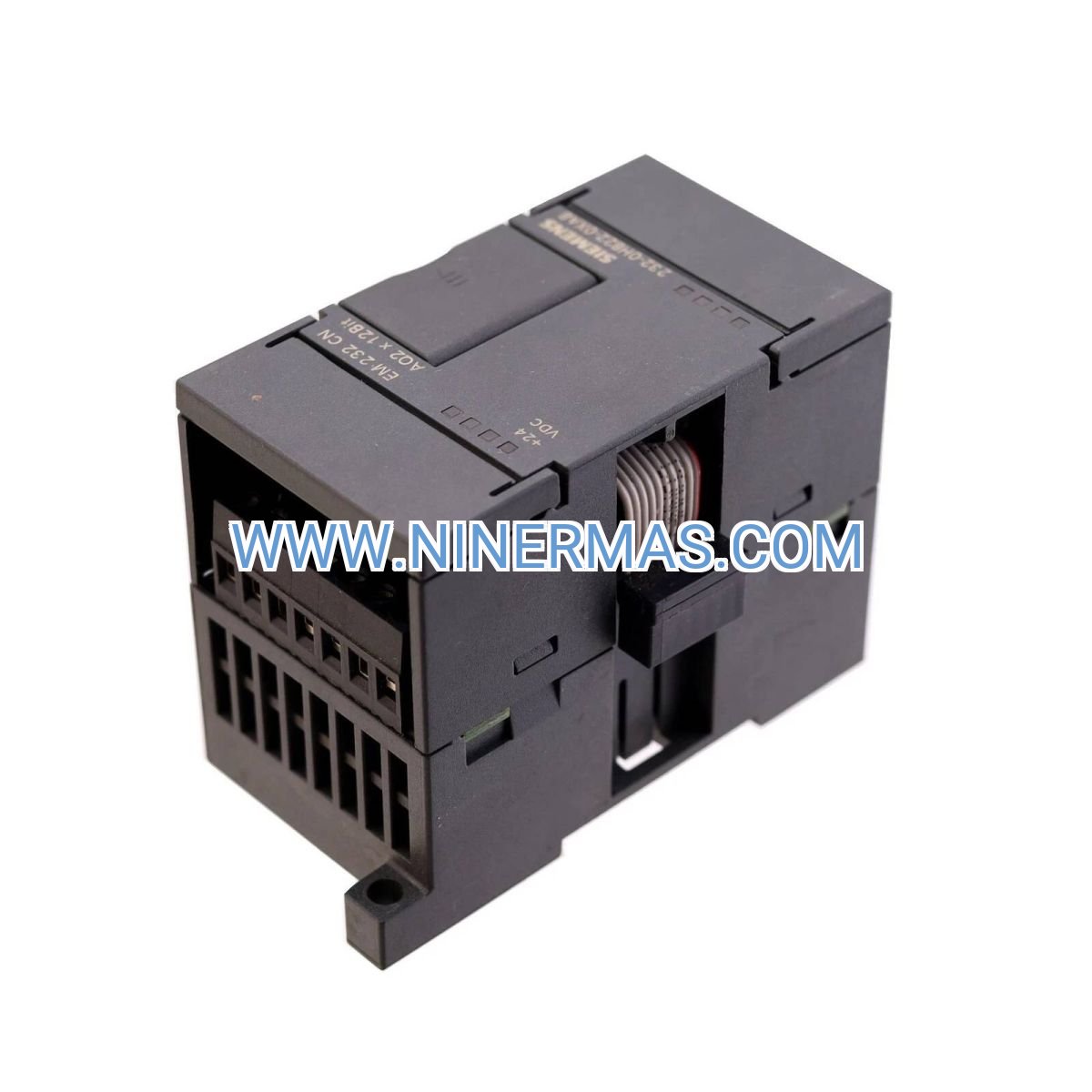

Siemens SIMATIC S7-200 Analog Output Module EM 232 (Industrial-Grade Control Solution)

The Siemens 6ES7232-0HB22-0XA0 EM 232 is a precision analog output expansion module designed for SIMATIC S7-200 PLC systems. Through 2-channel 12-bit D/A conversion technology, it delivers accurate voltage or current output signals, enabling seamless control of variable frequency drives, valve actuators, and analog instruments in industrial automation environments.

This module is widely deployed in process control, HVAC systems, water treatment plants, packaging machinery, and manufacturing production lines—addressing challenges such as insufficient I/O points, limited signal conversion accuracy, unstable analog control, and complex multi-point output coordination. It ensures reliable signal transmission and precise control performance in harsh industrial conditions.

Featuring standardized DIN rail mounting, hot-swappable design, and compatibility with the full S7-200 CPU family, the EM 232 module offers advantages including high-precision output (±0.5% accuracy), flexible signal configuration (voltage/current switchable), robust EMC protection, and simplified maintenance. It is ideal for system integrators, automation engineers, OEM equipment manufacturers, and plant maintenance teams. Contact our technical team for application-specific configuration guidance and quotations.

Core Features & Technical Advantages

High-Precision 12-Bit D/A Conversion
Equipped with dual-channel 12-bit digital-to-analog converters, the module provides resolution up to 0.024% of full scale, ensuring smooth control of proportional valves, servo drives, and analog instruments while minimizing output ripple and drift.

Flexible Output Signal Configuration
Each channel supports independent configuration for voltage output (0–10V, ±10V) or current output (0–20mA, 4–20mA), accommodating diverse field device requirements without additional signal conditioning hardware, reducing system complexity and cost.

Seamless S7-200 System Integration
Plug-and-play compatibility with all S7-200 CPU models (CPU 221/222/224/226), supporting up to 7 expansion modules per system. Configuration via STEP 7-Micro/WIN software enables rapid commissioning and program debugging.

Industrial-Grade Reliability & Protection
Incorporates short-circuit protection, overload protection, and reverse polarity protection on all output channels. Conformal-coated PCB design withstands temperature extremes (-25°C to +55°C), vibration, and electromagnetic interference, ensuring stable operation in demanding industrial environments.

Diagnostic & Maintenance Efficiency
Built-in LED status indicators provide real-time channel health monitoring. Diagnostic data accessible via PLC program enables predictive maintenance, reducing unplanned downtime and troubleshooting time by approximately 40%.

Compact Design & Easy Installation
Standard 71.2mm width with DIN rail snap-mount mechanism allows flexible cabinet layout. Removable terminal blocks support hot-swapping during maintenance without disrupting adjacent modules, minimizing system downtime.

Typical Application Scenarios

The EM 232 analog output module excels in applications requiring precise analog control and multi-point signal distribution, particularly in:

Process Control & Chemical Manufacturing
Controls flow control valves, pressure regulators, and temperature control loops in chemical reactors, distillation columns, and blending systems. Maintains process parameters within ±1% setpoint tolerance, improving product quality consistency and reducing material waste.

HVAC & Building Automation Systems
Regulates variable air volume (VAV) dampers, chilled water valves, and VFD-controlled fans/pumps in commercial buildings and data centers. Optimizes energy consumption while maintaining comfort levels, achieving up to 25% HVAC energy savings compared to on/off control.

Water & Wastewater Treatment
Drives chemical dosing pumps, pH adjustment systems, and sludge dewatering equipment in municipal and industrial water treatment facilities. Ensures regulatory compliance through precise chemical feed control and automated process sequencing.

Packaging & Material Handling Machinery
Controls servo positioning systems, tension control units, and proportional pneumatic valves in packaging lines, conveyor systems, and palletizing robots. Synchronizes multi-axis motion with production line speed variations, reducing product damage and increasing throughput.

Energy Management & Renewable Systems
Interfaces with inverter control systems, battery charge controllers, and grid-tie equipment in solar farms, wind turbines, and energy storage installations. Provides analog setpoints for power factor correction and load balancing algorithms.

Technical Specifications & Selection Guide

To facilitate system design and module selection, key technical parameters are provided below. Custom configurations available upon request to match specific project requirements.

Electrical Specifications:

• Output Channels: 2 independent analog outputs
• Resolution: 12-bit (1 in 4096)
• Voltage Output Range: 0–10V DC or ±10V DC (software selectable)
• Current Output Range: 0–20mA or 4–20mA (software selectable)
• Output Accuracy: ±0.5% of full scale at 25°C
• Load Resistance: Voltage mode ≥1kΩ; Current mode ≤500Ω
• Conversion Time: <1ms per channel
• Isolation: 500V DC channel-to-logic isolation

Environmental & Mechanical:

• Operating Temperature: -25°C to +55°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% non-condensing
• Protection Rating: IP20
• Dimensions: 71.2mm (W) × 80mm (H) × 62mm (D)
• Weight: Approximately 150g
• Mounting: 35mm DIN rail (EN 50022)

Compliance & Certifications:

• CE, UL, cUL certified
• EMC: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
• Safety: IEC 61131-2

Selection Recommendations:
When selecting the EM 232 module, consider: (1) Total number of analog output points required in your system; (2) Signal type compatibility with field devices (voltage vs. current); (3) Required output accuracy and resolution for your control application; (4) Available expansion slots on your S7-200 CPU; (5) Environmental conditions at installation site (temperature, humidity, EMI). For assistance with module configuration and system architecture, please provide your application details—our automation engineers will recommend optimal solutions and provide technical documentation.

System Integration & Expansion Capabilities

Multi-Module Cascading
Supports cascading up to 7 expansion modules on a single S7-200 CPU, enabling systems with 14+ analog output channels. Ideal for complex process control applications requiring distributed analog control across multiple zones or equipment.

Mixed I/O Configuration
Combines seamlessly with digital I/O modules (EM 221/222/223), analog input modules (EM 231/235), and communication modules (EM 277) to create comprehensive automation solutions. Unified programming environment simplifies system development and maintenance.

Protocol & Network Integration
Integrates with SCADA systems, HMI panels, and industrial networks via S7-200 CPU communication ports (PPI, MPI, PROFIBUS-DP). Supports Modbus RTU protocol through CPU programming, enabling third-party device connectivity.

Retrofit & Upgrade Path
Backward compatible with legacy S7-200 installations, allowing incremental system expansion without complete controller replacement. Migration path available to S7-1200 platform for future scalability while preserving existing wiring and field devices.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days from stock. Custom-configured modules or bulk orders typically require 10–15 business days. Expedited delivery available upon request.

Warranty: All modules include a 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Comprehensive support includes pre-sales application consulting, installation guidance, programming assistance, and troubleshooting. Remote diagnostic support and on-site commissioning services available based on project location and scope.

Documentation Package: Each module ships with complete technical documentation including datasheet, wiring diagrams, dimensional drawings, STEP 7-Micro/WIN configuration examples, and user manual in multiple languages. CAD files and 3D models available for download.

Quality Certifications: Manufactured in Siemens ISO 9001:2015 certified facilities. All units undergo 100% functional testing and burn-in procedures prior to shipment, ensuring field-ready reliability.

Frequently Asked Questions (FAQ)

Q: How do I connect the EM 232 analog output module to my existing S7-200 PLC system?
A: The EM 232 mounts directly to the right side of your S7-200 CPU or existing expansion modules via the built-in bus connector. Simply snap the module onto the DIN rail, slide it against the adjacent module until the connector engages, and secure with the locking screw. No external cabling required for bus communication. Field wiring connects to the removable terminal block (terminals 1–10). Refer to the wiring diagram in the user manual for channel-specific pin assignments.

Q: What is the maximum number of EM 232 modules I can install on one S7-200 CPU?
A: The S7-200 CPU supports up to 7 expansion modules total. You can install multiple EM 232 modules within this limit, depending on your analog output requirements. For example, a CPU 224 can accommodate 7× EM 232 modules, providing 14 analog output channels. Ensure adequate power budget—each EM 232 draws approximately 50mA from the 24V DC bus.

Q: What energy savings can I expect when using analog output control versus on/off control?
A: Energy savings vary by application, but typical results include 20–35% reduction in HVAC systems (through VFD modulation of fans/pumps), 15–25% in process heating/cooling (via proportional valve control), and 10–20% in compressed air systems (through pressure regulation). Actual savings depend on load profiles, equipment efficiency, and control algorithm optimization. Payback periods typically range from 6–18 months in continuous-operation applications.

Q: What are the environmental requirements for installing the EM 232 module?
A: The module is rated IP20 and designed for installation inside industrial control cabinets. Operating temperature range is -25°C to +55°C with 5–95% relative humidity (non-condensing). Ensure adequate ventilation—maintain 50mm clearance above and below the module. For harsh environments (corrosive gases, excessive dust, outdoor installations), install the module in a NEMA 4/4X or IP65-rated enclosure with appropriate climate control.

Q: Can the EM 232 support remote monitoring and data logging?
A: Yes, through the S7-200 CPU's communication capabilities. The CPU can transmit analog output values and diagnostic data to SCADA systems, HMI panels, or data loggers via PPI, MPI, or PROFIBUS-DP protocols. For Ethernet connectivity, add an EM 277 PROFINET module or upgrade to an S7-1200 CPU with integrated Ethernet. The PLC program can log output trends to internal data blocks or external storage devices for analysis and compliance reporting.

Q: Is the EM 232 compatible with third-party PLCs or only Siemens controllers?
A: The EM 232 is specifically designed for Siemens SIMATIC S7-200 PLC systems and uses a proprietary expansion bus protocol. It is not compatible with third-party PLC brands (Allen-Bradley, Mitsubishi, Omron, etc.). For multi-vendor system integration, use the S7-200 CPU's communication ports to exchange data with other controllers via Modbus RTU, PROFIBUS, or Ethernet/IP gateways.

Request Technical Support & Quotation

To receive detailed application engineering support, product quotations, or custom configuration assistance, please provide the following information: (1) Project name and industry sector; (2) Application type (process control, HVAC, motion control, etc.); (3) Number of analog output channels required; (4) Output signal types needed (voltage/current ranges); (5) Existing S7-200 CPU model and available expansion slots; (6) Environmental conditions (temperature, humidity, enclosure type); (7) Quantity required and delivery timeline. Our automation specialists will respond within 24 hours with tailored recommendations, technical documentation, and pricing.
