Siemens 6ES7231-4HF32-0XB0 | 8-Channel Analog Input Module for S7-1200 PLC | Industrial Automation

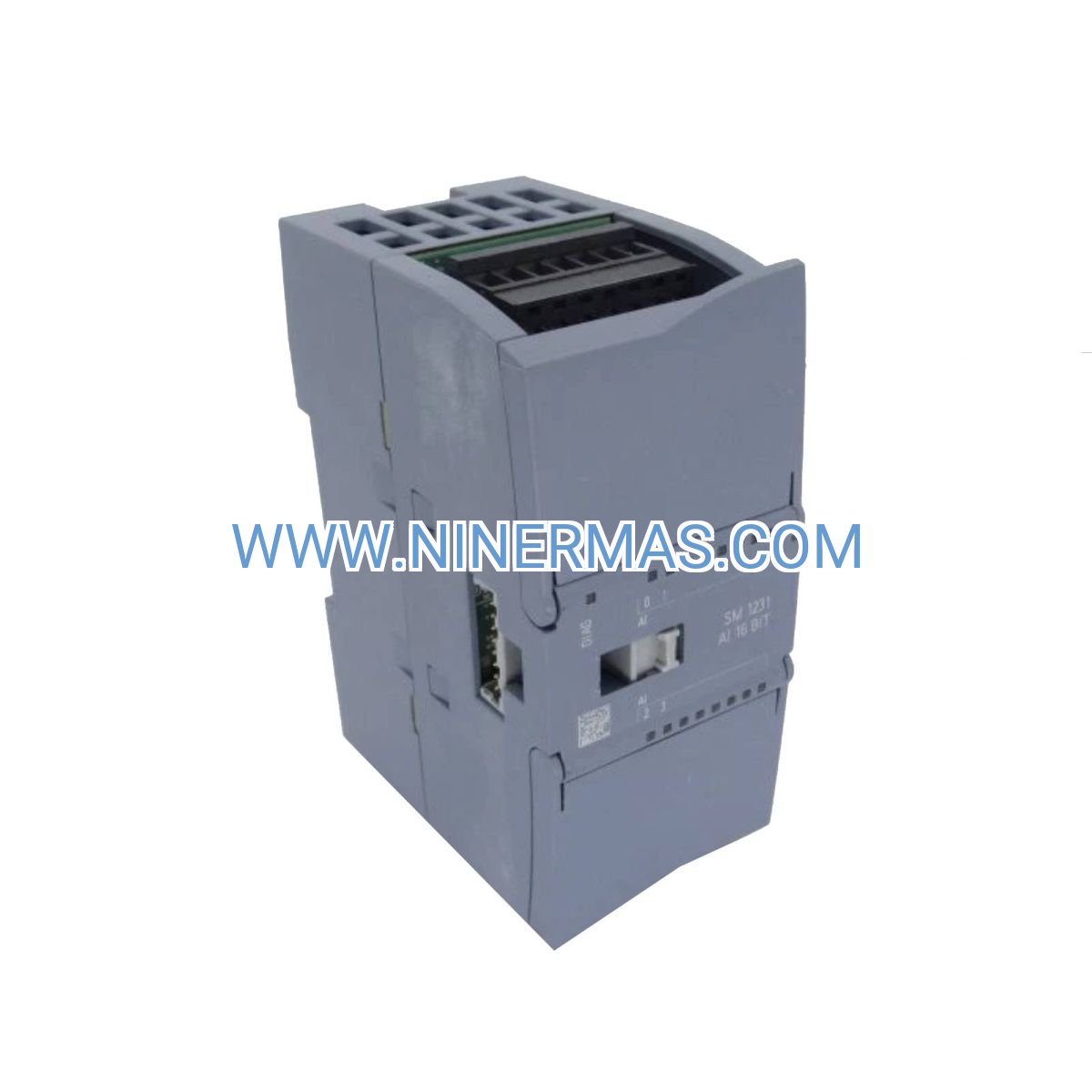

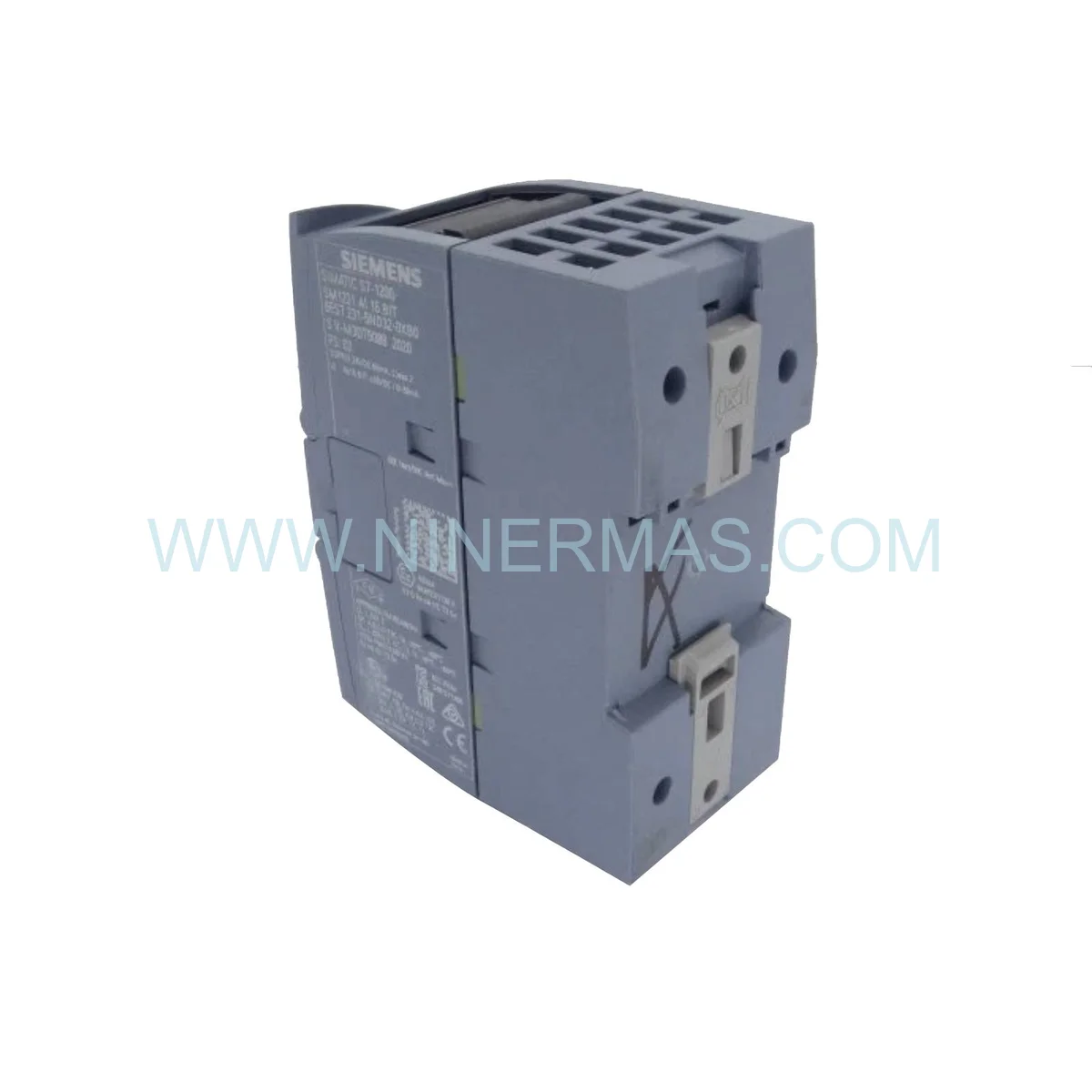

Siemens 6ES7231-4HF32-0XB0 SM 1231 Analog Input Module (Industrial-Grade Signal Acquisition Solution)

The Siemens 6ES7231-4HF32-0XB0 SM 1231 is a high-precision analog input module designed for SIMATIC S7-1200 PLC systems. Through 8-channel differential input architecture and 13-bit A/D conversion technology, it enables accurate acquisition of voltage, current, and resistance signals, delivering reliable data foundation for industrial process monitoring, quality control, and automated production lines.

Widely deployed across manufacturing plants, chemical processing facilities, HVAC systems, water treatment stations, and energy management applications, this module addresses critical challenges including signal interference, measurement drift, multi-point data synchronization delays, and inadequate diagnostic capabilities in harsh industrial environments.

Featuring standardized DIN rail mounting with flexible configuration options, the SM 1231 offers exceptional noise immunity, hot-swappable capability, comprehensive diagnostics, and seamless TIA Portal integration—making it the preferred choice for system integrators, automation engineers, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized I/O configuration schemes and technical quotations.

Core Features & Technical Advantages

• High-Precision Multi-Channel Acquisition
  8 differential analog inputs with 13-bit resolution (±0.3% accuracy) support voltage (±10V, ±5V, ±2.5V, 1-5V), current (±20mA, 0-20mA, 4-20mA), resistance (150Ω, 300Ω, 600Ω), and thermocouple/RTD signals. Configurable per-channel settings enable simultaneous monitoring of diverse sensor types.
• Superior Noise Rejection & Signal Integrity
  Differential input design with galvanic isolation (500V AC) eliminates ground loop interference. Built-in digital filtering and oversampling algorithms ensure stable readings in electrically noisy factory floors, reducing false alarms and process variations.
• Rapid Diagnostics & Predictive Maintenance
  Real-time wire-break detection, over-range indication, and module status LEDs accelerate troubleshooting. Diagnostic data accessible via TIA Portal enables condition-based maintenance scheduling, minimizing unplanned downtime by up to 40%.
• Flexible System Expansion & Hot-Swap Support
  Compact 45mm width allows up to 8 signal modules per S7-1200 CPU. Hot-pluggable design permits module replacement without system shutdown, critical for 24/7 continuous production environments.
• Seamless Engineering Workflow Integration
  Native TIA Portal V13+ compatibility with drag-and-drop configuration, automatic hardware detection, and pre-built function blocks. Supports PROFINET diagnostics and OPC UA for Industry 4.0 connectivity.
• Rugged Industrial Construction
  Operating temperature -25°C to +60°C, conformal coating protection, and compliance with CE/UL/cULus standards ensure reliable operation in demanding environments including high humidity, vibration, and temperature cycling.

Typical Application Scenarios

This module excels in applications requiring stable signal acquisition, multi-point synchronization, and long-term measurement reliability, particularly in:

• Process Control & Chemical Manufacturing
  Monitor reactor temperature, pressure transmitters, flow meters, and pH sensors in batch processes. Differential inputs reject common-mode noise from VFDs and high-power equipment, ensuring accurate process variable tracking for recipe control and quality assurance.
• Factory Automation & Machine Building
  Integrate with load cells, linear encoders, vibration sensors, and analog position feedback devices in packaging lines, CNC machines, and robotic cells. Fast conversion time (625μs per channel) supports closed-loop control and synchronous multi-axis coordination.
• HVAC & Building Management Systems
  Acquire signals from temperature sensors, humidity transmitters, CO₂ detectors, and differential pressure switches across air handling units, chillers, and VAV systems. Centralized monitoring via SCADA reduces energy consumption by optimizing setpoints based on real-time occupancy and load conditions.
• Water & Wastewater Treatment
  Connect to turbidity meters, dissolved oxygen probes, chlorine analyzers, and level transmitters in filtration, aeration, and disinfection stages. Reliable 4-20mA loop-powered sensor compatibility simplifies field wiring and reduces installation costs.
• Energy Monitoring & Power Quality Analysis
  Interface with current transformers, voltage transducers, and power meters to track consumption patterns, detect harmonic distortion, and implement demand-response strategies in industrial microgrids and renewable energy installations.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for the SM 1231 module. Custom configurations available based on project-specific requirements.

Selection Recommendations:
When specifying the SM 1231 module, consider: (1) Total number of analog signals and required channel density, (2) Sensor output types and signal ranges (voltage/current/RTD), (3) Ambient temperature and electrical noise environment, (4) Available backplane slots on S7-1200 CPU, (5) Diagnostic and maintenance access requirements. For complex multi-zone or redundant systems, consult our application engineers with process flow diagrams and I/O lists for optimized module allocation and wiring topology recommendations.

Advanced Configuration Options

• Flexible Channel Grouping: Configure channels individually or in groups for different measurement tasks—mix voltage, current, and resistance inputs within the same module to reduce hardware costs.
• Programmable Filtering: Adjust digital filter time constants (2.5ms to 16.67ms) via TIA Portal to balance response speed versus noise suppression based on process dynamics.
• Scaling & Linearization: Built-in function blocks for engineering unit conversion, square-root extraction (flow), and custom linearization tables simplify PLC programming and reduce scan time overhead.
• Alarm & Event Management: Set high/low limit thresholds with hysteresis in hardware; trigger interrupts to CPU for immediate operator notification or automated corrective actions.
• PROFINET Integration: Access module diagnostics and channel values via PROFINET I/O for centralized SCADA visualization, historian logging, and MES integration in networked automation architectures.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional warehouses. Custom-configured modules or bulk orders typically require 10-15 business days; expedited service available upon request.

Warranty: All Siemens SM 1231 modules include a 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for mission-critical installations.

Technical Support: Complimentary pre-sales application consulting, post-sales commissioning assistance (remote or on-site depending on location), and access to TIA Portal configuration examples, wiring diagrams, and troubleshooting guides. Multilingual support available in English, Chinese, German, and Spanish.

Documentation Package: Each module ships with complete electrical schematics, terminal assignment diagrams, dimensional drawings (DXF/PDF), CE/UL certificates, and quick-start guide. Comprehensive manuals and GSD files downloadable from Siemens Industry Online Support portal.

Compliance & Traceability: Manufactured in ISO 9001:2015 certified facilities with full batch traceability. RoHS and REACH compliant. Conflict minerals declaration and country-of-origin certificates available upon request for export documentation.

Frequently Asked Questions (FAQ)

Q: How do I connect 4-20mA loop-powered sensors to the SM 1231 analog input module?
A: The SM 1231 supports passive 4-20mA current inputs. Connect the sensor's positive terminal to the channel's IN+ and negative to IN-. Ensure your sensor loop is externally powered (typically 24V DC). For 2-wire transmitters, use a separate 24V supply with the sensor in series with the module input. Refer to wiring diagram A5E03484682 in the manual for detailed connection examples.

Q: What is the maximum number of SM 1231 modules I can install on a single S7-1200 CPU?
A: The S7-1200 supports up to 8 signal modules total (combination of digital and analog). For example, a CPU 1214C can accommodate 8× SM 1231 modules, providing 64 analog input channels. Verify your CPU model's expansion capability and backplane power budget (each SM 1231 draws ~1.5W) before finalizing system architecture.

Q: Can the SM 1231 achieve energy savings compared to traditional analog input cards?
A: While the module itself consumes minimal power (1.5W), energy savings primarily come from improved process control enabled by accurate, real-time data acquisition. Customers report 15-30% reductions in energy usage through optimized setpoint control, reduced process variability, and elimination of manual adjustments in HVAC, pumping, and heating applications.

Q: What are the environmental and installation requirements for the SM 1231 module?
A: Operating temperature: -25°C to +60°C (horizontal mounting; derate to +55°C for vertical). Relative humidity: 5-95% non-condensing. Protection rating: IP20 (install in enclosed control cabinet). Avoid direct exposure to corrosive gases, conductive dust, or condensation. Maintain 25mm clearance above/below module for convection cooling. Conformal coating option available for harsh chemical or high-humidity environments.

Q: Does the SM 1231 support remote monitoring and data acquisition via industrial protocols?
A: Yes. When integrated with S7-1200 CPUs featuring PROFINET or Ethernet interfaces, analog channel data is accessible via: (1) PROFINET I/O for SCADA systems, (2) OPC UA server (CPU firmware V4.0+) for MES/ERP integration, (3) S7 communication protocol for third-party HMI/historian, (4) Modbus TCP via communication modules. Web server functionality in newer CPUs enables browser-based diagnostics without additional software.

Q: What diagnostic features help reduce troubleshooting time for SM 1231 installations?
A: The module provides: (1) Per-channel status LEDs (green=OK, red=fault), (2) Wire-break detection for current inputs, (3) Over/under-range indication in PLC data word, (4) Module-level error flags accessible in TIA Portal diagnostics buffer, (5) Automatic hardware detection and configuration comparison tools. Typical fault isolation time reduced from 30+ minutes to under 5 minutes using built-in diagnostics and online module replacement without download.

Get Expert Selection Assistance

To receive a detailed configuration proposal, technical quotation, or application-specific recommendations, please provide the following information to our engineering team:

• Project name and application overview (process control, machine automation, building systems, etc.)
• Number and types of sensors (voltage/current output, signal ranges, 2-wire/3-wire/4-wire)
• Total analog input points required and physical distribution (local/remote I/O)
• S7-1200 CPU model currently specified or under consideration
• Environmental conditions (temperature range, humidity, electrical noise sources)
• Communication requirements (PROFINET, OPC UA, Modbus TCP, etc.)
• Delivery timeline and installation support needs

Our certified Siemens solution partners will provide one-on-one consultation, including I/O allocation worksheets, wiring schematics, TIA Portal project templates, and total cost of ownership analysis.
