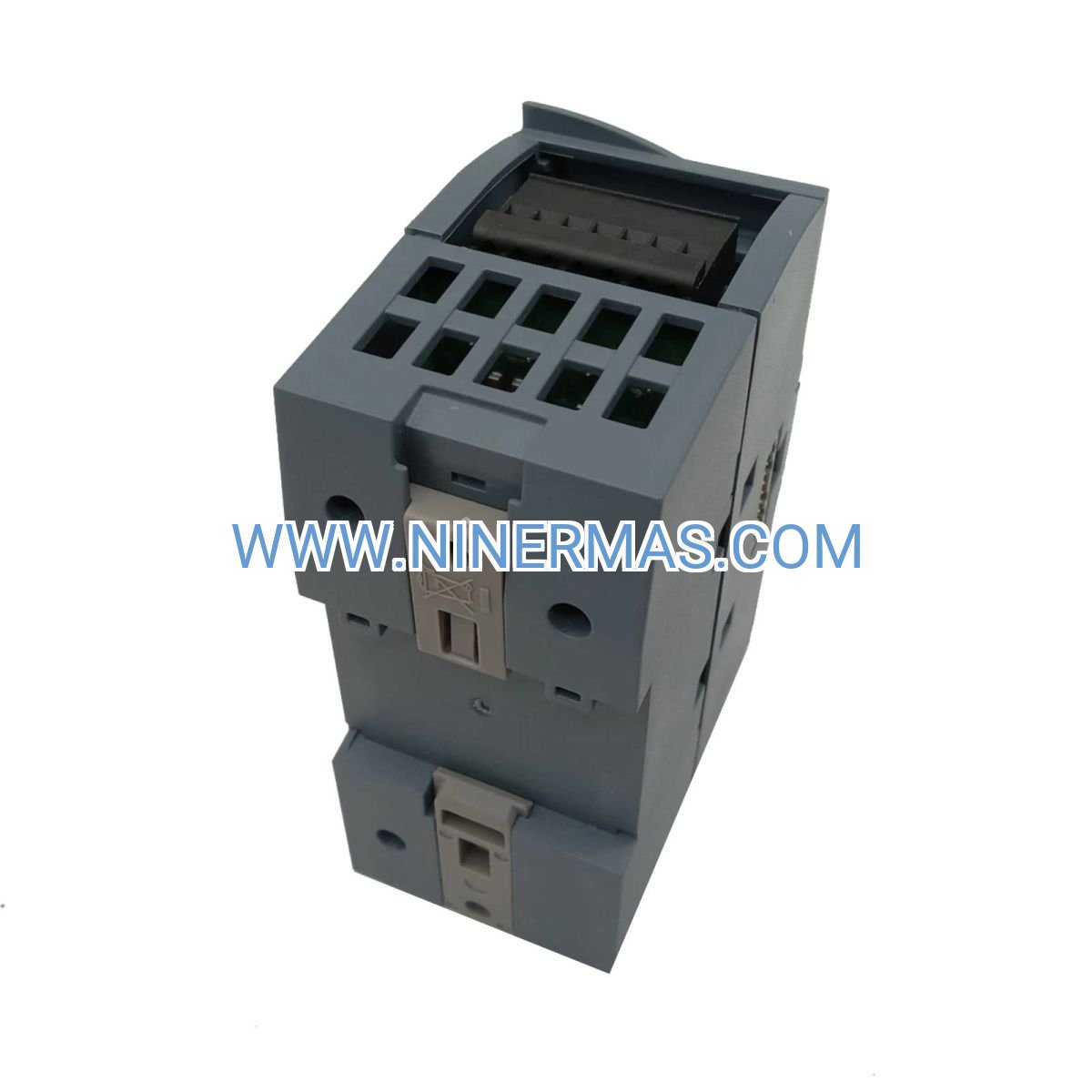

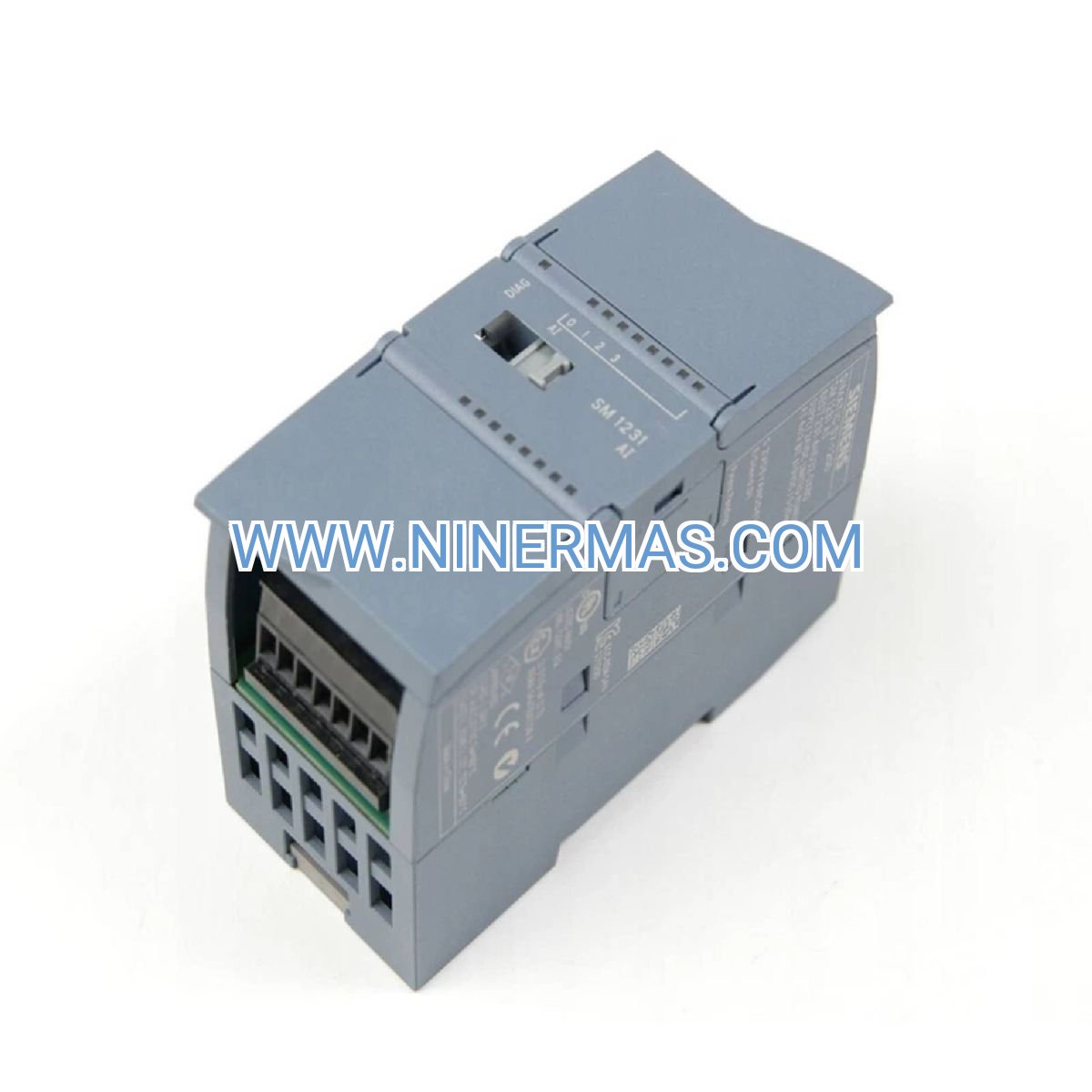

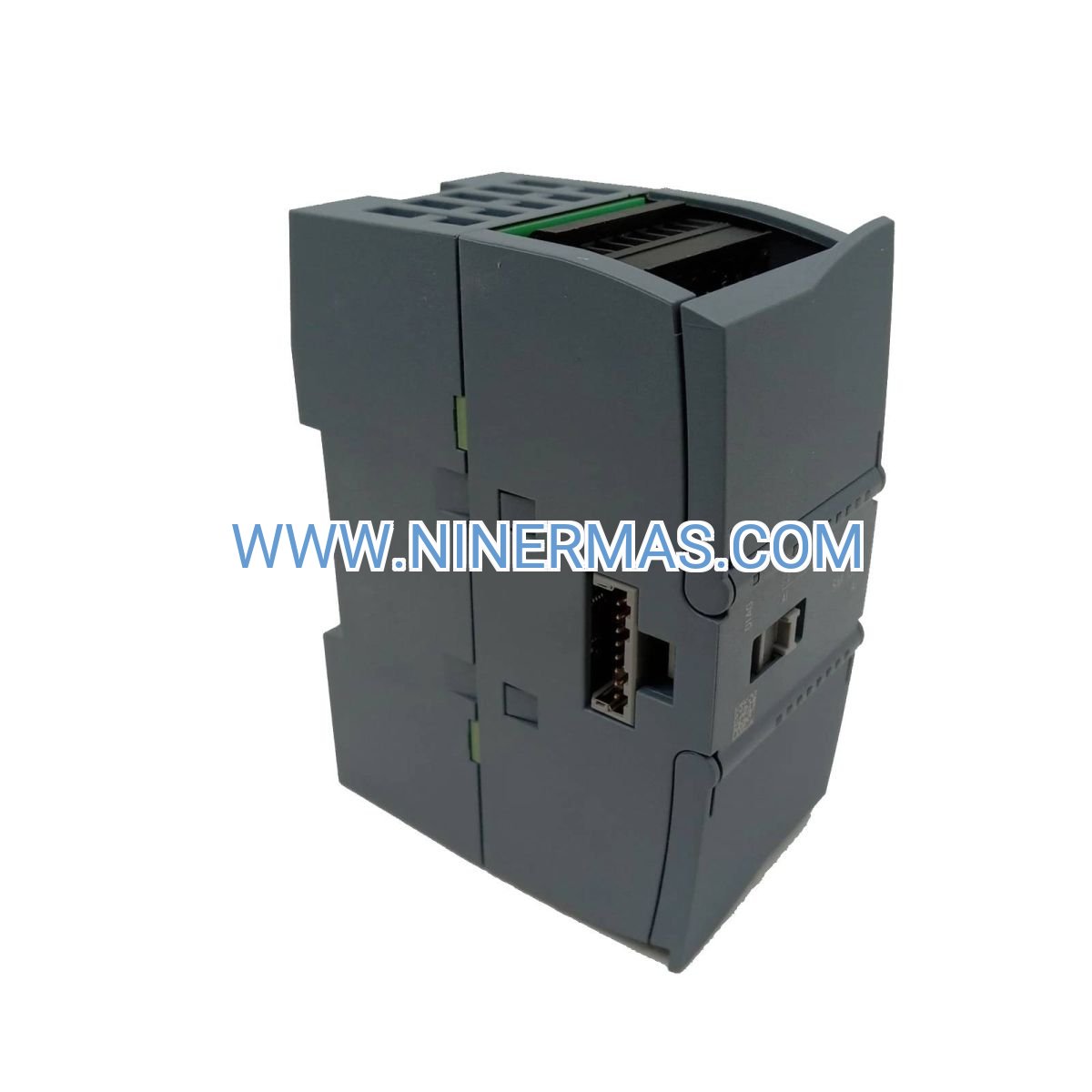

Siemens 6ES7231-4HD30-0XB0 Analog Input Module (Industrial-Grade S7-1200 Expansion)

The Siemens 6ES7231-4HD30-0XB0 is a high-precision analog input module designed for SIMATIC S7-1200 PLC systems. Through 8-channel differential input architecture and 13-bit A/D conversion, it enables accurate signal acquisition from field sensors, transmitters, and measurement devices. This module transforms analog signals (voltage/current) into digital data for real-time monitoring, process control, and intelligent decision-making in industrial automation environments.

Ideal for applications requiring continuous parameter monitoring—such as temperature control in HVAC systems, pressure regulation in chemical plants, flow measurement in water treatment facilities, and multi-point data logging in manufacturing lines. It addresses common challenges including signal drift, noise interference, limited I/O capacity, and the need for scalable, reliable data acquisition in harsh industrial conditions.

With standardized DIN rail mounting and hot-swappable design, this module offers seamless integration, high immunity to electromagnetic interference, diagnostic capabilities, and flexible configuration. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for customized I/O configuration, wiring diagrams, and technical consultation.

Core Features & Technical Advantages

• High-Resolution Signal Acquisition
  Equipped with 8 differential analog inputs and 13-bit resolution (±0.012% full-scale accuracy), ensuring precise measurement of voltage (±10V, ±5V, ±2.5V) and current (0-20mA, 4-20mA) signals from industrial sensors and transmitters.
• Flexible Input Configuration
  Each channel independently configurable for voltage or current mode, supporting diverse sensor types including thermocouples (with external cold junction compensation), RTDs, pressure transducers, and flow meters—reducing system complexity and wiring costs.
• Robust Noise Immunity
  Integrated galvanic isolation (up to 500V AC) between channels and backplane bus, combined with hardware filtering and software averaging algorithms, effectively suppresses electrical noise in motor-driven or high-voltage environments.
• Comprehensive Diagnostics
  Built-in wire-break detection, over-range alarms, and module status LEDs provide real-time fault indication. Diagnostic data accessible via TIA Portal enables predictive maintenance and minimizes unplanned downtime.
• Compact & Modular Design
  Standard 45mm width DIN rail mounting, hot-pluggable without power-down (when using appropriate backplane), and seamless expansion up to 8 signal modules per S7-1200 CPU—ideal for space-constrained control cabinets.
• Proven Reliability
  Operating temperature range -25°C to +60°C, IP20 protection rating, MTBF >500,000 hours under typical industrial conditions. Compliant with CE, UL, and cULus certifications for global deployment.

Typical Application Scenarios

This analog input module is engineered for industrial environments demanding stable, accurate, and continuous signal monitoring, particularly in:

• Process Control & Chemical Manufacturing
  Monitor reactor temperatures, tank levels, and flow rates in real-time. Closed-loop control with PID algorithms ensures product quality consistency and reduces material waste in batch or continuous processes.
• HVAC & Building Automation
  Acquire temperature, humidity, and pressure data from air handling units, chillers, and boiler systems. Optimize energy consumption by adjusting setpoints based on actual load conditions, achieving up to 25% energy savings.
• Water & Wastewater Treatment
  Measure pH, turbidity, dissolved oxygen, and flow in filtration, aeration, and dosing systems. Ensure regulatory compliance and operational efficiency through automated control and historical data trending.
• Machine Building & OEM Equipment
  Integrate into packaging machines, CNC systems, injection molding presses, and test benches for multi-parameter monitoring (force, speed, position). Supports Industry 4.0 data collection via PROFINET or Modbus TCP.
• Energy & Utilities
  Monitor voltage, current, power factor, and frequency in substations, solar inverters, and generator sets. Enable remote SCADA integration for centralized monitoring and predictive analytics.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key technical parameters below. Custom configurations available based on project-specific requirements.

Selection Recommendations:
When specifying this module, consider: (1) Total number of analog signals required, (2) Signal type and range (voltage vs. current), (3) Required update rate and accuracy, (4) Environmental conditions (temperature, humidity, vibration), (5) Integration with existing S7-1200 CPU model and firmware version. For complex applications involving thermocouple linearization or high-speed data logging, consult our engineering team with your I/O list and control narrative.

Extended Capabilities

• TIA Portal Integration
  Fully supported in Siemens TIA Portal V13 and later. Drag-and-drop configuration, automatic hardware detection, and built-in function blocks (SCALE, NORM_X) simplify programming and commissioning.
• Data Logging & Trending
  Compatible with S7-1200 onboard data logging to SD card or external SCADA/HMI systems via PROFINET, Modbus TCP, or S7 communication protocols for historical analysis and regulatory reporting.
• Redundancy & Failover
  When paired with redundant power supplies and dual-channel sensor wiring, supports fault-tolerant architectures for critical process control applications.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules or bulk orders typically require 10-15 business days.
Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and spare parts programs available.
Technical Support: Remote commissioning assistance, on-site installation guidance (region-dependent), and access to certified Siemens technical documentation including wiring diagrams, GSD files, and user manuals.
Documentation Package: Each module ships with installation manual, electrical schematics, terminal assignment diagrams, and TIA Portal hardware catalog entry for seamless integration.

Frequently Asked Questions (FAQ)

Q: How do I connect 4-20mA sensors to the Siemens 6ES7231-4HD30-0XB0 analog input module?
A: Connect the sensor's positive terminal to the AI+ terminal and negative to AI- terminal. For 2-wire transmitters, provide loop power (typically 24V DC) via an external supply. Configure the channel as "Current 0-20mA" or "4-20mA" in TIA Portal, and apply appropriate scaling in your PLC program.

Q: What is the maximum number of analog input modules I can add to an S7-1200 PLC?
A: The S7-1200 CPU supports up to 8 signal modules (SM) on the right side of the CPU. You can mix analog input, analog output, and digital I/O modules within this limit, depending on your application requirements.

Q: Can this module measure temperature directly from thermocouples or RTDs?
A: This module measures voltage or current signals. For direct thermocouple (Type K, J, T) or RTD (PT100, PT1000) connection, use dedicated temperature input modules like 6ES7231-5PD32-0XB0 (RTD) or 6ES7231-5QD32-0XB0 (thermocouple), which include built-in cold junction compensation and linearization.

Q: What is the typical accuracy and noise performance in industrial environments?
A: With proper grounding and shielded cable installation, expect ±0.3% full-scale accuracy under normal conditions. The module's galvanic isolation and configurable input filtering (averaging over 2-100 samples) effectively reject common-mode noise from VFDs, contactors, and welding equipment.

Q: Does the module support HART protocol or other smart sensor communication?
A: No, this module is designed for standard analog voltage/current signals. For HART-enabled field devices, consider using PROFIBUS PA or PROFINET-compatible I/O systems with integrated HART multiplexers.

Q: Can I hot-swap this module without shutting down the PLC?
A: Hot-swapping is supported when using S7-1200 CPUs with firmware V4.0 or later and appropriate backplane configuration. Always follow Siemens safety guidelines and ensure proper ESD precautions during module replacement.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing, or application-specific technical support, please provide the following information: Project name, application description, number of analog signals (voltage/current type and range), required accuracy and update rate, environmental conditions, and existing PLC model. Our application engineers will respond within 24 hours with a customized solution and quotation.
