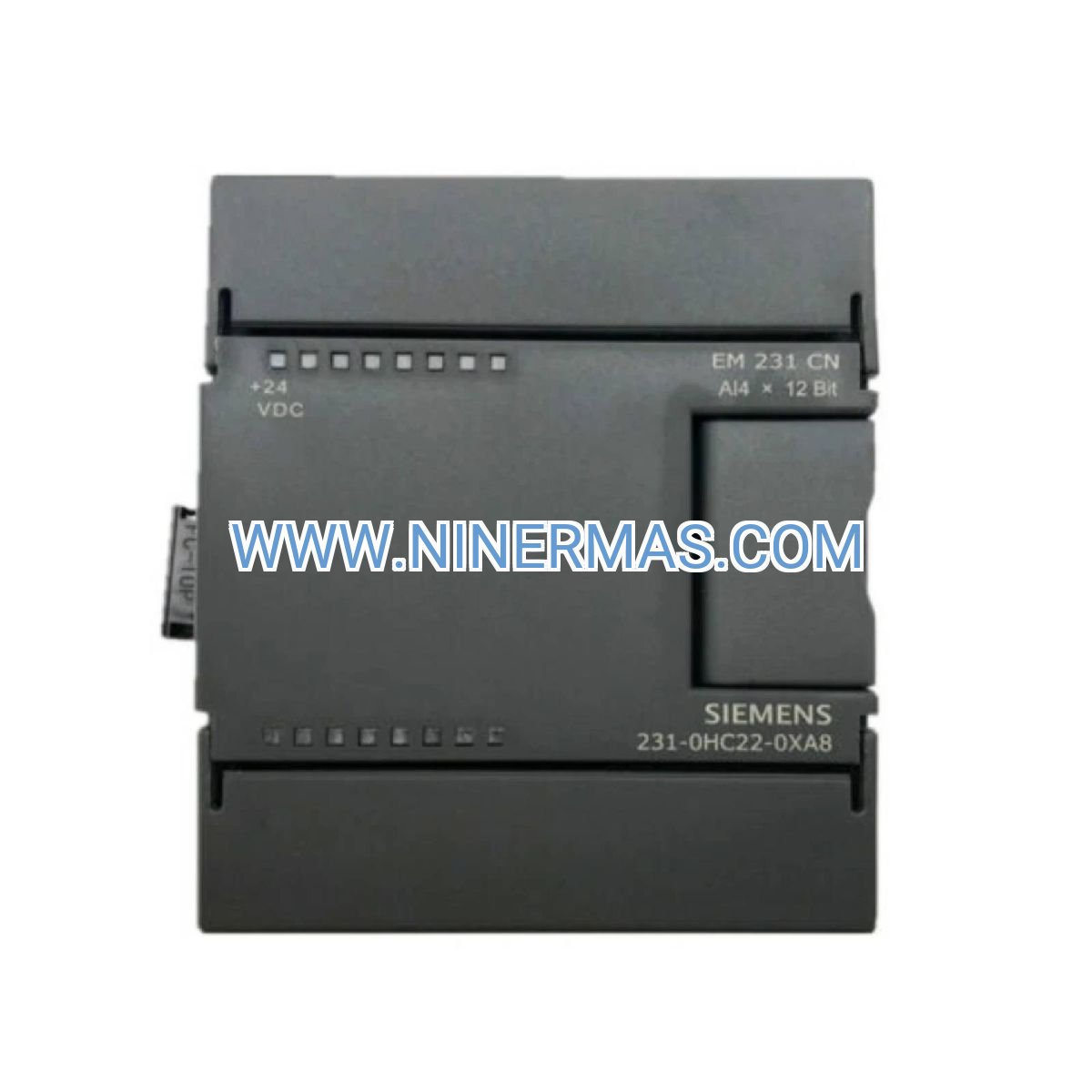

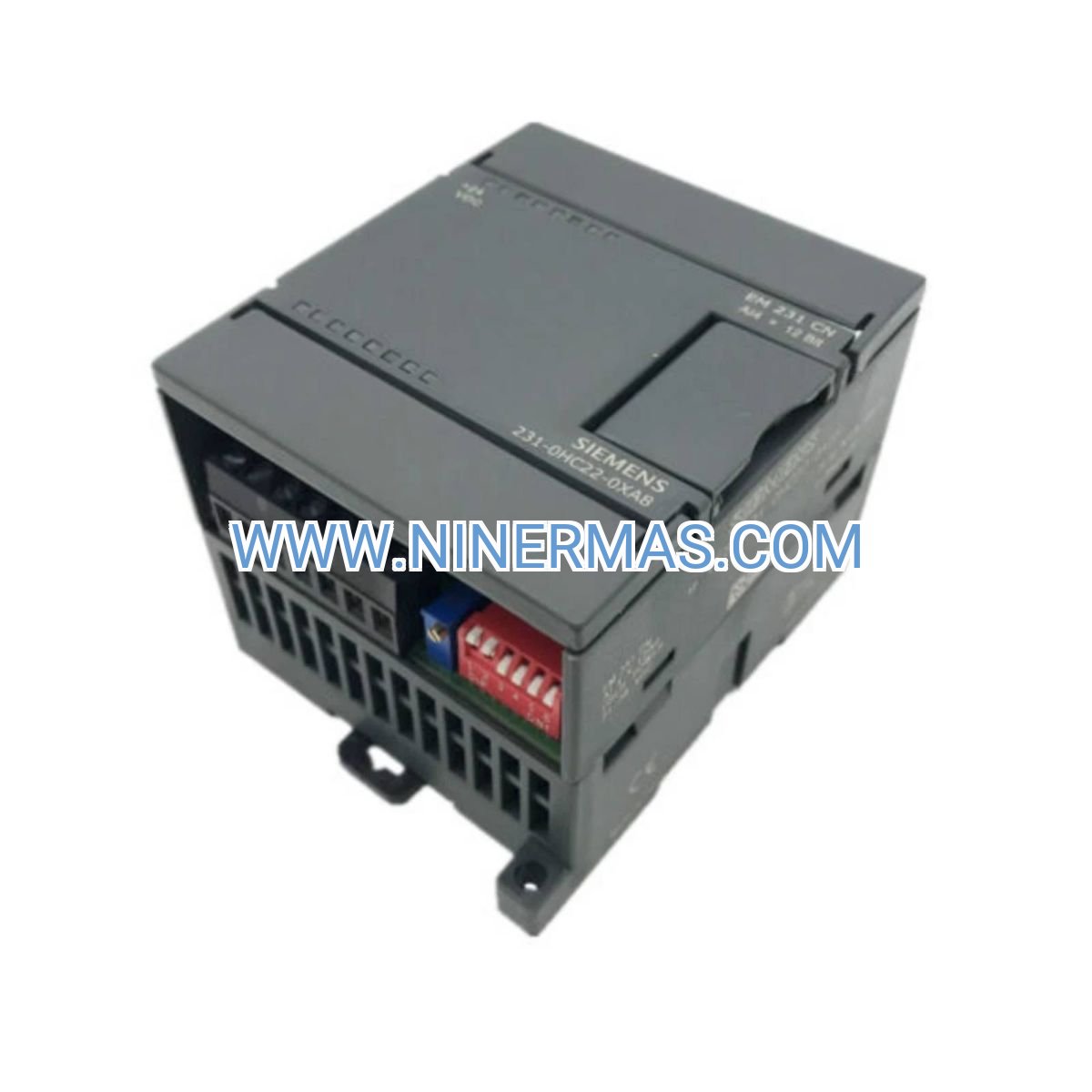

Siemens 6ES7231-0HC22-0XA0 EM 231 Analog Input Module | 4-Channel 12-Bit Resolution for S7-200 PLC

Siemens EM 231 Analog Input Module (Industrial-Grade Signal Acquisition System)

The Siemens 6ES7231-0HC22-0XA0 EM 231 is a professional analog input expansion module designed for SIMATIC S7-200 PLC systems. Through high-precision 12-bit A/D conversion technology, it enables real-time acquisition of analog signals from field sensors (temperature, pressure, flow, level), converting them into digital values for PLC processing and control logic execution.

This module is widely deployed in industrial process control scenarios requiring continuous parameter monitoring, including chemical reactor temperature regulation, HVAC system pressure stabilization, water treatment flow measurement, and manufacturing production line quality inspection. It addresses challenges such as signal drift, low sampling accuracy, poor anti-interference capability, and complex multi-point data collection.

Featuring standardized DIN rail mounting and modular expansion design, the EM 231 offers advantages including high measurement precision, excellent electromagnetic compatibility, flexible channel configuration, and seamless integration with S7-200 CPUs. It serves design institutes, system integrators, OEM equipment manufacturers, and end-user facilities. Contact our application engineers for customized I/O configuration solutions and technical quotations.

Core Features & Technical Advantages

• High-Precision Signal Conversion
  Equipped with 12-bit resolution A/D converter, supporting voltage (±10V, ±5V, ±2.5V) and current (0-20mA, 4-20mA) input modes with measurement accuracy up to ±0.5% full scale, ensuring reliable data for critical process parameters.
• Flexible Multi-Channel Architecture
  Provides 4 independent analog input channels with individual configuration capability for input type, range, and filtering parameters, accommodating diverse sensor signal requirements within a single module.
• Industrial-Grade Reliability Design
  Operates stably in -25°C to +55°C ambient temperature with IP20 protection rating. Features built-in overvoltage protection, reverse polarity protection, and channel isolation (500V) to minimize crosstalk and external interference impact.
• Seamless S7-200 Integration
  Hot-swappable installation via backplane bus connection, automatic CPU recognition without additional wiring. Programming through STEP 7-Micro/WIN software with intuitive scaling function blocks simplifies engineering configuration time.
• Compact Space-Saving Footprint
  Module dimensions 71.2mm × 80mm × 62mm, standard 35mm DIN rail mounting. Supports up to 7 expansion modules per S7-200 CPU, enabling scalable I/O capacity for complex control systems within limited cabinet space.
• Comprehensive Diagnostic Capabilities
  Real-time channel status monitoring with LED indicators for power, communication errors, and input range violations. Diagnostic data accessible via PLC program for predictive maintenance and rapid fault localization.

Typical Application Scenarios

The EM 231 module excels in industrial environments demanding high-accuracy analog signal monitoring and closed-loop control, particularly in:

• Chemical & Petrochemical Process Control
  Monitors reactor temperature, distillation column pressure, and feed flow rates in real-time. Integrates with PID control algorithms to maintain process parameters within specified tolerances, reducing batch variation and improving product consistency.
• HVAC & Building Automation Systems
  Acquires signals from temperature sensors, humidity transmitters, and differential pressure switches in air handling units and chiller plants. Enables energy-efficient climate control through variable-speed drive regulation based on actual load conditions.
• Water & Wastewater Treatment Plants
  Collects data from pH meters, turbidity sensors, chlorine analyzers, and flow meters across treatment stages. Supports automated dosing control and compliance reporting for municipal and industrial effluent management.
• Manufacturing Production Lines
  Interfaces with position transducers, force sensors, and quality inspection instruments in assembly, packaging, and material handling equipment. Facilitates statistical process control (SPC) and traceability in automotive, electronics, and food processing industries.
• Energy & Utilities Monitoring
  Measures electrical parameters (voltage, current via transducers), steam pressure, and fuel consumption in power generation and distribution systems. Provides operational data for load balancing, efficiency optimization, and predictive maintenance programs.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide key electrical and mechanical parameters. Custom configurations available based on project-specific requirements.

Selection Recommendations:
When specifying the EM 231 module, consider: (1) Total number of analog signals requiring monitoring, (2) Sensor output signal types and ranges, (3) Required measurement accuracy and response time, (4) Environmental conditions (temperature, vibration, EMI), (5) Available expansion slots on S7-200 CPU model. For applications exceeding 4 channels, multiple EM 231 modules can be cascaded. Our engineers can recommend optimal I/O architecture based on your process requirements—please provide system overview, I/O list, and control cabinet layout for detailed proposal.

Advanced Configuration Options

Beyond standard analog input functionality, the EM 231 supports enhanced features for demanding applications:

• Programmable Input Filtering: Adjustable digital filtering (integration time 2.5ms to 16.67ms) suppresses high-frequency noise from VFDs, welding equipment, and switching power supplies.
• Sensor Fault Detection: Automatic detection of wire breakage (4-20mA loop) and out-of-range conditions with configurable alarm thresholds in user program.
• Scaling & Linearization: Built-in STEP 7 function blocks convert raw ADC values to engineering units (°C, bar, m³/h) with support for custom linearization curves for non-linear sensors.
• PROFIBUS Integration: When used with S7-200 CPUs supporting PROFIBUS-DP, module data can be shared across distributed control networks for centralized SCADA visualization.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional warehouse. Custom-configured modules or bulk orders require 10-15 business days production time.

Warranty Coverage: All Siemens EM 231 modules include 12-month manufacturer warranty covering material defects and workmanship. Extended warranty and spare parts programs available for critical infrastructure projects.

Technical Support: Complimentary remote commissioning assistance via phone/email during installation phase. On-site startup services and training available (subject to location and scope). Comprehensive documentation package includes: module datasheet, wiring diagrams, STEP 7 sample programs, and troubleshooting guide.

Compliance & Certifications: Products meet international standards including IEC 61131-2 (PLC equipment), EN 61000-6-2 (EMC immunity), and UL 508 (industrial control equipment). RoHS and REACH compliant for global deployment.

Frequently Asked Questions (FAQ)

Q: How do I connect the EM 231 analog input module to my existing S7-200 PLC system?
A: The EM 231 installs directly onto the S7-200 CPU's right-side expansion bus via snap-on connector—no external cabling required for data communication. Field sensor wiring terminates at the module's removable screw terminal block (20-14 AWG wire capacity). Ensure CPU firmware version supports the module (consult S7-200 system manual Chapter 8), and configure input parameters using STEP 7-Micro/WIN hardware configuration wizard. Total expansion current draw must not exceed CPU's 5V DC budget (typically 660mA for CPU 224XP).

Q: What is the maximum number of EM 231 modules I can install on one S7-200 CPU?
A: S7-200 CPUs support up to 7 expansion modules total (combination of digital and analog I/O). You can install multiple EM 231 modules depending on: (1) CPU model's expansion capability (e.g., CPU 222 supports 2 modules, CPU 226 supports 7), (2) Available 5V DC power budget from CPU backplane, (3) Total I/O addressing range. For example, a CPU 224XP can accommodate up to 7 EM 231 modules, providing 28 analog input channels. Consult S7-200 System Manual Appendix A for detailed expansion rules and power calculations.

Q: What energy savings can I expect, and what conditions are required to achieve optimal performance?
A: The EM 231 itself consumes only 1.5W, contributing negligible energy cost. However, its primary value lies in enabling closed-loop control strategies that reduce overall system energy consumption—for instance, VFD-based pump/fan speed modulation based on real-time pressure/flow feedback can achieve 20-40% energy reduction versus fixed-speed operation. Optimal performance requires: (1) Proper sensor calibration and scaling, (2) Tuned PID control parameters, (3) Regular maintenance of field instruments, (4) Adequate electrical noise mitigation (shielded cables, grounding). Energy savings vary by application; consult our application notes for industry-specific case studies.

Q: What are the environmental requirements for installation? What is the module's protection rating?
A: The EM 231 is rated IP20, suitable for installation inside enclosed control cabinets or panels. Operating temperature range: -25°C to +55°C ambient (derate above 55°C or ensure forced ventilation). Relative humidity: 5% to 95% non-condensing. Avoid direct exposure to corrosive gases, conductive dust, or water ingress. For harsh environments (outdoor, high-vibration, explosive atmospheres), specify appropriate cabinet enclosure rating (NEMA 4X, IP65) and consider conformal coating or potted module variants. Maintain minimum clearances: 25mm top/bottom for ventilation, 10mm sides for wiring access.

Q: Can the EM 231 support remote monitoring and data acquisition? Which communication protocols are compatible?
A: Yes. The EM 231's data is accessible via the S7-200 CPU's communication interfaces. Standard options include: (1) PPI protocol over RS-485 for direct connection to HMI panels or PC-based SCADA (WinCC Flexible, Ignition), (2) Modbus RTU via CPU's free port (requires user program implementation), (3) Ethernet TCP/IP when using CP 243-1 Ethernet module with S7-200, enabling web server and OPC DA/UA connectivity, (4) PROFIBUS-DP for integration into Siemens TIA Portal ecosystems. For IIoT applications, edge gateways (e.g., SIMATIC IOT2040) can publish EM 231 data to cloud platforms (AWS, Azure) via MQTT or REST APIs. Consult our system integration guide for protocol selection and configuration examples.

Request Technical Consultation & Quotation

To receive a tailored I/O configuration proposal, pricing, and application engineering support, please provide the following project details:

• Project name and industry sector
• Application description (process type, control objectives)
• Number and types of analog signals (voltage/current, ranges)
• Existing S7-200 CPU model or planned system architecture
• Environmental conditions (temperature, enclosure type)
• Required delivery timeline and installation location

Our certified automation specialists will respond within 24 hours with a comprehensive solution including module selection, wiring schematics, programming templates, and commercial proposal.
