Siemens 6ES7223-1PH22-0XA0 EM 223 Digital I/O Module | 8DI/8DO Isolated Expansion for S7-200 PLC

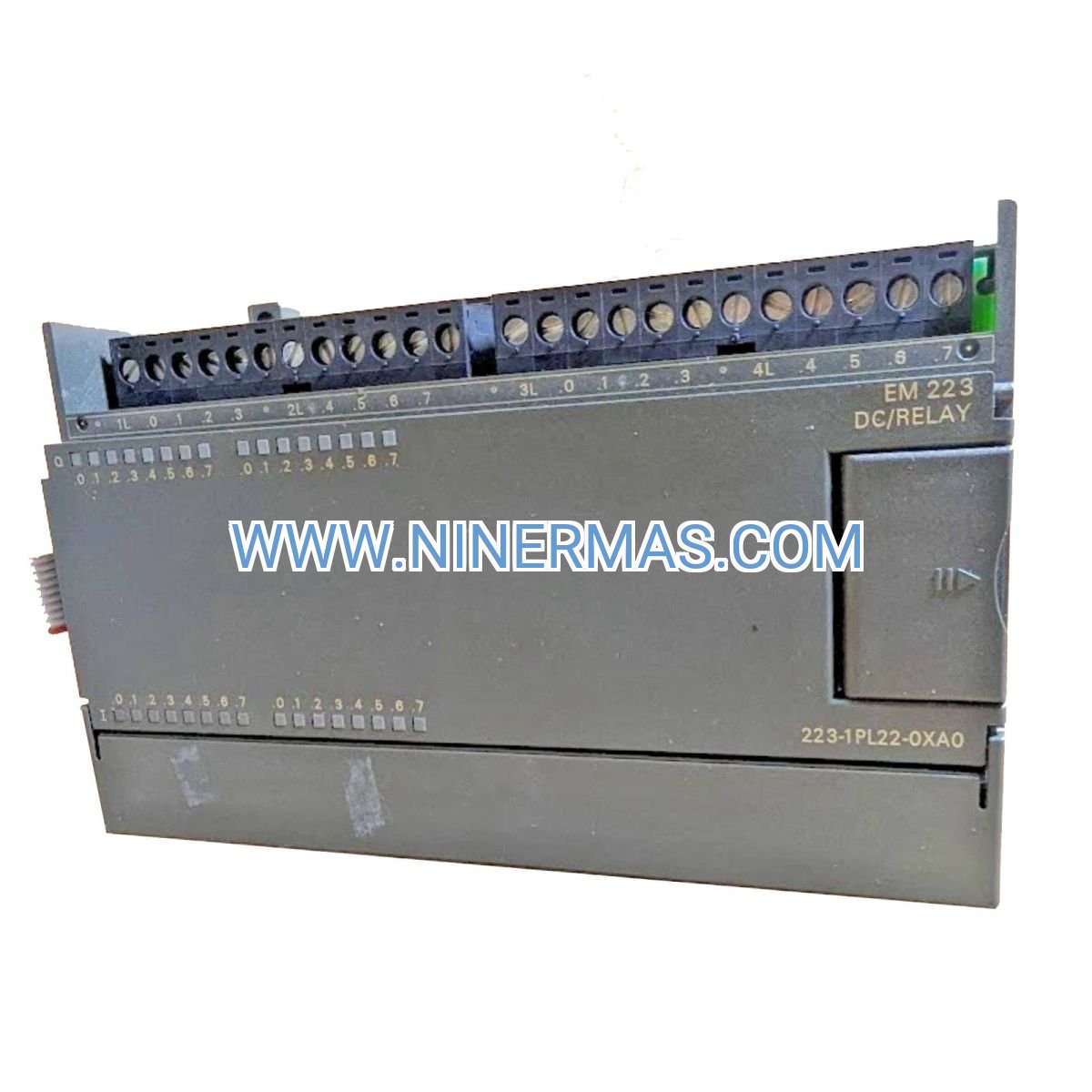

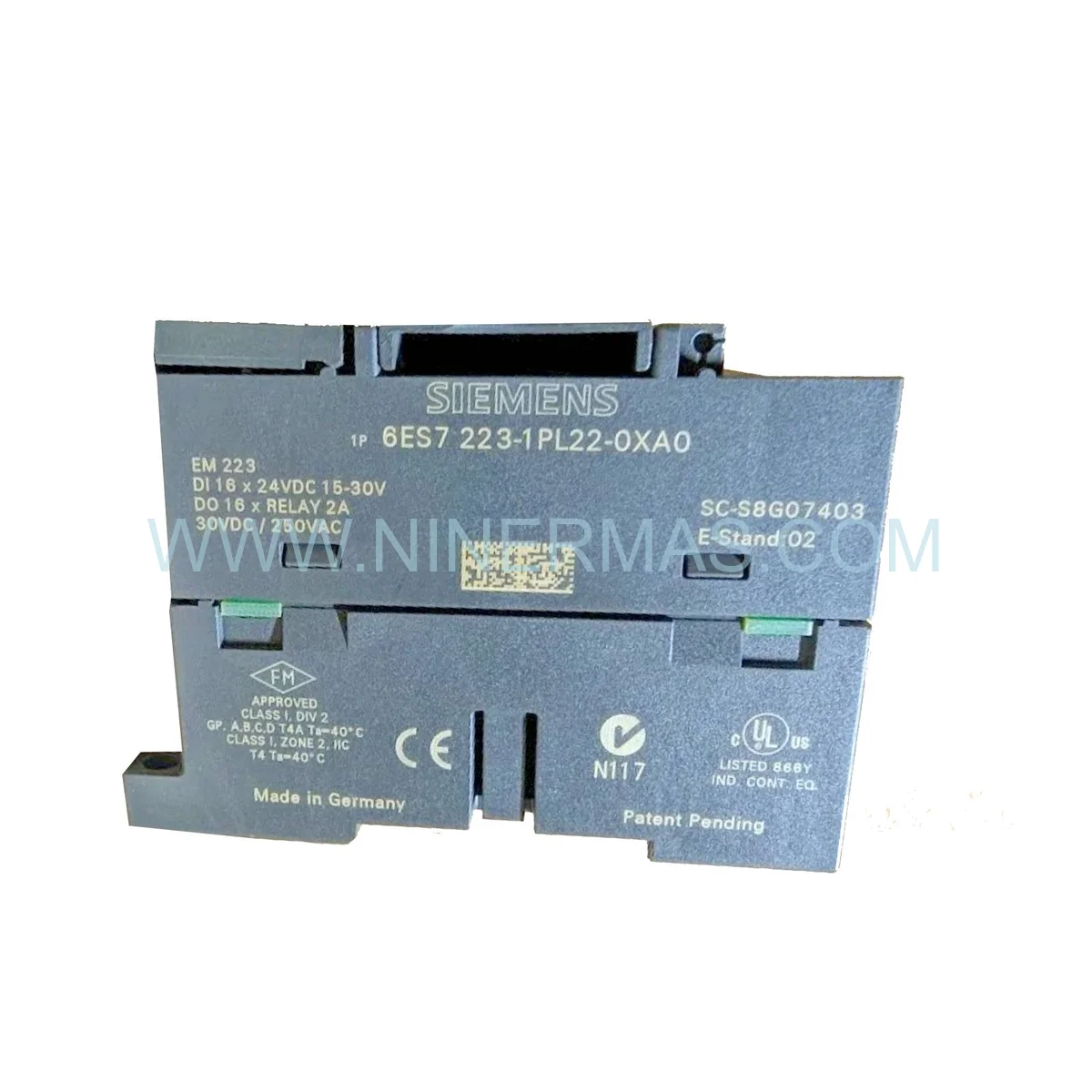

Siemens EM 223 Digital I/O Expansion Module (Industrial-Grade PLC Control Solution)

The Siemens 6ES7223-1PH22-0XA0 EM 223 is a high-performance digital input/output expansion module designed for SIMATIC S7-200 PLC systems. Through isolated relay outputs and optically isolated digital inputs, it delivers reliable signal acquisition and control execution for industrial automation applications. This module enables precise monitoring and control of discrete devices in manufacturing, process control, and building automation environments.

Ideal for machine builders, system integrators, and industrial facilities requiring expandable I/O capacity, the EM 223 addresses challenges such as limited I/O points, electrical noise interference, signal isolation requirements, and the need for flexible control architecture. It supports applications in packaging machinery, material handling systems, HVAC control, water treatment plants, and manufacturing production lines.

With standardized DIN rail mounting and modular expansion capability, this module offers electrical isolation protection, reliable relay switching, compact footprint, and seamless S7-200 integration—making it suitable for design engineers, automation contractors, OEM equipment manufacturers, and plant maintenance teams. Contact our technical team for application-specific configuration guidance and quotation.

Core Features & Technical Advantages

• Isolated Digital Inputs (8 Channels)
  Optically isolated 24V DC inputs provide electrical separation between field devices and PLC logic, protecting against ground loops, voltage spikes, and industrial electrical noise common in harsh environments.
• Relay Output Switching (8 Channels)
  Electromechanical relay outputs rated for 2A per channel handle both AC and DC loads, suitable for controlling solenoid valves, contactors, indicator lamps, and small motors with proven reliability.
• Modular Expansion Architecture
  Hot-swappable design allows up to 7 expansion modules per S7-200 CPU, enabling scalable I/O configuration from 8 to 248 points without replacing the base controller—reducing upgrade costs and system downtime.
• Comprehensive Diagnostic Functions
  Built-in LED indicators for each I/O channel provide real-time status monitoring, while PLC-accessible diagnostic bits enable predictive maintenance and rapid fault isolation during commissioning or troubleshooting.
• Industrial-Grade Construction
  Conformal-coated PCB, wide operating temperature range (-25°C to +55°C), and IP20 protection rating ensure stable operation in dusty workshops, temperature-variable facilities, and vibration-prone industrial installations.
• Simplified Wiring & Installation
  Removable terminal blocks with screw-clamp connections support 14-22 AWG wire gauges, while clear terminal labeling and standardized pinout reduce installation errors and maintenance time.

Typical Application Scenarios

This expansion module is engineered for discrete control applications demanding signal isolation, reliable switching, and flexible I/O allocation:

• Packaging & Material Handling Machinery
  Controls conveyor motors, pneumatic actuators, and safety interlocks while monitoring limit switches, proximity sensors, and emergency stop circuits in high-speed packaging lines and automated warehousing systems.
• Process Control & Water Treatment
  Manages pump starters, valve actuators, and alarm outputs in municipal water plants, wastewater treatment facilities, and industrial chemical dosing systems where isolated I/O prevents ground-related signal corruption.
• HVAC & Building Automation
  Interfaces with damper actuators, fan contactors, and status indicators in commercial HVAC systems, boiler control panels, and energy management installations requiring distributed I/O expansion.
• Machine Tool & Manufacturing Equipment
  Provides additional I/O capacity for CNC machine tools, injection molding machines, and assembly line stations where relay outputs directly drive hydraulic solenoids, coolant pumps, and part ejectors.
• OEM Equipment Integration
  Serves as a standardized I/O interface for custom machinery builders and equipment manufacturers requiring certified Siemens components with global support and long-term availability.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, key electrical and mechanical parameters are provided below:

Selection Considerations: When specifying this module, evaluate total I/O point requirements, load current per output channel, required switching voltage (AC vs. DC), environmental conditions (temperature/vibration), and available expansion slots on your S7-200 CPU model. For applications requiring faster switching or longer relay life, consider transistor output variants. Our application engineers can assist with I/O allocation planning and system architecture review—please provide your control panel layout, load specifications, and environmental parameters for tailored recommendations.

Extended Capabilities & System Integration

• STEP 7-Micro/WIN Programming Support
  Fully compatible with Siemens STEP 7-Micro/WIN software for ladder logic, statement list, and function block diagram programming with comprehensive I/O addressing and diagnostic functions.
• Multi-Module Cascading
  Supports mixed installation with analog I/O modules, communication modules, and other digital expansion units on the same S7-200 backplane for integrated control solutions.
• Fieldbus & HMI Connectivity
  I/O status accessible via PROFIBUS-DP, Ethernet, or RS-485 communication modules for SCADA integration, remote monitoring, and data logging applications.
• Spare Parts & Long-Term Availability
  Backed by Siemens global supply chain with documented product lifecycle support, ensuring replacement availability for installed base and retrofit projects.

Delivery, Service & Technical Support

Lead Time: Standard catalog items typically ship within 3-5 business days; custom-configured panels or bulk orders may require 10-15 days depending on quantity and customization requirements.

Warranty: Covered by manufacturer's standard 12-month warranty against defects in materials and workmanship; extended warranty and service contracts available upon request.

Technical Assistance: Comprehensive support including pre-sales application consulting, installation guidance, programming examples, and post-sales troubleshooting via phone, email, or remote desktop support (region-dependent).

Documentation Package: Each module ships with product data sheet, wiring diagram, terminal assignment chart, and quick start guide; full technical manual and CAD drawings available for download from manufacturer portal.

Frequently Asked Questions (FAQ)

Q: How do I connect the EM 223 digital I/O module to my existing S7-200 PLC system?
A: The EM 223 mounts directly to the right side of your S7-200 CPU or another expansion module via the built-in backplane connector. No external cabling is required for logic communication—only field wiring to the removable terminal blocks. Ensure your CPU model supports the total number of expansion modules and verify power budget capacity.

Q: What is the maximum number of EM 223 modules I can install on one S7-200 CPU?
A: S7-200 CPUs support up to 7 expansion modules total (combination of digital, analog, and communication modules). The specific I/O point limit depends on your CPU model—consult the S7-200 system manual or contact our technical team for configuration validation.

Q: Can the relay outputs switch both AC and DC loads?
A: Yes, the relay contacts are rated for 24-230V AC or DC operation up to 2A per channel. However, relay life expectancy varies with load type—resistive loads offer longest life (100,000+ cycles), while inductive loads (solenoids, contactors) may require external suppression circuits to maximize contact longevity.

Q: What environmental protection does this module provide for industrial installations?
A: The EM 223 features IP20 protection (suitable for enclosed control panels), conformal coating on PCB assemblies, and an operating temperature range of -25°C to +55°C. For outdoor or wash-down environments, install the module inside a NEMA 4/4X or IP65-rated enclosure with appropriate climate control.

Q: Does the module support remote monitoring or data logging via industrial networks?
A: I/O status is accessible through the S7-200 CPU's communication interfaces. By adding a CP 243-1 Ethernet module or EM 277 PROFIBUS module to your S7-200 system, you can integrate the EM 223 I/O data into SCADA systems, HMI panels, or cloud-based monitoring platforms using standard industrial protocols.

Q: What technical information do I need to provide for application-specific selection assistance?
A: Please share your project details including: total digital input/output requirements, load types and current ratings, switching voltage (AC/DC), control panel environment (temperature/humidity/vibration), existing S7-200 CPU model, and any special requirements (UL/CSA certification, hazardous location ratings, etc.). Our engineers will recommend the optimal module configuration and provide wiring schematics.

Request Technical Consultation & Quotation

For detailed application engineering support, custom panel integration, or volume pricing, please provide the following information: project name, application type, required I/O count, load specifications, electrical environment, S7-200 CPU model, and delivery timeline. Our technical sales team will respond with tailored recommendations, configuration drawings, and competitive quotations within 24 hours.
