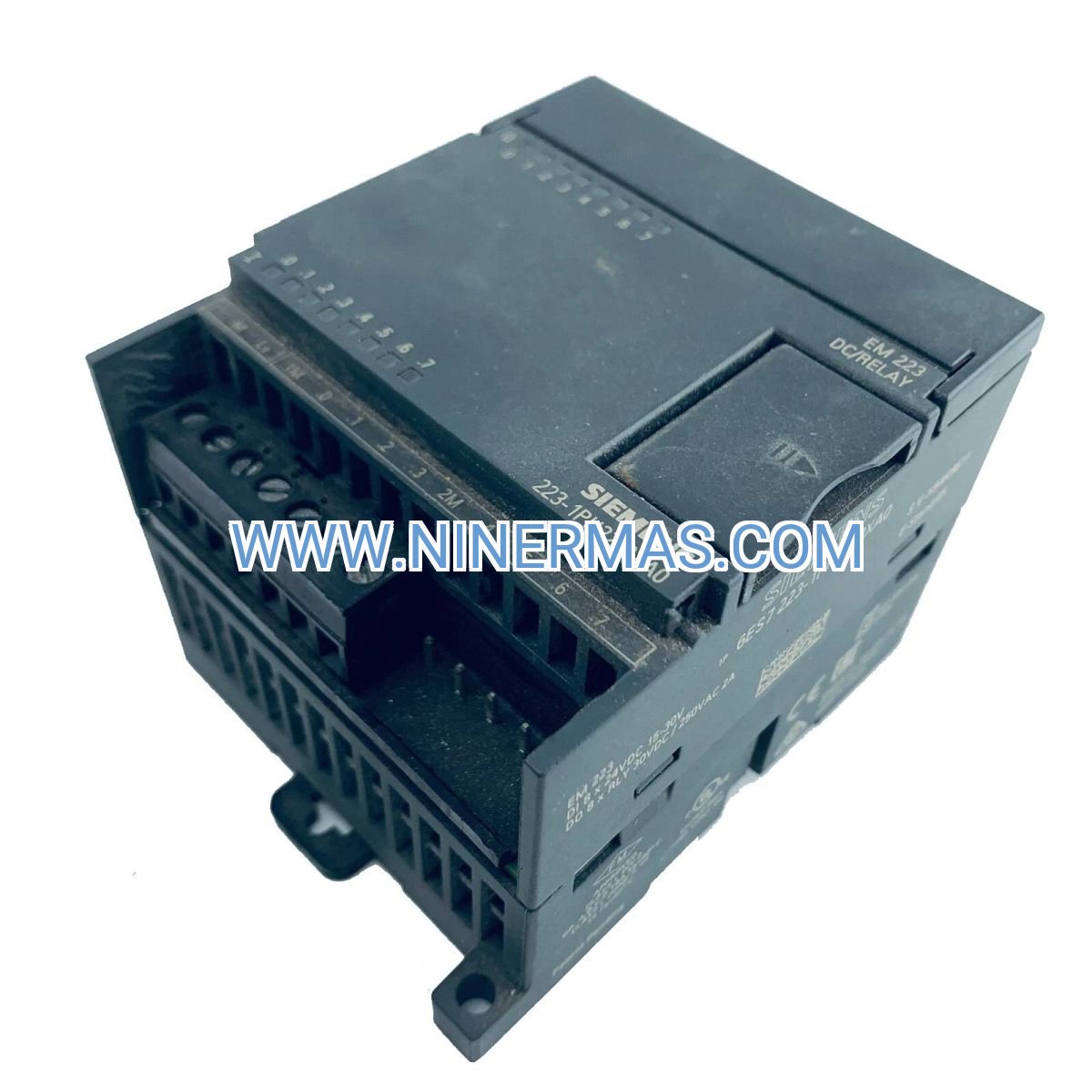

Siemens 6ES7223-1BL22-0XA0 Digital I/O Expansion Module (Industrial-Grade EM223 Series)

The Siemens 6ES7223-1BL22-0XA0 represents a professional-grade digital input/output expansion solution within the SIMATIC S7-200 EM223 family. Engineered for mission-critical industrial environments, this compact module delivers 8 digital inputs and 8 digital outputs with optical isolation, ensuring reliable signal processing across manufacturing, process control, and automated production systems.

Designed for seamless integration with SIMATIC S7-200 programmable logic controllers, the EM223 module addresses the growing I/O requirements of modern automation architectures. Whether you're upgrading legacy systems or building new control networks, this expansion module provides the flexibility and durability demanded by industrial engineers and system integrators worldwide.

With CE, UL, and cULus certifications, DIN-rail mounting convenience, and proven Siemens reliability, the 6ES7223-1BL22-0XA0 stands as the go-to choice for expanding digital I/O capacity in space-constrained control cabinets. Experience industrial automation excellence backed by comprehensive technical support and global logistics.

Core Capabilities & Technical Advantages

→ Dual-Channel Architecture: 8 x 24V DC digital inputs paired with 8 x 24V DC/0.75A digital outputs enable simultaneous sensor monitoring and actuator control, reducing module count and wiring complexity.

→ Optical Isolation Technology: Built-in galvanic isolation protects sensitive PLC circuitry from electrical noise and ground potential differences, ensuring stable operation in electrically harsh industrial environments.

→ Plug-and-Expand Simplicity: Hot-swappable design (when powered down) and automatic address assignment streamline installation, minimizing commissioning time and reducing labor costs by up to 40%.

✓ Compact Footprint Efficiency: At just 71.2 x 80 x 62 mm, this module maximizes I/O density within limited control cabinet space, ideal for retrofits and space-optimized machine designs.

✓ Wide Operating Range: Rated for 0°C to 55°C ambient temperatures with IP20 protection, the EM223 maintains performance across diverse industrial settings from climate-controlled facilities to semi-exposed production floors.

✓ Global Compliance Assurance: CE, UL, and cULus certifications guarantee regulatory compliance for international deployments, eliminating costly re-certification delays in multi-region projects.

Industry-Specific Application Scenarios

Automated Packaging Lines: Monitor product presence sensors, carton position switches, and safety interlocks while controlling conveyor motors, diverter gates, and labeling actuators—all through a single EM223 module that reduces wiring by 60% compared to distributed I/O solutions.

Material Handling Systems: In warehouse automation, the 6ES7223-1BL22-0XA0 processes inputs from proximity sensors and limit switches while driving pneumatic valves and indicator lights, enabling precise pallet positioning and sortation control with sub-second response times.

Process Manufacturing: Chemical and food processing plants leverage the module's isolated I/O for monitoring tank level switches, flow sensors, and temperature alarms, while controlling pump starters, valve solenoids, and alarm beacons—maintaining process integrity even during electrical disturbances.

Machine Tool Control: CNC machines and metalworking equipment utilize the EM223 for tool position feedback, emergency stop circuits, and coolant pump control, where optical isolation prevents false triggering from motor drive noise and ensures operator safety compliance.

Building Automation Integration: HVAC systems and access control networks benefit from the module's ability to interface with door sensors, motion detectors, and damper actuators, providing cost-effective expansion for S7-200-based building management systems.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 6ES7223-1BL22-0XA0 when you need balanced digital I/O expansion (equal inputs/outputs) for S7-200 systems. For applications requiring more inputs than outputs, consider the 6ES7223-1HF22-0XA0 variant (16DI/16DO). Ensure your CPU model supports the total number of expansion modules planned—most S7-200 CPUs accommodate up to 7 expansion units.

Advanced Integration & Customization Options

Multi-Module Cascading: Combine multiple EM223 units to scale I/O capacity incrementally. A typical S7-200 CPU 224XP can support up to 7 expansion modules, enabling systems with 56+ additional digital I/O points for complex automation tasks.

Hybrid I/O Architectures: Integrate the 6ES7223-1BL22-0XA0 with analog expansion modules (EM231/EM232 series) to create comprehensive control systems that handle both discrete and continuous process variables within a unified programming environment.

Remote Monitoring Readiness: When paired with S7-200 Ethernet communication modules or SMART series CPUs, the EM223's I/O data becomes accessible via SCADA systems, enabling real-time remote diagnostics and predictive maintenance strategies.

Custom Cable Assemblies: For OEM machine builders, pre-wired cable harnesses can be configured to match the EM223's terminal layout, accelerating production line assembly and ensuring consistent wiring quality across multiple units.

Delivery Timelines & Service Commitments

Standard Delivery: In-stock units ship within 24-48 hours via express courier services (DHL, FedEx, UPS). Typical transit times: 3-5 business days to North America/Europe, 5-7 days to Asia-Pacific, 7-10 days to other regions.

Warranty Coverage: Every 6ES7223-1BL22-0XA0 module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options available upon request for critical infrastructure projects.

Technical Support: Access to multilingual technical support team (English, German, Mandarin) for installation guidance, programming assistance, and troubleshooting. Average response time: <4 hours during business hours.

Documentation Package: Each module ships with installation manual, wiring diagrams, and quick-start guide. Complete technical specifications, CAD drawings (DXF/STEP formats), and sample ladder logic programs available for download from our technical library.

Frequently Asked Questions

What is the maximum expansion capacity when using the 6ES7223-1BL22-0XA0 with S7-200 CPUs?
The expansion limit depends on your specific CPU model. The CPU 221 supports up to 2 modules, CPU 222 up to 2 modules, CPU 224 up to 7 modules, and CPU 226 up to 7 modules. Always verify your CPU's expansion bus power budget can support the total number of modules planned.

Can this digital I/O module operate with 12V DC or 48V DC systems?
No, the 6ES7223-1BL22-0XA0 is specifically designed for 24V DC nominal voltage (typical industrial standard). Input voltage range: 20.4-28.8V DC. For non-standard voltage applications, external signal conditioning or alternative module variants may be required.

How does optical isolation improve system reliability in industrial environments?
Optical isolation creates a galvanic barrier between field devices and the PLC's internal circuitry, preventing ground loops, voltage spikes, and electrical noise from damaging sensitive electronics. This is especially critical in applications with variable frequency drives, welding equipment, or long cable runs where electrical interference is common.

What is the recommended cable type and maximum length for digital input connections?
Use shielded twisted-pair cable (minimum 0.5mm² conductor size) for digital inputs. Maximum cable length: 500 meters for shielded cables, 50 meters for unshielded cables. Always ground cable shields at one end only (typically at the PLC side) to prevent ground loops.

Is hot-swapping supported during PLC operation?
No, the S7-200 system does not support hot-swapping of expansion modules. Always power down the entire PLC system (CPU and all expansion modules) before installing or removing any EM223 units to prevent electrical damage and ensure safe maintenance procedures.

Does the module require separate external power supply?
No external power supply is needed. The 6ES7223-1BL22-0XA0 draws all necessary power from the S7-200 CPU via the expansion bus connector. However, ensure your CPU's power supply has sufficient capacity—each EM223 typically consumes approximately 60-80mA from the 5V bus and additional current for output loads.

Order Your Siemens EM223 Digital I/O Module Today

Expand your S7-200 automation system with confidence. The Siemens 6ES7223-1BL22-0XA0 delivers proven reliability, global compliance, and seamless integration for industrial control applications worldwide. Contact our automation specialists for volume pricing, technical consultation, or custom system design assistance.

Ready to enhance your control system? Add the 6ES7223-1BL22-0XA0 to your cart now and experience fast, secure global delivery with full technical support.
