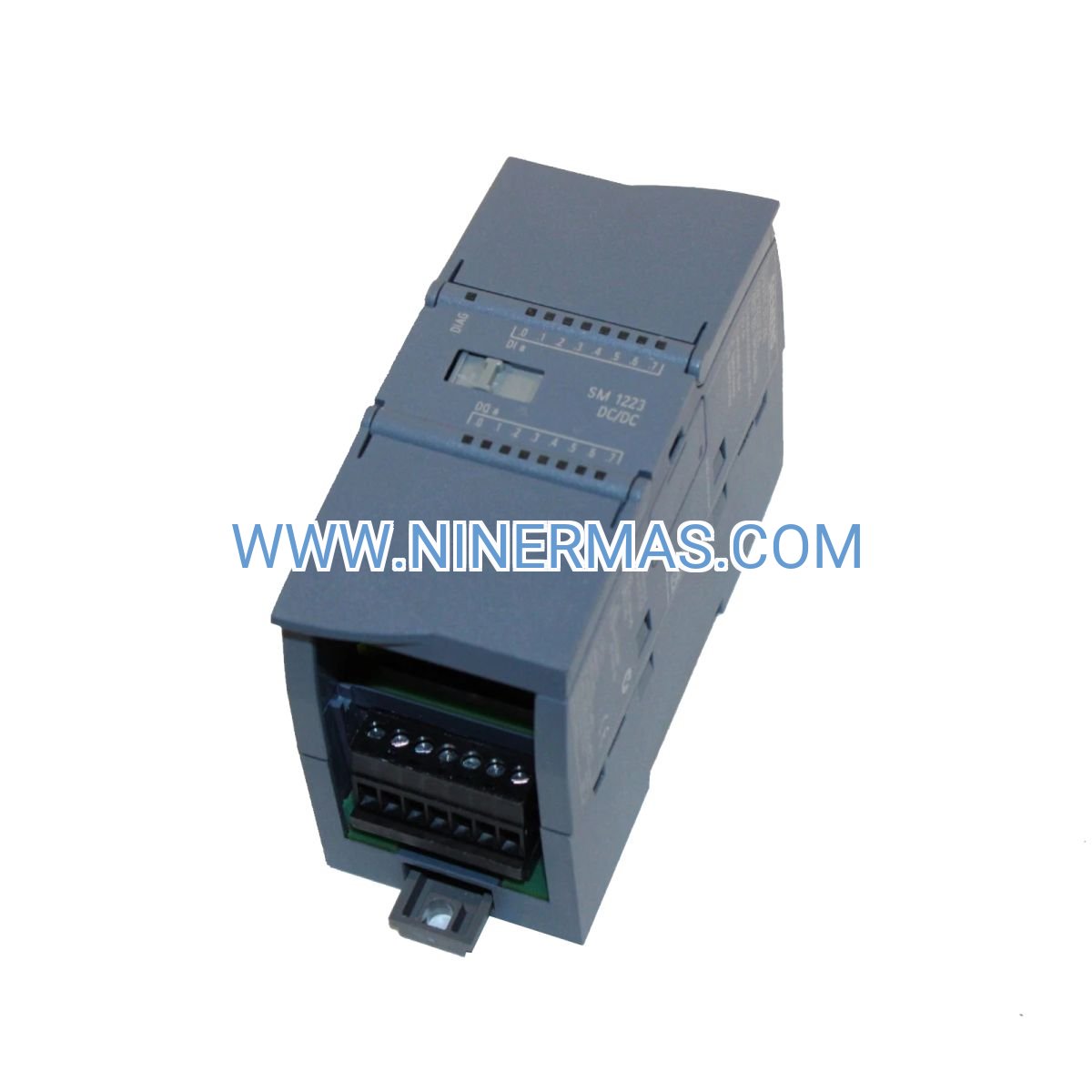

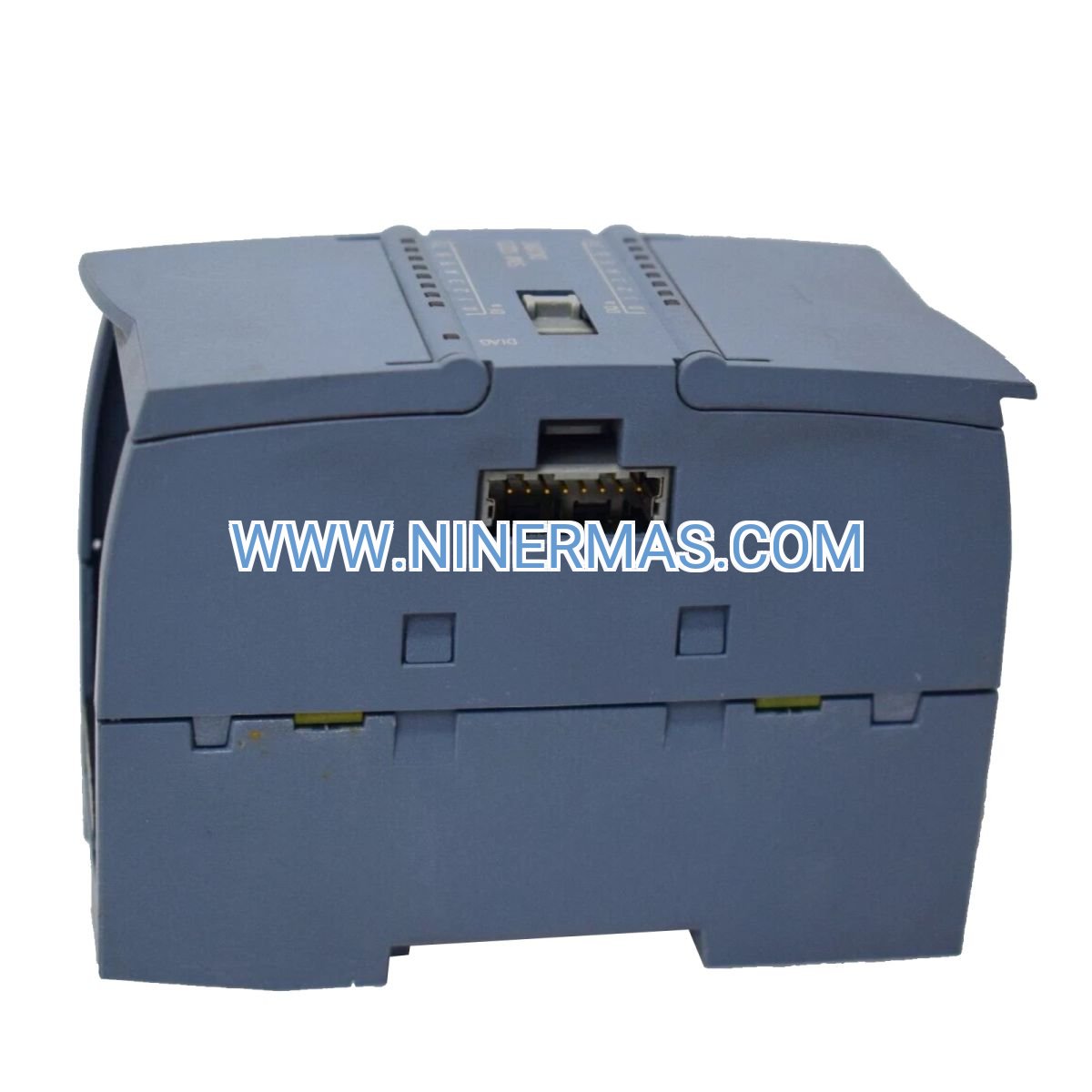

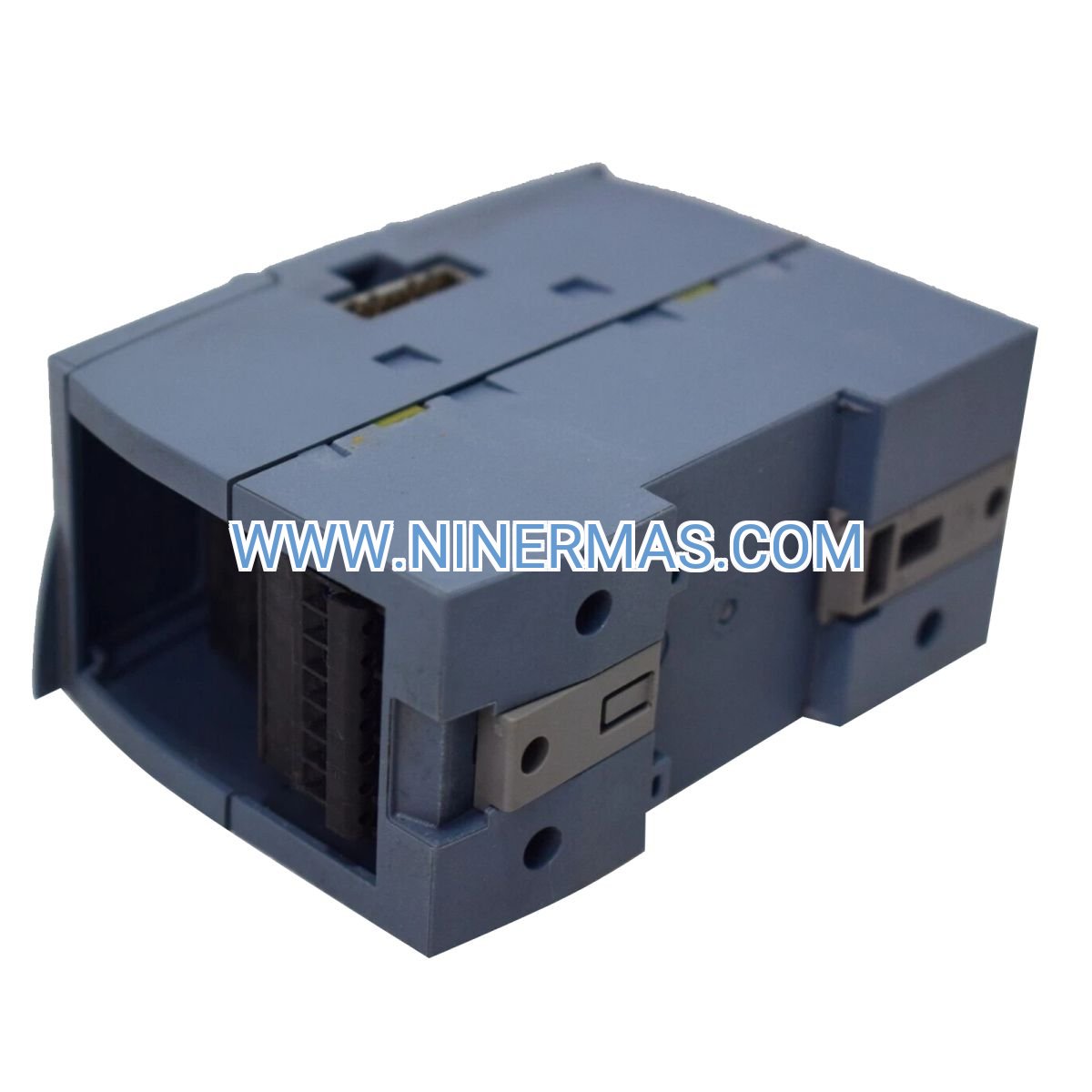

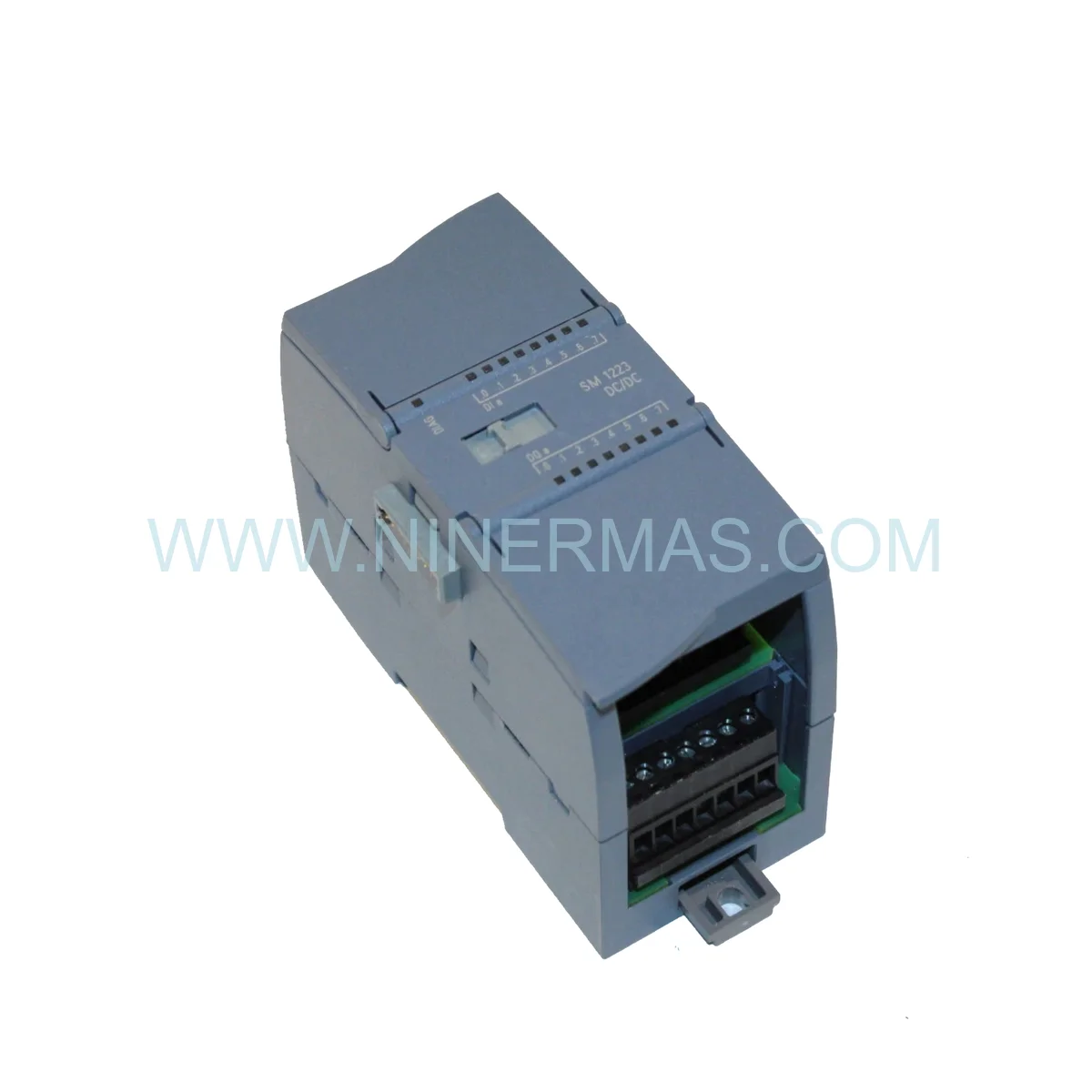

SM 1223 Digital I/O Module (Industrial-Grade Signal Processing)

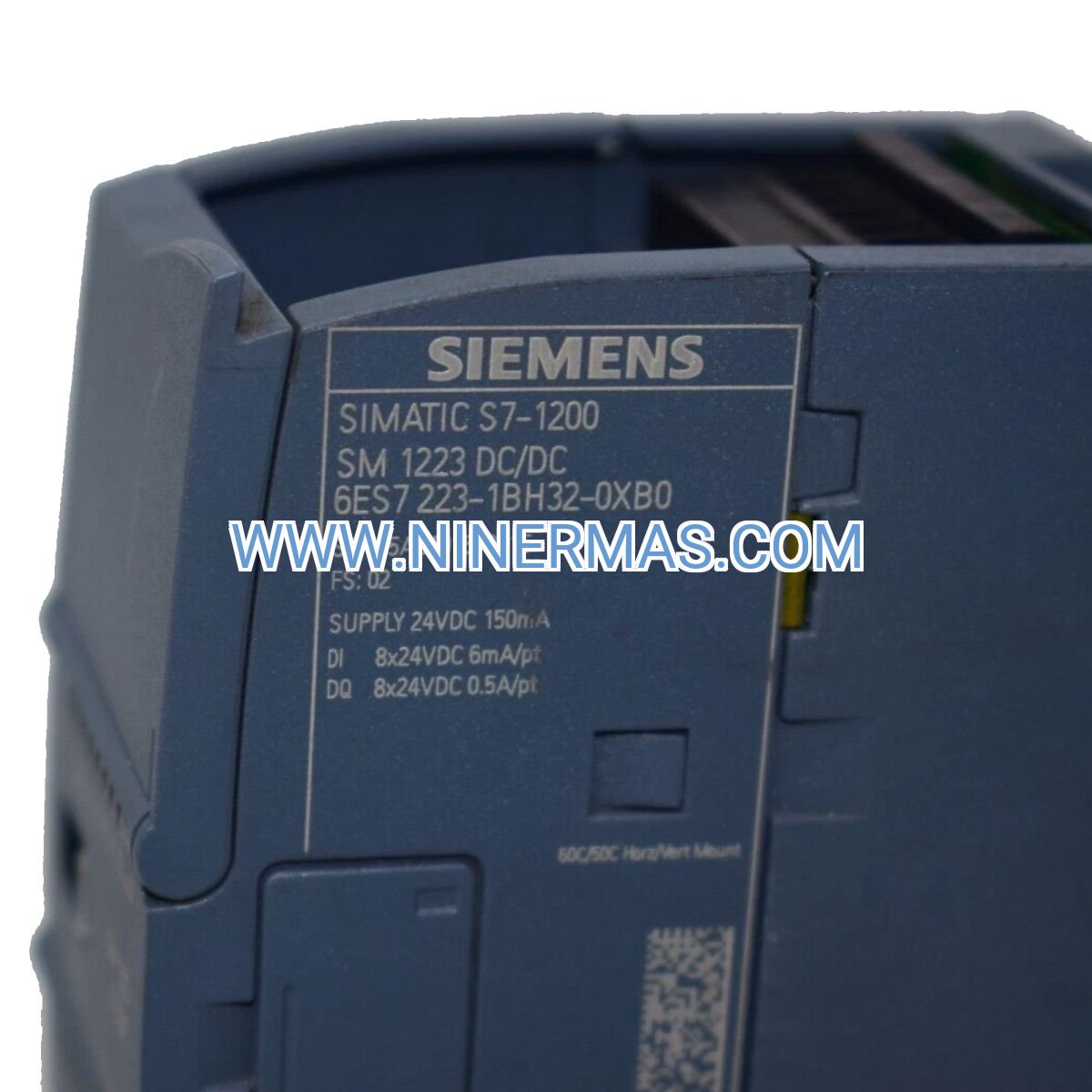

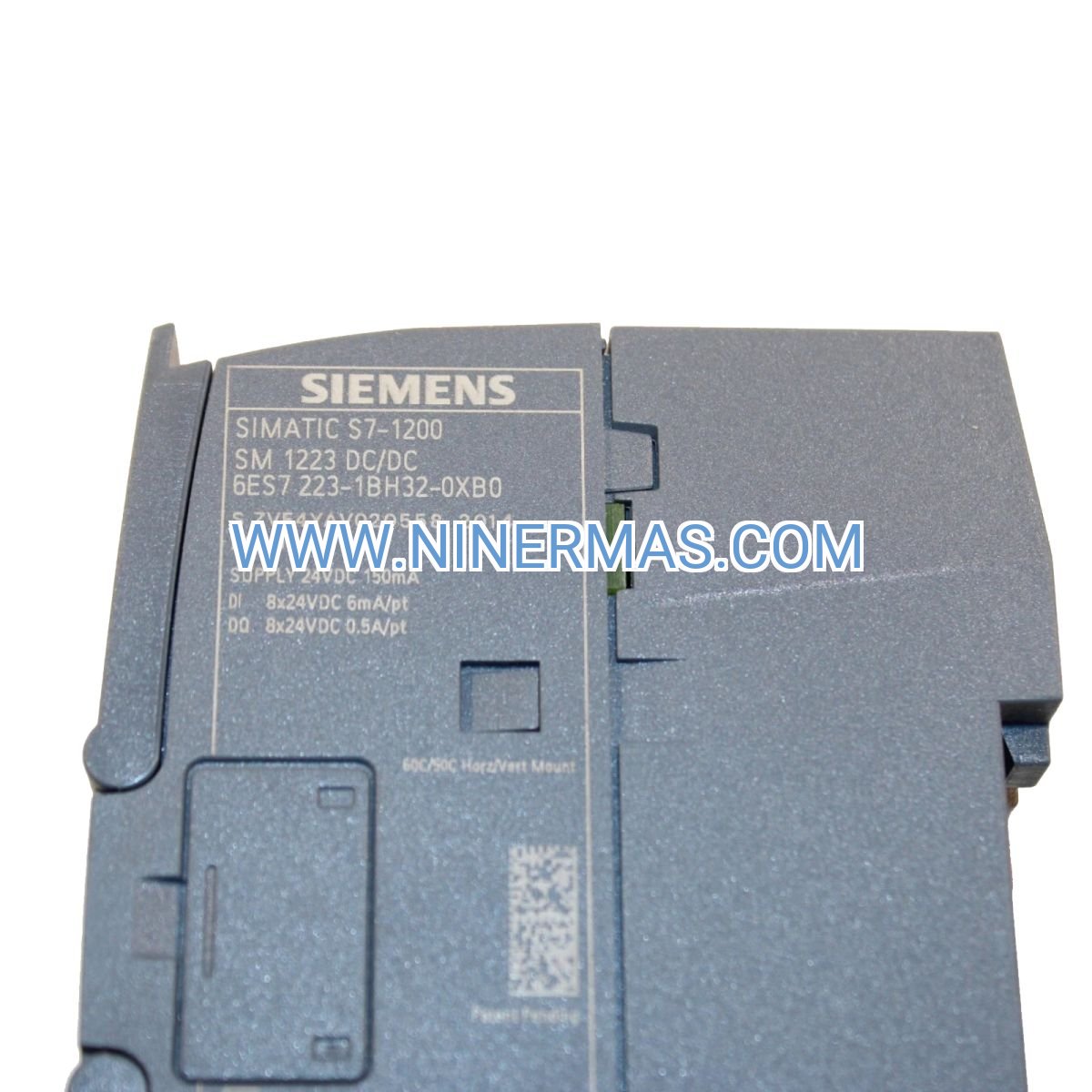

The Siemens 6ES7223-1BH32-0XB0 represents a versatile signal processing solution engineered for SIMATIC S7-1200 controller ecosystems. Combining eight 24V DC digital inputs with eight transistor outputs in a single compact housing, this SM 1223 module addresses the growing demand for space-efficient I/O expansion in modern industrial control cabinets. Whether you're retrofitting legacy equipment or designing greenfield automation projects, this module delivers the reliability and performance that mission-critical applications demand.

Designed for system integrators, automation engineers, and plant maintenance teams, the 6ES7223-1BH32-0XB0 eliminates the complexity of managing separate input and output modules. Its hot-swappable architecture minimizes unplanned downtime, while individual channel diagnostics accelerate fault identification during commissioning and operation. From discrete manufacturing to continuous process industries, this module serves as the backbone for sensor integration and actuator control across diverse automation scenarios.

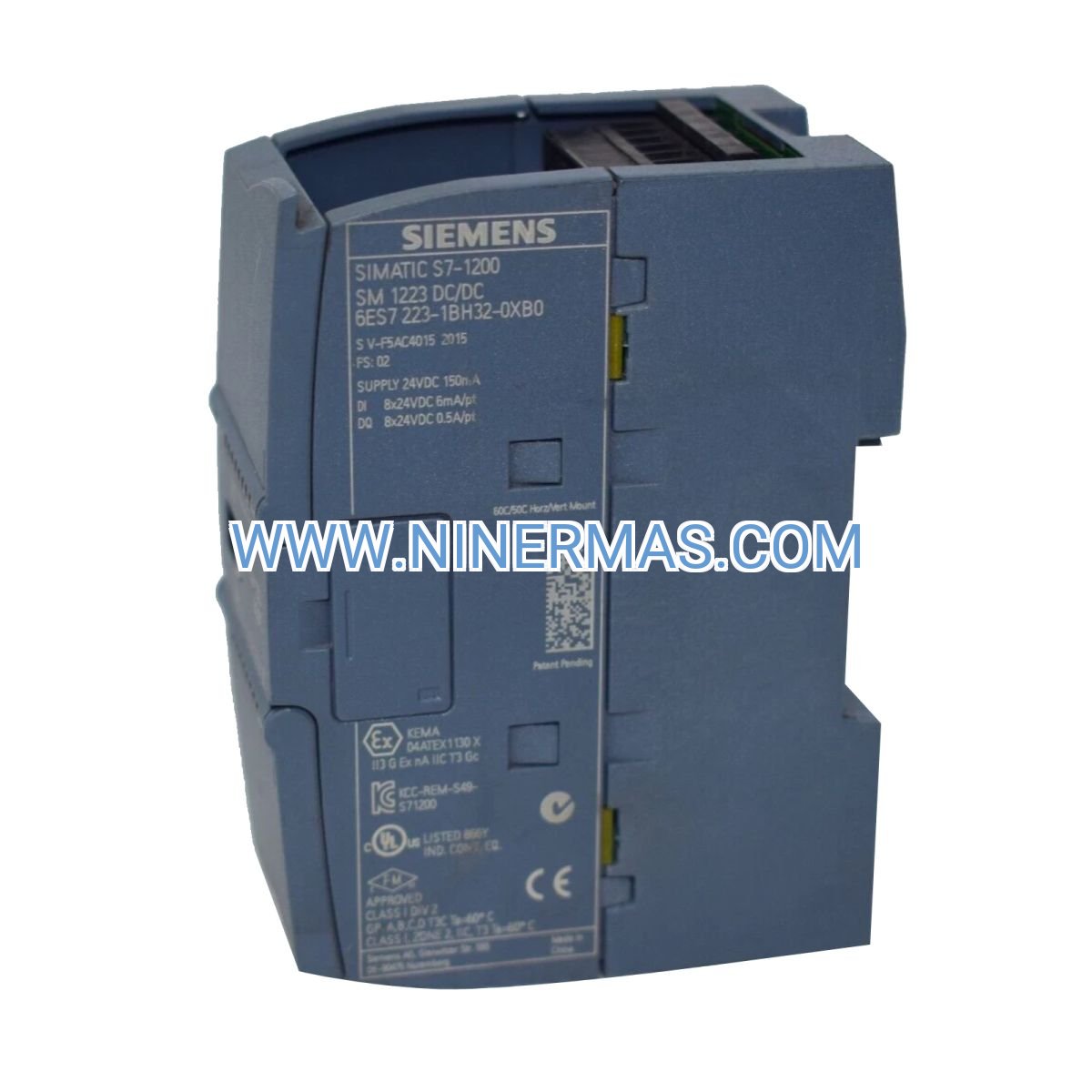

With proven Siemens engineering heritage and comprehensive global certifications (CE, UL, FM), the SM 1223 module ensures compliance with international safety standards while delivering exceptional long-term value. Its robust construction withstands industrial environments ranging from 0°C to +60°C, making it suitable for applications from climate-controlled facilities to challenging production floors.

Technical Advantages & Performance Benefits

→ Dual-Function Architecture: Integrates 8 source/sink inputs and 8 transistor outputs (0.5A per channel) in a 45mm-wide footprint, reducing panel space requirements by up to 50% compared to separate I/O modules while simplifying wiring and documentation.

→ Hot-Swap Capability: Enables online module replacement during system operation without controller shutdown, dramatically reducing mean time to repair (MTTR) and supporting predictive maintenance strategies in 24/7 production environments.

→ Advanced Diagnostics: Individual LED indicators for each I/O channel provide instant visual feedback on signal status, accelerating troubleshooting by 70% and reducing commissioning time through rapid fault isolation.

→ Electrical Isolation: 500V AC channel-to-backplane isolation protects sensitive controller electronics from field-side voltage transients, enhancing system reliability and extending equipment lifespan in electrically noisy industrial settings.

→ Flexible Input Configuration: IEC Type 1 source/sink inputs accommodate both PNP and NPN sensor types without external adapters, simplifying sensor selection and reducing bill-of-materials complexity across multi-vendor installations.

✓ Wide Voltage Tolerance: 20.4V to 28.8V DC input range compensates for voltage drops in long cable runs (up to 1000m shielded), ensuring reliable signal detection even in distributed I/O architectures.

Industry Application Scenarios

Packaging & Material Handling Systems
In high-speed packaging lines, the SM 1223 module interfaces with photoelectric sensors detecting product presence while controlling diverter gates and reject mechanisms. The module's 0.5A output capacity directly drives compact solenoid valves without intermediate relays, reducing component count and improving response times. Pain Point Solved: Eliminates relay-induced delays in time-critical sorting operations. Value Delivered: Increases throughput by 15-20% through faster actuator response.

Water & Wastewater Treatment
Monitor level switches, flow sensors, and pressure transducers across multiple treatment stages while controlling chemical dosing pumps and valve actuators. The module's IP20 rating suits control room installations, with field devices connected via marshalling terminals. Pain Point Solved: Consolidates I/O for distributed tank farms without expensive remote I/O infrastructure. Value Delivered: Reduces installation costs by 30% compared to distributed I/O solutions.

Automotive Assembly Automation
Interface with proximity sensors tracking component positioning on assembly fixtures while controlling pneumatic clamps and part-present indicators. The module's hot-swap feature enables rapid replacement during scheduled maintenance windows without halting entire production cells. Pain Point Solved: Minimizes production losses during I/O module failures. Value Delivered: Achieves 99.7% uptime through sub-5-minute module replacement.

HVAC & Building Management
Connect occupancy sensors, thermostat contacts, and smoke detector inputs while controlling damper actuators, fan contactors, and status annunciators. The module's compact design fits standard electrical enclosures in mechanical rooms with limited space. Pain Point Solved: Provides cost-effective I/O expansion for retrofit projects. Value Delivered: Enables 40% faster installation versus traditional relay-based control panels.

Food & Beverage Processing
Monitor limit switches on conveyor gates and ingredient hoppers while controlling mixer motors and transfer pumps. The module's wide operating temperature range (0-60°C) accommodates installation near ovens and refrigeration equipment. Pain Point Solved: Eliminates need for temperature-controlled control cabinets. Value Delivered: Reduces HVAC costs by $2,000-$5,000 per installation.

Technical Parameters & Selection Guide

Selection Criteria for Optimal Performance:

Choose the 6ES7223-1BH32-0XB0 when your application requires balanced I/O density with both sensing and control functions in a single module. This configuration suits applications where input-to-output ratios approach 1:1, such as conveyor control systems pairing limit switches with motor starters. For input-heavy applications (monitoring-focused), consider supplementing with dedicated SM 1221 input modules. Output-intensive scenarios (actuator control) benefit from pairing with SM 1222 relay output modules for higher current switching (2A per channel).

Verify that your S7-1200 CPU model supports the required number of expansion modules—compact CPUs (CPU 1211C) accommodate up to 3 modules, while standard CPUs (CPU 1214C/1215C/1217C) support up to 8 modules. Calculate total backplane current draw to ensure power budget compliance, especially when combining multiple I/O modules with communication boards and signal boards.

Extended Functionality & Integration Options

Industrial IoT Connectivity: When paired with S7-1200 CPUs featuring integrated PROFINET interfaces, the SM 1223 module enables seamless integration into Industry 4.0 architectures. Leverage TIA Portal's web server functionality to publish I/O status to SCADA systems, MES platforms, or cloud analytics services without additional gateway hardware. OPC UA server capabilities (available on select CPU models) facilitate direct communication with third-party HMI systems and enterprise databases.

Advanced Diagnostic Features: Beyond basic LED indicators, the module provides detailed diagnostic data accessible through TIA Portal's online diagnostics view. Monitor individual channel states, detect wire breaks on inputs, and identify short-circuit conditions on outputs during runtime. Diagnostic interrupts can trigger automated email notifications or SMS alerts when configured with appropriate communication processors, enabling proactive maintenance strategies.

Customization & Special Configurations: While the standard 6ES7223-1BH32-0XB0 serves most applications, Siemens offers application-specific variants including conformal-coated versions for high-humidity environments and extended-temperature models (-25°C to +70°C) for outdoor installations. Contact our technical team to discuss custom cable assemblies, pre-configured I/O blocks, or integrated testing services for volume projects exceeding 50 units.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 24-48 hours via express courier services (DHL, FedEx, UPS). Typical transit times: 3-5 business days to North America/Europe, 5-7 days to Asia-Pacific, 7-10 days to other regions. All shipments include full tracking and signature confirmation.

Custom Orders: Special configurations (conformal coating, extended testing, custom labeling) require 2-3 weeks lead time from order confirmation. Volume orders (20+ units) may qualify for factory-direct fulfillment with optimized pricing—contact our sales team for quotations.

Warranty Coverage: Every module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty service includes free replacement or repair, with expedited shipping for critical applications. Extended warranty programs (24/36 months) available for mission-critical installations.

Technical Support: Lifetime technical assistance via email, phone, and remote desktop support. Our certified Siemens engineers provide guidance on module configuration, wiring diagrams, TIA Portal programming, and troubleshooting. Average response time: <2 hours during business hours, <24 hours for after-hours inquiries.

Documentation Package: Each module ships with quick-start guide, wiring diagrams, and dimensional drawings. Complete technical manuals, CAD models (STEP/IGES formats), and TIA Portal hardware catalogs available for download from our support portal. Custom documentation (multilingual manuals, application notes) provided for OEM partnerships.

Frequently Asked Questions

What is the maximum cable distance for reliable digital input operation?
Shielded cables support runs up to 1000 meters at 24V DC nominal voltage, while unshielded cables should be limited to 600 meters to maintain signal integrity and noise immunity. For installations exceeding these distances, consider distributed I/O solutions or signal repeaters.

Can this SM 1223 module control inductive loads like solenoid valves directly?
Yes, the transistor outputs handle inductive loads up to 0.5A per channel when proper suppression is applied (external flyback diodes or RC snubbers). For loads exceeding 0.5A or requiring AC switching, use external relay modules or contactors driven by the SM 1223 outputs.

How many SM 1223 modules can I install on a single S7-1200 CPU?
Expansion capacity depends on your CPU model: CPU 1211C supports 3 modules, CPU 1212C supports 8 modules, and CPU 1214C/1215C/1217C support 8 modules. Verify total backplane current consumption remains within CPU power budget (consult CPU datasheet for specific limits).

Does the module support high-speed counter or pulse-width modulation functions?
Standard digital I/O channels operate at typical PLC scan rates (millisecond range). For high-speed counting (up to 100kHz) or PWM generation, utilize the integrated high-speed counters and pulse outputs available on S7-1200 CPU onboard I/O or dedicated signal boards (SB 1221/1222).

What input voltage range is acceptable for sensor compatibility?
The module accepts 20.4V to 28.8V DC, optimized for standard 24V DC industrial sensors. For 12V or 5V sensors, use external level shifters or select alternative I/O modules with wider voltage ranges. Always verify sensor output specifications match module input requirements.

Is firmware update required after module installation?
No, the SM 1223 module operates as a passive I/O device without onboard firmware. Configuration is managed entirely through the S7-1200 CPU using TIA Portal software. Ensure your TIA Portal version includes the latest hardware catalog updates for optimal compatibility.
