Siemens SM 1222 Digital Output Module | 16-Channel Relay DQ for S7-1200 PLC | 6ES7222-1HH32-0XB0

Siemens SM 1222 Digital Output Module (Industrial-Grade Relay Control Solution)

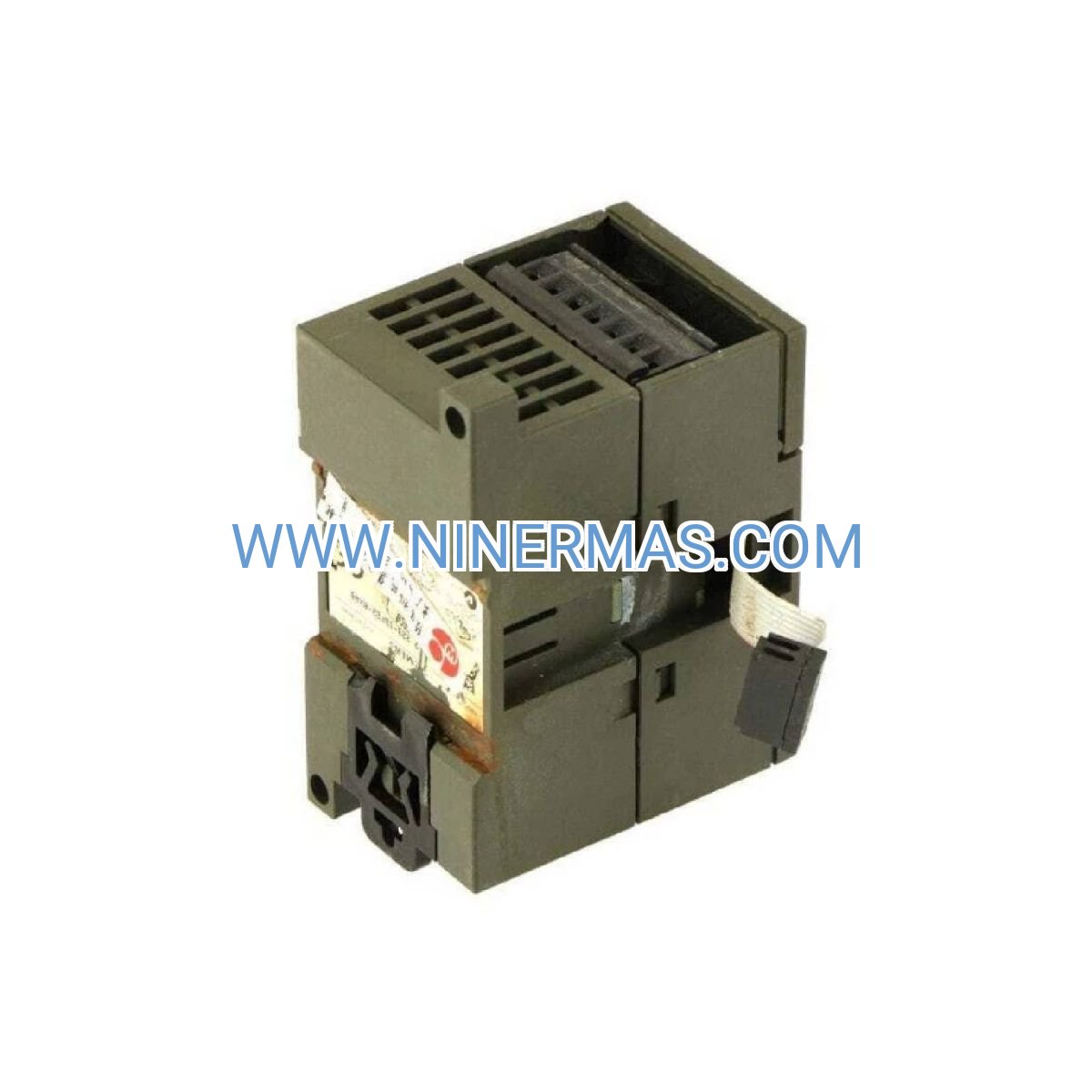

The Siemens SM 1222 (6ES7222-1HH32-0XB0) is a 16-channel digital output module designed for SIMATIC S7-1200 PLC systems. Through relay-based switching technology, it delivers reliable on/off control for industrial actuators, enabling precise automation of valves, contactors, motor starters, and signaling devices.

Ideal for manufacturing plants, process automation, building control systems, and machine OEMs requiring robust discrete output control. This module addresses common challenges such as inductive load switching, electrical isolation requirements, high inrush current handling, and the need for fail-safe output states during PLC maintenance.

With standardized DIN rail mounting and hot-swappable design, the SM 1222 offers fast commissioning, easy maintenance, and seamless integration with existing S7-1200 systems. Suitable for design engineers, system integrators, panel builders, and end-user maintenance teams. Contact our application engineers for configuration assistance and technical specifications.

Core Features & Advantages

• 16 Independent Relay Outputs
  Each channel provides galvanic isolation with individual switching capability up to 2A at 230V AC or 30V DC, supporting both resistive and inductive loads with minimal contact bounce.
• Versatile Load Compatibility
  Handles solenoid valves, contactors, indicator lamps, small motors, and alarm devices. Suitable for mixed AC/DC load environments with built-in arc suppression for extended contact life.
• Plug-and-Play System Expansion
  Hot-swappable signal modules connect directly to S7-1200 CPU via backplane bus. Automatic hardware detection in TIA Portal reduces configuration time and minimizes wiring errors.
• Comprehensive Diagnostics
  Channel-level status monitoring through TIA Portal enables predictive maintenance. Short-circuit detection, overload indication, and supply voltage monitoring reduce unplanned downtime.
• Industrial-Grade Reliability
  Conformal-coated PCB withstands harsh environments. Operating temperature range -25°C to +60°C, vibration resistance per IEC 60068-2-6, and IP20 protection ensure long-term stability in demanding applications.
• Compact Footprint Design
  Space-saving 45mm width allows high-density I/O configurations in control cabinets. Removable terminal blocks facilitate quick replacement without rewiring during maintenance.

Typical Application Scenarios

This module is engineered for applications demanding reliable discrete output control with electrical isolation, particularly in:

• Process Automation & Chemical Plants
  Controls pneumatic valves, dosing pumps, and process interlocks in batch systems. Relay isolation protects PLC from high-voltage transients in hazardous area interfaces (when used with appropriate barriers).
• Manufacturing & Assembly Lines
  Drives conveyor motors, pneumatic actuators, part ejectors, and quality gates. Handles high inrush currents from solenoid coils and provides positive feedback for safety-critical sequences.
• Building Automation & HVAC Systems
  Switches damper actuators, pump contactors, fan starters, and alarm relays. Supports both 24V DC control circuits and 230V AC power loads within a single module.
• Water Treatment & Pumping Stations
  Operates valve actuators, chemical dosing systems, and level control devices. Relay outputs ensure fail-safe states during PLC power loss or communication faults.
• Machine Tool & Packaging Equipment
  Controls hydraulic solenoids, brake releases, tool changers, and safety interlocks. Fast response time (<10ms) supports high-speed sequential operations.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide key electrical and mechanical specifications. Custom configurations available for OEM projects.

Selection Recommendations: When specifying this module, consider maximum simultaneous output activation (affects backplane current draw), load type (resistive vs. inductive requires different contact ratings), required switching frequency, and environmental conditions. For loads exceeding 2A or requiring solid-state switching, consult our engineers for alternative SM 1222 variants or external relay solutions.

Advanced Integration Capabilities

• TIA Portal Programming – Full support for LAD, FBD, STL, and SCL programming languages. Pre-built function blocks for pulse output, PWM simulation, and sequential control available in Siemens library.
• Diagnostic Integration – Channel status accessible via process image and diagnostic buffer. Supports PROFINET-based SCADA integration for centralized monitoring.
• Safety Considerations – While not a safety-rated module, it can be used in safety circuits when combined with certified safety relays and proper risk assessment per ISO 13849.
• Spare Parts Strategy – Removable terminal blocks allow pre-wired replacement modules. Recommended to stock one spare per 10 installed units for critical applications.

Delivery, Service & Quality Assurance

Standard stock items ship within 3-5 business days; custom-configured modules (pre-wired terminal blocks or tested assemblies) require 7-10 days. All modules include a 12-month warranty covering manufacturing defects and component failures under normal operating conditions.

Each shipment includes: SM 1222 module, removable screw terminal block, installation guide, and wiring diagram. Complete technical documentation (GSD files, CAD drawings, and TIA Portal hardware catalog entry) available for download. Remote commissioning support and on-site installation assistance available in select regions (contact for details).

Our modules undergo 100% functional testing including contact resistance measurement, isolation voltage testing, and load switching verification before shipment. Compliance certificates (CE Declaration of Conformity, UL test reports) provided upon request.

Frequently Asked Questions (FAQ)

Q: How do I connect the SM 1222 relay output module to my existing S7-1200 PLC system?
A: The module mounts directly to the right side of your S7-1200 CPU or another signal module via the built-in bus connector. No external cabling required for logic communication—only field wiring to your loads via the removable terminal block. Ensure your CPU firmware supports the module (TIA Portal V11 SP2 or later recommended).

Q: What is the maximum number of SM 1222 modules I can install on one S7-1200 CPU?
A: The S7-1200 supports up to 8 signal modules total (combination of DI, DQ, AI, AO). Actual limit depends on CPU model and backplane current budget. For example, CPU 1214C can support 3-4 SM 1222 modules depending on other installed modules.

Q: Can this module switch 24V DC solenoid valves and 230V AC contactors simultaneously?
A: Yes, each relay output is electrically isolated and can handle different voltage types. However, ensure proper wiring separation and observe local electrical codes. Group similar voltage levels on adjacent terminals to minimize wiring complexity.

Q: What environmental protection does the SM 1222 offer? Can it be used in dusty or humid conditions?
A: The module is rated IP20 (finger-safe, no ingress protection against dust/water). For harsh environments, install in a sealed control cabinet rated IP54 or higher. Conformal coating provides additional moisture resistance, but direct exposure to condensation or corrosive gases should be avoided.

Q: Does the SM 1222 support remote monitoring and data logging via SCADA or cloud platforms?
A: Yes, when connected to an S7-1200 CPU with Ethernet capability, output states and diagnostic data can be accessed via PROFINET, Modbus TCP, or OPC UA protocols. Integration with Siemens MindSphere or third-party IoT platforms possible through appropriate communication modules.

Q: What is the expected relay contact lifespan, and how can I extend it?
A: Mechanical life is 10 million operations (no load); electrical life depends on load type—typically 100,000 cycles at rated capacity. Use external RC snubbers for highly inductive loads, avoid switching capacitive loads without current limiting, and operate within 80% of rated current for maximum longevity.

Request Technical Support & Custom Solutions

For detailed application engineering, custom panel integration, or bulk project quotations, please provide: project name, application description, required I/O count, load specifications (voltage/current/type), environmental conditions, and delivery timeline. Our engineers will respond within 24 hours with tailored recommendations, wiring diagrams, and pricing.
