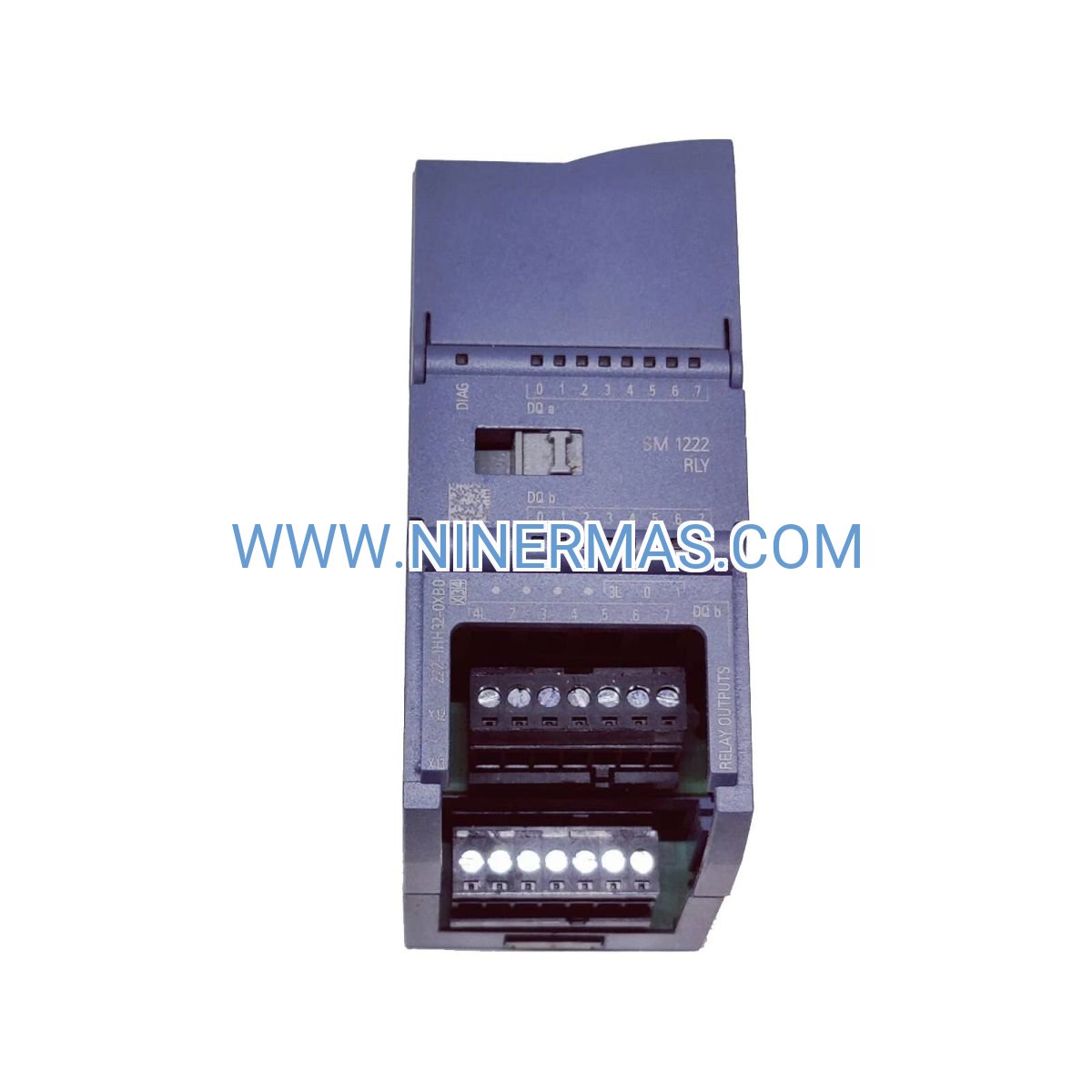

Siemens 6ES7222-1BH32-0XB0 SM 1222 Digital Output Module | S7-1200 PLC I/O Expansion | NINERMAS

Siemens 6ES7214-1AG31-0XB0 CPU 1214C (Industrial-Grade Relay PLC)

The Siemens 6ES7214-1AG31-0XB0 delivers enterprise-class programmable logic control in a space-efficient form factor, purpose-built for mid-scale automation deployments across manufacturing floors, process facilities, and infrastructure systems. Featuring universal AC/DC power acceptance and robust relay switching outputs, this CPU 1214C module eliminates voltage conversion overhead while providing galvanically isolated load control for motors, valves, and contactors.

Engineered for system integrators and plant engineers who demand proven reliability, this controller combines 14 digital inputs, 10 relay outputs rated at 2A per channel, and dual analog inputs within a single compact housing. The integrated PROFINET interface enables seamless connectivity to distributed I/O networks, HMI touchscreens, and SCADA supervisory systems without external gateways.

With 100KB work memory, modular expansion capacity for eight signal modules, and full TIA Portal compatibility, the CPU 1214C scales from standalone machine control to coordinated production line automation. Conformal coating protection and -20°C to +60°C operational tolerance ensure consistent performance in challenging industrial environments.

Core Capabilities & Technical Advantages

→ Dual-Voltage Power Flexibility
Accepts 85-264V AC or 110-300V DC input without external conversion modules, reducing panel space requirements and simplifying international deployments across mixed voltage infrastructures.

→ High-Current Relay Switching
10 relay outputs deliver 2A continuous current per channel with 250VAC/30VDC switching capability, directly controlling inductive loads such as motor starters, solenoid valves, and heating elements without intermediate relays.

→ Integrated Analog Processing
Dual 0-10V analog inputs enable direct connection to pressure transducers, temperature transmitters, and flow sensors, eliminating the need for external signal conditioning in basic process monitoring applications.

→ Native PROFINET Connectivity
Built-in Ethernet port supports PROFINET IO device communication at 100Mbps, facilitating real-time data exchange with HMI panels, remote I/O racks, and third-party Ethernet/IP devices via protocol conversion.

✓ Modular Expansion Architecture
Supports up to 8 signal modules (digital, analog, RTD, thermocouple) plus 3 communication boards (RS232/RS485/Ethernet), allowing incremental system growth as production requirements evolve.

✓ TIA Portal Engineering Environment
Fully compatible with Siemens TIA Portal V11-V18 for unified programming in LAD/FBD/STL/SCL languages, integrated HMI development, and comprehensive diagnostics with online/offline simulation capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CPU 1214C AC/DC/Relay when your application requires direct control of AC loads (contactors, solenoid valves, indicator lamps) or when panel power supply voltage varies between sites. For high-speed DC switching applications (>1Hz), consider the CPU 1214C DC/DC/DC variant with transistor outputs. For applications exceeding 10 relay outputs, expand with SM 1222 digital output modules or upgrade to CPU 1215C/1217C models with higher integrated I/O density.

Industrial Application Scenarios

Packaging Line Automation
Coordinate conveyor belts, product diverters, labeling stations, and case sealers in food & beverage packaging operations. Relay outputs directly energize 230VAC motor contactors and pneumatic valve manifolds, while analog inputs monitor line speed and product weight. PROFINET connectivity links to barcode scanners and checkweighers for real-time quality control. Pain Point Solved: Eliminates intermediate relay panels, reducing wiring labor by 40% and improving troubleshooting efficiency. Quantified Value: Typical ROI within 18 months through reduced installation costs and minimized downtime.

HVAC Central Plant Control
Manage chiller sequencing, cooling tower fan staging, and pump rotation in commercial building mechanical rooms. The universal power supply accepts both 120VAC and 240VAC panel voltages common in retrofit projects. Analog inputs monitor supply/return temperatures and differential pressure, while relay outputs control isolation valves and auxiliary equipment. Pain Point Solved: Replaces obsolete pneumatic controls with modern PLC logic, enabling BACnet/IP integration via PROFINET-to-BACnet gateway. Quantified Value: Energy savings of 15-25% through optimized equipment staging and setpoint control.

Water Treatment Pump Station
Automate lift station pumps, chemical dosing systems, and level control in municipal wastewater facilities. Relay outputs provide fail-safe switching for submersible pumps and chemical feed pumps, with built-in overload protection via current monitoring. High-speed counters track flow meter pulses for totalizing and billing purposes. Pain Point Solved: Conformal coating and IP20 enclosure rating withstand humid environments and temperature fluctuations typical in below-grade installations. Quantified Value: Reduces pump cycling by 30% through intelligent lead/lag rotation, extending equipment lifespan.

Material Handling Sortation System
Control diverter gates, pusher mechanisms, and accumulation zones in distribution center sortation lines. The CPU 1214C coordinates with distributed I/O over PROFINET, reading barcode data and executing routing logic at speeds up to 150 cartons/minute. Relay outputs handle 24VAC pneumatic solenoids and 120VAC indicator lights. Pain Point Solved: Modular expansion with SM 1221/1222 I/O modules accommodates system growth without controller replacement. Quantified Value: Sortation accuracy >99.5% with diagnostic capabilities reducing troubleshooting time by 60%.

Machine Tool Coolant Management
Monitor coolant level, temperature, and concentration in CNC machining centers, automatically controlling makeup water valves and coolant pumps. Analog inputs interface with refractometer sensors for concentration measurement, while relay outputs manage solenoid valves and alarm beacons. Pain Point Solved: Prevents tool damage and scrap from improper coolant conditions, with data logging to SCADA for predictive maintenance. Quantified Value: Reduces coolant consumption by 20% and extends cutting tool life by 15% through precise concentration control.

Extended Functions & IoT Integration

Cloud Connectivity: Integrate with Siemens MindSphere or third-party IoT platforms via MQTT/OPC UA protocol conversion. Stream production metrics, alarm histories, and energy consumption data to cloud dashboards for remote monitoring and predictive analytics.

Advanced Motion Control: Utilize integrated pulse train outputs (PTO) for stepper motor positioning or servo drive control via pulse/direction interface. Technology objects in TIA Portal simplify configuration of homing routines, velocity profiles, and multi-axis coordination.

Recipe Management: Store up to 200 production recipes in extended memory, enabling rapid changeover between product variants. Recipe parameters automatically update setpoints, timer values, and process sequences without program modification.

Customization Options: Factory-configured systems available with pre-loaded application programs, custom I/O mapping, and HMI integration. Panel-mount assemblies include DIN rail mounting, terminal blocks, and labeled wiring for plug-and-play installation.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 24-48 hours via express courier (DHL/FedEx/UPS). Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Custom Configuration: Pre-programmed controllers with customer-specific logic, I/O assignments, and network settings ship within 5-10 business days. Includes factory acceptance testing (FAT) documentation and as-built drawings.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues under normal operating conditions. Advance replacement service ensures minimal production disruption, with cross-shipped units dispatched within 24 hours of claim approval.

Technical Support: Lifetime application engineering support includes pre-sale system design consultation, programming assistance, and post-commissioning troubleshooting. Remote diagnostic services available via TeamViewer/AnyDesk for rapid issue resolution.

Documentation Package: Each unit includes product datasheet, quick start guide, wiring diagrams, and TIA Portal sample programs. Comprehensive technical manuals, CAD drawings (DXF/STEP), and certification documents available for download from our technical library.

Frequently Asked Questions

How does the AC/DC/Relay model differ from DC/DC/DC and DC/DC/Relay variants?
The 6ES7214-1AG31-0XB0 (AC/DC/Relay) accepts universal 85-264VAC or 110-300VDC power input and features electromechanical relay outputs rated 2A at 250VAC/30VDC. The DC/DC/DC version requires 24VDC power and provides transistor outputs for high-speed switching (>10Hz) of DC loads. The DC/DC/Relay variant combines 24VDC power input with relay outputs. Select AC/DC/Relay for mixed voltage environments and AC load switching; choose DC/DC/DC for rapid pulse applications and DC-only installations.

What is the maximum I/O expansion capacity for the CPU 1214C?
The CPU 1214C supports up to 8 signal modules mounted on the right side, enabling expansion to 284 digital I/O points or 35 analog channels (or mixed configurations). Additionally, 3 communication boards can be installed on the left side for RS232, RS485, or additional Ethernet connectivity. Total system I/O capacity includes integrated onboard I/O plus expansion modules, with addressing automatically assigned in TIA Portal hardware configuration.

Can the CPU 1214C communicate with legacy S7-300/400 systems or third-party devices?
Yes, the CPU 1214C supports S7 communication protocol over PROFINET for data exchange with S7-300/400/1500 controllers. For third-party integration, Modbus TCP client/server functionality is available via TIA Portal library functions. RS485 communication boards enable Modbus RTU connectivity to instruments, drives, and meters. OPC UA server functionality (requires firmware V4.0+) provides standardized access for SCADA systems and MES platforms.

What programming software version is required for the 6ES7214-1AG31-0XB0?
The CPU 1214C requires Siemens TIA Portal V11 SP2 or later for programming and configuration. Current firmware versions (V4.x) are fully compatible with TIA Portal V13-V18. A TIA Portal STEP 7 Basic license (or higher) is required for PLC programming; HMI development requires WinCC Basic/Comfort/Advanced licenses depending on panel selection. Trial versions of TIA Portal are available from Siemens for evaluation purposes.

Does the CPU 1214C support safety-rated functions for emergency stop circuits?
The standard CPU 1214C does not provide safety-rated (SIL/PLd) I/O or logic execution. For safety applications, use external safety relays (e.g., Siemens 3SK series) for emergency stop, light curtain, and guard door monitoring. Alternatively, upgrade to the S7-1200F safety CPU models (e.g., CPU 1214FC) which support fail-safe I/O modules and safety program blocks certified to IEC 61508 SIL 3 / ISO 13849-1 PLe.

What is the expected relay output lifespan and replacement procedure?
Relay outputs are rated for 100,000 mechanical operations (no load) or 100,000 electrical operations at rated current (2A resistive load). Inductive loads reduce lifespan; use RC snubbers or varistors across coil loads to extend contact life. Relay failures typically manifest as stuck contacts or failure to energize. The CPU 1214C is a sealed unit; relay replacement requires factory service or controller replacement. For applications requiring >1 million cycles, specify transistor output models or use external relay modules.

Why Partner with Industrial Control Hub?

Industrial Control Hub specializes in Siemens SIMATIC automation components, maintaining deep inventory of S7-1200/1500 CPUs, distributed I/O, HMI panels, and drive systems. Our application engineers average 12+ years of industrial automation experience, providing expert guidance on system architecture, component selection, and integration strategies.

Every product ships with certificate of authenticity, factory traceability documentation, and compliance certifications. Our quality assurance process includes incoming inspection, functional testing, and secure packaging to ensure products arrive in factory-new condition. We serve OEMs, system integrators, end users, and maintenance departments across 45+ countries.

Order the Siemens 6ES7214-1AG31-0XB0 CPU 1214C AC/DC/Relay today and leverage proven S7-1200 technology for your next automation project. Contact our technical sales team for application-specific recommendations, volume pricing, or custom configuration services.

✓ Genuine Siemens Product | ✓ 12-Month Warranty | ✓ Global Express Shipping | ✓ Lifetime Technical Support
