Siemens 6ES7222-1BF00-0XA0 EM 222 Digital Output Module | 8-Channel 24VDC for S7-200 PLC

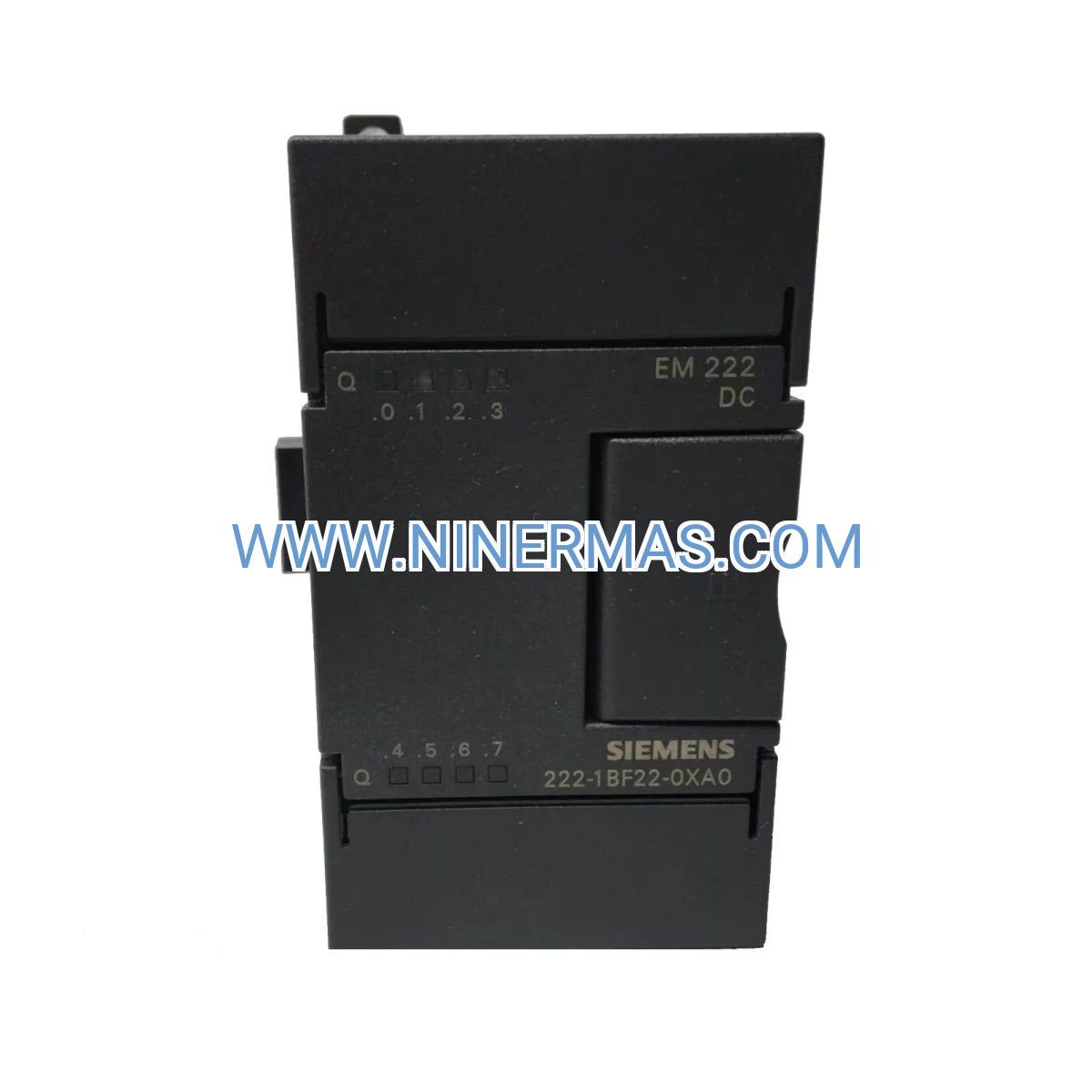

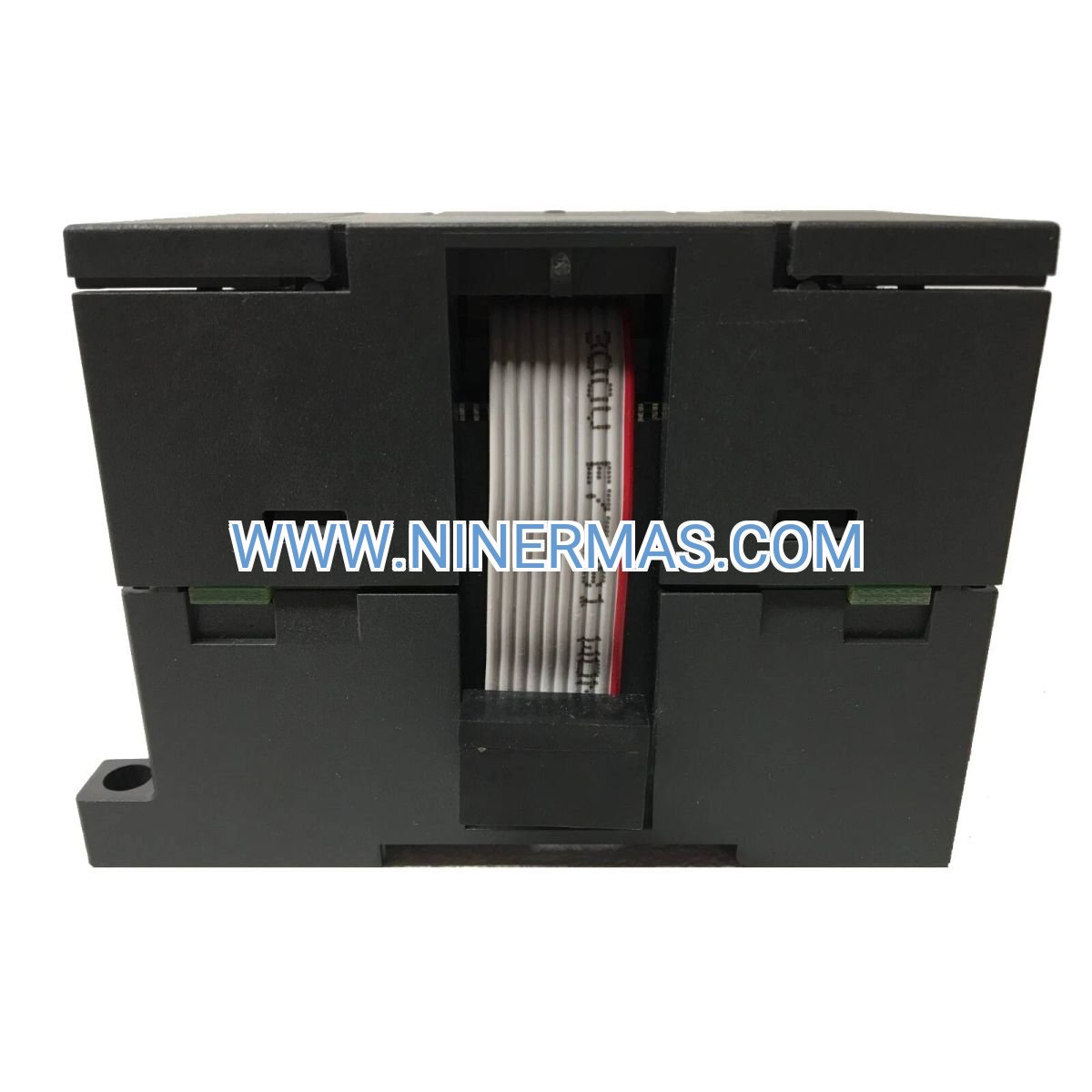

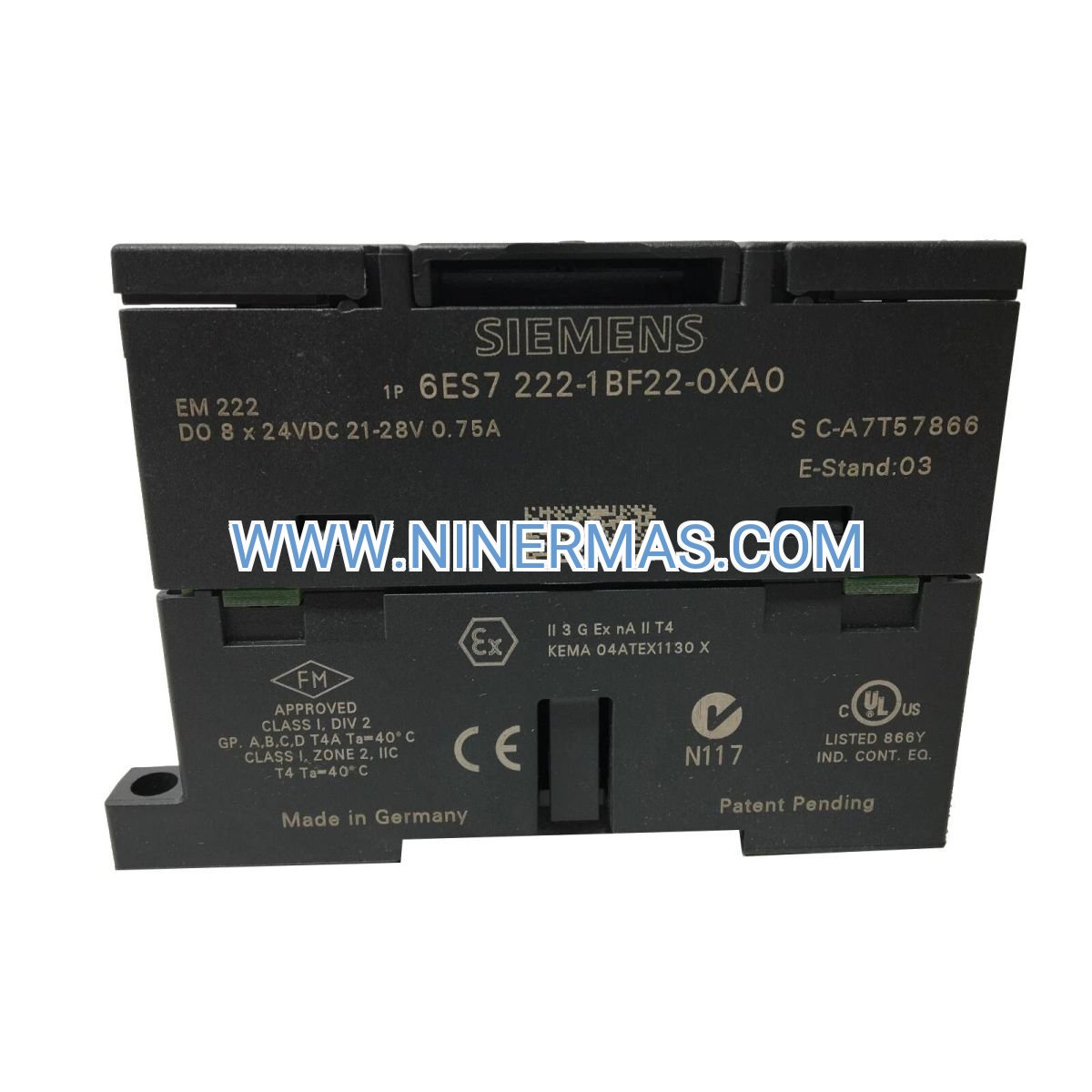

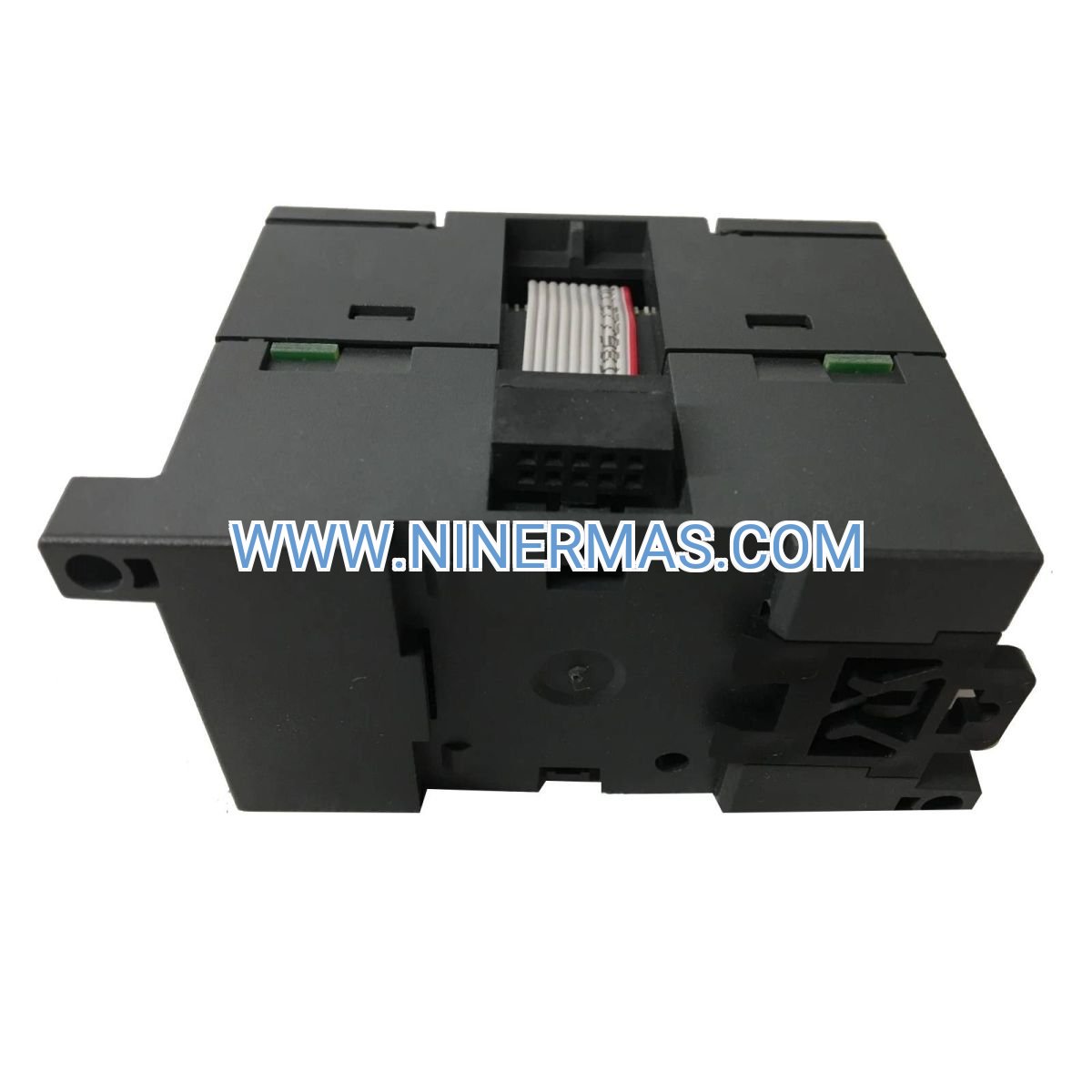

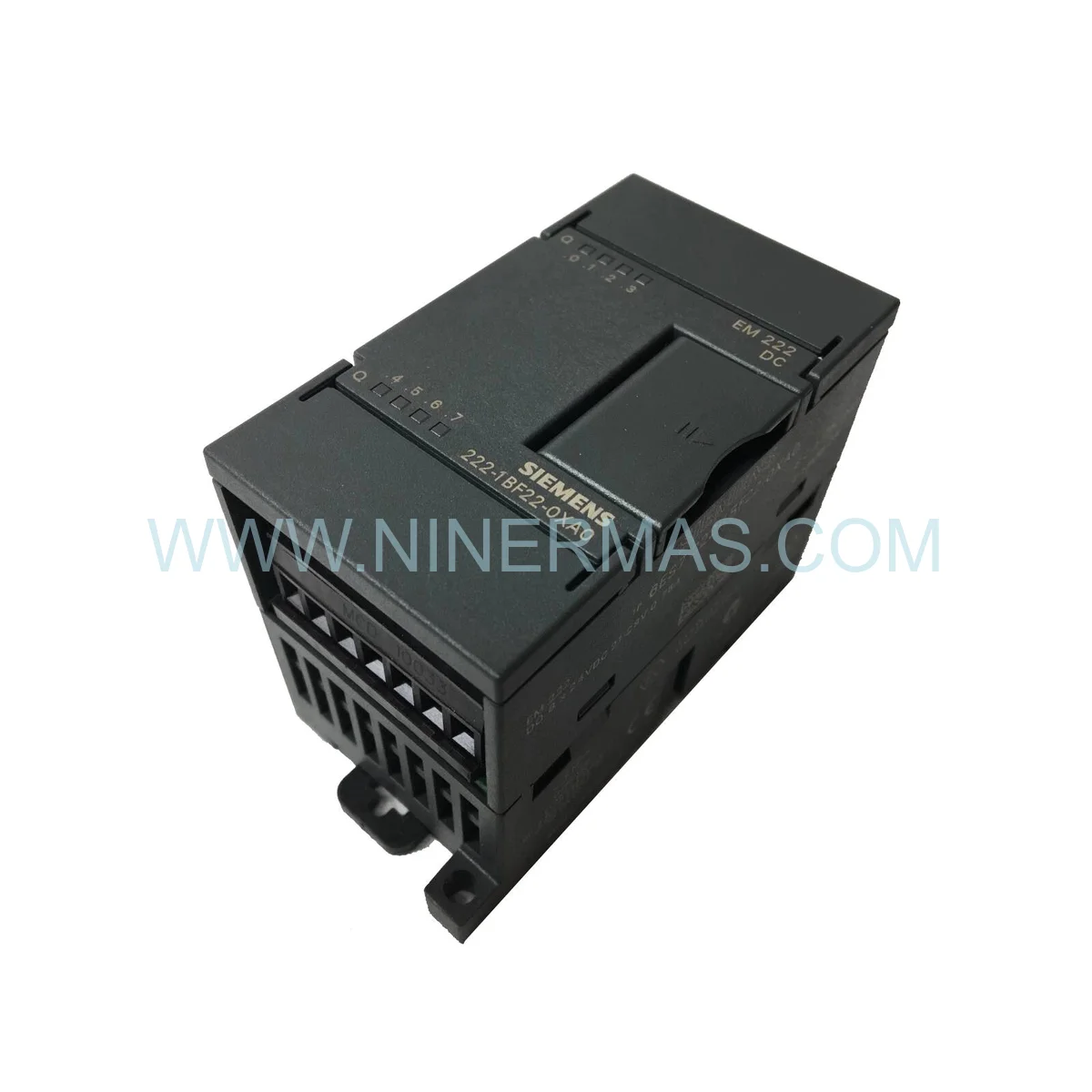

Siemens EM 222 Digital Output Module (Industrial-Grade Expansion Solution)

The Siemens 6ES7222-1BF00-0XA0 EM 222 is a professional digital output expansion module designed for SIMATIC S7-200 PLC systems. Through its 8-channel 24VDC output capability and modular architecture, it enables precise control of solenoid valves, contactors, indicator lights, and other field devices in industrial automation applications.

This module is widely deployed in manufacturing automation, process control, packaging machinery, material handling systems, and building automation scenarios. It effectively addresses challenges such as insufficient I/O points, complex wiring requirements, limited system scalability, and the need for reliable signal isolation in harsh industrial environments.

Featuring standardized design with flexible configuration options, the EM 222 module delivers exceptional reliability, seamless integration with S7-200 CPUs, simplified maintenance procedures, and broad compatibility across automation platforms. It serves design engineers, system integrators, OEM manufacturers, and end-user facilities requiring dependable output expansion. Contact our application engineers for customized configuration recommendations and technical quotations.

Core Features & Technical Advantages

8-Channel Digital Output Capacity
Provides eight independent 24VDC digital output channels with transistor switching technology, enabling direct control of industrial actuators, relays, and signaling devices while maintaining electrical isolation from the PLC CPU.

Plug-and-Play Expansion Architecture
Utilizes the S7-200 bus interface for seamless connection to CPU modules without requiring external power supplies for logic circuits. Configuration is automatically recognized by STEP 7-Micro/WIN programming software, reducing commissioning time by up to 60%.

Industrial-Grade Protection Features
Incorporates comprehensive protection mechanisms including short-circuit protection, overload protection, reverse polarity protection, and surge suppression. Each output channel features individual diagnostic LEDs for rapid troubleshooting and reduced downtime.

Compact DIN-Rail Mounting Design
Space-efficient form factor (approximately 71.2mm width) allows installation in standard control cabinets with minimal footprint. Supports horizontal or vertical mounting configurations to accommodate various panel layouts.

Wide Operating Temperature Range
Certified for operation in ambient temperatures from 0°C to 55°C (32°F to 131°F) with storage range of -40°C to 70°C, ensuring reliable performance in demanding industrial environments including high-temperature workshops and outdoor installations.

Proven Reliability & Longevity
Manufactured to Siemens quality standards with MTBF exceeding 500,000 hours under normal operating conditions. Suitable for continuous 24/7 operation in mission-critical automation systems.

Typical Application Scenarios

The EM 222 module is engineered for applications requiring stable, isolated digital output control with high reliability standards, particularly in:

Manufacturing & Assembly Lines
Controls pneumatic actuators, conveyor motors, robotic grippers, and quality inspection stations in automotive, electronics, and consumer goods production facilities. Manages sequential operations and interlocking logic for safe machine operation.

Process Industry Automation
Operates solenoid valves for chemical dosing, flow diversion, tank filling/draining, and emergency shutdown systems in pharmaceutical, food & beverage, water treatment, and petrochemical plants. Ensures precise timing and fail-safe control.

Packaging & Material Handling
Drives labeling machines, carton sealers, palletizers, and sorting systems. Coordinates multi-axis motion control and synchronizes packaging operations with upstream production equipment.

Building Automation & HVAC
Manages damper actuators, pump starters, fan controls, and lighting circuits in commercial buildings, data centers, and industrial facilities. Integrates with BMS systems for energy-efficient operation.

Machine Tool & CNC Equipment
Controls coolant pumps, chip conveyors, tool changers, and workpiece clamping devices. Provides reliable I/O expansion for retrofit projects upgrading legacy relay-based control systems.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive technical parameters for the EM 222 module. Custom configurations are available based on specific project requirements.

Key Technical Parameters:

• Model Number: 6ES7222-1BF00-0XA0
• Output Type: Digital Output (DO)
• Number of Channels: 8 channels
• Output Voltage: 24VDC (20.4V to 28.8V range)
• Output Current: 0.75A per channel (resistive load)
• Output Type: Transistor (sourcing/PNP)
• Isolation: 500VAC optical isolation between channels and logic
• Response Time: ≤ 0.5ms (typical)
• Power Consumption: Approximately 1.5W from S7-200 backplane
• Mounting: DIN rail (35mm standard)
• Dimensions: 71.2mm (W) × 80mm (H) × 62mm (D)
• Protection Rating: IP20
• Operating Temperature: 0°C to 55°C
• Certifications: CE, UL, cUL

Selection Considerations:
When specifying the EM 222 module, engineers should evaluate: total number of output points required, load current per channel, compatibility with existing S7-200 CPU model (22x series), available space in control panel, and environmental conditions at installation site. For applications requiring higher current capacity (>0.75A per channel), external relay interfaces or solid-state relays should be considered. Our technical team can provide load calculation worksheets and wiring diagrams upon request.

Extended Capabilities

System Scalability: Up to 7 expansion modules can be connected to a single S7-200 CPU, allowing systems to scale from basic machine control to complex multi-zone automation with 100+ I/O points.

Programming Flexibility: Fully supported by STEP 7-Micro/WIN software with ladder logic (LAD), function block diagram (FBD), and statement list (STL) programming languages. Compatible with standard IEC 61131-3 function blocks.

Diagnostic Capabilities: Individual channel status LEDs and software-accessible diagnostic bits enable predictive maintenance strategies and reduce troubleshooting time during commissioning and operation.

Integration Options: Seamlessly interfaces with Siemens HMI panels (TD200, TP177, KTP series), SCADA systems via MPI/PPI protocols, and third-party devices through Modbus RTU communication.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from our regional distribution centers. Custom-configured modules or bulk orders may require 7-14 days depending on specifications and quantity.

Warranty Coverage: All EM 222 modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Our certified automation engineers provide pre-sales application consulting, configuration assistance, and post-sales technical support via phone, email, and remote desktop sessions. On-site commissioning services available in select regions.

Documentation Package: Each module ships with complete technical documentation including datasheet, wiring diagrams, dimensional drawings, programming examples, and quick-start guide in PDF format. CAD files (DXF, STEP) available upon request for panel design integration.

Quality Certifications: Products sourced through authorized Siemens distribution channels with full traceability. Compliance certificates (CE, UL, RoHS) provided with shipment.

Frequently Asked Questions (FAQ)

Q: How do I connect the EM 222 digital output module to my existing S7-200 PLC system?
A: The EM 222 connects directly to the right side of your S7-200 CPU via the built-in bus connector. Simply align the module with the DIN rail, slide it adjacent to the CPU or previous expansion module, and secure the locking mechanism. The module is automatically recognized upon power-up. Ensure your CPU firmware supports the total number of expansion modules in your configuration.

Q: What is the maximum number of EM 222 modules I can connect to a single S7-200 CPU?
A: The S7-200 CPU supports up to 7 expansion modules total (combination of input, output, and analog modules). You can install multiple EM 222 modules as long as the total count does not exceed 7 and the combined power consumption remains within the CPU's backplane power budget (typically 180mA at 5VDC and 800mA at 24VDC).

Q: What type of loads can the EM 222 outputs drive, and what are the current limitations?
A: Each output channel can switch resistive loads up to 0.75A at 24VDC. For inductive loads (solenoid valves, relay coils), derate to approximately 0.5A and ensure external flyback diodes are installed across the load to protect the transistor outputs. For loads exceeding these ratings, use external interposing relays or solid-state relays.

Q: What are the environmental requirements for installing the EM 222 module?
A: The module is rated IP20 and designed for installation inside industrial control cabinets. Operating temperature range is 0°C to 55°C with relative humidity 5% to 95% (non-condensing). Avoid exposure to corrosive gases, excessive vibration, or direct water spray. Ensure adequate ventilation in the enclosure to prevent heat buildup.

Q: Can the EM 222 module communicate with SCADA systems or support remote monitoring?
A: The EM 222 itself does not have independent communication capability. However, output status and diagnostic information are accessible through the S7-200 CPU's communication ports (PPI, MPI, or Ethernet via CP243-1 module). You can integrate with SCADA systems using OPC servers, Modbus RTU/TCP gateways, or Siemens WinCC software for remote monitoring and control.

Q: Is the EM 222 module compatible with newer S7-1200 or S7-1500 PLC families?
A: No, the EM 222 is specifically designed for the SIMATIC S7-200 series and is not compatible with S7-1200 or S7-1500 systems due to different backplane architectures and communication protocols. For newer PLC platforms, consider equivalent digital output modules from the SM 1222 (S7-1200) or DQ series (S7-1500) product lines.

Request Technical Support & Quotation

To receive a detailed configuration proposal, pricing quotation, or application engineering support, please provide the following information to our technical sales team:

• Project name and application description
• Existing S7-200 CPU model number
• Total number of digital output points required
• Load types and current requirements per channel
• Operating environment conditions (temperature, humidity, enclosure type)
• Quantity required and target delivery schedule
• Any special certifications or documentation requirements

Our automation specialists will respond within 24 hours with customized recommendations, wiring diagrams, and competitive pricing. We support both single-unit purchases for maintenance/repair and volume orders for OEM integration projects.
