Siemens 6ES7221-1BH22-0XA8 Digital Input Module | S7-200 EM 221 8DI 24VDC | Industrial PLC Expansion

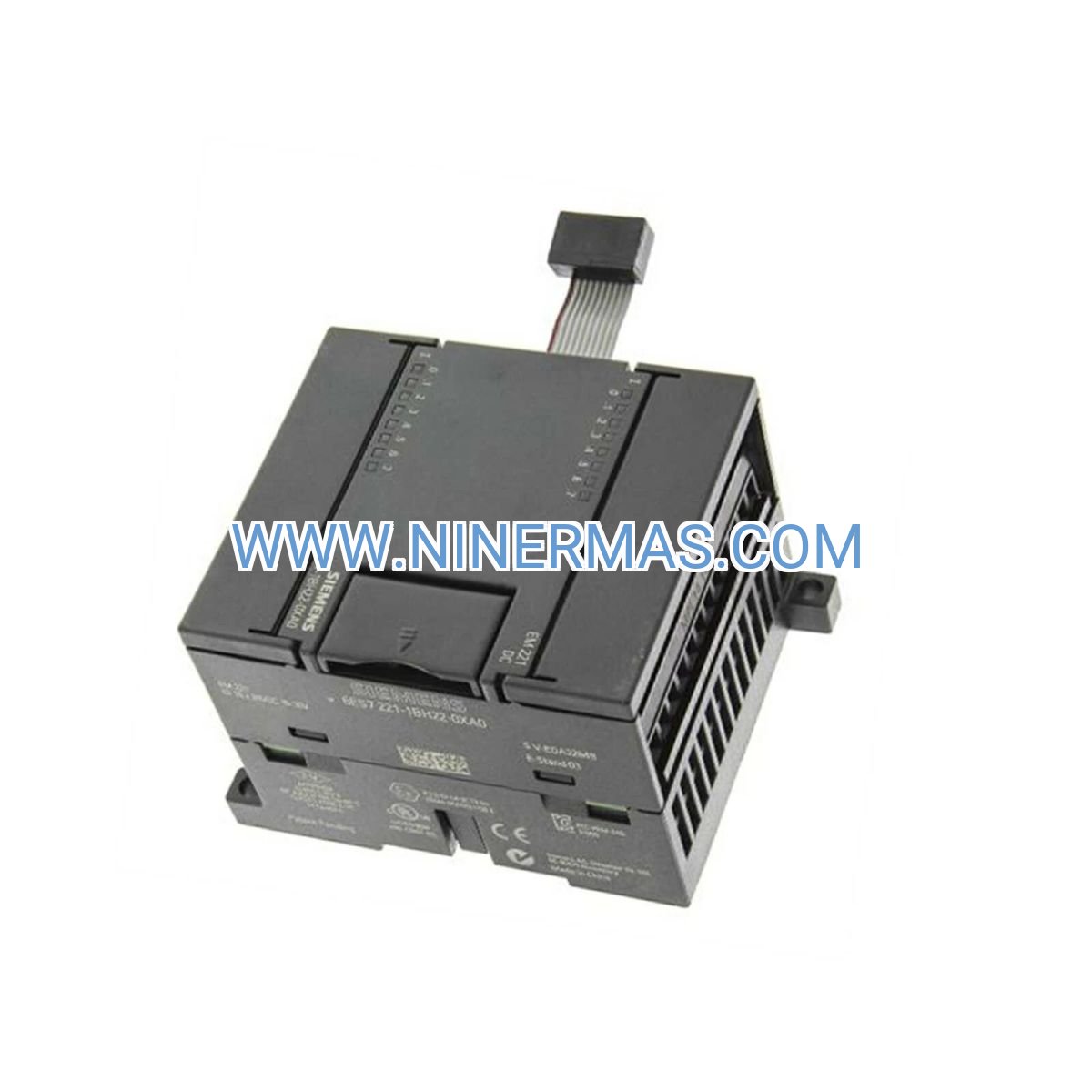

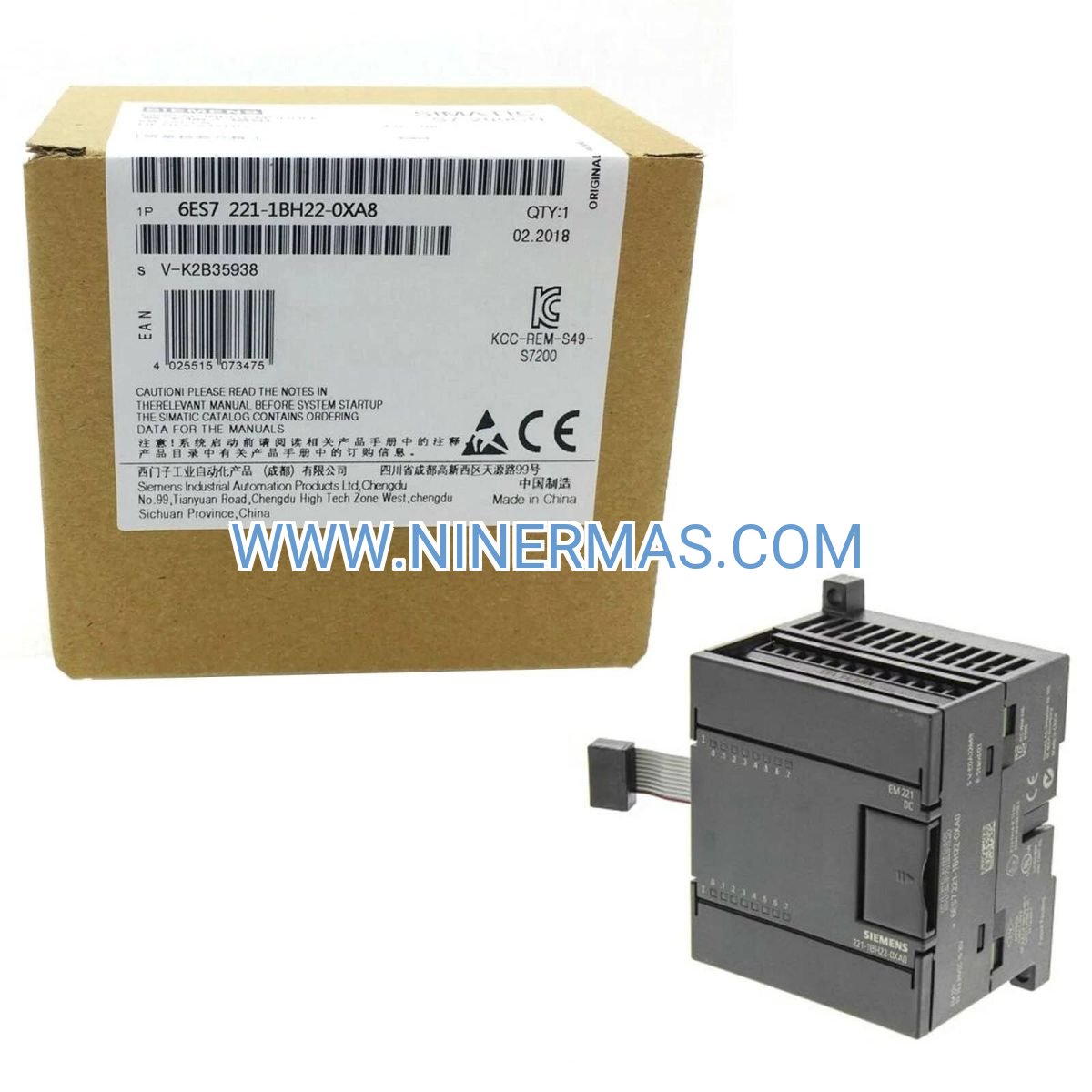

Siemens 6ES7221-1BH22-0XA8 EM 221 Digital Input Module (Industrial-Grade S7-200 PLC Expansion)

The Siemens 6ES7221-1BH22-0XA8 EM 221 is a professional digital input expansion module designed for SIMATIC S7-200 PLC systems. Through high-precision signal acquisition and reliable 24VDC input processing, it enables real-time monitoring of discrete signals from sensors, switches, and field devices in industrial automation environments.

Ideal for manufacturing plants, process control systems, building automation, and machine control applications where reliable digital signal acquisition is critical. This module addresses common challenges including limited I/O capacity, signal interference, installation complexity, and system scalability requirements in demanding industrial environments.

Featuring standardized design with flexible configuration options, this module delivers proven reliability, seamless S7-200 integration, compact footprint, and excellent electromagnetic compatibility. Suitable for system integrators, automation engineers, OEM manufacturers, and plant maintenance teams. Contact our engineers for application guidance and technical specifications.

Core Features & Advantages

8-Channel 24VDC Digital Input
Equipped with 8 isolated digital input channels supporting 24VDC signals, enabling simultaneous monitoring of multiple discrete sensors, limit switches, proximity sensors, and push buttons with high noise immunity.

Seamless S7-200 Integration
Hot-swappable expansion bus connection to S7-200 CPU units (CPU 221/222/224/226) without external wiring, simplifying installation and reducing commissioning time by up to 40% compared to remote I/O solutions.

Industrial-Grade Reliability
Built to withstand harsh industrial environments with wide operating temperature range (-25°C to +55°C), vibration resistance, and electrical isolation between channels, ensuring continuous operation in demanding applications.

Comprehensive Input Protection
Features reverse polarity protection, overvoltage protection, and input filtering to prevent damage from wiring errors, voltage spikes, and electrical noise, reducing maintenance costs and system downtime.

Compact DIN-Rail Mounting
Space-efficient modular design (71.2mm width) allows flexible system expansion in control cabinets with limited space, supporting up to 7 expansion modules per S7-200 CPU for scalable automation solutions.

LED Status Indicators
Individual LED indicators for each input channel provide instant visual feedback of signal status, simplifying troubleshooting and reducing diagnostic time during commissioning and maintenance operations.

Typical Application Scenarios

This digital input module is engineered for applications requiring reliable discrete signal monitoring, stable data acquisition, and seamless PLC integration, particularly in:

Manufacturing & Assembly Lines
Monitor conveyor position sensors, safety interlocks, part presence detection, and quality inspection stations in automotive, electronics, food processing, and packaging industries to ensure production flow continuity.

Process Control & Monitoring Systems
Acquire status signals from level switches, pressure switches, temperature alarms, and valve position feedback in chemical plants, water treatment facilities, pharmaceutical production, and HVAC systems.

Machine Control & OEM Equipment
Interface with limit switches, emergency stops, mode selectors, and operator panel inputs in CNC machines, injection molding equipment, textile machinery, and material handling systems.

Building Automation & Infrastructure
Collect signals from door/window contacts, motion detectors, fire alarm inputs, and equipment status indicators in commercial buildings, parking systems, and facility management applications.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide comprehensive technical specifications. Custom configurations available based on project requirements.

Key Specifications:

• Model Number: 6ES7221-1BH22-0XA8
• Input Channels: 8 digital inputs (isolated)
• Input Voltage: 24VDC nominal (20.4-28.8VDC range)
• Input Current: Approx. 7mA per channel at 24VDC
• Input Type: Sink/Source configurable
• Isolation: 500VAC optical isolation (channel to logic)
• Response Time: 0.2ms to 12.8ms (software selectable filter)
• Connection Type: 20-pin terminal block (removable)
• Power Consumption: 50mA from S7-200 backplane (5VDC)
• Operating Temperature: -25°C to +55°C
• Protection Rating: IP20 (when properly installed)
• Dimensions: 71.2mm (W) × 80mm (H) × 62mm (D)
• Mounting: Standard 35mm DIN rail
• Certifications: CE, UL, cUL, FM approved

Selection Recommendations:
When selecting this module, consider: total number of discrete input points required, sensor voltage compatibility (24VDC), available space in control panel, S7-200 CPU model compatibility, and environmental conditions. For applications requiring AC inputs, analog signals, or higher channel density, alternative EM modules are available. Our application engineers can recommend optimal configurations based on your system architecture.

Extended Capabilities

Flexible System Expansion: Supports cascading with other EM modules (analog I/O, relay outputs, communication) on the same S7-200 backplane for comprehensive control solutions.

Software Integration: Fully compatible with STEP 7-Micro/WIN programming software, supporting ladder logic, function block diagram, and statement list programming with extensive diagnostic functions.

Global Availability: Genuine Siemens product with worldwide support network, ensuring consistent quality, long-term availability, and access to technical documentation in multiple languages.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 2-3 business days; custom configurations typically 7-10 days depending on specifications.

Warranty: Backed by 12-month manufacturer warranty covering defects in materials and workmanship, with extended warranty options available.

Technical Support: Comprehensive pre-sales consultation and post-sales technical assistance including remote guidance and on-site commissioning support (region-dependent).

Documentation Package: Complete technical documentation including datasheet, wiring diagrams, terminal layout, programming examples, and installation manual provided with each module for seamless integration and maintenance.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens EM 221 digital input module to my existing S7-200 PLC system?
A: The EM 221 connects directly to the right side of your S7-200 CPU via the built-in expansion bus connector. Simply align the module, slide it onto the DIN rail adjacent to the CPU, and secure the bus connector—no external cables required. Wire your 24VDC sensors to the 20-pin removable terminal block following the terminal assignment diagram in the manual.

Q: What is the maximum number of EM 221 modules I can add to one S7-200 CPU?
A: You can connect up to 7 expansion modules total to a single S7-200 CPU (mix of digital, analog, and communication modules). The specific limit depends on your CPU model and total power consumption. For example, a CPU 224 can support multiple EM 221 modules as long as total expansion current doesn't exceed the backplane power budget.

Q: Can this module accept both NPN and PNP sensor outputs?
A: Yes, the EM 221 supports both sink (NPN) and source (PNP) input wiring configurations. You can configure the common terminal connections to accommodate either sensor type, though all 8 inputs on this module must use the same configuration (all sink or all source).

Q: What environmental protection does this module offer for industrial installations?
A: The module is rated IP20 for standard control cabinet installation and operates reliably in temperatures from -25°C to +55°C with 5-95% relative humidity (non-condensing). Each input channel features electrical isolation (500VAC), reverse polarity protection, and configurable input filtering to reject electrical noise in harsh industrial environments.

Q: Does the EM 221 support remote monitoring or communication protocols like Modbus?
A: The EM 221 itself is a local I/O expansion module without built-in communication capabilities. However, when connected to an S7-200 CPU, all input data is accessible via the CPU's communication ports (PPI, MPI, or Profibus-DP with appropriate CPU models and expansion modules), enabling integration with SCADA systems, HMIs, and remote monitoring platforms.

Q: Is this module suitable for safety-critical applications like emergency stop circuits?
A: While the EM 221 provides reliable signal acquisition, it is a standard I/O module, not a safety-rated device. For safety-critical functions (emergency stops, safety interlocks, protective guards), you must use dedicated safety PLCs and safety-rated I/O modules that comply with relevant safety standards (ISO 13849, IEC 62061). The EM 221 is ideal for non-safety monitoring and control applications.

Request Technical Support & Quotation

For detailed application engineering, custom configuration recommendations, or pricing information, please provide the following details: project name, application type, number of digital input points required, sensor specifications (voltage/type), S7-200 CPU model, environmental conditions, and any special requirements. Our automation specialists will provide personalized selection guidance and competitive quotations within 24 hours.
