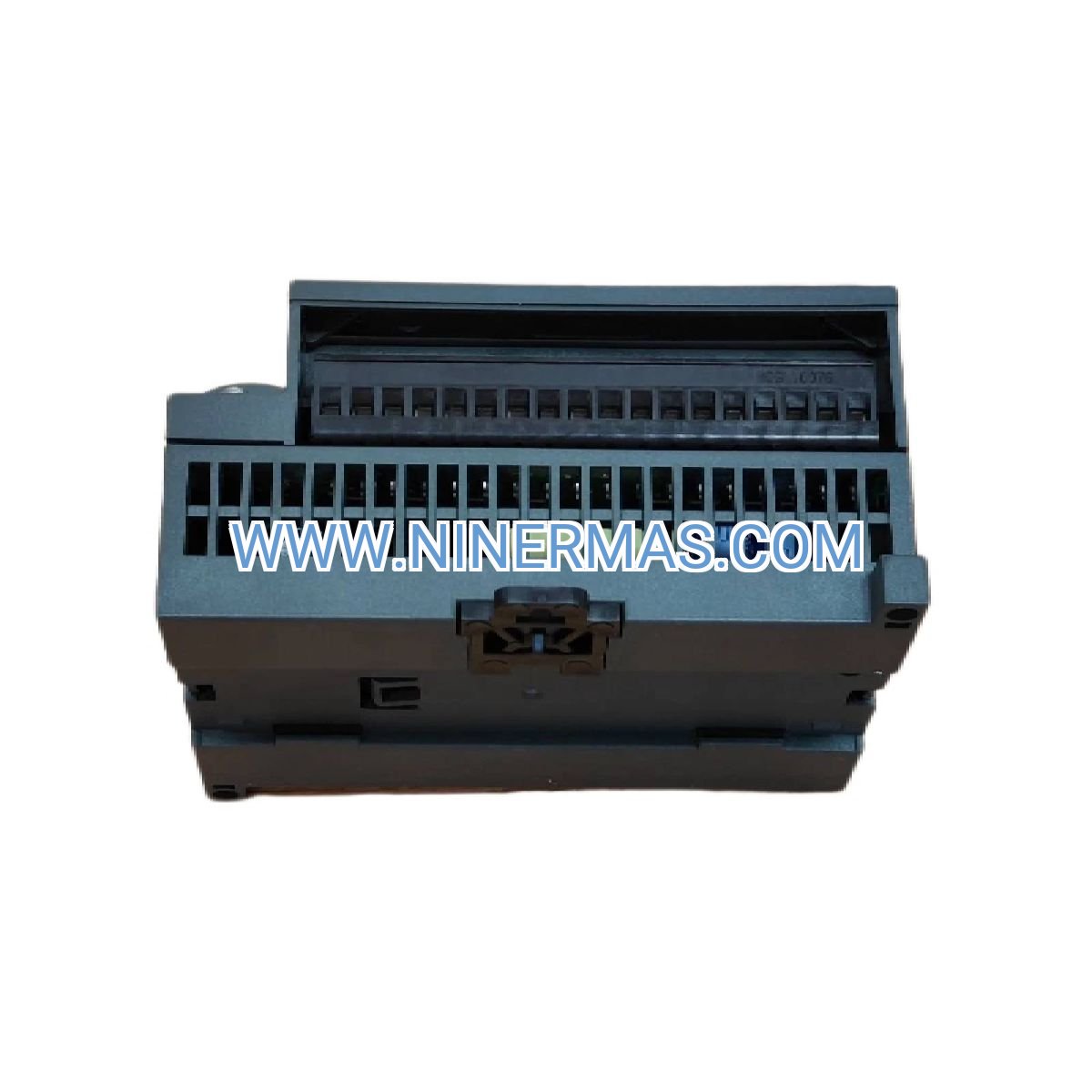

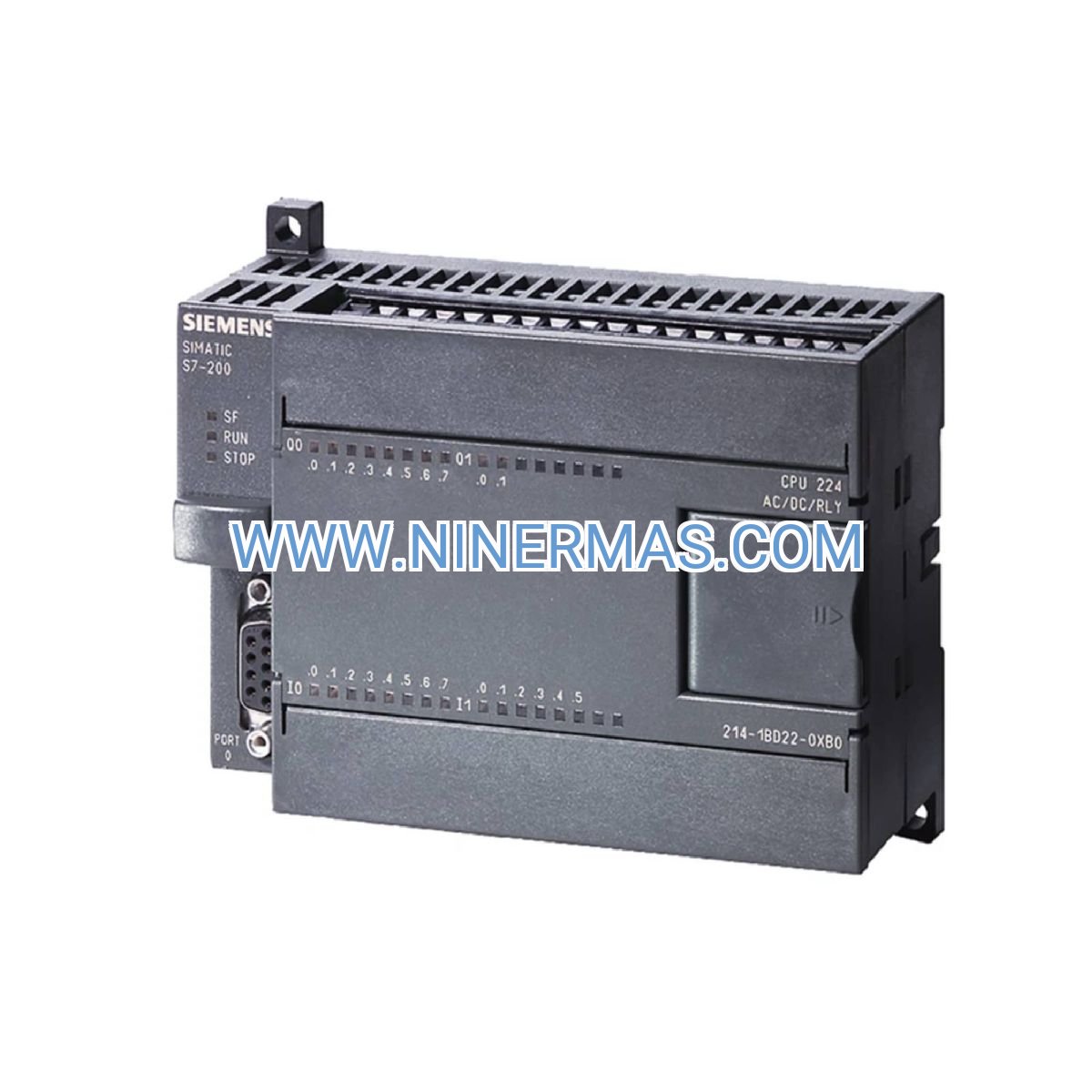

Siemens S7-200 CPU 224 PLC Controller | 6ES7214-1BD23-0XB0 Compact Automation Unit

Siemens S7-200 CPU 224 PLC Controller – Industrial-Grade Compact Automation Solution

The Siemens 6ES7214-1BD23-0XB0 SIMATIC S7-200 CPU 224 is a professional programmable logic controller designed for small to medium-scale industrial automation applications. Through advanced microprocessor technology and optimized I/O configuration, this compact unit delivers reliable control for discrete manufacturing, process automation, and building management systems with exceptional performance-to-footprint ratio.

Engineered for applications requiring precise digital control in manufacturing plants, packaging lines, material handling systems, HVAC automation, and water treatment facilities, this PLC addresses common challenges including limited panel space, complex wiring requirements, high installation costs, inadequate diagnostic capabilities, and inflexibility in system expansion.

Featuring standardized design with customizable programming options, the CPU 224 offers rapid scan times, robust communication protocols, comprehensive fault diagnostics, and seamless integration with SIMATIC HMI panels. Ideal for automation engineers, system integrators, OEM manufacturers, and facility maintenance teams seeking reliable control solutions. Contact our engineering team for application-specific configuration guidance and technical quotations.

Core Features & Technical Advantages

• Optimized I/O Configuration
  Equipped with 14 digital inputs and 10 digital outputs in a single compact housing, eliminating external I/O modules for typical small-scale applications and reducing wiring complexity by up to 40%.
• High-Performance Processing
  12KB user program memory with fast instruction execution (0.8μs per Boolean operation) ensures responsive control for time-critical processes, supporting up to 256 I/O points through expansion modules.
• Versatile Communication Capabilities
  Integrated RS-485 port supports PPI, MPI, and free-port communication protocols, enabling seamless connectivity with HMI panels, frequency inverters, and SCADA systems without additional hardware.
• Comprehensive Protection Functions
  Built-in safeguards against voltage fluctuations (85-264VAC tolerance), electromagnetic interference (industrial EMC compliance), program corruption (EEPROM backup), and I/O short-circuit conditions, minimizing unplanned downtime.
• Intuitive Programming Environment
  Compatible with STEP 7-Micro/WIN software featuring ladder logic (LAD), function block diagram (FBD), and statement list (STL) programming languages, with extensive function libraries for rapid application development.
• Modular Expansion Architecture
  Supports up to 7 expansion modules for analog I/O, high-speed counters, positioning control, and communication interfaces, providing scalability as automation requirements evolve.

Typical Application Scenarios

This controller excels in environments demanding reliable digital control, compact installation footprint, and cost-effective automation solutions, particularly in:

• Discrete Manufacturing & Assembly Lines
  Controls conveyor sequencing, pneumatic actuators, and quality inspection stations in automotive parts production, electronics assembly, and consumer goods packaging operations.
• Process Control & Batch Systems
  Manages mixing sequences, temperature regulation, and level control in food & beverage processing, chemical dosing systems, and pharmaceutical manufacturing with recipe management capabilities.
• Building Automation & HVAC Systems
  Regulates air handling units, chiller plants, and lighting control in commercial buildings, data centers, and industrial facilities, integrating with BMS protocols for centralized monitoring.
• Water & Wastewater Treatment
  Orchestrates pump control, valve sequencing, and filtration cycles in municipal water plants, industrial effluent treatment, and irrigation systems with remote monitoring support.
• Material Handling & Logistics
  Coordinates sorting systems, automated storage retrieval, and palletizing equipment in warehouses, distribution centers, and manufacturing logistics operations.

Technical Specifications & Selection Guide

To facilitate engineering design and system specification, we provide comprehensive technical parameters for the CPU 224 controller. Custom configurations available based on project-specific requirements.

Selection Recommendations: When specifying this controller, consider maximum I/O count requirements, analog signal integration needs, communication protocol compatibility with existing equipment, available panel mounting space, and environmental conditions (temperature, humidity, vibration). For applications requiring more than 24 I/O points or analog processing, consult our engineering team with process flow diagrams and I/O lists for optimized system architecture recommendations.

Advanced Integration Capabilities

• HMI & SCADA Connectivity: Native support for Siemens HMI panels (KTP, TP series) via MPI protocol, and third-party SCADA systems through Modbus RTU or free-port communication.
• Motion Control Integration: High-speed counter inputs (30kHz) and pulse output functions enable stepper motor and servo drive control for positioning applications without additional motion controllers.
• Network Expansion: Optional CP 243-1 communication processor adds Ethernet/IP connectivity for remote monitoring, data logging, and integration with Industry 4.0 platforms.
• Analog Signal Processing: Compatible with EM 231/235 analog expansion modules for temperature sensors (RTD, thermocouple), pressure transmitters, and flow meters with 12-bit resolution.

Delivery, Service & Quality Assurance

Lead Time: Standard configuration units typically ship within 3-5 business days from stock; custom-configured systems with specific I/O arrangements or pre-loaded programs require 7-12 business days for assembly and testing.

Warranty Coverage: All units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for critical applications.

Technical Support: Remote commissioning assistance, on-site installation guidance (region-dependent), and application programming support provided by certified Siemens automation specialists. Emergency technical hotline available for production-critical issues.

Documentation Package: Each controller ships with complete electrical schematics, I/O wiring diagrams, terminal layout drawings, programming manual, and quick-start guide in PDF format. Sample ladder logic programs available for common applications upon request.

Frequently Asked Questions (FAQ)

Q: How does the Siemens S7-200 CPU 224 PLC integrate with existing automation systems?
A: The CPU 224 supports multiple communication protocols including PPI, MPI, and Modbus RTU via its RS-485 port. Integration requires confirming protocol compatibility, baud rate settings (9.6k-187.5k bps), and network topology. For Ethernet connectivity, add a CP 243-1 communication module. Our engineers can provide protocol conversion solutions for legacy equipment interfaces.

Q: What is the maximum I/O capacity when using expansion modules?
A: The CPU 224 supports up to 7 expansion modules on the right side, achieving a maximum configuration of 256 digital I/O points or 35 analog channels (combination dependent). Each expansion module adds specific I/O types—digital, analog, or specialty functions like high-speed counting or positioning control.

Q: Can this PLC operate in harsh industrial environments with temperature extremes?
A: The standard CPU 224 operates reliably in 0-55°C ambient temperature with IP20 protection rating, suitable for climate-controlled panel enclosures. For extreme environments (outdoor installations, high-vibration areas, or corrosive atmospheres), we recommend installing within NEMA 4X/IP65-rated enclosures with thermal management and conformal coating options.

Q: What programming software is required and is it compatible with modern Windows systems?
A: Programming requires STEP 7-Micro/WIN V4.0 SP9 software, compatible with Windows 7/10/11 (32/64-bit). The software supports ladder logic, function block, and statement list programming with simulation capabilities. Programming cable (PC/PPI or USB/PPI) required for PC-to-PLC connection. Software licenses and cables available separately.

Q: Does the controller support remote monitoring and data logging for Industry 4.0 applications?
A: Yes, when equipped with CP 243-1 Ethernet module or connected through a gateway device, the CPU 224 can transmit process data to cloud platforms, SCADA systems, or MES databases via OPC UA, MQTT, or Modbus TCP protocols. Data logging to SD card possible with memory cartridge accessory.

Q: What is the typical power consumption and backup battery life?
A: The CPU 224 consumes approximately 10W during normal operation. The integrated super-capacitor maintains program and data memory for 50 hours minimum during power loss (at 25°C). For extended backup requirements beyond 50 hours, an optional battery cartridge (6ES7 291-8BA20-0XA0) provides 200+ days of data retention.

Request Technical Consultation & Quotation

To receive a customized system configuration, technical specification sheet, or project quotation, please provide the following information to our automation engineering team:

• Project name and application industry
• Total I/O requirements (digital inputs/outputs, analog channels)
• Communication protocol needs (HMI, SCADA, field devices)
• Environmental conditions (temperature range, enclosure type)
• Quantity requirements and delivery timeline
• Any specific certifications or compliance requirements

Our certified engineers will provide one-on-one application consulting, system architecture recommendations, and competitive pricing within 24 business hours.
