Siemens 6ES7195-7DH10-0XA0 PROFIBUS DP Bus Module | ET 200MP I/O Interface | NINERMAS

6ES7195-7DH10-0XA0 PROFIBUS DP Interface Module (Industrial-Grade Communication Hub)

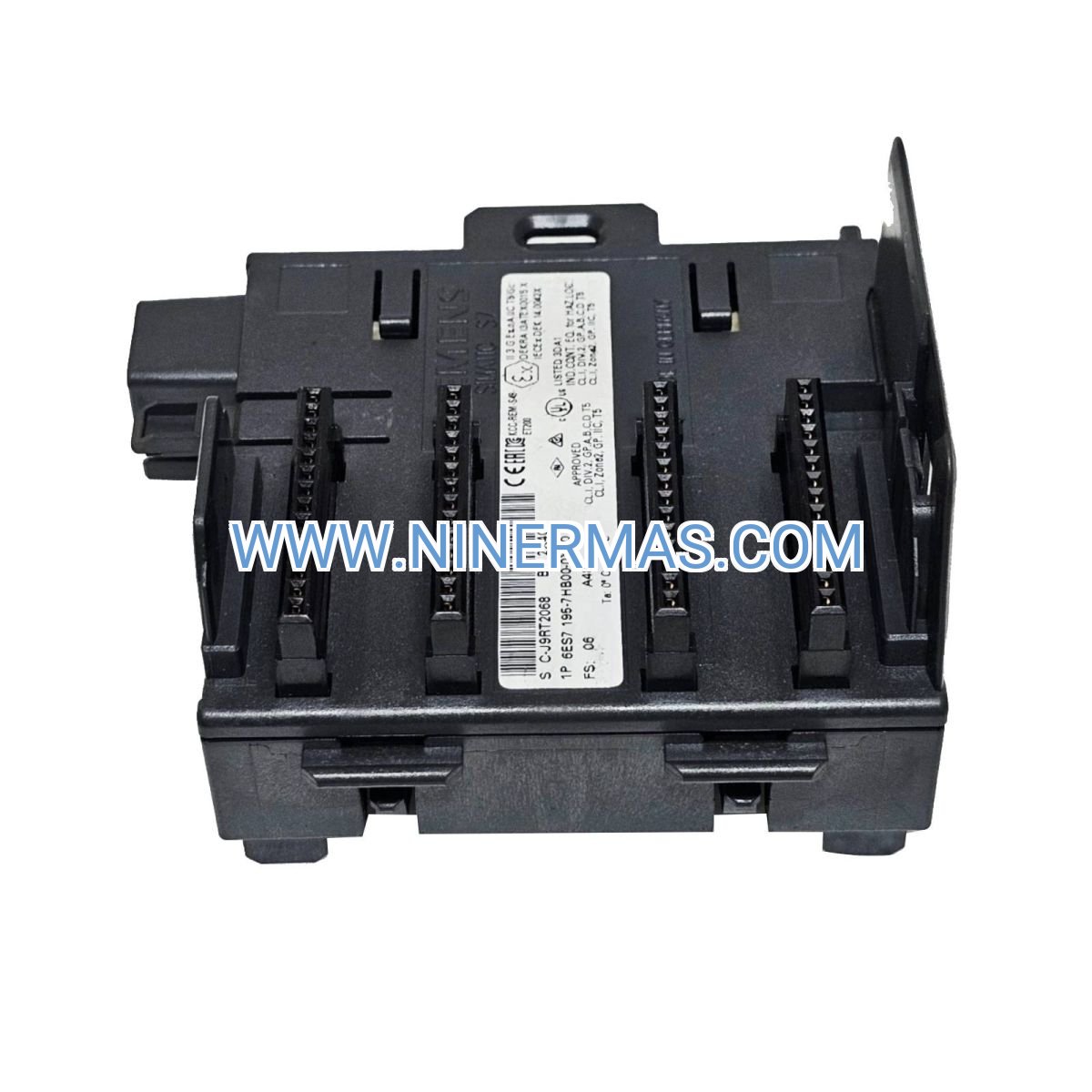

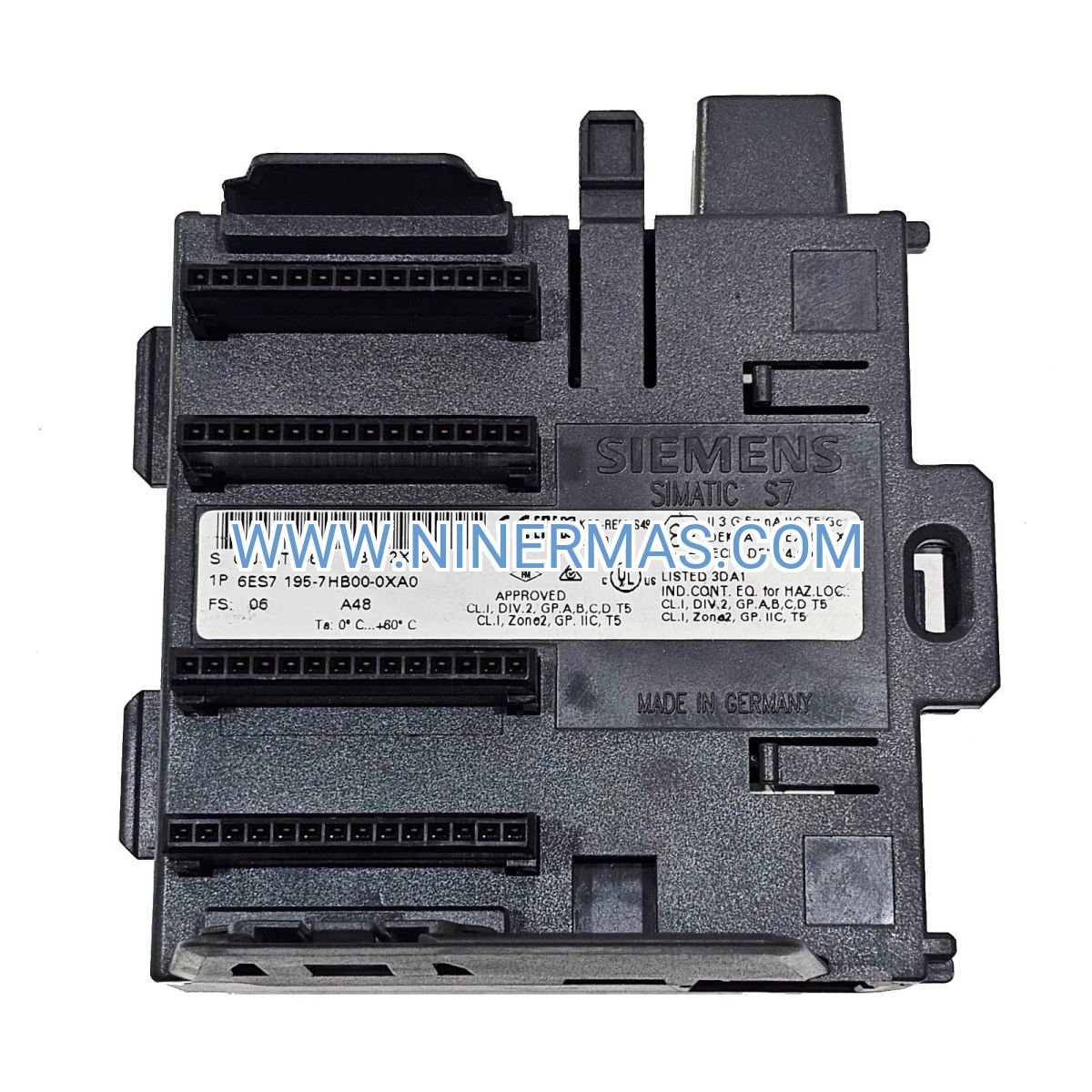

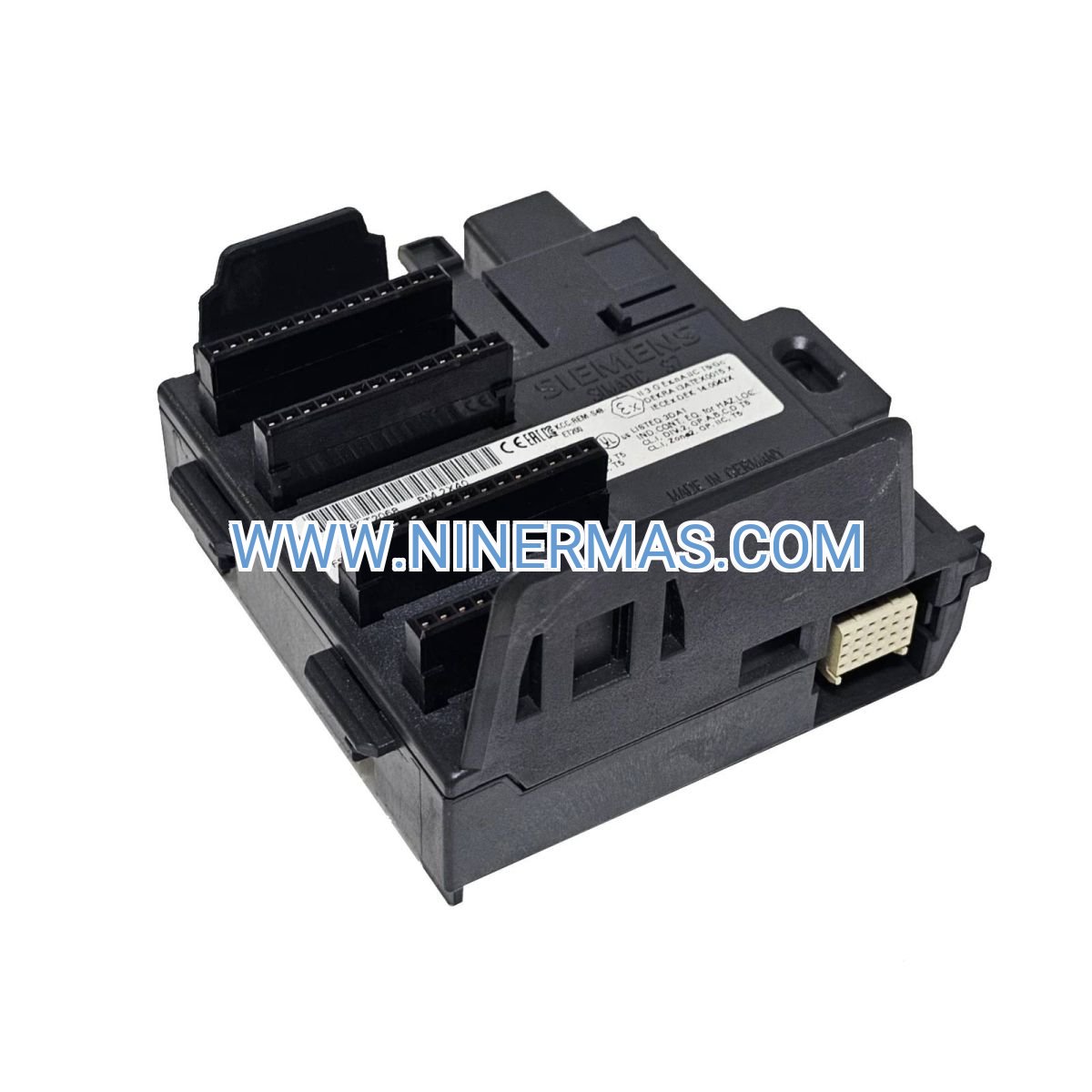

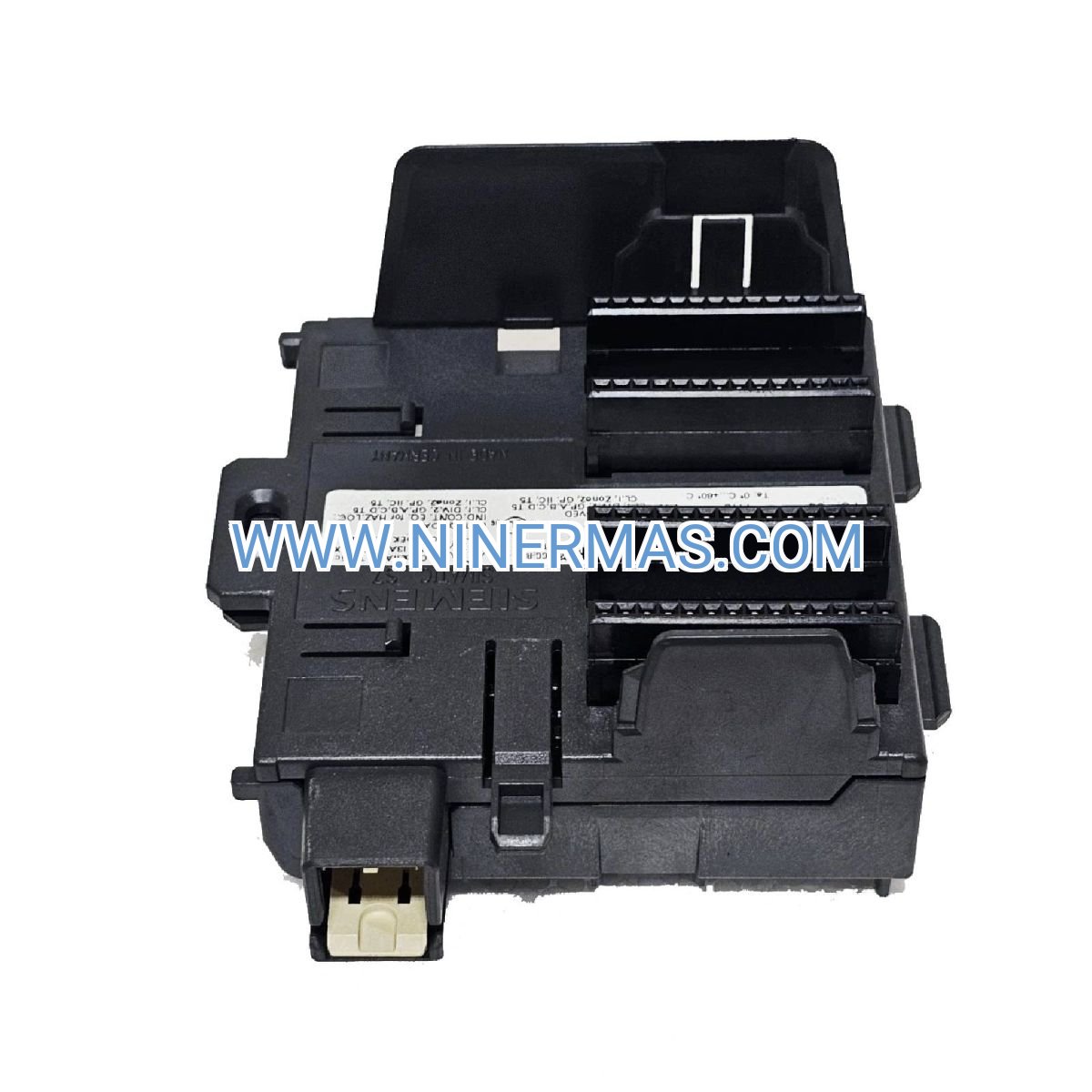

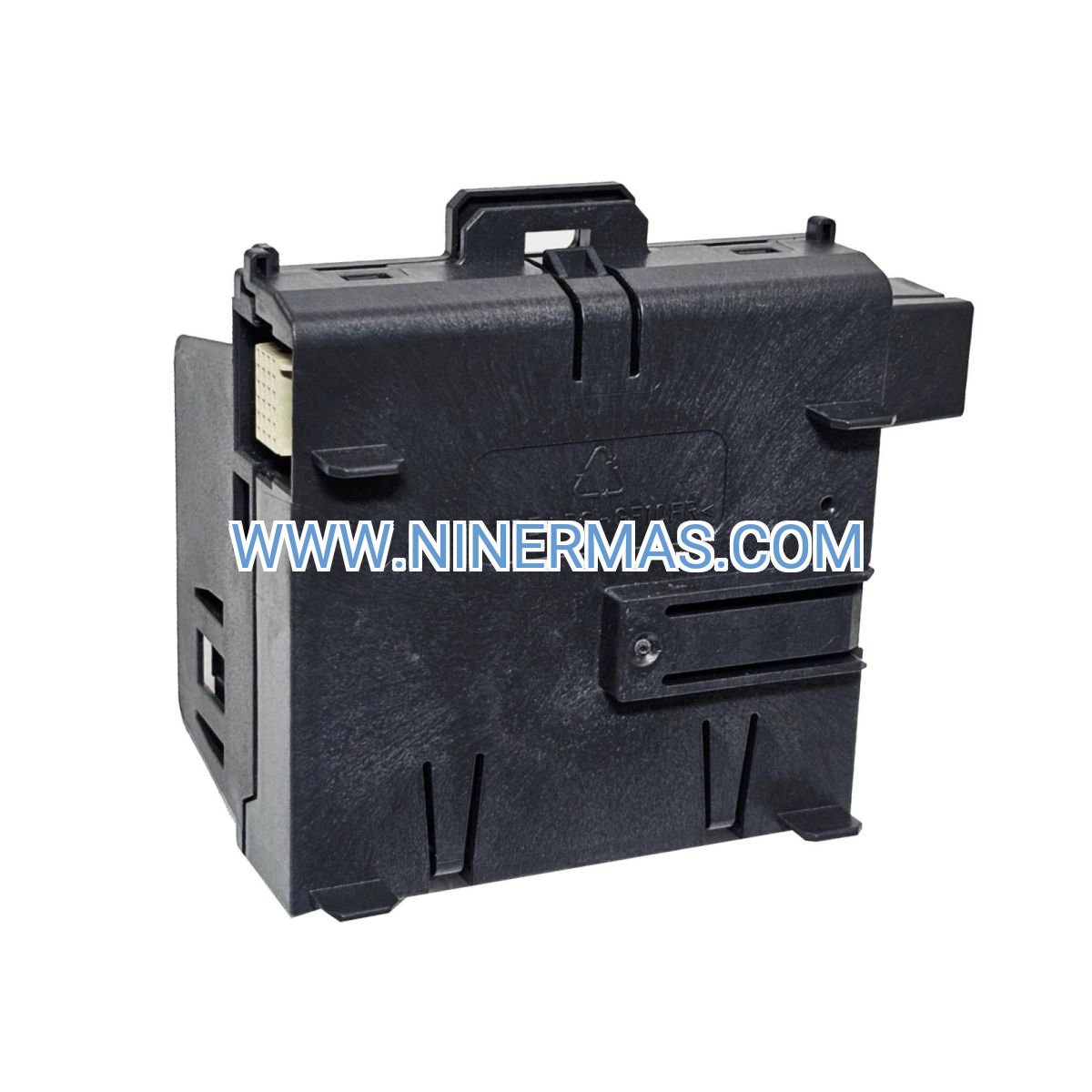

The Siemens 6ES7195-7DH10-0XA0 represents a critical communication gateway within modern distributed control architectures. Engineered as a PROFIBUS DP interface module for the ET 200MP modular I/O platform, this component bridges field-level sensors and actuators with central automation controllers across manufacturing, process, and infrastructure environments.

Designed for system integrators and plant engineers managing complex automation networks, this bus module addresses the fundamental challenge of reliable, high-speed data exchange in electrically noisy industrial settings. Whether you're retrofitting legacy PROFIBUS installations or designing greenfield automation systems, the 6ES7195-7DH10-0XA0 delivers deterministic communication performance with minimal configuration overhead.

Key differentiators include hot-swap capability for zero-downtime maintenance, extended temperature tolerance for harsh environments, and native compatibility with the entire SIMATIC S7 ecosystem. This module transforms distributed I/O deployment from a complex integration challenge into a standardized, scalable solution.

Core Capabilities & Technical Advantages

→ Hot-Swap Architecture for Continuous Operations
Replace or add modules during live system operation without halting production processes. This feature reduces planned maintenance windows by up to 80% and eliminates costly production interruptions in 24/7 manufacturing environments.

→ High-Throughput PROFIBUS DP Communication
Supports data transfer rates up to 12 Mbit/s across PROFIBUS DP V0/V1/V2 protocols, ensuring sub-millisecond response times for time-critical control loops in motion control, safety systems, and synchronized production lines.

✓ Extended Environmental Resilience
Operates reliably across -25°C to +60°C temperature range, making it suitable for outdoor installations, foundries, cold storage facilities, and other extreme-condition applications where standard electronics fail.

✓ Integrated Diagnostic Intelligence
Multi-color LED status indicators combined with PROFIBUS-accessible diagnostics enable rapid fault isolation. Maintenance teams can identify communication errors, module failures, or configuration issues within seconds rather than hours.

✓ Compact DIN-Rail Mounting
Standard 35mm DIN-rail compatibility with 35×147×129mm footprint optimizes control cabinet space utilization. Modular design allows flexible system expansion without cabinet redesign.

✓ Universal SIMATIC Ecosystem Integration
Seamless interoperability with S7-1500, S7-400 controllers and all ET 200MP I/O modules. Single engineering environment (TIA Portal) streamlines configuration, reducing commissioning time by 40-60% compared to multi-vendor solutions.

Industrial Application Scenarios

Automotive Manufacturing & Assembly Lines
In high-speed automotive production, the 6ES7195-7DH10-0XA0 connects distributed I/O stations controlling robotic welding cells, paint booths, and quality inspection systems. The hot-swap capability allows module replacement during shift changes without stopping the entire line, while 12 Mbit/s throughput ensures synchronized motion control across dozens of servo drives.

Chemical Process Control & Batch Manufacturing
Chemical plants leverage this module to interface field instrumentation—temperature transmitters, flow meters, valve positioners—with central DCS systems. The extended temperature rating supports installations in reactor areas and outdoor tank farms, while PROFIBUS DP V1 acyclic services enable remote calibration and diagnostics without field visits.

Water Treatment & Municipal Infrastructure
Distributed pump stations and treatment facilities use ET 200MP systems with this bus module to monitor water quality sensors, control chemical dosing pumps, and manage filtration processes. The robust design withstands high-humidity environments, and PROFIBUS redundancy options ensure continuous operation for critical infrastructure.

Food & Beverage Production Lines
Packaging lines, filling systems, and pasteurization processes require precise coordination of conveyors, labelers, and quality checkpoints. This module's deterministic communication guarantees synchronized operation, while IP20 rating and stainless-steel mounting accessories meet hygiene standards for food-grade installations.

Energy Generation & Distribution
Power plants and substations deploy ET 200MP systems for turbine control, generator protection, and switchgear monitoring. The module's certification portfolio (CE, UL, ATEX) satisfies stringent safety requirements, and PROFIBUS DP V2 isochronous mode supports time-synchronized measurements across distributed protection relays.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose this module when your application requires PROFIBUS DP connectivity for ET 200MP systems. For PROFINET-based architectures, consider the 6ES7195-1GG30-0XA0 interface module instead. Verify that your PROFIBUS segment length and baud rate combination falls within specification limits (e.g., 100m maximum at 12 Mbit/s, 1200m at 9.6 kbit/s). For segments exceeding these distances, integrate RS485 repeaters at appropriate intervals.

Advanced Integration & IoT Connectivity

While the 6ES7195-7DH10-0XA0 provides robust PROFIBUS DP connectivity, modern Industry 4.0 initiatives often require bridging legacy fieldbus networks with cloud-based analytics platforms. Pair this module with SIMATIC S7-1500 controllers featuring integrated PROFINET and OPC UA servers to enable:

• Edge Computing Integration: Stream PROFIBUS data to SIMATIC Edge devices for local machine learning inference and predictive maintenance algorithms
• Cloud Connectivity: Publish process variables to AWS IoT Core, Azure IoT Hub, or MindSphere for enterprise-wide visibility and remote monitoring
• Third-Party System Integration: Expose PROFIBUS data via OPC UA for seamless integration with MES, ERP, and SCADA systems from multiple vendors
• Mobile Diagnostics: Access real-time module status and diagnostics through SIMATIC WinCC Unified mobile HMI applications

For brownfield installations with existing PROFIBUS infrastructure, this module enables phased migration strategies—maintain legacy fieldbus communication while gradually introducing PROFINET and Industrial Ethernet capabilities through hybrid controller architectures.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 1-2 business days via express courier (DHL, FedEx, UPS). Typical delivery to major industrial hubs: North America 3-5 days, Europe 2-4 days, Asia-Pacific 3-6 days.

Custom Configuration Services: Pre-configured modules with customer-specific PROFIBUS addresses and diagnostic settings available with 5-7 business day lead time. Ideal for large-scale deployments requiring standardized configurations.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to certified Siemens automation specialists for configuration assistance, troubleshooting guidance, and system integration consulting. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module ships with quick-start guide, technical datasheet, and GSD file for PROFIBUS configuration. Complete manuals, CAD drawings (EPLAN, AutoCAD), and TIA Portal hardware catalog entries available for download.

Frequently Asked Questions

Can this interface module support redundant PROFIBUS configurations?
Yes, when paired with redundant S7-400H controllers or S7-1500R systems, the ET 200MP platform supports redundant PROFIBUS DP communication. Each redundant controller requires a separate bus module, and the ET 200MP station must be configured for redundant operation in TIA Portal or STEP 7.

What is the maximum number of ET 200MP modules per PROFIBUS station?
A single ET 200MP station can accommodate up to 30 I/O modules on the backplane, limited by the 244-byte input/output data constraint. Actual module count depends on the data width of installed I/O modules—for example, a 16-channel digital input module consumes 2 bytes, while a 16-channel analog input module may consume 32 bytes.

How do I extend PROFIBUS network distance beyond standard segment limits?
Deploy RS485 repeaters (e.g., Siemens 6ES7972-0AA02-0XA0) to regenerate PROFIBUS signals. Each repeater extends the network by one additional segment, with a maximum of 9 repeaters (10 segments total) per PROFIBUS line. Ensure proper termination resistors at both network ends.

Is firmware update required for this bus module?
The 6ES7195-7DH10-0XA0 contains fixed firmware that does not require field updates. However, ensure your TIA Portal or STEP 7 engineering software includes the latest hardware catalog (HSP) for full feature support and diagnostic capabilities.

Can I mix PROFIBUS DP and PROFINET modules in the same ET 200MP station?
No, each ET 200MP station requires a single interface module that defines the communication protocol. For applications requiring both PROFIBUS and PROFINET connectivity, deploy separate ET 200MP stations with appropriate interface modules, or use a hybrid controller (e.g., CPU 1516-3 PN/DP) that supports both protocols simultaneously.

What diagnostic information is accessible via PROFIBUS DP?
The module provides comprehensive diagnostics including communication errors, module status, backplane voltage levels, and individual I/O module health. Access diagnostics through TIA Portal online diagnostics, STEP 7 hardware diagnostics, or third-party PROFIBUS diagnostic tools supporting DP V1 acyclic services.

Order Your Industrial Communication Solution Today

Secure reliable PROFIBUS DP connectivity for your ET 200MP distributed I/O system with the proven 6ES7195-7DH10-0XA0 interface module. Whether you're expanding existing automation infrastructure or designing new control systems, this component delivers the performance, reliability, and ecosystem integration that industrial applications demand.

Contact our automation specialists for technical consultation, volume pricing, or custom configuration services. We support system integrators, OEMs, and end users across manufacturing, process, infrastructure, and energy sectors worldwide.

Ready to optimize your distributed control architecture? Add the Siemens 6ES7195-7DH10-0XA0 to your cart or request a detailed quotation for multi-unit deployments.
