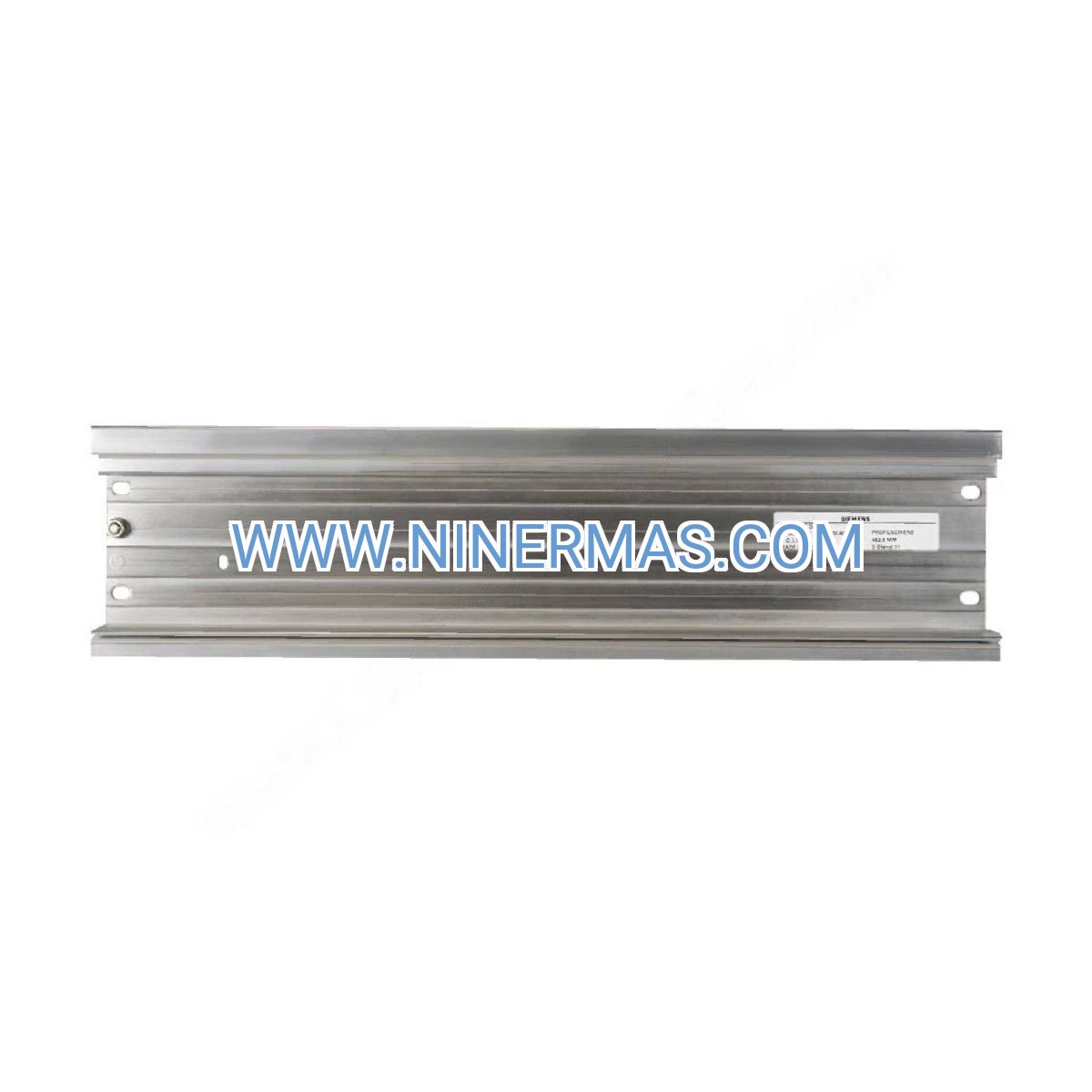

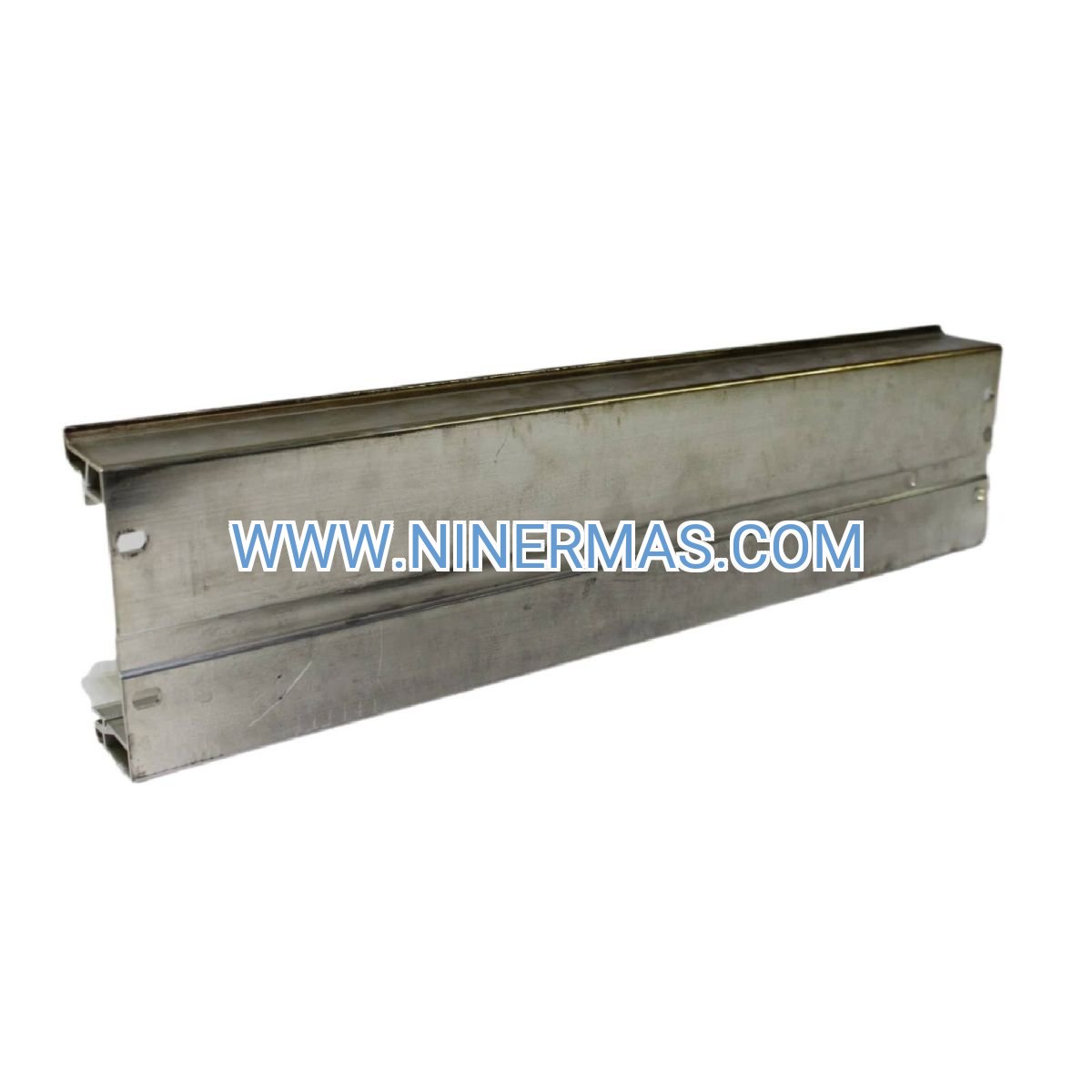

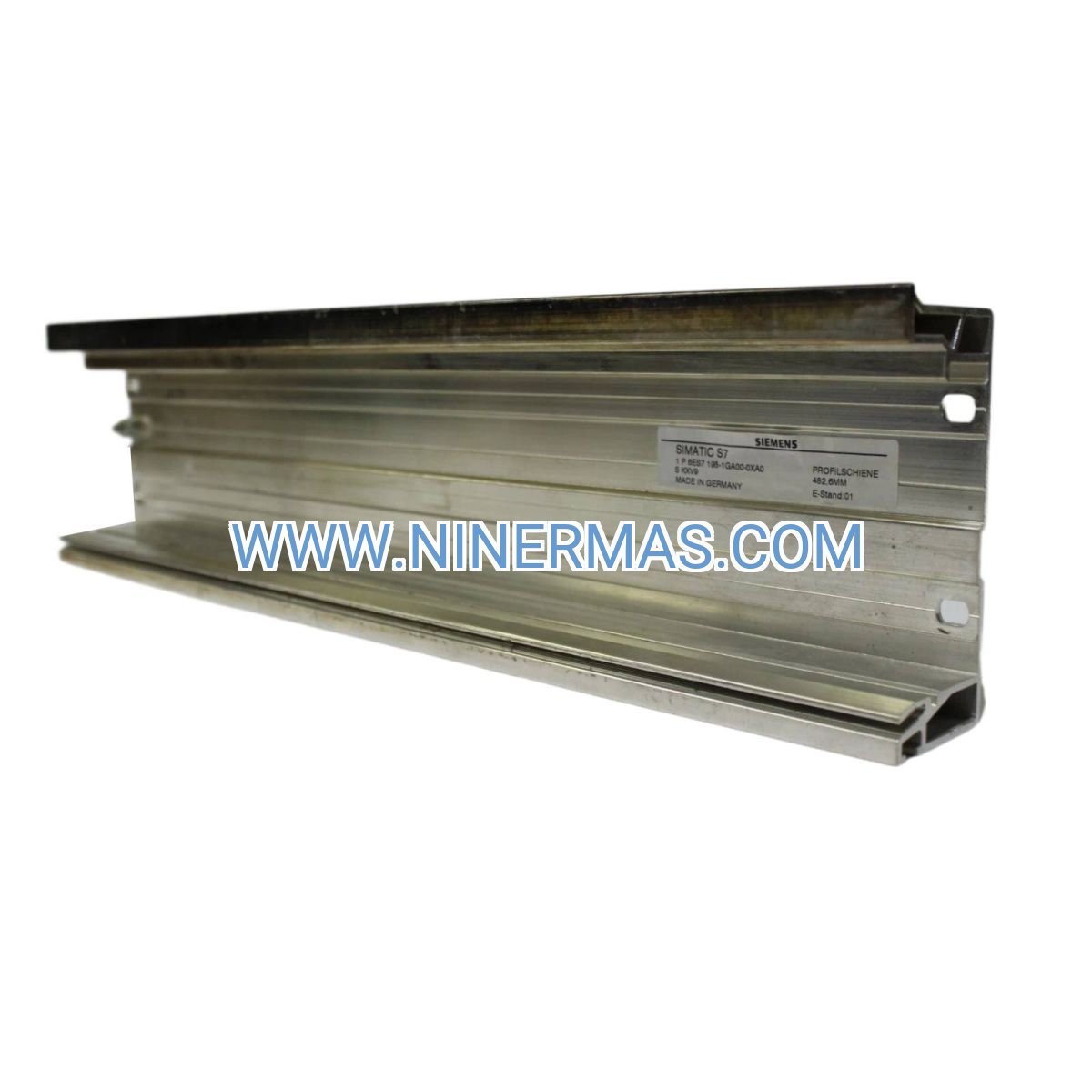

Siemens 6ES7194-4GA60-0AA0 SIMATIC DP Module Rack (Slim Design for ET 200 PRO)

The Siemens 6ES7194-4GA60-0AA0 is a precision-engineered SIMATIC DP module rack designed specifically for ET 200 PRO distributed I/O systems. Through its slim-profile architecture and standardized DIN rail mounting interface, this rack enables seamless integration of PROFIBUS DP communication modules, I/O modules, and power supply units, delivering reliable signal distribution and mechanical support for industrial automation networks.

Ideal for manufacturing plants, process control facilities, building automation systems, and machine control applications where space optimization and system scalability are critical. This module rack addresses common challenges including limited cabinet space, complex wiring requirements, frequent module replacement needs, and the demand for flexible system expansion without production downtime.

Featuring standardized design with customizable slot configurations, the 6ES7194-4GA60-0AA0 offers rapid installation, hot-swappable module support, robust mechanical stability, and full compatibility with Siemens SIMATIC ecosystem. Suitable for control system integrators, automation engineers, OEM equipment manufacturers, and industrial facility maintenance teams. Contact our engineering team for application-specific configuration guidance and technical quotations.

Core Features & Advantages

Slim Profile Design
Optimized compact dimensions reduce cabinet footprint by up to 40% compared to standard racks, enabling higher module density in space-constrained control panels while maintaining proper heat dissipation and service accessibility.

Universal DIN Rail Mounting
Standard 35mm DIN rail compatibility ensures quick installation and removal without specialized tools, supporting both horizontal and vertical mounting orientations for flexible cabinet layout design.

Modular Expansion Architecture
Supports up to 12 I/O modules per rack with seamless bus connection, allowing incremental system growth as production requirements evolve without replacing existing infrastructure or extensive rewiring.

Industrial-Grade Durability
IP20 protection rating with reinforced plastic housing withstands industrial environments including vibration, electromagnetic interference, and temperature fluctuations from 0°C to +60°C, ensuring long-term operational reliability.

Hot-Swap Module Support
Enables online module replacement during system operation, minimizing unplanned downtime and supporting predictive maintenance strategies in 24/7 production environments.

Integrated Cable Management
Built-in cable routing channels and strain relief features simplify wiring organization, reduce installation time by approximately 30%, and improve long-term maintainability for troubleshooting and upgrades.

Typical Application Scenarios

This module rack is engineered for industrial environments requiring high signal integrity, system reliability, and operational flexibility, particularly in:

Discrete Manufacturing & Assembly Lines
Provides distributed I/O control for automotive assembly, electronics production, and packaging machinery where real-time sensor data acquisition and actuator control across extended production lines are essential for quality and throughput.

Process Industries & Continuous Production
Supports chemical processing, pharmaceutical manufacturing, and food & beverage operations requiring precise analog signal handling, temperature monitoring, and valve control with stringent regulatory compliance and traceability requirements.

Building Automation & HVAC Systems
Enables centralized control of lighting, climate systems, and energy management in commercial buildings, data centers, and industrial facilities, integrating with BMS platforms for optimized energy efficiency and occupant comfort.

Water Treatment & Municipal Infrastructure
Facilitates remote monitoring and control of pumping stations, filtration systems, and distribution networks, providing reliable operation in harsh environments with minimal maintenance intervention.

Machine Tool & CNC Equipment
Delivers high-speed I/O processing for precision machining centers, robotic cells, and material handling systems where microsecond-level response times and deterministic communication are critical for product quality.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the following technical parameters are provided for design and procurement reference. Custom configurations are available based on specific project requirements.

Key Technical Parameters:

• Product Code: 6ES7194-4GA60-0AA0
• System Compatibility: SIMATIC ET 200 PRO distributed I/O system
• Communication Protocol: PROFIBUS DP
• Module Capacity: Up to 12 I/O modules per rack
• Mounting Method: 35mm DIN rail (EN 50022)
• Protection Rating: IP20 (IEC 60529)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)
• Dimensions (W×H×D): Approximately 25mm × 125mm × 117mm per module slot
• Material: High-impact resistant plastic housing
• Certification: CE, UL, cULus, ATEX (zone 2), IECEx

Selection Considerations:
When specifying this module rack, evaluate the following factors: total number of required I/O points, signal types (digital/analog), communication distance from controller, available cabinet space, environmental conditions (temperature/humidity/vibration), and future expansion requirements. For complex applications involving safety functions, redundant configurations, or integration with third-party systems, consult with our application engineers who can provide detailed system architecture recommendations and compatibility verification.

Extended Functionality & Integration

System Integration Capabilities:

• SCADA/HMI Connectivity: Seamless integration with WinCC, TIA Portal, and third-party visualization platforms via PROFIBUS DP gateway
• Diagnostic Features: LED status indicators for power, communication, and module faults; detailed diagnostics accessible through engineering software
• Redundancy Support: Compatible with redundant power supply and controller configurations for high-availability applications
• Protocol Conversion: Can be integrated with PROFINET, Ethernet/IP, and Modbus TCP networks using appropriate gateway modules
• Safety Integration: Supports PROFIsafe modules for SIL 2/3 safety applications when used with appropriate safety controllers

Delivery, Service & Quality Assurance

Standard Stock Items: In-stock units ship within 1-3 business days. Custom-configured systems with specific module combinations typically require 7-14 days for assembly and testing.

Warranty Coverage: All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications.

Technical Support: Comprehensive support including pre-sales application consulting, installation guidance, commissioning assistance, and remote troubleshooting. On-site service available in major industrial regions (subject to location and service agreement).

Documentation Package: Each unit ships with complete technical documentation including dimensional drawings, wiring diagrams, terminal assignments, installation instructions, and quick-start guide in English. CAD files and 3D models available upon request for cabinet design integration.

Quality Certifications: All products are genuine Siemens OEM components sourced through authorized distribution channels, with full traceability and compliance documentation for regulatory requirements.

Frequently Asked Questions (FAQ)

Q: How do I integrate the 6ES7194-4GA60-0AA0 SIMATIC DP module rack with my existing PLC system?
A: This rack connects to SIMATIC S7-300/400 controllers or ET 200S systems via PROFIBUS DP communication. You'll need to verify your controller's DP interface availability, configure the GSD file in your engineering software (STEP 7 or TIA Portal), assign a PROFIBUS address, and connect the DP cable to the communication module installed in the rack. Our technical team can provide detailed integration procedures specific to your controller model.

Q: What is the maximum number of I/O modules this rack can accommodate?
A: The 6ES7194-4GA60-0AA0 supports up to 12 module slots. The actual number of usable I/O points depends on the specific modules installed (8-point, 16-point, or 32-point modules) and your system's addressing capacity. For applications requiring more I/O, multiple racks can be daisy-chained on the same PROFIBUS segment.

Q: What energy savings or efficiency improvements can I expect with this module rack?
A: While the rack itself is a passive mechanical component, its slim design reduces cabinet size requirements by up to 40%, which can lower cooling energy costs in climate-controlled environments. The efficient bus architecture also minimizes wiring complexity, reducing installation labor by approximately 25-35% compared to traditional point-to-point wiring methods.

Q: What are the environmental requirements for installation? What is the IP protection rating?
A: The rack is rated IP20, suitable for installation inside control cabinets or electrical enclosures. Operating temperature range is 0°C to +60°C with 5-95% relative humidity (non-condensing). For harsh environments with dust, moisture, or extreme temperatures, the cabinet itself must provide appropriate protection. Ensure adequate ventilation and maintain minimum clearances per installation manual specifications.

Q: Does this rack support remote monitoring and data acquisition? Which communication protocols are compatible?
A: Yes, when equipped with appropriate communication modules, the system supports remote monitoring via PROFIBUS DP protocol. Data can be accessed through SCADA systems, cloud platforms, or mobile applications using protocol converters or industrial IoT gateways. Native support includes PROFIBUS DP; integration with PROFINET, Ethernet/IP, Modbus TCP, OPC UA, and MQTT is possible through gateway devices.

Q: Can modules be replaced while the system is running without causing downtime?
A: Yes, the ET 200 PRO system supports hot-swapping of I/O modules when properly configured in your controller program. This allows replacement of faulty modules during operation without stopping the entire system, minimizing production interruptions. However, the specific module being replaced will be offline during the swap procedure.

Request Technical Support & Quotation

For detailed application engineering, custom system configuration, or pricing information, please provide the following details to our technical team:

• Project name and application industry
• Total number of digital inputs/outputs and analog channels required
• Communication distance from controller to distributed I/O
• Environmental conditions (temperature, humidity, vibration, hazardous area classification)
• Existing automation platform (controller model, software version)
• Required certifications or compliance standards
• Estimated project timeline and delivery requirements

Our application engineers will provide one-on-one consultation, system architecture recommendations, detailed quotations, and technical documentation to support your project success.
