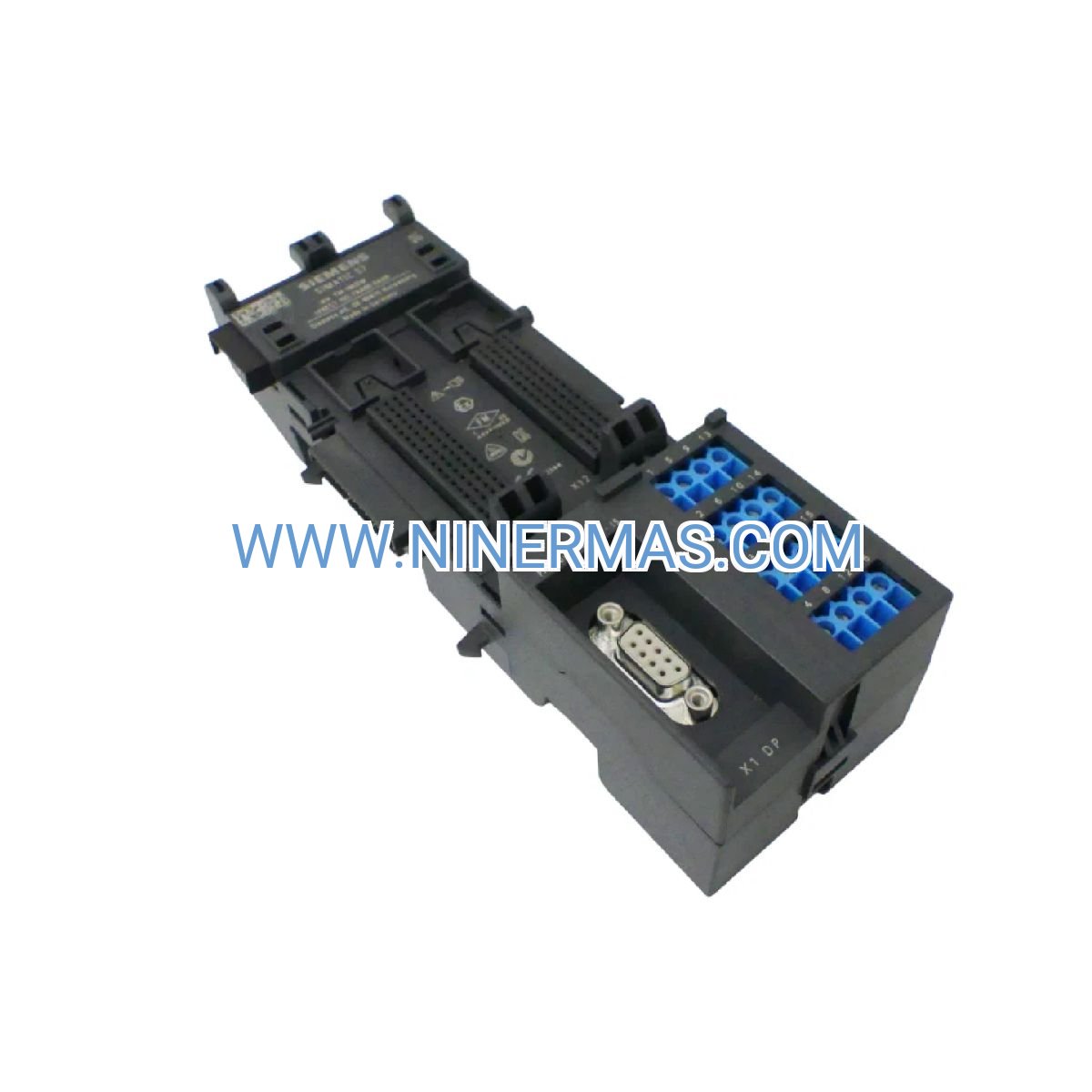

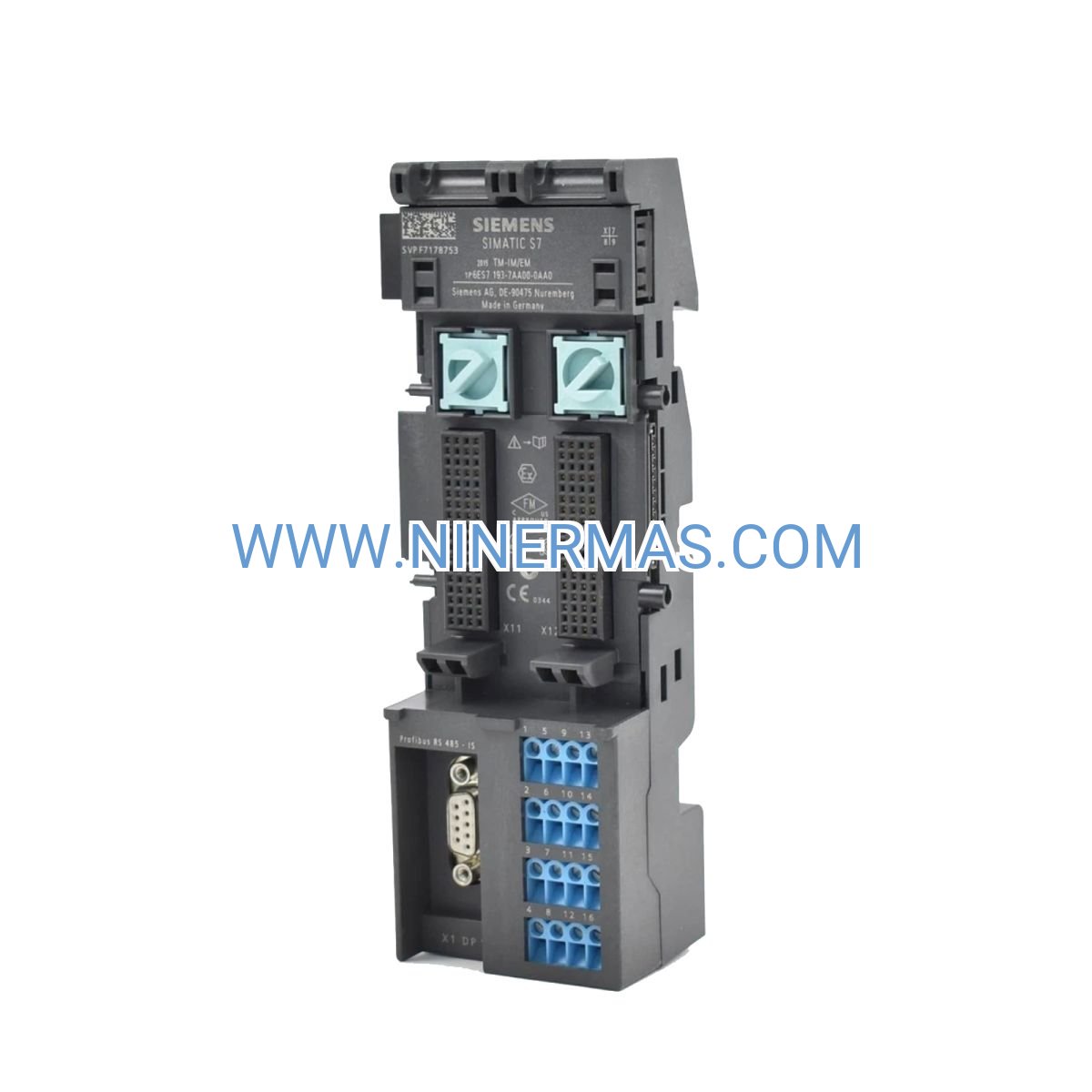

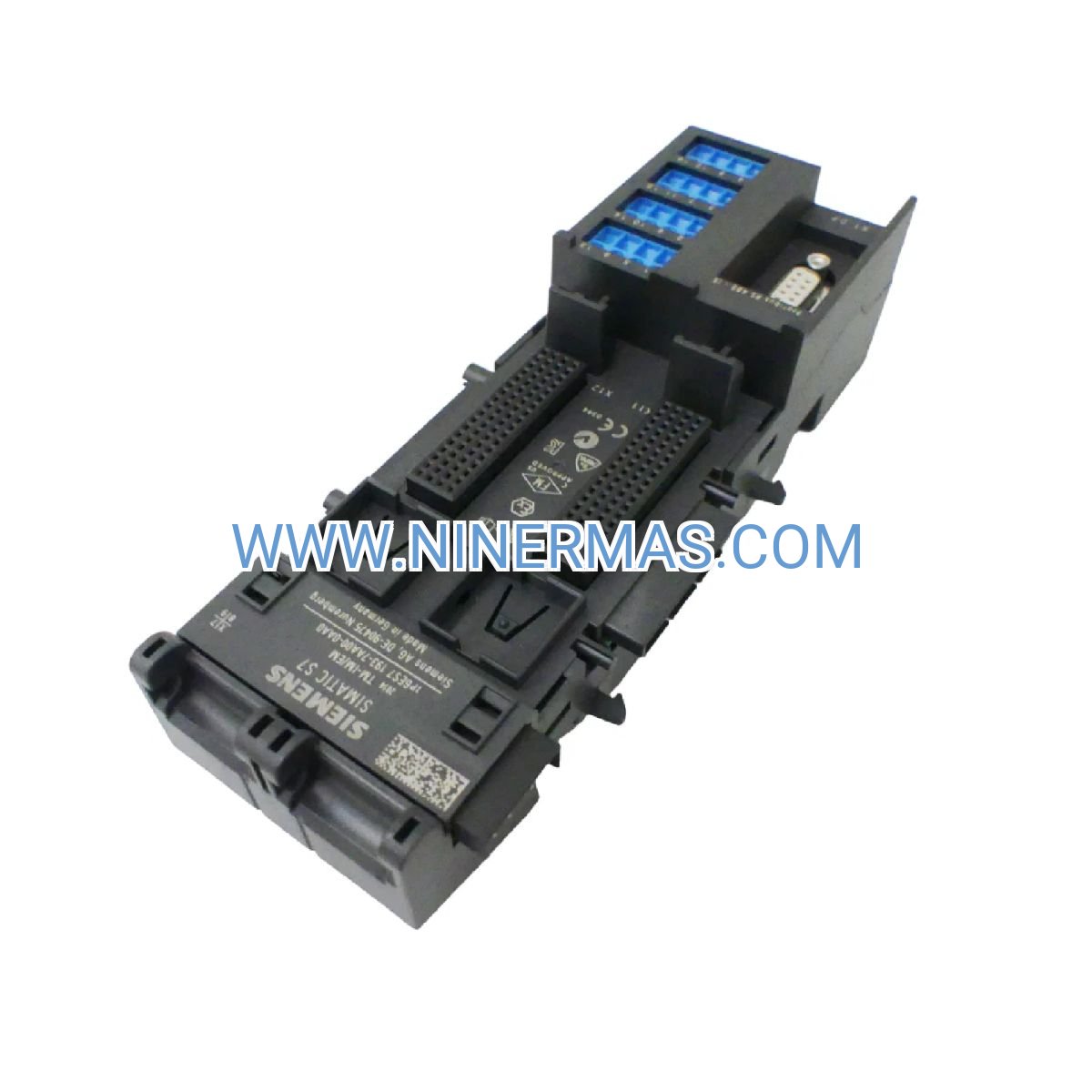

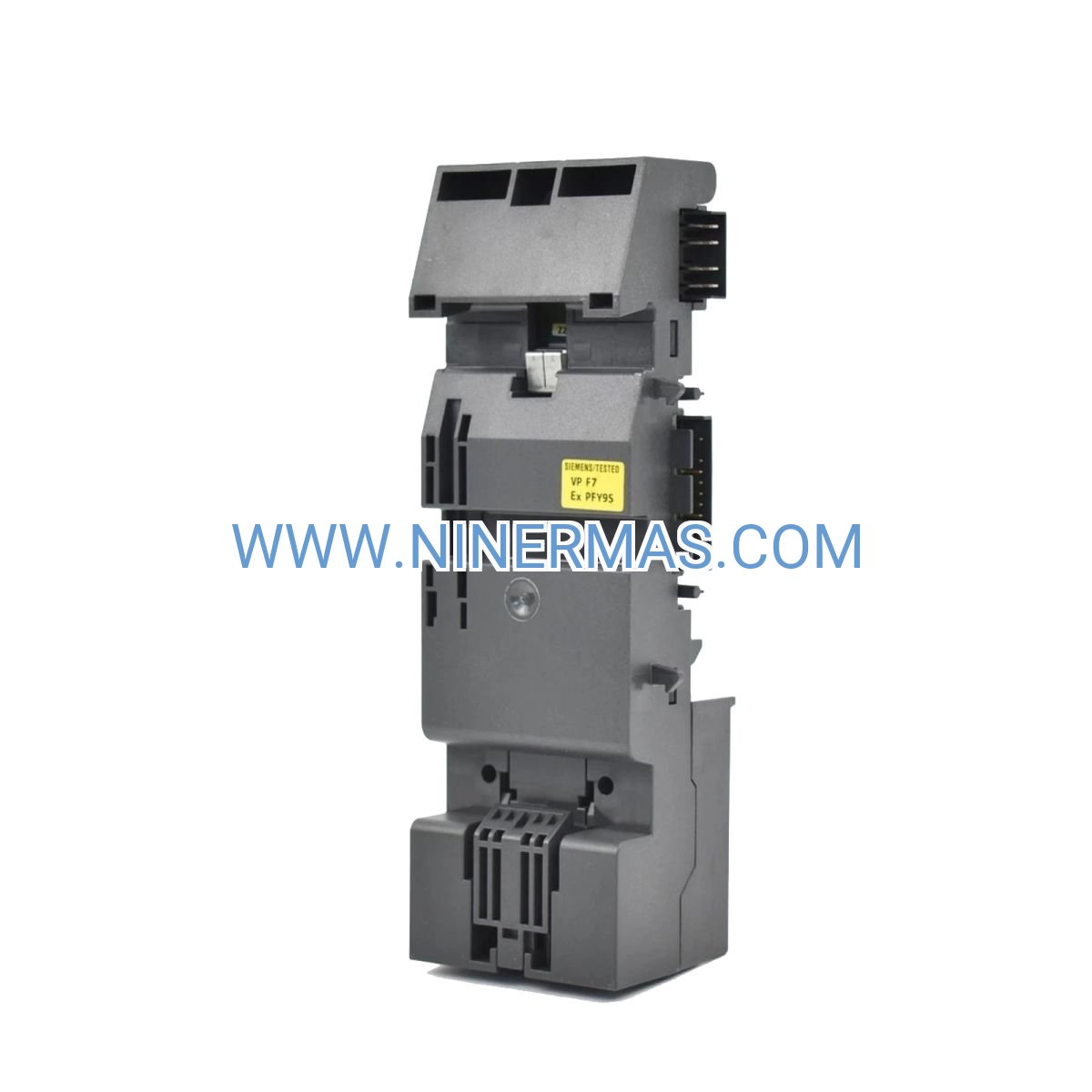

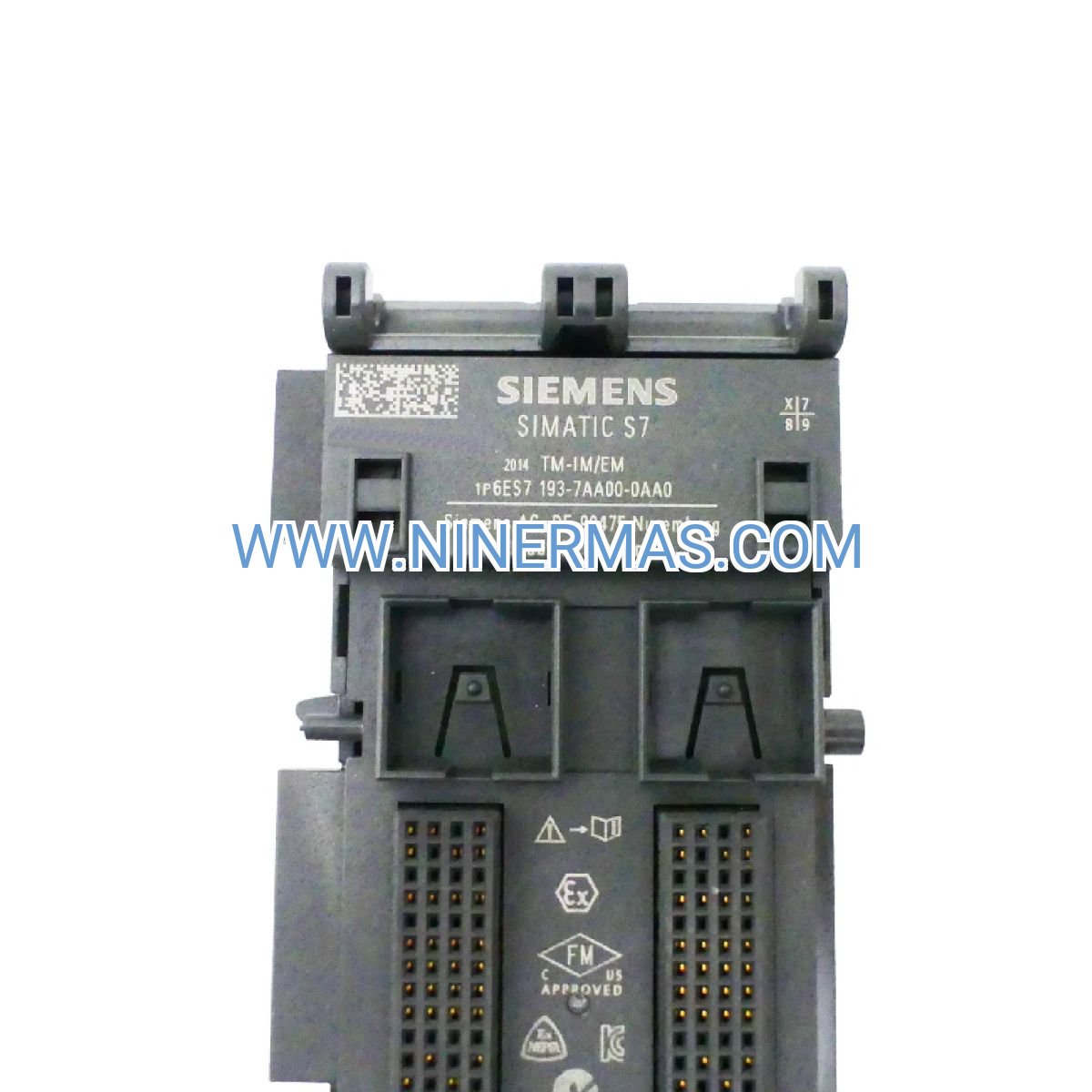

ET200iSP Screw Terminal Block (Industrial-Grade Intrinsic Safety Interface)

The Siemens 6ES7193-7AA00-0AA0 represents a critical connectivity solution for distributed I/O architectures operating in explosive atmospheres. Engineered as a field-proven screw terminal interface, this component bridges intrinsically safe field circuits with ET200iSP electronic modules, delivering dependable signal routing in Zone 1 and Zone 2 classified locations. Process industries requiring SIL-rated safety instrumentation and explosion-protected automation rely on this terminal block to maintain operational integrity while meeting stringent ATEX, IECEx, and FM certification requirements.

Designed for integration with IM152-1 interface modules and compatible electronic I/O cards, the 6ES7193-7AA00-0AA0 enables modular system expansion without compromising safety barriers. Its compact 15mm footprint optimizes panel real estate, while robust screw clamp technology ensures vibration-resistant connections across temperature extremes from -40°C to +70°C. Industrial facilities transitioning from centralized marshalling cabinets to distributed control architectures gain installation flexibility, reduced wiring costs, and simplified maintenance workflows.

Whether you're commissioning new safety instrumented systems or retrofitting legacy DCS installations, this terminal module provides the foundation for scalable, standards-compliant automation networks. Pair with fail-safe analog inputs for critical process monitoring, digital output modules for emergency shutdown logic, or NAMUR sensor interfaces for proximity detection—all while maintaining galvanic isolation and intrinsic safety compliance.

Core Capabilities & Technical Advantages

→ Explosion-Proof Certification Portfolio: Factory-certified to Ex ib IIC standards with ATEX, IECEx, FM, and CSA approvals, eliminating costly field certification processes and accelerating project timelines in oil & gas, chemical, and pharmaceutical sectors.

✓ Wide-Range Environmental Resilience: Operates reliably across -40°C to +70°C ambient conditions with IP20 ingress protection, suitable for offshore platforms, desert refineries, and arctic processing facilities where conventional terminals fail.

• Space-Optimized Modular Design: 15mm width allows up to 64 terminal positions per meter of DIN rail, reducing cabinet footprint by 40% compared to traditional marshalling systems while maintaining accessibility for maintenance.

✓ Tool-Free Module Replacement: Hot-swappable electronic module architecture enables live maintenance without system shutdown, minimizing production interruptions and supporting predictive maintenance strategies.

→ Universal Wire Compatibility: Screw terminals accept 0.5-2.5mm² conductors (AWG 20-14) with or without ferrules, accommodating diverse field wiring standards across global installations.

• Integrated Diagnostic Readiness: Color-coded terminal points and module status indicators accelerate troubleshooting, reducing mean time to repair (MTTR) by up to 35% during commissioning and operational phases.

Industrial Application Scenarios

Petrochemical Refinery Safety Systems: In crude distillation units operating under ATEX Zone 1 classification, the 6ES7193-7AA00-0AA0 connects temperature transmitters and pressure sensors to fail-safe analog input modules. When integrated with SIL 2-certified logic solvers, the system detects over-pressure conditions within 50ms response time, triggering automated valve shutdowns that prevent catastrophic equipment failures. The terminal's intrinsic safety barriers limit energy transfer to field devices, ensuring spark-free operation even during fault conditions.

Pharmaceutical Clean Room Monitoring: Cleanroom HVAC control systems leverage this terminal block to interface NAMUR proximity switches and differential pressure sensors with ET200iSP digital input modules. The compact design fits within space-constrained wall-mounted enclosures, while the IP20 rating protects against particulate contamination. Facilities achieve FDA 21 CFR Part 11 compliance through integrated diagnostic data logging, tracking every sensor state change for batch record validation.

Offshore Platform Emergency Shutdown (ESD): Subsea production platforms deploy the 6ES7193-7AA00-0AA0 in topside control rooms to manage fire & gas detection networks. The terminal module's corrosion-resistant materials withstand salt spray environments, while its -40°C lower temperature limit ensures operation during North Sea winter conditions. When paired with redundant IM153-2 interface modules, the architecture delivers 99.99% system availability, meeting API RP 14C safety requirements.

Mining Conveyor Interlock Systems: Underground coal mines utilize this terminal for belt alignment switches and emergency pull-cord circuits in methane-rich atmospheres. The Ex ib IIC certification permits installation in Group I (mining) hazardous locations, while the DIN rail mounting simplifies integration into mobile control stations. Maintenance teams replace failed modules in under 3 minutes without specialized tools, critical for minimizing production downtime in 24/7 operations.

Water Treatment SCADA Networks: Municipal wastewater facilities connect level transmitters and flow meters through the 6ES7193-7AA00-0AA0 to centralized SCADA systems. The terminal's ability to handle 64 I/O points per segment reduces wiring runs by up to 70% compared to star-topology designs, lowering installation costs while improving signal integrity over long cable distances.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 6ES7193-7AA00-0AA0, verify that your IM152-1 interface module firmware supports the planned electronic module mix. Calculate total power consumption across all I/O cards to ensure the system power budget remains within 4W per segment. For applications requiring more than 64 I/O points, implement multiple IM152-1 segments with separate PROFIBUS DP addresses. In high-vibration environments (>2g acceleration), apply thread-locking compound to screw terminals and conduct quarterly torque verification inspections.

Extended Functionality & System Integration

IoT-Enabled Predictive Maintenance: Connect ET200iSP networks to Siemens MindSphere cloud platform via PROFIBUS-to-Ethernet gateways. Stream diagnostic data from terminal module status registers to machine learning algorithms that predict connection degradation 30 days before failure, enabling condition-based maintenance scheduling.

Redundant Architecture Support: Deploy dual IM153-2 redundant interface modules with the 6ES7193-7AA00-0AA0 terminal block to achieve fault-tolerant configurations. Automatic switchover occurs within 100ms during primary controller failures, maintaining continuous process control in SIL 3-rated safety applications.

Multi-Protocol Gateway Integration: Pair terminal modules with PROFIBUS-to-Modbus RTU converters to integrate legacy field devices into modern DCS environments. The terminal block's standardized wiring interface simplifies protocol translation projects, reducing engineering hours by 50% compared to custom marshalling solutions.

Custom Labeling & Documentation: Utilize Siemens TIA Portal software to generate terminal strip labels with QR codes linking to as-built drawings. Maintenance technicians scan codes with mobile devices to access real-time wiring diagrams, reducing troubleshooting time from hours to minutes.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via express courier to major industrial hubs. Bulk orders (50+ units) typically fulfill within 5-7 business days from our regional distribution centers.

Custom Configuration Services: Pre-assembled terminal blocks with factory-installed electronic modules and tested wiring harnesses available with 10-14 day lead time. Includes FAT (Factory Acceptance Test) documentation and calibration certificates.

Warranty Coverage: 12-month manufacturer warranty covers material defects and workmanship failures. Extended 36-month service plans available, including advance replacement and on-site technical support for critical infrastructure projects.

Technical Support Access: Dedicated application engineers provide system design reviews, PROFIBUS network diagnostics, and hazardous area certification guidance. Access to 24/7 hotline for emergency troubleshooting during plant shutdowns or commissioning phases.

Documentation Package: Every shipment includes installation manual, explosion protection certificate (EC-Type Examination), wiring diagrams, and STEP 7 hardware configuration files for seamless TIA Portal integration.

Frequently Asked Questions

What distinguishes ET200iSP terminal blocks from standard ET200S terminals?
ET200iSP terminals incorporate intrinsic safety barriers and Ex certification for hazardous area deployment, whereas ET200S terminals serve general industrial environments. The 6ES7193-7AA00-0AA0 specifically limits energy transfer to field circuits, preventing ignition sources in explosive gas atmospheres—a capability absent in non-IS terminal designs.

How does the screw terminal compare to spring-cage alternatives for vibration resistance?
Screw terminals provide superior holding force (up to 12N) compared to spring-cage designs (8N typical), making them preferable for mobile equipment and high-vibration applications like compressor skids. However, spring terminals offer faster installation—evaluate based on your maintenance philosophy and environmental conditions.

Can I mix analog and digital electronic modules on a single terminal block segment?
Yes, the 6ES7193-7AA00-0AA0 supports heterogeneous module configurations. However, ensure total segment power consumption remains below 4W and verify that mixed I/O types don't exceed PROFIBUS DP cycle time budgets (typically <10ms for safety applications).

What wire preparation methods ensure optimal connection reliability?
For stranded conductors, use insulated ferrules crimped per DIN 46228 standards. Strip insulation to 8-10mm length, insert fully into terminal, and torque screws to 0.5-0.6 Nm using a calibrated torque screwdriver. Solid wires require no ferrules but benefit from anti-oxidant compound in corrosive environments.

How do I calculate maximum cable length for intrinsically safe circuits?
Consult the FISCO (Fieldbus Intrinsically Safe Concept) model parameters in the IM152-1 manual. Typical limits range from 1000m (shielded twisted pair) to 200m (unshielded) depending on cable capacitance and inductance. Use Siemens' online cable calculator tool for precise values based on your specific electronic module mix.

Does the terminal block require periodic recertification for hazardous area compliance?
No, the terminal module itself maintains permanent certification. However, annual inspections per IEC 60079-17 should verify screw terminal torque, insulation resistance (>10MΩ), and absence of physical damage. Document inspections in your facility's Ex equipment register.

Ready to Optimize Your Distributed I/O Architecture?

Contact our automation specialists to discuss your ET200iSP system requirements. We provide complimentary network topology reviews, hazardous area classification assessments, and bill-of-materials optimization for projects of any scale. Request a quote today to receive volume pricing and expedited delivery options tailored to your project timeline.
