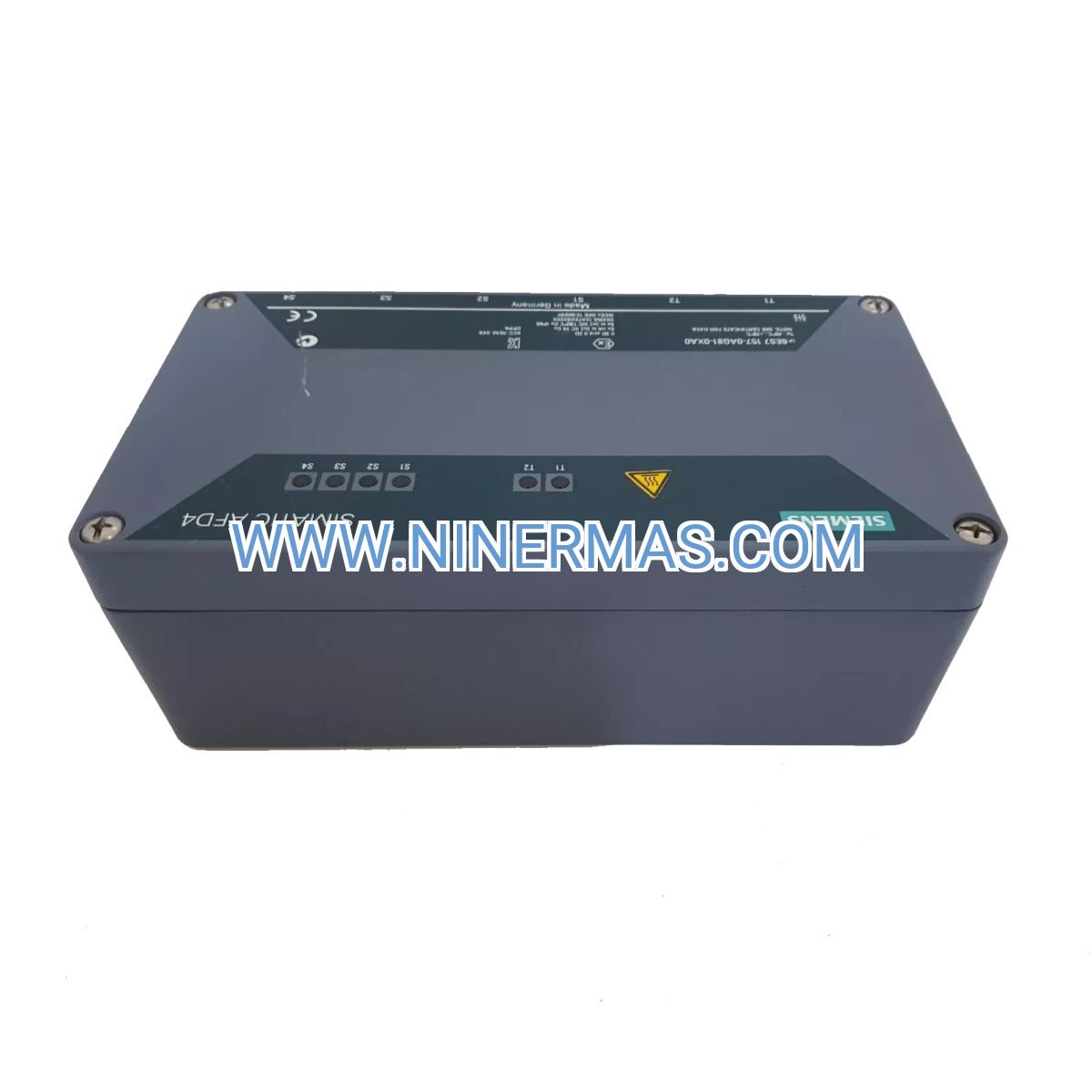

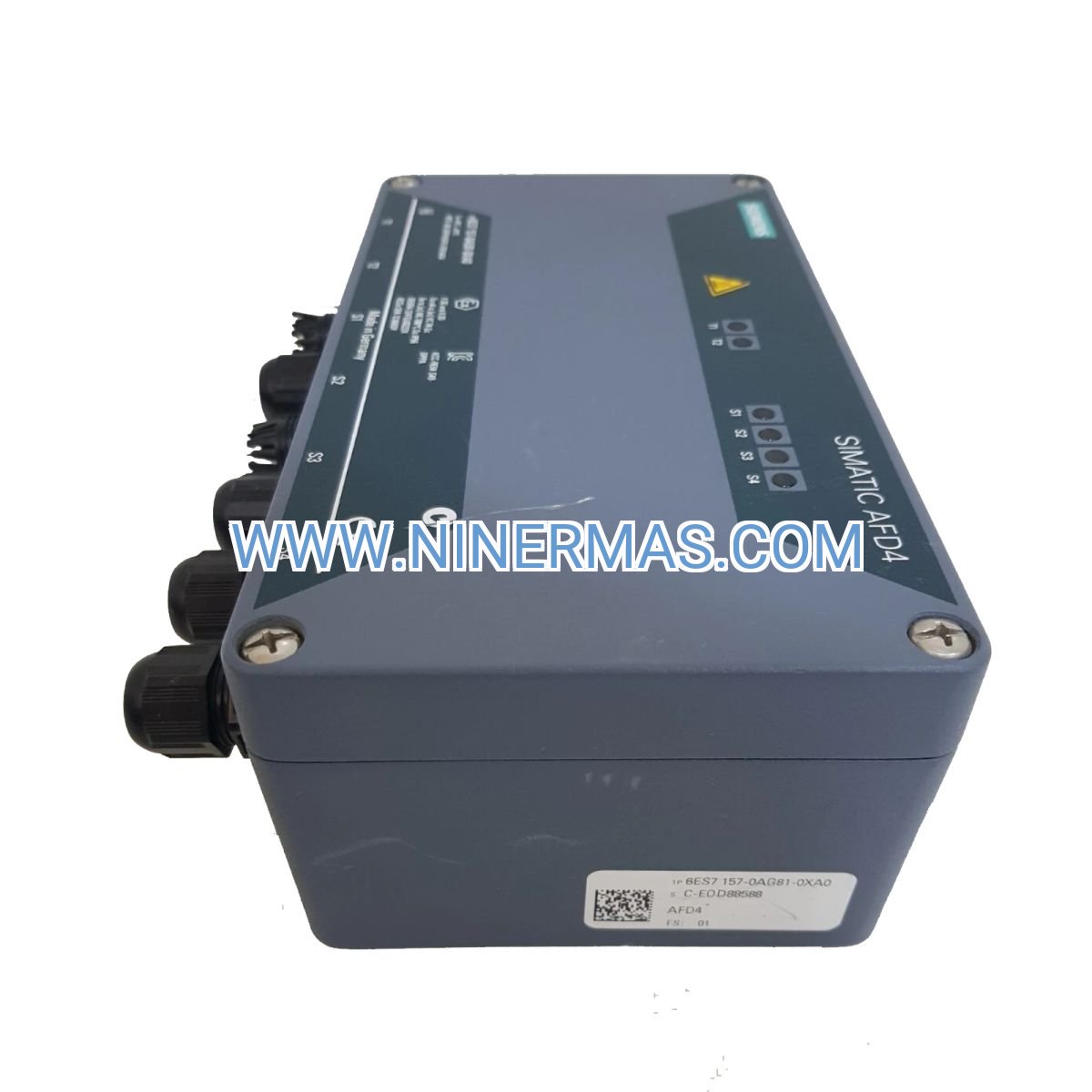

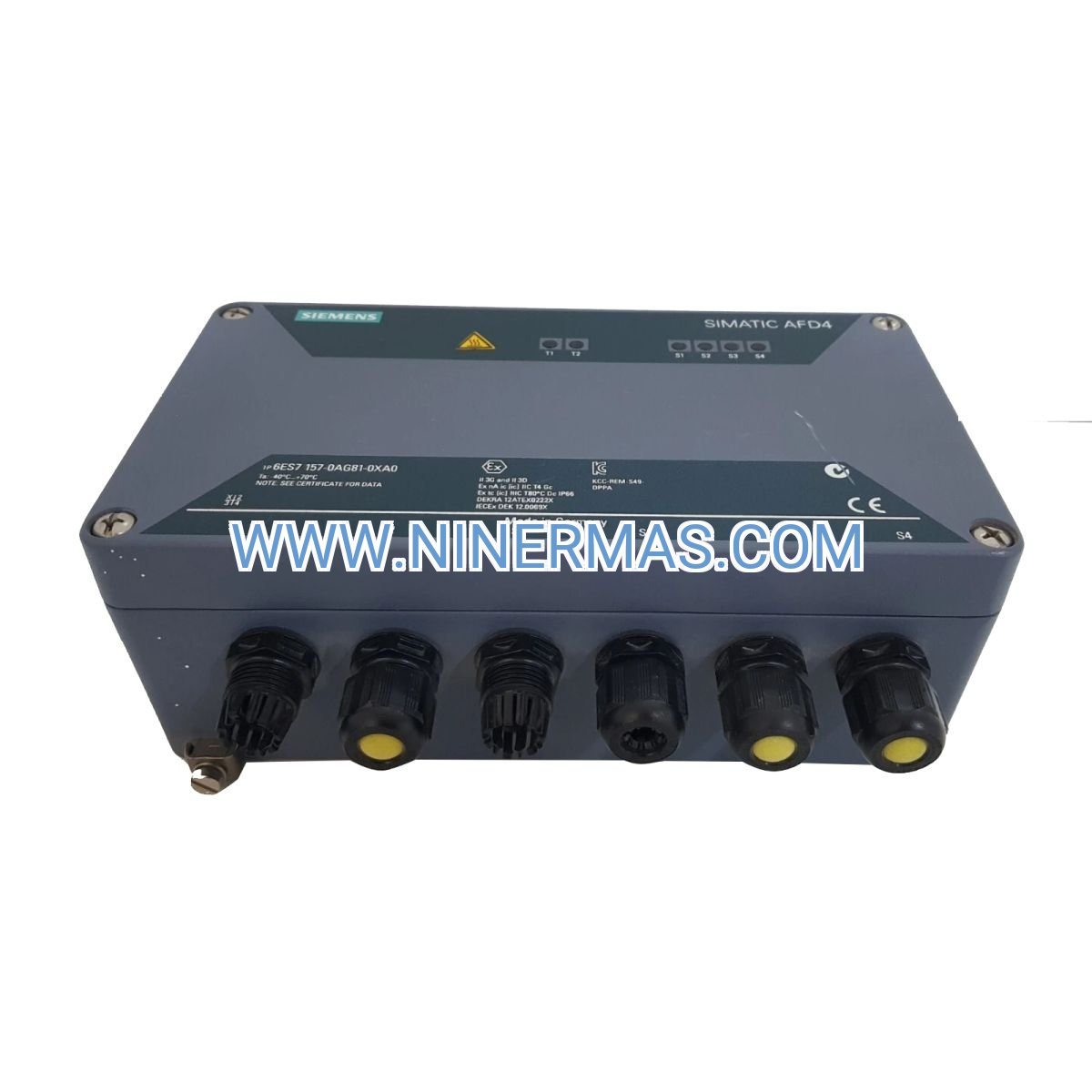

6ES7157-0AG81-0XA0 Active Field Distributor (Industrial-Grade Network Hub)

The Siemens 6ES7157-0AG81-0XA0 represents a critical infrastructure component for process automation networks, delivering fault-tolerant field device connectivity in PROFIBUS PA and Foundation Fieldbus architectures. Engineered for continuous operation in extreme industrial conditions, this AFD4 distributor eliminates single-point network failures while enabling hot-swap device maintenance without system downtime. Process engineers and automation integrators rely on this proven solution to segment field networks, extend topology reach, and protect mission-critical control loops from electrical faults.

Designed for chemical plants, oil refineries, water treatment facilities, and pharmaceutical manufacturing environments, the AFD4 addresses the fundamental challenge of maintaining network integrity when field instruments experience short circuits or connection issues. Each of the four independent spurs provides galvanic isolation and individual fault protection, ensuring that a failure in one branch never compromises the entire segment. With IP66 environmental sealing and an operating range from -40°C to +70°C, this distributor performs reliably in outdoor installations, hazardous zones, and harsh process areas where conventional equipment fails.

Key advantages include reduced commissioning time through diagnostic LEDs for instant fault identification, lower total cost of ownership via bus-powered operation requiring no external supply, and enhanced system availability through bounce-protected connections that prevent transient disruptions during device servicing. The compact DIN-rail mounting design optimizes cabinet space while supporting cable runs up to 1900 meters between network segments.

Core Features & Technical Advantages

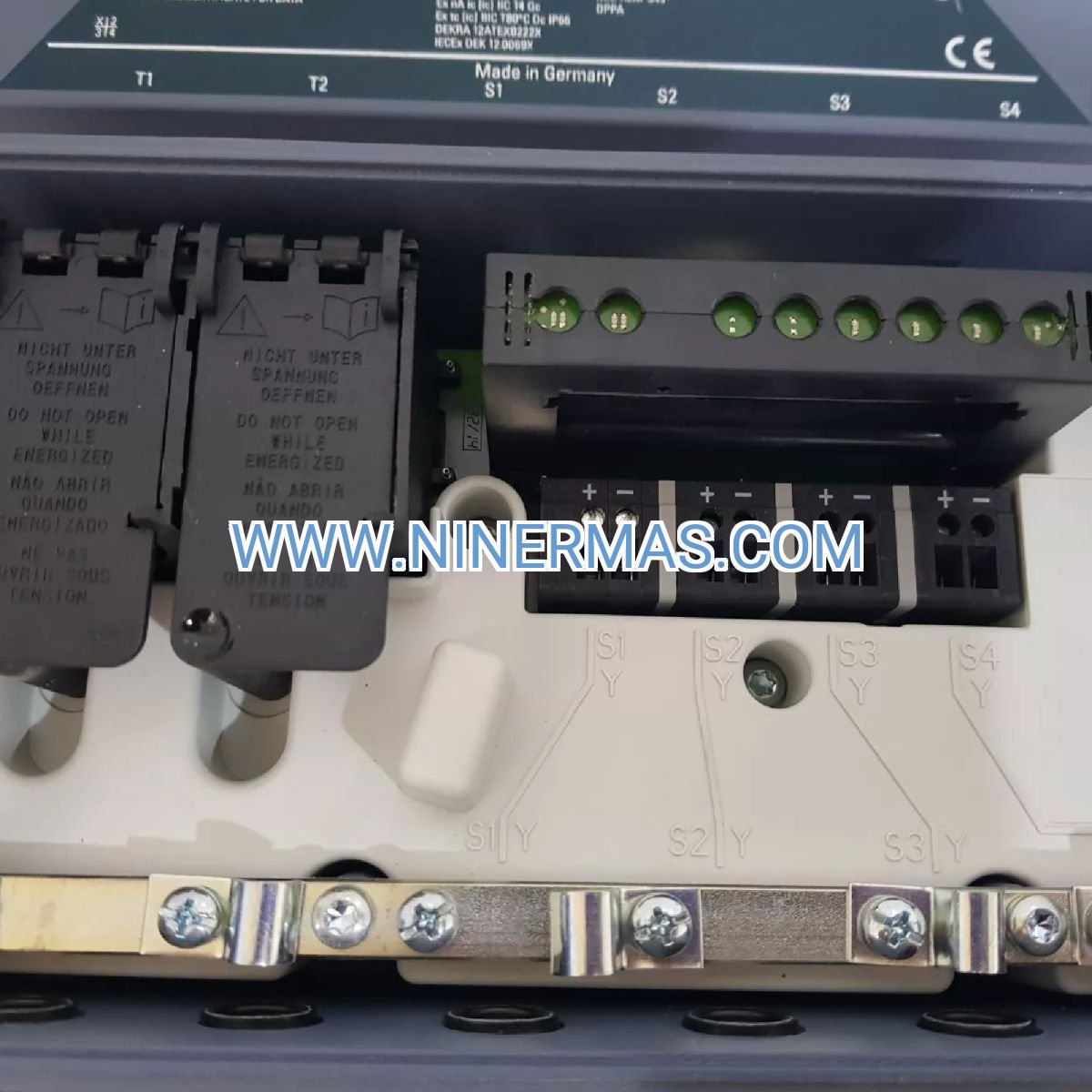

✓ Quad Short-Circuit Protection: Four independently isolated spurs with automatic fault detection and current limiting prevent cascading network failures, maintaining communication to healthy devices even when one branch experiences electrical faults

✓ Bounce-Protected Switching: Advanced signal conditioning circuitry eliminates voltage transients and communication disruptions during hot-swap operations, enabling live device replacement without process interruption

✓ IP66 Environmental Sealing: Dust-tight and water-jet-resistant enclosure withstands chemical exposure, high-pressure washdowns, and outdoor weather conditions, reducing maintenance requirements and extending service life

✓ Extended Temperature Performance: -40°C to +70°C operational range supports installations in unheated enclosures, desert climates, arctic facilities, and high-temperature process areas without derating

✓ Bus-Powered Architecture: Draws energy directly from PROFIBUS PA segment, eliminating external power supplies, reducing wiring costs, and simplifying installation in remote field locations

✓ Real-Time Diagnostics: Individual LED indicators for each spur provide instant visual confirmation of power status, communication activity, and fault conditions, accelerating troubleshooting by 60-80%

Industrial Application Scenarios

Chemical & Petrochemical Processing: Deploy in Zone 1/Division 1 hazardous areas to distribute PROFIBUS PA signals to pressure transmitters, Coriolis flow meters, and gas chromatographs. The AFD4's short-circuit isolation prevents analyzer faults from disrupting reactor control loops, while IP66 sealing protects against corrosive vapor exposure in chlorine production, ammonia synthesis, and polymer manufacturing units.

Oil & Gas Production Facilities: Connect wellhead instrumentation, separator level transmitters, and pipeline flow computers across distributed offshore platforms and onshore gathering stations. Galvanic isolation between spurs prevents ground loop interference in long cable runs, while extended temperature rating supports installations in unheated equipment shelters and desert climates.

Water & Wastewater Treatment: Network pH analyzers, turbidity sensors, chlorine residual monitors, and actuated control valves across multiple treatment stages. The AFD4's bounce protection enables technicians to service instruments during plant operation without triggering false alarms or process upsets, reducing maintenance windows by 40-50%.

Pharmaceutical & Biotech Manufacturing: Integrate cleanroom pressure sensors, bioreactor temperature probes, and sterile filtration monitors in GMP-regulated production environments. Hot-swap capability supports validation protocols requiring instrument calibration without batch interruption, while diagnostic LEDs simplify compliance documentation.

Power Generation & Utilities: Link boiler drum level transmitters, turbine vibration sensors, flue gas analyzers, and CEMS equipment in coal-fired, combined-cycle, and biomass power plants. The distributor's fault isolation protects critical safety instrumented systems (SIS) from non-critical measurement loop failures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AFD4 when your application requires network segmentation for fault isolation, hot-swap device maintenance, or extended cable runs beyond standard topology limits. For installations with fewer than 4 device branches, consider the AFD2 variant. When intrinsic safety barriers are required for hazardous area installations, verify barrier compatibility with Siemens documentation or consult our application engineers.

Extended Functionality & Integration

SCADA & DCS Integration: Seamlessly connects to Siemens SIMATIC PCS 7, S7-400, and ET 200 systems via DP/PA couplers and linking devices. Supports asset management protocols including FDT/DTM and EDDL for centralized device configuration and diagnostics through engineering workstations.

Redundancy Configuration: Deploy in redundant spur topologies for SIL 2/3 safety instrumented systems, ensuring continuous operation during single-point failures. Compatible with redundant DP/PA links and dual-channel field devices for maximum availability in critical control loops.

Customization Options: Available with factory-configured spur assignments, pre-terminated cable assemblies, and custom enclosure mounting brackets for OEM panel builders and system integrators. Contact our engineering team for project-specific modifications including extended temperature variants and marine-certified versions.

Delivery Timeline & Service Guarantee

→ Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
→ Custom Configuration: 10-15 business days for factory-programmed or modified units
→ Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
→ Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting, and configuration assistance
→ Documentation Package: Includes installation manual, wiring diagrams, GSD files, and compliance certificates (CE, ATEX, IECEx where applicable)

Frequently Asked Questions

How do I determine the maximum cable length for each spur on the AFD4 distributor?
Cable length depends on wire gauge, device power consumption, and number of connected instruments. For Type A cable (150Ω), maximum spur length is 120m with 10 devices drawing 10mA each. Use Siemens SIMATIC PDM or online calculators to verify your specific topology. Our technical team provides free cable sizing analysis for complex installations.

Can the 6ES7157-0AG81-0XA0 operate in hazardous area Zone 1 environments?
Yes, when installed in the safe area and connected to field devices in hazardous zones through approved intrinsic safety barriers (e.g., Pepperl+Fuchs KFD2 series or MTL 7700+ series). The AFD4 itself is not intrinsically safe but serves as the non-hazardous side interface. Verify barrier compatibility and entity parameters before deployment.

What diagnostic capabilities does the AFD4 provide for network troubleshooting?
Each spur features a bi-color LED indicating power status (green), communication activity (flashing green), and fault conditions (red). Short-circuit faults automatically disable the affected spur while maintaining operation on healthy branches. Advanced diagnostics via SIMATIC PDM include current consumption monitoring, cable fault detection, and device addressing conflicts.

Is firmware updating required for the Active Field Distributor?
No, the AFD4 uses hardware-based logic without updateable firmware, ensuring long-term stability and eliminating cybersecurity vulnerabilities associated with software-based devices. This design philosophy provides 15-20 year service life without obsolescence concerns common in microprocessor-based equipment.

How does the AFD4 improve system availability compared to passive junction boxes?
Passive junction boxes propagate short-circuit faults across all connected devices, requiring complete segment shutdown for troubleshooting. The AFD4's active isolation limits faults to individual spurs, maintaining 75% network availability during single-branch failures. Bounce protection prevents transient disruptions during device connection/disconnection, reducing unplanned downtime by 60-80% in facilities with frequent instrument maintenance.

What power budget considerations apply when designing AFD4 networks?
PROFIBUS PA segments provide 400mA total current at 9-32V DC. The AFD4 consumes approximately 15mA, leaving 385mA for field devices. Distribute devices across spurs to balance current draw—avoid exceeding 100mA per spur for optimal performance. High-power devices like valve positioners (50-80mA) should be distributed across multiple spurs rather than concentrated on one branch.

Start Your Network Upgrade Today

Enhance your process automation infrastructure with proven Siemens reliability. The 6ES7157-0AG81-0XA0 AFD4 delivers the fault tolerance and diagnostic capabilities required for mission-critical industrial networks. Our automation specialists are available to review your topology requirements, recommend optimal spur configurations, and provide technical documentation for your engineering team.

Request a quote now or contact our application engineers at sale@ninermas.com | +0086 187 5021 5667 for project-specific guidance on PROFIBUS PA network design and component selection.
