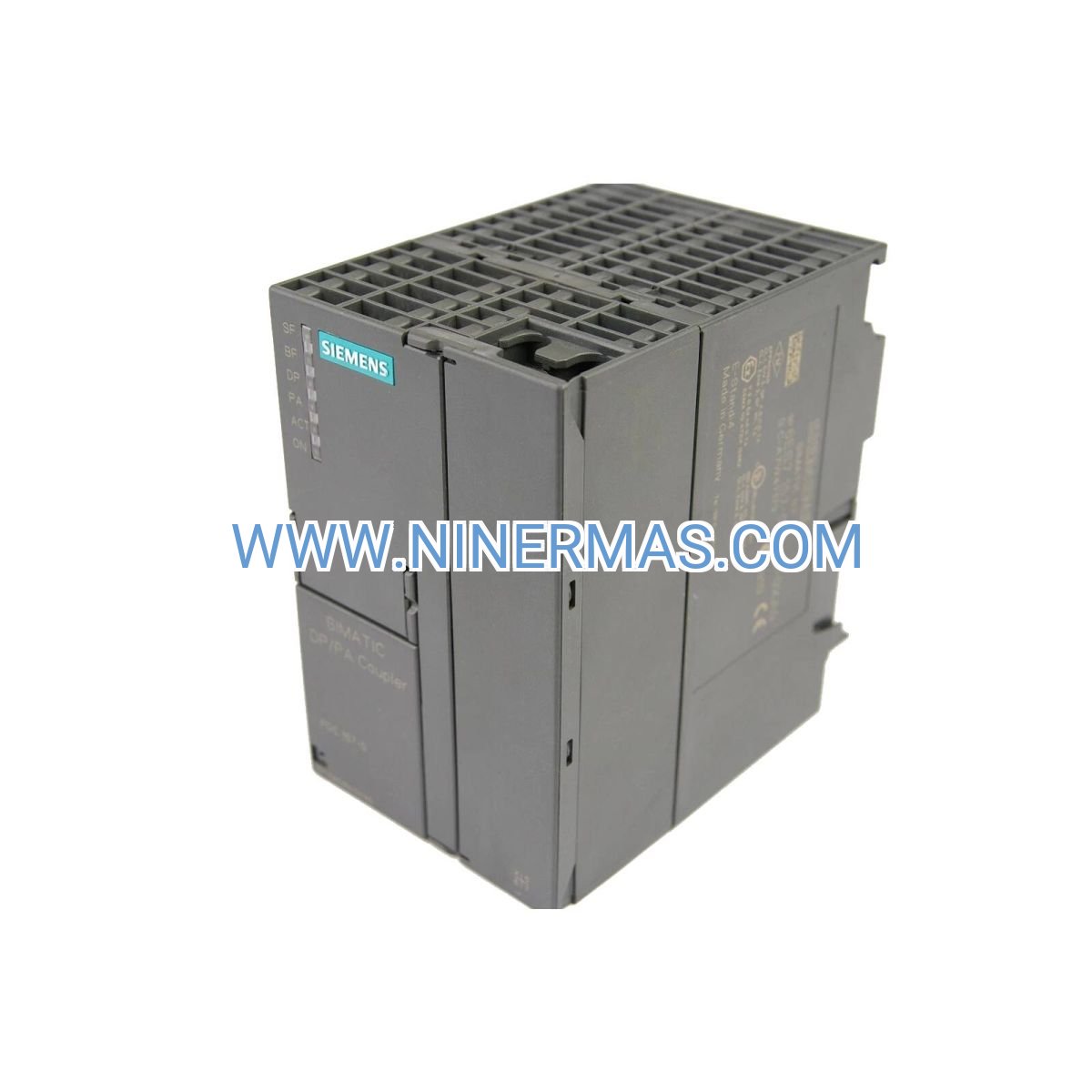

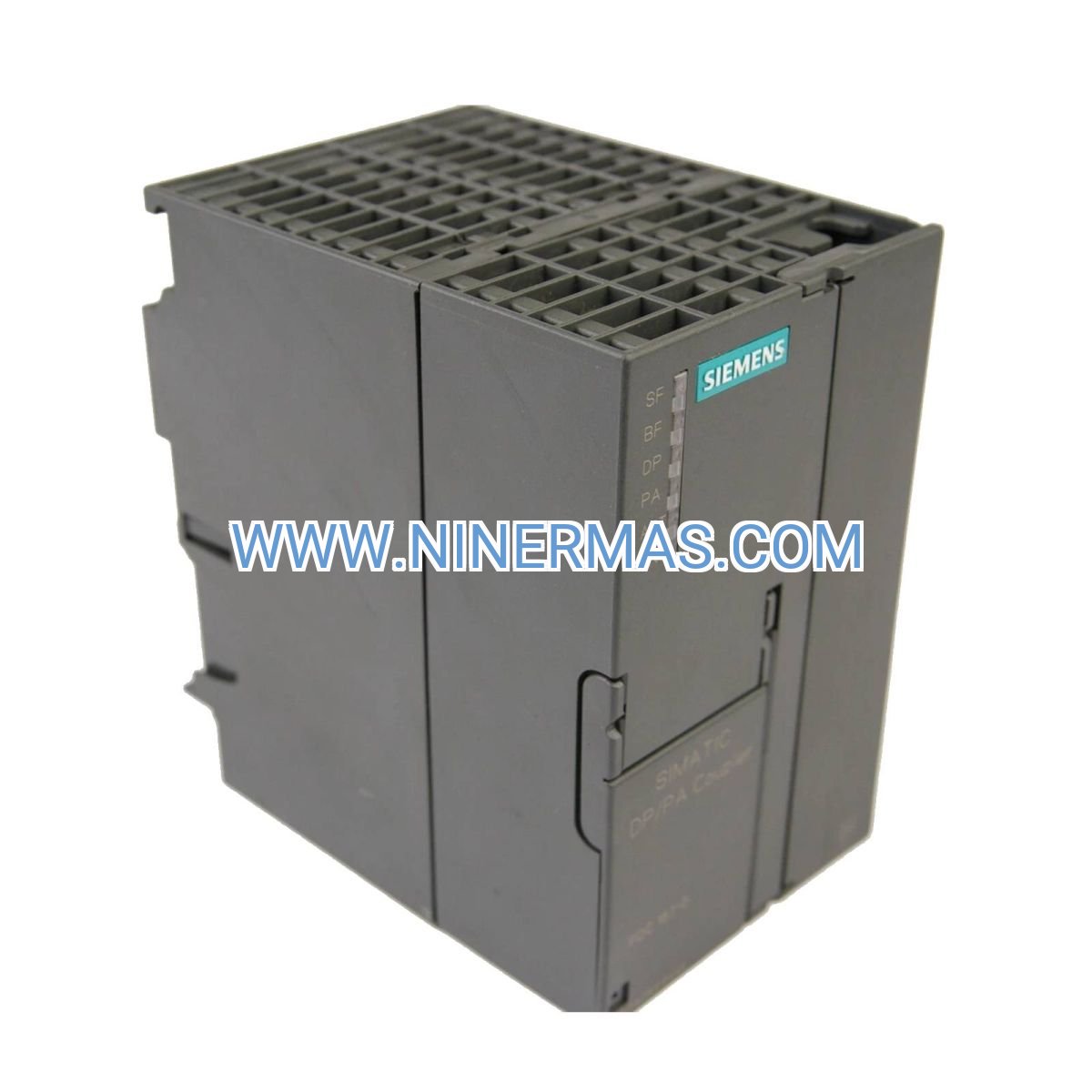

Siemens 6ES7157-0AA82-0XA0 Interface Module | IM 157 PROFIBUS DP/PA Gateway for S7-300 PLC

Siemens IM 157 Interface Module – Industrial PROFIBUS DP/PA Gateway Solution

The Siemens 6ES7157-0AA82-0XA0 IM 157 Interface Module is a professional-grade communication gateway designed for seamless integration between PROFIBUS-DP and PROFIBUS-PA networks within S7-300 automation architectures. Through advanced protocol conversion and signal conditioning technology, this module enables reliable data exchange between distributed I/O systems and field-level process instrumentation, ensuring stable operation in demanding industrial environments.

Engineered for process industries including chemical processing, oil & gas, water treatment, and pharmaceutical manufacturing, the IM 157 addresses critical challenges such as network segmentation complexity, protocol incompatibility, installation space constraints, and diagnostic visibility gaps. It provides a robust bridge between high-speed control networks and intrinsically safe field device zones.

Featuring standardized mounting compatibility and flexible configuration options, this interface module delivers exceptional network isolation, comprehensive diagnostic capabilities, hot-swap serviceability, and multi-vendor device support. Ideal for system integrators, automation engineers, plant maintenance teams, and OEM equipment manufacturers seeking certified, field-proven connectivity solutions. Contact our engineering team for application-specific configuration guidance and technical documentation.

Core Features & Technical Advantages

• Dual-Network Protocol Bridge
  Provides transparent communication between PROFIBUS-DP (up to 12 Mbps) and PROFIBUS-PA (31.25 kbps) segments, enabling integration of process field devices with high-speed PLC backplanes while maintaining network performance and deterministic response times.
• Intrinsic Safety Compliance
  Supports connection to hazardous area field devices through PROFIBUS-PA's intrinsically safe power and communication infrastructure, meeting ATEX, IECEx, and FM approval requirements for Zone 1/Division 1 installations.
• Integrated Power Conditioning
  Delivers regulated power supply to connected PA segment devices (up to 400 mA total current), eliminating the need for separate field power distribution and reducing installation complexity in remote field junction boxes.
• Advanced Diagnostic Framework
  Offers comprehensive status monitoring including segment health indicators, device-level fault detection, cable integrity analysis, and power budget tracking—accessible through STEP 7 engineering software or SCADA HMI interfaces for proactive maintenance.
• Modular Installation Design
  Mounts directly onto standard S7-300 DIN rail profiles with tool-free clip mechanism, occupying minimal panel space (40mm width) while providing front-accessible wiring terminals and LED status indicators for simplified commissioning and troubleshooting.
• Hot-Swap Capability
  Enables module replacement during system operation without disrupting the entire automation network, minimizing downtime during maintenance activities and supporting continuous production requirements in 24/7 process facilities.

Industrial Application Scenarios

This interface module serves critical roles in applications demanding reliable process data acquisition and control integration:

• Chemical & Petrochemical Process Control
  Connects pressure transmitters, flow meters, and analytical instruments in hazardous area zones to central DCS/PLC systems, enabling real-time process monitoring while maintaining explosion protection integrity and regulatory compliance.
• Water & Wastewater Treatment Plants
  Integrates distributed field instrumentation across pump stations, filtration units, and chemical dosing systems with centralized SCADA platforms, supporting remote monitoring and automated control sequences for municipal infrastructure.
• Pharmaceutical Manufacturing & Cleanrooms
  Facilitates validated communication between process analytical technology (PAT) instruments and batch control systems, ensuring data integrity and audit trail requirements for FDA 21 CFR Part 11 compliance in GMP environments.
• Oil & Gas Production Facilities
  Enables subsea and offshore platform instrumentation connectivity through long-distance PROFIBUS-PA trunk cables, providing reliable signal transmission in harsh environmental conditions with extended temperature ranges and vibration resistance.
• Power Generation & Energy Systems
  Supports boiler control, turbine monitoring, and emissions measurement applications by bridging legacy PA field devices with modern S7-300/400 control platforms, extending asset lifecycle and protecting capital equipment investments.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the IM 157 module offers the following technical characteristics:

Selection Considerations: When specifying the IM 157 module, evaluate the following project parameters: total number of PA field devices and their current consumption, maximum cable length between DP master and IM 157 (up to 1000m with repeaters), hazardous area classification requirements, ambient temperature range at installation location, and compatibility with existing S7-300 CPU firmware version. For complex network topologies or multi-segment architectures, consult with our automation specialists to validate system design and optimize performance.

Extended Functionality & Integration Options

• Redundancy Support: Compatible with redundant PROFIBUS-DP configurations when used with S7-400H high-availability systems, ensuring continuous operation during controller switchover events.
• Asset Management Integration: Supports PROFIBUS PA device profiles (PA Profile 3.0) enabling access to extended diagnostic data, calibration parameters, and maintenance counters through PROFIasset or Simatic PDM tools.
• Network Segmentation: Allows creation of isolated PA segments for different process areas or hazardous zones, simplifying network architecture and improving fault isolation capabilities.
• Third-Party Device Compatibility: Interoperable with PROFIBUS-certified field devices from major instrumentation vendors including Endress+Hauser, Emerson, ABB, VEGA, and Yokogawa, ensuring flexible vendor selection.

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from regional distribution centers; custom-configured solutions or project-specific packages typically require 10-15 business days lead time. All modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for critical infrastructure applications.

Technical support services include remote configuration assistance via secure VPN connection, on-site commissioning and startup supervision (subject to geographic availability and project scope), and complete documentation packages comprising electrical schematics, GSD device files, STEP 7 sample programs, and installation manuals in multiple languages. Our engineering team maintains certifications in Siemens automation technologies and process industry standards to ensure professional implementation support.

Frequently Asked Questions (FAQ)

Q: How does the IM 157 interface module connect to existing S7-300 PLC systems?
A: The IM 157 mounts directly onto the S7-300 DIN rail adjacent to your CPU or distributed I/O modules. It connects to the PROFIBUS-DP backplane via the integrated bus connector and requires a separate PA segment cable connection through the front terminal block. Configuration is performed in STEP 7 by adding the IM 157 to your hardware configuration and assigning the PA devices to the appropriate slot addresses.

Q: What is the maximum number of PROFIBUS-PA devices supported per IM 157 module?
A: Each IM 157 module supports up to 32 PROFIBUS-PA field devices on a single segment, subject to total current consumption not exceeding 400 mA. For larger installations requiring more devices, multiple IM 157 modules can be deployed on separate DP addresses, or external PA power supplies can be used to extend device capacity.

Q: What energy savings or efficiency improvements can be achieved with this interface module?
A: While the IM 157 itself is a communication component rather than an energy-saving device, it enables integration of advanced process instrumentation that supports optimization strategies. By providing reliable access to high-accuracy field measurements, it facilitates closed-loop control algorithms, predictive maintenance programs, and process efficiency improvements that can reduce energy consumption by 15-30% in typical process applications.

Q: What are the environmental requirements for installing the IM 157 module?
A: The module is rated IP20 and designed for installation inside control cabinets or marshalling panels with ambient temperatures between -25°C and +60°C. Ensure adequate ventilation to prevent heat buildup, avoid exposure to corrosive gases or excessive humidity (max 95% RH non-condensing), and maintain proper grounding to prevent electromagnetic interference in industrial environments.

Q: Does the IM 157 support remote monitoring and data acquisition via industrial IoT platforms?
A: The IM 157 provides transparent PA device data to the S7-300 CPU, which can then be accessed through standard industrial protocols including OPC UA, PROFINET, or Ethernet/IP using appropriate communication processors. For cloud connectivity and IIoT applications, combine with Siemens Industrial Edge devices or third-party gateways supporting MQTT, REST APIs, or other modern data exchange protocols.

Q: Can the module be used in hazardous area installations requiring ATEX or IECEx certification?
A: The IM 157 module itself is designed for installation in safe areas (Zone 2 or non-classified locations). However, it enables connection to intrinsically safe PROFIBUS-PA field devices installed in Zone 1/Division 1 hazardous areas through certified PA segment couplers and barriers. Always consult the technical documentation and engage certified electrical designers for hazardous area installations to ensure compliance with local regulations.

Request Technical Support & Custom Configuration

To obtain detailed application engineering support, pricing quotations, or project-specific configuration assistance, please provide the following information: project name and industry sector, process application description, number and types of PA field devices, required cable distances and network topology, electrical power specifications, environmental conditions, and any special certification or compliance requirements. Our automation engineers will respond within one business day with tailored recommendations and technical documentation.
