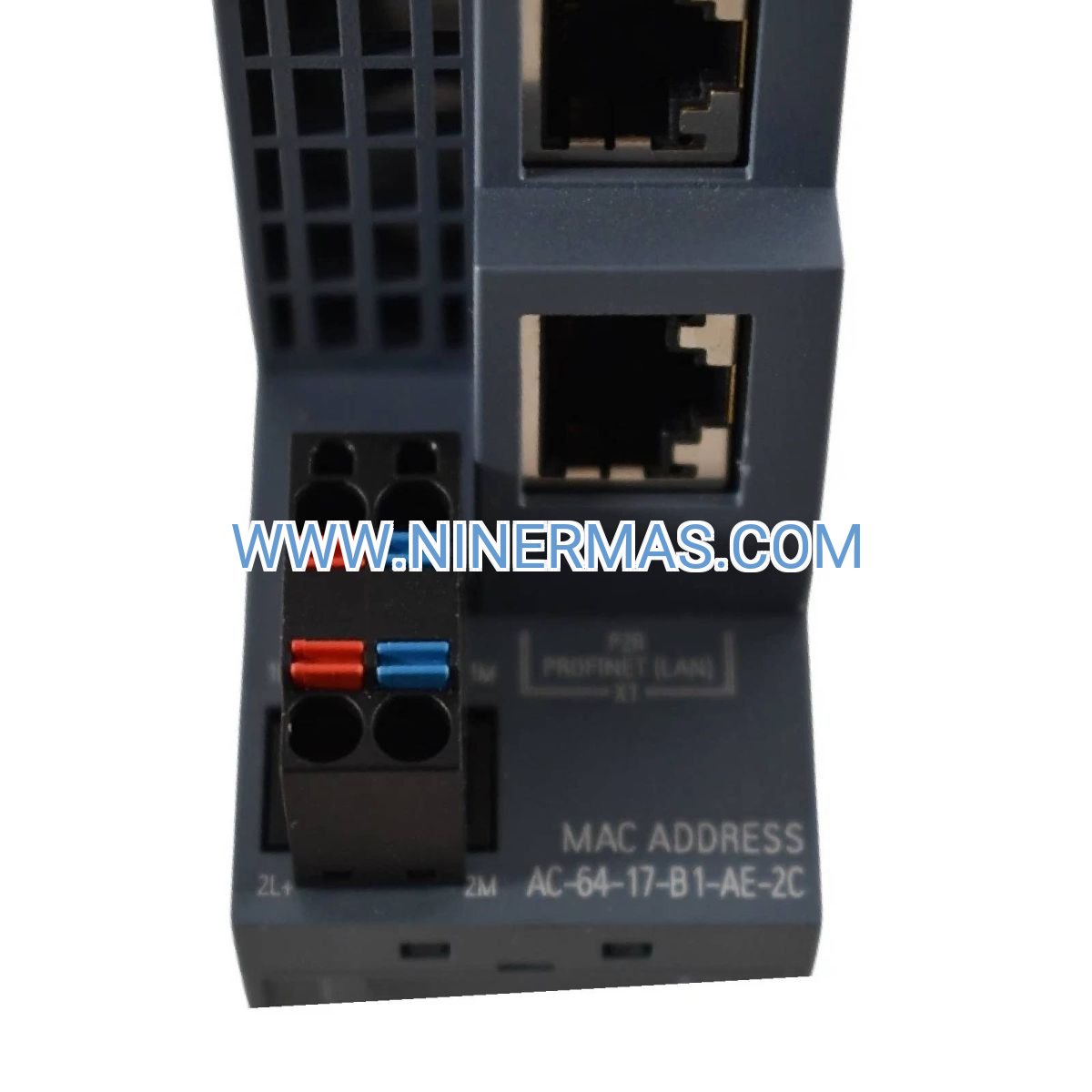

Siemens 6ES7155-6AA01-0BN0 | ET 200SP PROFINET Interface Module IM 155-6PN ST

Siemens ET 200SP PROFINET Interface Module (Industrial-Grade Distributed I/O Solution)

The Siemens 6ES7155-6AA01-0BN0 IM 155-6PN ST is a high-performance PROFINET interface module designed for distributed I/O applications within the ET 200SP modular system. Through advanced PROFINET communication technology and integrated switch functionality, it enables seamless real-time data exchange between field devices and central controllers (S7-1200/1500 PLCs), ensuring stable operation in demanding industrial environments.

Engineered for process automation, manufacturing lines, chemical plants, and energy facilities, this module addresses critical challenges including network topology complexity, I/O expansion limitations, installation space constraints, and maintenance downtime. It delivers reliable performance in applications requiring high-speed communication, flexible configuration, and continuous operation.

With standardized design and customizable configuration options, the IM 155-6PN ST offers hot-swap capability, dual-port switch architecture, RT/IRT protocol support, compact DIN-rail mounting, and comprehensive diagnostics. Ideal for system integrators, design engineers, OEM manufacturers, and plant maintenance teams seeking scalable automation solutions. Contact our technical specialists for application-specific configuration and quotation assistance.

Core Features & Technical Advantages

• High-Speed PROFINET Communication
  Supports both Real-Time (RT) and Isochronous Real-Time (IRT) protocols with update times down to 250μs, enabling precise synchronization for motion control and time-critical processes while maintaining deterministic network performance.
• Integrated 2-Port Switch Architecture
  Built-in PROFINET switch eliminates the need for external network infrastructure, simplifying line topology deployment and reducing installation costs by up to 25% compared to traditional star configurations.
• Extensive I/O Expansion Capacity
  Accommodates up to 32 ET 200SP I/O modules per interface, supporting mixed analog/digital signals, temperature sensors, motor starters, and safety modules within a single compact baseplate system.
• Hot-Swap & Online Diagnostics
  Enables module replacement during operation without system shutdown, minimizing unplanned downtime. Integrated LED indicators and TIA Portal diagnostics provide real-time status monitoring for proactive maintenance.
• Robust Industrial Design
  IP20-rated housing with conformal coating options, operating temperature range -25°C to +60°C, and compliance with IEC 61131-2 standards ensure reliable performance in harsh manufacturing environments.
• Seamless TIA Portal Integration
  Fully compatible with STEP 7 V13 and later versions, offering intuitive configuration through hardware catalog, automatic device detection, and standardized GSD file support for third-party device integration.

Typical Application Scenarios

This PROFINET interface module is specifically designed for industrial automation systems requiring distributed I/O architecture, high availability, and flexible network topologies:

• Process Automation & Chemical Plants
  Connects field instruments (pressure transmitters, flow meters, valve positioners) to DCS/PLC systems in refineries, pharmaceutical production, and water treatment facilities, ensuring continuous process monitoring with redundancy options.
• Automotive & Discrete Manufacturing
  Integrates assembly line stations, robotic cells, and quality inspection equipment via PROFINET, supporting synchronized motion control and high-speed data acquisition for Industry 4.0 applications.
• Energy & Utilities Infrastructure
  Deployed in substations, wind farms, and power generation plants for remote I/O aggregation, SCADA integration, and compliance with IEC 61850 communication standards for smart grid applications.
• Building Automation & HVAC Systems
  Manages distributed sensors and actuators across multi-zone climate control, lighting management, and energy monitoring systems in commercial buildings and data centers.
• Material Handling & Logistics
  Controls conveyor systems, sorting equipment, and warehouse automation with decentralized I/O placement, reducing cable runs by up to 40% while maintaining diagnostic visibility.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for the IM 155-6PN ST interface module. Custom configurations available for project-specific requirements.

Selection Considerations: When specifying this module, evaluate total I/O point count, required communication speed (RT vs. IRT), network topology constraints, environmental conditions (temperature/vibration), and integration with existing Siemens or third-party controllers. For systems exceeding 32 modules, multiple interface modules can be deployed on the same PROFINET network. Our application engineers can assist with I/O mapping, network load calculation, and redundancy design—please provide project parameters including controller type, I/O list, cycle time requirements, and installation environment.

Advanced Configuration Options

• Media Redundancy Protocol (MRP) – Configure ring topology with <50ms failover time for high-availability applications
• Shared Device Architecture – Enable multi-controller access for distributed control systems and HMI integration
• PROFIenergy Support – Implement energy-saving modes during production pauses (requires compatible I/O modules)
• PROFINET Security – Deploy access control lists and encrypted communication for critical infrastructure protection
• Third-Party Device Integration – Connect non-Siemens PROFINET devices via standard GSD files with full diagnostic transparency

Delivery, Support & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured systems require 10-15 days for assembly and testing.

Warranty: All modules include a 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available.

Technical Support: Comprehensive assistance including pre-sales application consulting, TIA Portal configuration guidance, on-site commissioning support (region-dependent), and remote diagnostics via Siemens Service Portal.

Documentation Package: Each shipment includes product datasheet, quick start guide, dimensional drawings, terminal assignment diagrams, GSD installation files, and sample TIA Portal hardware configuration—facilitating rapid integration and reducing engineering time.

Quality Certifications: Manufactured in Siemens ISO 9001-certified facilities with full traceability, compliance testing per IEC 61131-2, and batch-specific quality control documentation available upon request.

Frequently Asked Questions (FAQ)

Q: How does the ET 200SP PROFINET interface module integrate with existing S7-300/400 systems?
A: The IM 155-6PN ST is fully compatible with S7-300/400 controllers via PROFINET IO communication. Configuration is performed through STEP 7 V5.5+ or TIA Portal with hardware catalog updates. Existing PROFIBUS DP networks can coexist using separate interface modules or protocol gateways.

Q: What is the maximum number of I/O modules supported per interface, and are there limitations?
A: Each IM 155-6PN ST supports up to 32 ET 200SP I/O modules with a combined data limit of 1024 bytes input and 1024 bytes output. Actual capacity depends on module types—high-density analog modules consume more data than digital modules. Use TIA Portal's automatic address assignment to optimize configuration.

Q: What energy savings can be achieved, and what factors influence efficiency?
A: Energy consumption is primarily determined by connected I/O modules rather than the interface itself. Implementing PROFIenergy-capable modules can reduce standby power by 20-35% during production pauses. Additional savings result from optimized cable routing (reduced voltage drop) and elimination of redundant network switches.

Q: What are the environmental requirements for installation, and what is the IP rating?
A: The module is rated IP20 for standard control cabinet installation with ambient temperatures from -25°C to +60°C (horizontal mounting; derate to +50°C for vertical). For harsh environments, install within IP54+ enclosures with adequate ventilation. Conformal coating options available for high-humidity or corrosive atmospheres.

Q: Does the module support remote monitoring and industrial IoT protocols?
A: Yes—diagnostic data is accessible via PROFINET, SNMP, and OPC UA (when used with S7-1500 controllers). Integration with Siemens MindSphere or third-party SCADA systems enables cloud-based monitoring, predictive maintenance analytics, and Industry 4.0 connectivity using standard Ethernet infrastructure.

Q: Can I hot-swap I/O modules without shutting down the entire system?
A: Absolutely. The ET 200SP system supports hot-swapping of I/O modules during operation without affecting other modules or requiring controller restart. Ensure proper BaseUnit locking mechanisms are engaged, and verify module replacement procedures in TIA Portal diagnostics to maintain system integrity.

Request Technical Consultation

For detailed application engineering, custom configuration, or project quotations, please provide the following information to our technical team:

• Project name and industry sector
• Application type (process control, discrete manufacturing, infrastructure)
• Total I/O point count (digital inputs/outputs, analog channels)
• Controller platform (S7-1200, S7-1500, or third-party)
• Required communication cycle time and protocol (RT/IRT)
• Environmental conditions (temperature range, enclosure rating)
• Network topology preferences (line, star, ring)
• Redundancy and availability requirements

Our certified automation specialists will provide tailored recommendations including module selection, network architecture design, cable specifications, and total cost of ownership analysis within 24-48 hours.
