Siemens 6ES7155-6AA01-0BN0 | ET 200SP PROFINET Interface Module IM 155-6PN ST

Siemens 6ES7155-6AA01-0BN0 ET 200SP PROFINET Interface Module (Industrial-Grade Distributed I/O Solution)

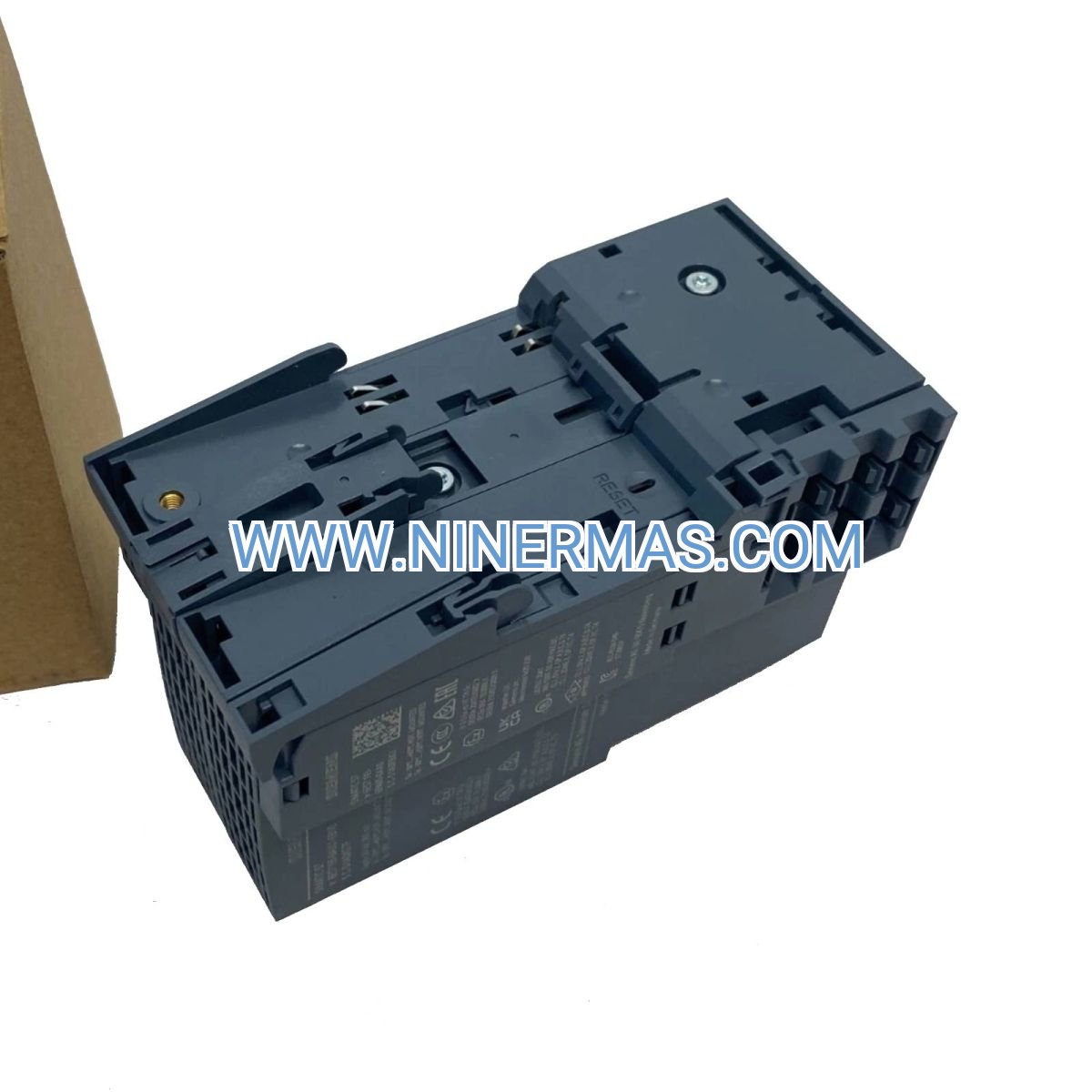

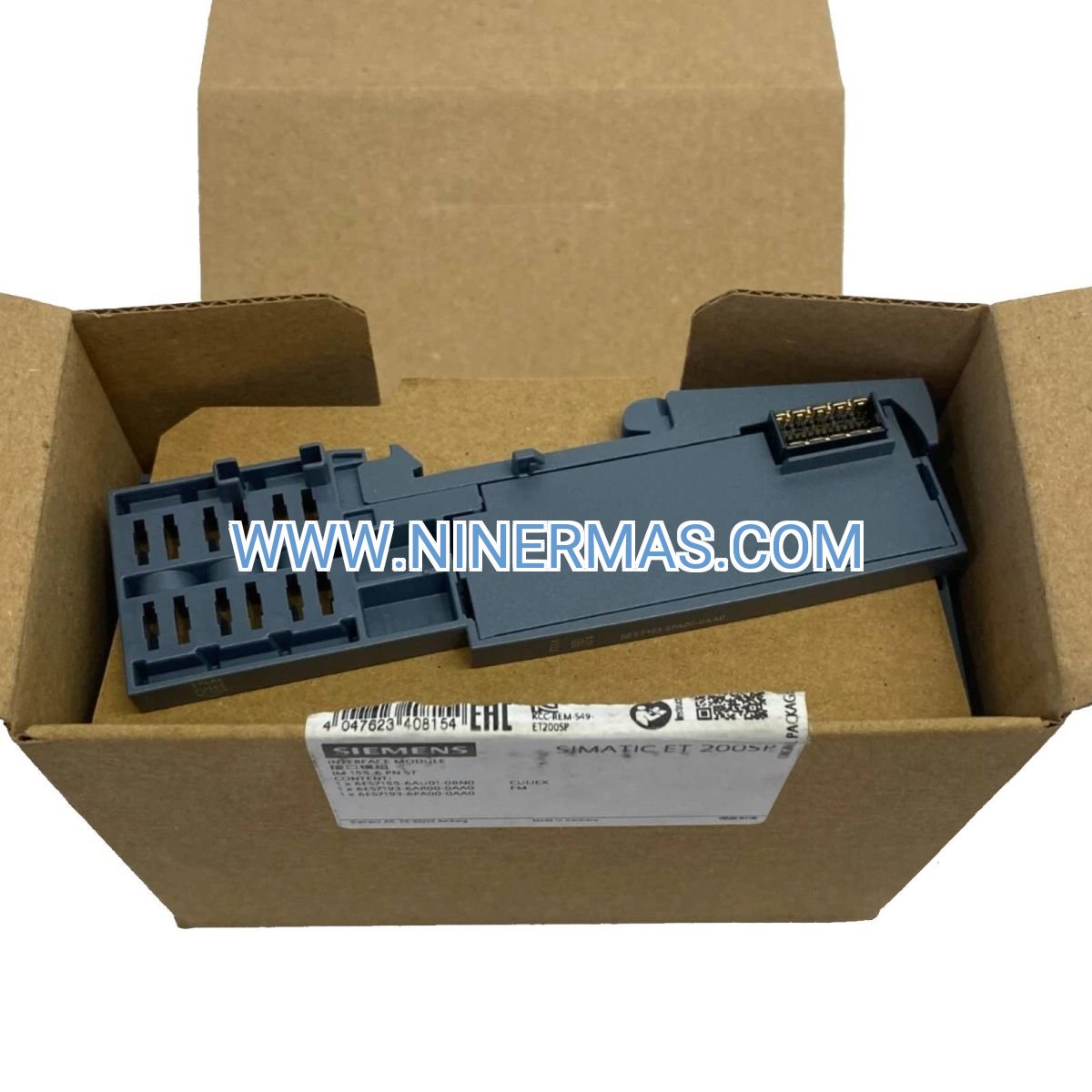

The Siemens 6ES7155-6AA01-0BN0 IM 155-6PN ST is a high-performance PROFINET interface module designed for distributed I/O applications within the SIMATIC ET 200SP system. Through advanced PROFINET RT/IRT communication protocols and modular architecture, it enables seamless integration with S7-1200/1500 PLCs, delivering real-time data exchange, flexible system expansion, and reliable industrial control.

Ideal for manufacturing automation, process control systems, and industrial network infrastructure, this interface module addresses critical challenges including communication latency, system scalability limitations, complex wiring requirements, and maintenance downtime. It supports hot-swappable I/O modules, reducing unplanned production interruptions.

With standardized design and customizable configuration options, the IM 155-6PN ST offers exceptional advantages: high-speed communication (up to 100 Mbps), compact footprint (only 30mm width), robust EMC protection, and comprehensive diagnostic capabilities. Perfect for design engineers, system integrators, OEM manufacturers, and end-user facilities. Contact our technical team for application-specific configuration guidance and quotations.

Core Features & Technical Advantages

• High-Speed PROFINET Communication
  Supports PROFINET RT (Real-Time) and IRT (Isochronous Real-Time) protocols with cycle times down to 250μs, ensuring deterministic data transmission for time-critical applications and reducing control loop response delays.
• Flexible System Scalability
  Accommodates up to 32 I/O modules per interface, supporting mixed analog/digital, safety, and technology modules. Enables distributed architecture design, reducing cabinet space requirements by approximately 40% compared to centralized systems.
• Hot-Swap Capability & Redundancy
  Allows online module replacement without system shutdown, minimizing maintenance windows. Compatible with redundant PROFINET topologies (MRP - Media Redundancy Protocol) for enhanced system availability in mission-critical applications.
• Comprehensive Diagnostic & Protection
  Integrated diagnostics monitor module status, communication health, and power supply conditions in real-time. Features include short-circuit protection, overvoltage protection, and electromagnetic interference shielding (EMC Class A compliance).
• Intuitive Configuration Interface
  Fully integrated with TIA Portal engineering software, offering graphical device configuration, automatic topology detection, and built-in web server for remote diagnostics. Supports SNMP for network management integration.
• Industrial-Grade Reliability
  Operating temperature range: -25°C to +60°C; conformal coating options for harsh environments; MTBF exceeding 500,000 hours. Certified to IEC 61131-2, UL, cULus, and ATEX standards for global deployment.

Typical Application Scenarios

This PROFINET interface module is engineered for applications demanding high reliability, real-time performance, and flexible I/O distribution, particularly in:

• Automotive & Discrete Manufacturing
  Connects distributed I/O stations across assembly lines, robotic cells, and material handling systems. Reduces wiring costs by up to 60% through decentralized architecture while maintaining microsecond-level synchronization for motion control.
• Process Industries & Chemical Plants
  Interfaces with field instruments in hazardous areas (Zone 2/Div 2 with appropriate enclosures), supporting 4-20mA analog signals, HART communication, and safety-rated I/O for SIL 2/3 applications in petrochemical and pharmaceutical facilities.
• Water & Wastewater Treatment
  Enables remote I/O deployment at pump stations, filtration units, and chemical dosing systems. Fiber-optic PROFINET connectivity extends communication distances beyond 10km, ideal for distributed municipal infrastructure.
• Building Automation & HVAC Systems
  Integrates with BACnet/IP gateways for centralized building management, controlling VAV boxes, chiller plants, and lighting systems. Energy monitoring capabilities support ISO 50001 compliance initiatives.
• Renewable Energy & Power Generation
  Deployed in wind turbine control systems, solar inverter monitoring, and substation automation. Supports IEC 61850 protocol mapping for seamless integration with SCADA systems.

Technical Specifications & Selection Guide

To facilitate engineering design and product selection, we provide comprehensive technical parameters for the 6ES7155-6AA01-0BN0 interface module. Custom configurations are available based on project-specific requirements.

Selection Recommendations:
When specifying this interface module, consider the following factors: total I/O point count and module types required, maximum communication distance and topology (line/ring/star), environmental conditions (temperature/humidity/vibration), power budget for complete I/O station, and integration with existing automation architecture. For applications requiring functional safety, pair with ET 200SP F-modules and safety-rated controllers. Our application engineers can provide detailed I/O configuration worksheets and system architecture diagrams—simply provide your process requirements and site conditions.

Advanced Integration Capabilities

• Shared Device Functionality
  Allows multiple controllers (e.g., S7-1500 + WinCC) to access the same I/O module simultaneously, enabling coordinated control and HMI visualization without additional gateways.
• PROFIenergy Support
  Implements energy-saving modes during production pauses, reducing power consumption by up to 30% in batch processing applications. Integrates with plant-wide energy management systems.
• Option Handling & Isochronous Mode
  Supports drive integration via PROFIdrive profile, enabling synchronized motion control with sub-millisecond jitter for multi-axis applications such as packaging and printing machinery.
• OPC UA Server Integration
  Native OPC UA interface (via S7-1500 controller) enables direct connectivity to MES/ERP systems, cloud platforms (AWS IoT, Azure IoT Hub), and Industry 4.0 analytics tools without proprietary middleware.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional warehouses (Asia-Pacific, EMEA, Americas). Custom-configured I/O stations require 10-15 business days for assembly and factory testing.

Warranty: All Siemens ET 200SP products include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and preventive maintenance contracts available through authorized service partners.

Technical Support: Complimentary pre-sales application engineering support, including I/O configuration review, network load calculations, and TIA Portal project templates. Post-sales support includes remote diagnostics assistance, firmware update guidance, and on-site commissioning services (subject to regional availability and service agreements).

Documentation Package: Each module ships with complete technical documentation including dimensional drawings, wiring diagrams, GSD (General Station Description) files for third-party controller integration, and quick-start commissioning guide. Full manuals and CAD models available via Siemens Industry Online Support portal.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with full traceability. Complies with RoHS, REACH, and conflict minerals regulations. Test certificates (material certifications, calibration records) available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: How does the 6ES7155-6AA01-0BN0 interface with existing S7-300/400 systems?
A: While optimized for S7-1200/1500 controllers via PROFINET, this module can integrate with S7-300/400 systems using a PROFINET-capable CPU (e.g., CPU 315-2 PN/DP or higher) or through a gateway such as IE/PB Link PN IO for PROFIBUS DP networks. Configuration requires TIA Portal for ET 200SP and STEP 7 Classic for legacy controllers.

Q: What is the maximum number of I/O points achievable with one IM 155-6PN ST interface?
A: The interface supports up to 32 I/O modules. Maximum I/O density depends on module types—using 16-channel digital modules yields up to 512 DI/DO points, while analog modules typically provide 8 channels each. Total configuration is limited by 244 bytes input and 244 bytes output process data per interface.

Q: Can this module operate in redundant PROFINET configurations?
A: Yes, the integrated 2-port switch supports Media Redundancy Protocol (MRP) with reconfiguration times under 200ms. For controller redundancy, pair with S7-1500R/H systems. Note that I/O module redundancy requires duplicate hardware and specialized safety modules for SIL 3 applications.

Q: What environmental protection is required for outdoor or harsh industrial installations?
A: The module is rated IP20 for standard cabinet mounting. For outdoor, washdown, or corrosive environments, install in NEMA 4X/IP65 enclosures with appropriate climate control. Conformal coating (order variant with "-K" suffix) provides additional protection against humidity and chemical vapors. Operating temperature range is -25°C to +60°C; for extreme temperatures, consider thermal management solutions.

Q: How much energy savings can be achieved compared to traditional relay-based control panels?
A: Energy savings vary by application. Typical benefits include: 20-40% reduction in wiring and installation labor, 15-25% lower power consumption through optimized module sleep modes (PROFIenergy), and 30-50% faster commissioning time using auto-configuration features. ROI typically achieved within 18-24 months in medium to large installations (>100 I/O points).

Q: Is remote monitoring and predictive maintenance supported?
A: Yes, the module provides comprehensive diagnostics accessible via integrated web server (HTTP/HTTPS), SNMP traps, or TIA Portal online diagnostics. Integration with SIMATIC S7-1500 controllers enables data logging to Historian systems and cloud-based analytics platforms (Siemens MindSphere, AWS IoT). Predictive maintenance algorithms can monitor communication quality, module temperature trends, and power supply stability.

Request Technical Consultation & Quotation

To receive a customized system configuration, detailed technical proposal, or project-specific pricing, please provide the following information to our engineering team:

• Project name and application industry
• Total I/O requirements (digital inputs/outputs, analog channels, specialty modules)
• Communication topology and maximum cable distances
• Environmental conditions (temperature range, enclosure type, hazardous area classification)
• Integration requirements (controller model, existing network infrastructure, third-party devices)
• Delivery timeline and installation support needs

Our certified automation specialists will respond within 24 hours with tailored recommendations, I/O configuration drawings, and competitive quotations. For urgent inquiries, direct technical hotline support is available during business hours.
