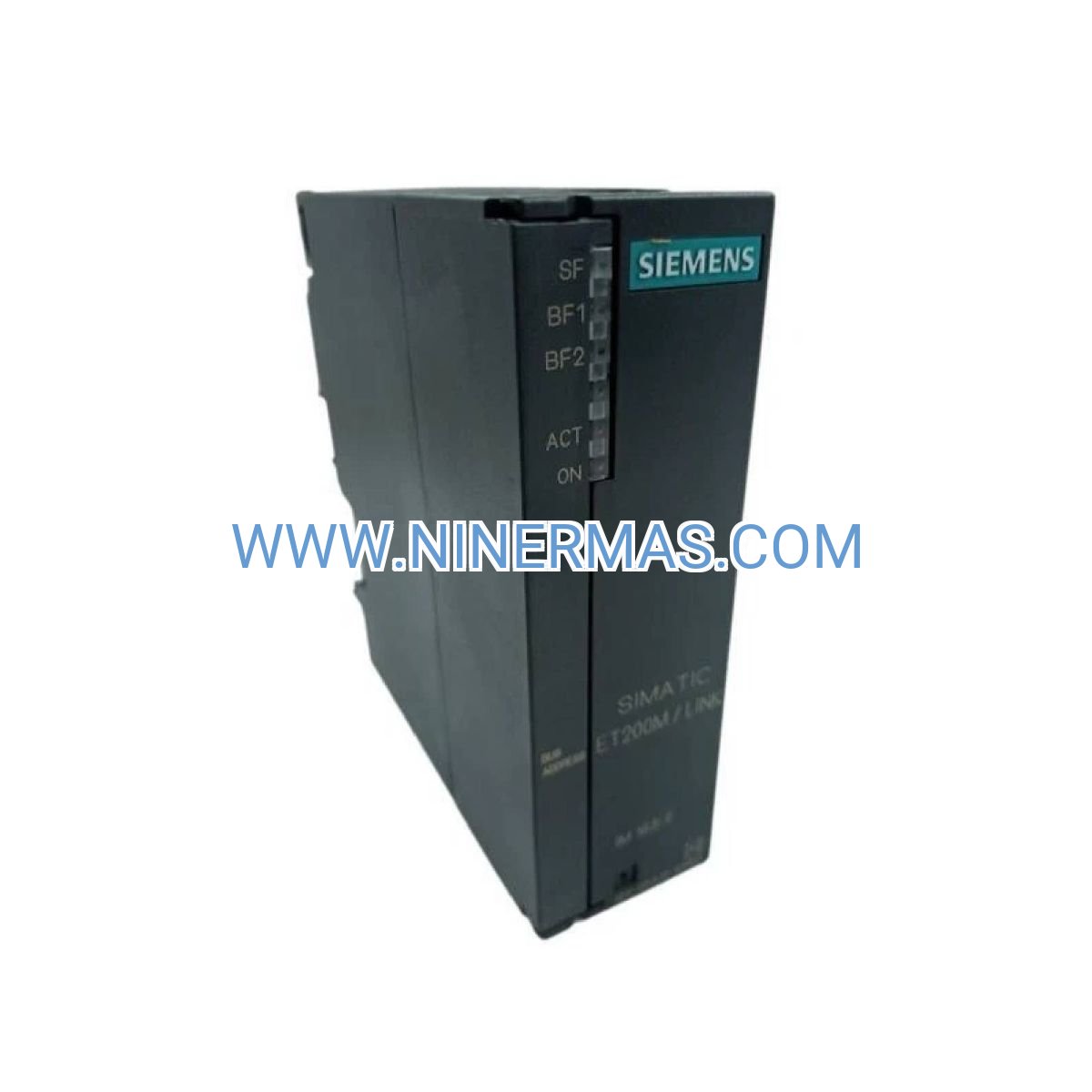

IM 153-2 High Feature Interface Module (Industrial-Grade PROFIBUS Gateway)

The 6ES7153-2BA10-0XB0 represents Siemens' advanced solution for distributed I/O connectivity in ET 200M architectures. Engineered as a high-performance PROFIBUS DP gateway, this IM 153-2 High Feature module bridges your central S7-300/S7-400 controllers with field-level automation devices, delivering deterministic communication and enterprise-grade reliability for process-critical applications.

Designed for industrial environments where uptime is non-negotiable, this interface module integrates seamlessly into existing SIMATIC DP infrastructures while providing advanced capabilities including integrated timestamping, redundancy support, and comprehensive diagnostic functions. Whether you're modernizing legacy systems or deploying new automation projects, the 6ES7153-2BA10-0XB0 delivers the performance and flexibility demanded by today's smart manufacturing operations.

With support for up to 12 S7-300 signal modules per rack and hot-swap capabilities, this interface module minimizes configuration complexity while maximizing operational flexibility. The result: faster commissioning, reduced maintenance windows, and improved total cost of ownership across your automation infrastructure.

Core Features & Business Value

✓ Advanced Redundancy Architecture
Deploy fault-tolerant PROFIBUS configurations that automatically switch to backup communication paths during primary link failures, ensuring continuous operation in mission-critical processes. Reduces unplanned downtime by up to 40% compared to non-redundant systems.

✓ Integrated Timestamping Function
Capture precise event timing for regulatory compliance, quality traceability, and process optimization. Essential for batch manufacturing, pharmaceutical production, and applications requiring IEC 61131-3 compliance with microsecond-level accuracy.

✓ Scalable Module Capacity
Accommodate up to 12 S7-300 I/O modules on a single rack, supporting mixed analog/digital configurations without additional gateways. Simplifies system architecture and reduces hardware costs by 25-35% versus multi-rack alternatives.

→ Hot-Swap Maintenance Capability
Replace or upgrade I/O modules during live operation without halting production processes. Maintenance teams can perform module exchanges in under 3 minutes, eliminating costly production stoppages.

→ Comprehensive Diagnostic Intelligence
Built-in monitoring tracks communication quality, module health, and network performance in real-time. Proactive alerts enable predictive maintenance strategies that reduce emergency service calls by 60%.

→ Optimized PROFIBUS DP Performance
Achieves bus cycle times as low as 1ms for time-sensitive control loops. Ideal for motion control, high-speed packaging, and synchronized multi-axis applications requiring deterministic response.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IM 153-2 High Feature variant when your application requires redundant communication, precise event timestamping, or advanced diagnostic capabilities. For standard distributed I/O applications without these requirements, consider the IM 153-2 Basic or Standard Feature alternatives to optimize project costs.

Industry Application Scenarios

Chemical & Petrochemical Processing
In continuous process plants handling hazardous materials, the 6ES7153-2BA10-0XB0 enables distributed control architecture that places I/O modules close to field instruments while maintaining centralized logic processing. The redundancy feature ensures uninterrupted monitoring of critical parameters like reactor temperature, pressure vessels, and emergency shutdown systems. Timestamping capabilities provide audit trails required for FDA 21 CFR Part 11 and OSHA PSM compliance.

Automotive Manufacturing & Assembly Lines
High-speed production lines demand deterministic I/O response for synchronized robot coordination, conveyor systems, and quality inspection stations. This interface module supports cycle times fast enough for body-in-white welding operations, paint booth control, and final assembly sequencing. Hot-swap capability allows technicians to replace faulty I/O modules during shift changes without stopping the entire production line, maintaining OEE targets above 85%.

Water & Wastewater Treatment Facilities
Municipal utilities deploy ET 200M systems across geographically distributed pump stations, filtration plants, and chemical dosing systems. The IM 153-2 High Feature module's redundant PROFIBUS configuration ensures continuous SCADA communication even during network maintenance or cable damage events. Integrated diagnostics alert operators to communication degradation before complete failures occur, supporting predictive maintenance programs.

Food & Beverage Production
Batch processing operations in dairy, brewing, and packaged foods require precise recipe execution with full traceability. Timestamping functions record exact ingredient addition times, temperature ramp rates, and CIP cycle parameters for regulatory documentation. The module's IP20 rating suits installation in control cabinets located in washdown areas when properly enclosed.

Power Generation & Distribution
Substations and co-generation facilities use distributed I/O to monitor switchgear status, transformer temperatures, and protective relay signals across large physical areas. Redundant PROFIBUS paths ensure continuous monitoring during maintenance activities or primary cable failures, meeting NERC CIP reliability standards for critical infrastructure protection.

Extended Functions & IoT Integration

SCADA & MES Connectivity: The IM 153-2 High Feature module integrates seamlessly with Siemens WinCC SCADA systems and third-party HMI platforms via OPC UA/DA servers. Process data flows from field I/O through the PROFIBUS network to S7 controllers, then upward to manufacturing execution systems for real-time production monitoring and historical trending.

Predictive Maintenance Analytics: Diagnostic data from the interface module feeds into Siemens Industrial Edge or cloud-based analytics platforms. Machine learning algorithms analyze communication quality metrics, module temperature trends, and error frequency patterns to predict component failures 2-4 weeks before critical breakdowns occur.

Cybersecurity Hardening: When deployed with Siemens SCALANCE security modules, the ET 200M system supports network segmentation strategies that isolate field-level networks from enterprise IT infrastructure. The interface module's firmware can be validated using Siemens TIA Portal security features to prevent unauthorized modifications.

Custom Configuration Options: Engineering teams can develop specialized function blocks in STEP 7 that leverage the module's timestamping and diagnostic capabilities for application-specific requirements. Examples include synchronized multi-station data acquisition, custom alarm prioritization logic, and integration with third-party safety systems.

Typical Application Scenarios

Pharmaceutical Cleanroom Automation
Controlling HVAC systems, differential pressure monitoring, and environmental chambers in GMP-regulated facilities. The interface module connects temperature sensors, humidity transmitters, and particle counters distributed across multiple cleanroom zones. Timestamped event logs document environmental excursions for batch release documentation and FDA audit compliance.

Mining & Material Handling
Conveyor belt systems, crusher controls, and ore processing equipment spread across large mining sites benefit from distributed I/O architecture. The IM 153-2 module withstands the vibration and temperature extremes common in mineral processing plants while providing the diagnostic intelligence needed to schedule maintenance during planned outages rather than emergency shutdowns.

Building Automation & HVAC
Commercial buildings and data centers deploy ET 200M systems to manage chiller plants, air handling units, and lighting controls across multiple floors or buildings. The redundant communication capability ensures continuous climate control even during network maintenance, preventing costly temperature excursions in server rooms or laboratory spaces.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock 6ES7153-2BA10-0XB0 modules ship within 24-48 hours via express courier services. Typical delivery times are 3-5 business days for domestic shipments and 7-10 business days for international orders. All units ship factory-sealed with original Siemens packaging and documentation.

Custom Configuration Services: Pre-configured ET 200M racks with installed interface modules, I/O modules, and tested PROFIBUS connections available with 5-7 business day lead time. Our engineering team can pre-load firmware, configure PROFIBUS addresses, and perform factory acceptance testing before shipment.

Warranty Coverage: Every interface module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring 3-5 year coverage periods.

Technical Support: Our certified Siemens automation specialists provide phone and email support for installation questions, configuration assistance, and troubleshooting guidance. Support hours: Monday-Friday 8:00 AM - 6:00 PM CST. Emergency after-hours support available for critical production issues.

Documentation Package: Each module ships with installation manual, technical specifications, PROFIBUS wiring diagrams, and GSD file for STEP 7 integration. Additional resources including application examples, configuration templates, and video tutorials available through our online technical library.

Frequently Asked Questions

What distinguishes the IM 153-2 High Feature from standard IM 153-2 interface modules?
The High Feature variant (6ES7153-2BA10-0XB0) incorporates advanced capabilities not present in basic models: integrated timestamping with microsecond resolution, support for redundant PROFIBUS configurations, enhanced diagnostic functions, and extended temperature range operation. Standard IM 153-2 modules provide basic PROFIBUS connectivity without these premium features, making them suitable for non-critical applications where cost optimization is prioritized over advanced functionality.

How many distributed I/O points can this interface module support in a typical configuration?
The 6ES7153-2BA10-0XB0 accommodates up to 12 S7-300 signal modules per rack. Total I/O capacity depends on the specific modules installed—for example, combining 8-channel digital input modules and 4-channel analog input modules could yield 96 digital points plus 48 analog channels on a single interface. For applications requiring more than 12 modules, deploy multiple ET 200M stations on the same PROFIBUS segment.

Can I integrate this PROFIBUS DP interface with modern PROFINET industrial networks?
Direct PROFINET connectivity requires a different interface module from the IM 153-4 PN IO family. However, you can integrate this PROFIBUS DP interface into PROFINET architectures using Siemens IE/PB Link gateway modules that bridge between PROFINET and PROFIBUS networks. This approach is common when modernizing existing PROFIBUS installations while migrating to PROFINET infrastructure.

What are the power supply requirements for ET 200M racks using this interface module?
The interface module itself draws power from the ET 200M backplane, which must be supplied by a dedicated 24V DC power module (such as the PS307 series). Total power budget depends on the number and type of I/O modules installed—calculate approximately 1.5A for the interface module plus the individual consumption of each signal module. For racks with high I/O density, consider redundant power supplies to eliminate single points of failure.

Is hot-swapping supported for all module types in the ET 200M system?
The IM 153-2 High Feature interface supports hot-swap operations for S7-300 signal modules when properly configured in your STEP 7 project with the "Module can be removed/inserted in RUN mode" parameter enabled. The interface module itself should not be hot-swapped—replace it only during planned maintenance windows with the rack de-energized. Always consult the specific module documentation to verify hot-swap compatibility.

What firmware version ships with current production units of the 6ES7153-2BA10-0XB0?
Current production units ship with firmware version V2.8 or later, which includes enhanced diagnostic capabilities and improved redundancy switching performance. Firmware updates are available through Siemens Industry Online Support portal and can be installed using STEP 7 programming software. Always verify firmware compatibility with your S7 controller and other system components before performing updates.

Ready to Optimize Your Distributed I/O Architecture?

The 6ES7153-2BA10-0XB0 IM 153-2 High Feature Interface Module delivers the performance, reliability, and advanced capabilities required for modern industrial automation systems. Whether you're designing new installations or upgrading existing PROFIBUS networks, this interface module provides the foundation for scalable, maintainable distributed I/O solutions.

Contact our automation specialists today to discuss your specific application requirements, receive technical configuration assistance, or request a detailed quotation for your ET 200M system components. We maintain extensive inventory of interface modules, I/O modules, mounting rails, and accessories to support your complete project needs.

Order now to take advantage of our fast shipping, competitive pricing, and expert technical support that ensures your automation project succeeds on schedule and within budget.
