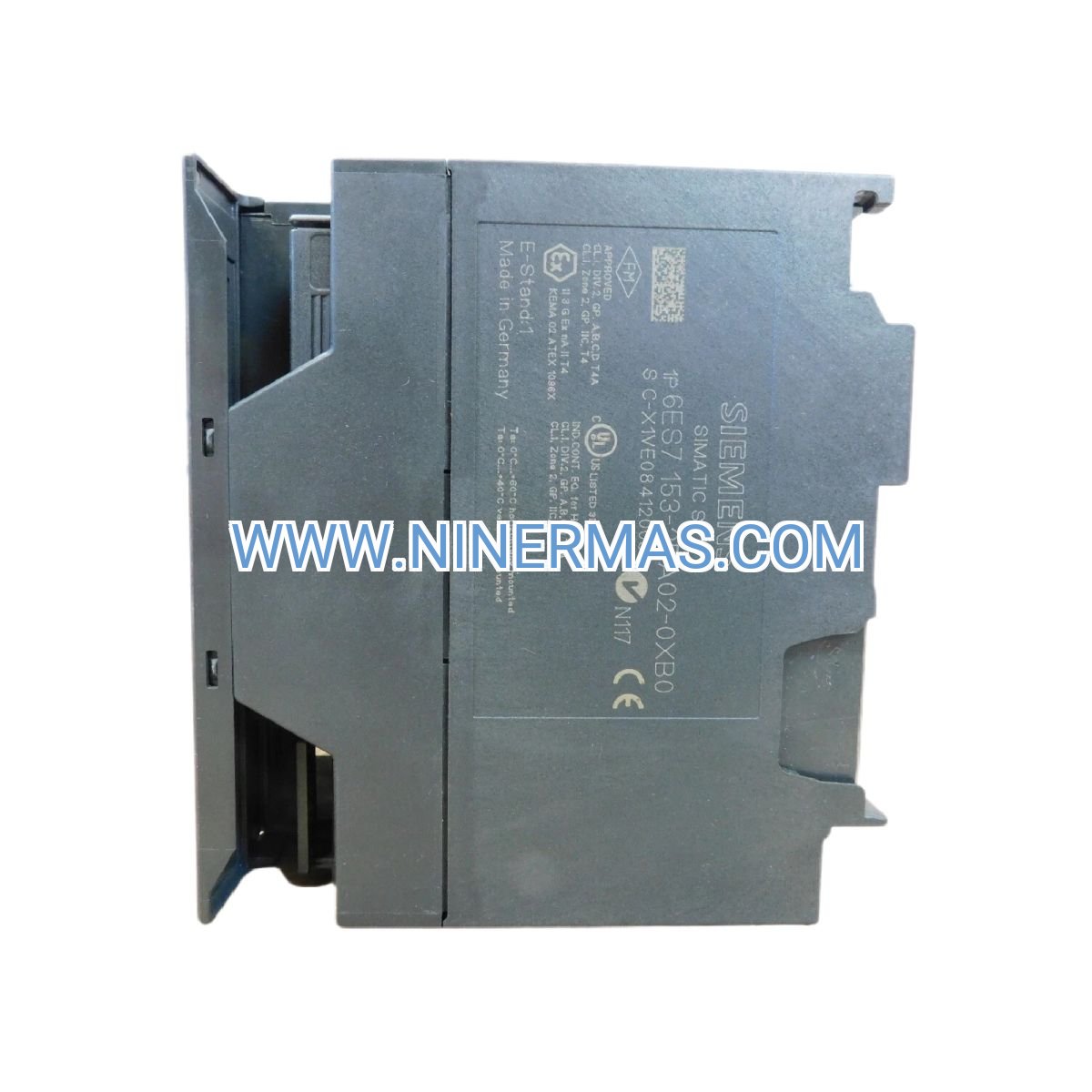

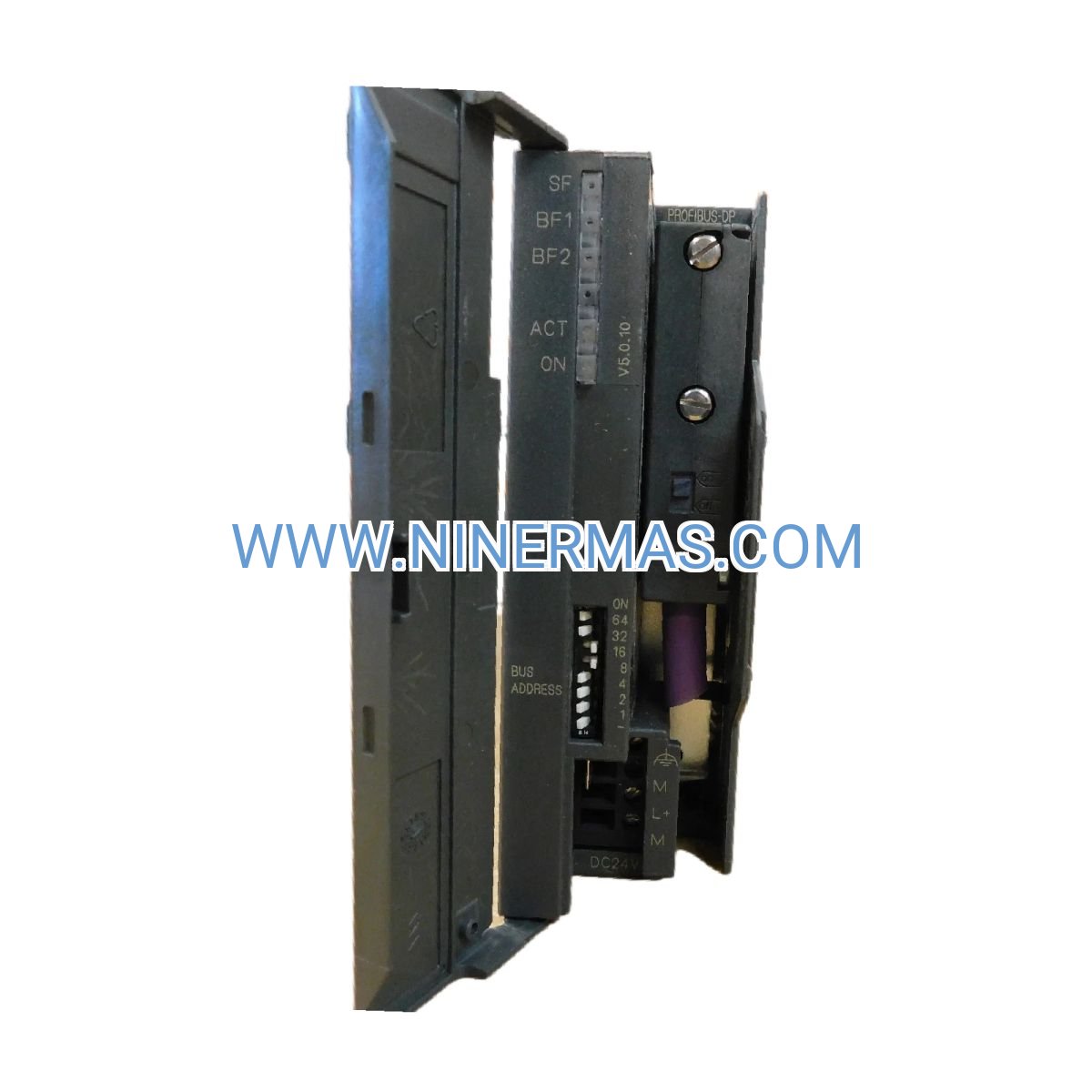

IM 153-2 High Feature Interface Module (Industrial-Grade PROFIBUS DP Gateway)

The Siemens 6ES7153-2BA02-0XBO represents a premium-tier interface solution engineered for ET 200M distributed I/O architectures in mission-critical industrial environments. This PROFIBUS DP communication gateway bridges centralized S7-300 controllers with decentralized field devices, supporting up to 12 signal modules while delivering deterministic data exchange, integrated diagnostics, and fault-tolerant redundancy capabilities essential for continuous process operations.

Designed for automation engineers managing complex multi-zone control systems, this interface module eliminates communication bottlenecks through high-speed PROFIBUS DP protocol implementation. Its advanced feature set—including HART device integration, microsecond-precision timestamping, and Y-link redundancy—addresses the operational challenges of pharmaceutical manufacturing, petrochemical processing, and utility-scale power generation where system availability directly impacts production economics.

Whether retrofitting legacy ET 200M installations or designing greenfield automation projects, the IM 153-2 High Feature module delivers proven reliability backed by German engineering standards. Seamless compatibility with the complete S7-300 I/O portfolio enables scalable system expansion without protocol conversion overhead or proprietary gateway hardware.

Core Capabilities & Business Value

→ 12-Module Expansion Capacity: Accommodates diverse I/O requirements through support for analog input/output, digital signal processing, and specialty function modules—reducing cabinet footprint by 40% compared to distributed architectures requiring multiple interface points.

✓ Dual-Master Redundancy Architecture: Y-link configuration enables simultaneous connection to primary and standby PROFIBUS DP controllers, achieving 99.95% communication uptime in safety-instrumented systems and eliminating single points of failure in critical control loops.

→ Native HART Protocol Integration: Direct communication with intelligent field transmitters and valve positioners eliminates costly HART multiplexer hardware, reducing installation costs by $800-1,200 per I/O station while enabling predictive maintenance through continuous device diagnostics.

✓ Microsecond Timestamping: Hardware-based event sequencing with <1ms accuracy ensures regulatory compliance for batch documentation (FDA 21 CFR Part 11) and enables root-cause analysis in process upset investigations.

→ Hot-Swap Serviceability: Field-replaceable design allows module exchange during operation without system shutdown, minimizing maintenance windows and supporting 24/7 production schedules in continuous manufacturing environments.

✓ Integrated Diagnostics Framework: Real-time monitoring of bus communication quality, module health status, and backplane power distribution through STEP 7/TIA Portal engineering software—reducing troubleshooting time by 60% during commissioning and operational support.

Industrial Application Scenarios

Pharmaceutical Batch Processing: In sterile manufacturing environments producing injectable medications, the 6ES7153-2BA02-0XBO coordinates reactor temperature control, ingredient dosing sequences, and clean-in-place (CIP) cycles across distributed ET 200M stations. HART-enabled pressure transmitters provide continuous calibration verification data required for GMP compliance, while timestamping creates audit-ready batch records documenting every process parameter transition within ±0.5ms accuracy.

Petrochemical Refinery Operations: Crude distillation units deploy redundant IM 153-2 modules in Y-link configurations to maintain furnace temperature control and fractionation column monitoring during PROFIBUS master switchovers. The interface module's ability to manage 12 analog input modules per station consolidates thermocouple signals from 192 measurement points, reducing wiring costs by $15,000 per control room while improving signal integrity through shorter cable runs.

Water Treatment SCADA Networks: Municipal wastewater facilities utilize the module's extended temperature range (0-60°C) and IP20 protection in pump station control panels exposed to high-humidity environments. Integration with flow meters, level sensors, and chemical dosing pumps through standardized PROFIBUS DP communication enables centralized monitoring of 50+ remote sites from a single operator workstation, reducing operational staffing requirements by 30%.

Automotive Paint Shop Automation: Robotic paint application cells leverage the IM 153-2's deterministic communication for synchronized motion control between conveyor systems, electrostatic spray guns, and curing ovens. The module's support for high-speed digital I/O modules (response time <10ms) ensures precise color changeover sequencing, minimizing paint waste and reducing changeover downtime from 45 minutes to 12 minutes per production run.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IM 153-2 High Feature variant (6ES7153-2BA02-0XBO) when your application requires redundant communication, HART device integration, or precise event timestamping. For basic ET 200M configurations without these advanced functions, consider the standard IM 153-1 interface module to optimize project costs. Verify PROFIBUS DP master compatibility (S7-300/400 CPU or third-party controller) and confirm available backplane power budget supports total I/O module consumption plus 1.5W interface overhead.

Extended Integration Capabilities

Industrial IoT Connectivity: When paired with S7-300 CPUs featuring Ethernet communication processors, the IM 153-2 enables cloud-based analytics platforms to access real-time HART diagnostic data from intelligent field devices. This architecture supports predictive maintenance strategies by streaming vibration signatures, valve travel deviations, and transmitter drift trends to machine learning algorithms without impacting deterministic control loop performance.

Multi-Vendor Interoperability: The module's compliance with PROFIBUS DP V1 specifications ensures seamless integration with third-party field devices from manufacturers including Endress+Hauser, Emerson, and ABB. Standardized GSD (General Station Description) file configuration eliminates proprietary driver dependencies, reducing engineering effort during system expansions or device replacements.

Scalable System Architecture: Deploy multiple IM 153-2 modules across distributed ET 200M stations to create segmented I/O networks serving different process zones. Each interface operates as an independent PROFIBUS DP slave (address range 1-125), enabling modular commissioning strategies where production areas activate sequentially without affecting operational zones.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via DHL Express or FedEx International Priority, with typical delivery to North America (5-7 business days), Europe (3-5 business days), and Asia-Pacific (4-6 business days). Expedited same-day shipping available for critical downtime situations upon request.

Warranty Coverage: Every 6ES7153-2BA02-0XBO module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes advance replacement shipment (RMA processed within 4 hours) and prepaid return logistics to minimize production interruptions.

Technical Support Services: Our automation specialists provide complimentary pre-sales application engineering (PROFIBUS network design, I/O module selection, redundancy architecture planning) and post-sales commissioning assistance including STEP 7 configuration file review, bus termination verification, and diagnostic troubleshooting via remote desktop support.

Documentation Package: Each module ships with installation quick-start guide, dimensional drawings for panel layout, and digital access to complete technical documentation including operating instructions (English/German/Chinese), GSD configuration files, and STEP 7 hardware catalog integration libraries.

Frequently Asked Questions

What distinguishes the IM 153-2 High Feature from standard IM 153-1 interface modules?
The High Feature variant (6ES7153-2BA02-0XBO) adds Y-link redundancy support for dual PROFIBUS DP masters, integrated HART protocol communication, and hardware-based event timestamping—capabilities absent in the basic IM 153-1 model. These advanced functions justify the 25-30% price premium in applications requiring maximum uptime or intelligent device diagnostics.

Can this interface module operate with S7-400 controllers or third-party PROFIBUS masters?
Yes, the IM 153-2 complies with PROFIBUS DP V1 international standards (IEC 61158), ensuring compatibility with any Class 1 DP master including Siemens S7-300/400 CPUs, Siemens S7-1500 with CM DP adapter, and third-party controllers from Schneider Electric, Rockwell Automation, or Mitsubishi Electric that support standard GSD file configuration.

How many HART devices can connect through a single IM 153-2 module?
The interface module itself doesn't limit HART device count—capacity depends on the number of HART-compatible analog input modules installed in the ET 200M station. Each 4-channel AI module (e.g., SM 331) supports 4 HART devices, so a fully populated 12-slot configuration could theoretically interface with 48 HART instruments, though practical installations typically deploy 16-24 intelligent devices per station.

Does the module require external 24V DC power supply or draw from backplane?
The IM 153-2 receives all operating power (1.5W typical consumption) through the ET 200M backplane from the system power supply module (PS 307 series). No external power connection required, but verify your PS 307 model provides sufficient current budget for the interface module plus all installed signal modules—typical safety margin is 20% above calculated total load.

What engineering software versions support configuration of this interface module?
The 6ES7153-2BA02-0XBO configures through Siemens STEP 7 V5.5 SP4 or later (Classic) and TIA Portal V13 or newer (Unified Engineering). Hardware catalog integration requires installing the latest ET 200M support package (HSP) available from Siemens Industry Online Support portal. GSD file installation enables configuration in third-party PROFIBUS engineering tools.

Can I hot-swap the IM 153-2 module during system operation without shutting down the ET 200M station?
No—the interface module is NOT hot-swappable. Replacing the IM 153-2 requires powering down the entire ET 200M station because it provides the PROFIBUS DP communication link for all installed I/O modules. However, individual signal modules (AI, AO, DI, DO) support hot-swap replacement while the interface module remains powered and communicating with the DP master.

Optimize Your Automation Investment

The Siemens IM 153-2 High Feature interface module represents a strategic component choice for industrial facilities prioritizing long-term system reliability over initial capital costs. Its advanced redundancy and diagnostics capabilities reduce unplanned downtime costs that typically exceed $10,000 per hour in continuous process industries, delivering ROI within 6-12 months through improved availability metrics.

Ready to enhance your ET 200M distributed I/O architecture? Contact our automation specialists for application-specific configuration guidance, volume pricing for multi-station projects, or technical consultation on migrating legacy PROFIBUS networks to modern redundant architectures. We provide same-day quotations and can coordinate delivery with your planned maintenance windows to minimize installation disruption.

Request a detailed technical datasheet, CAD mounting drawings, or STEP 7 sample configuration project by emailing our engineering team today.
