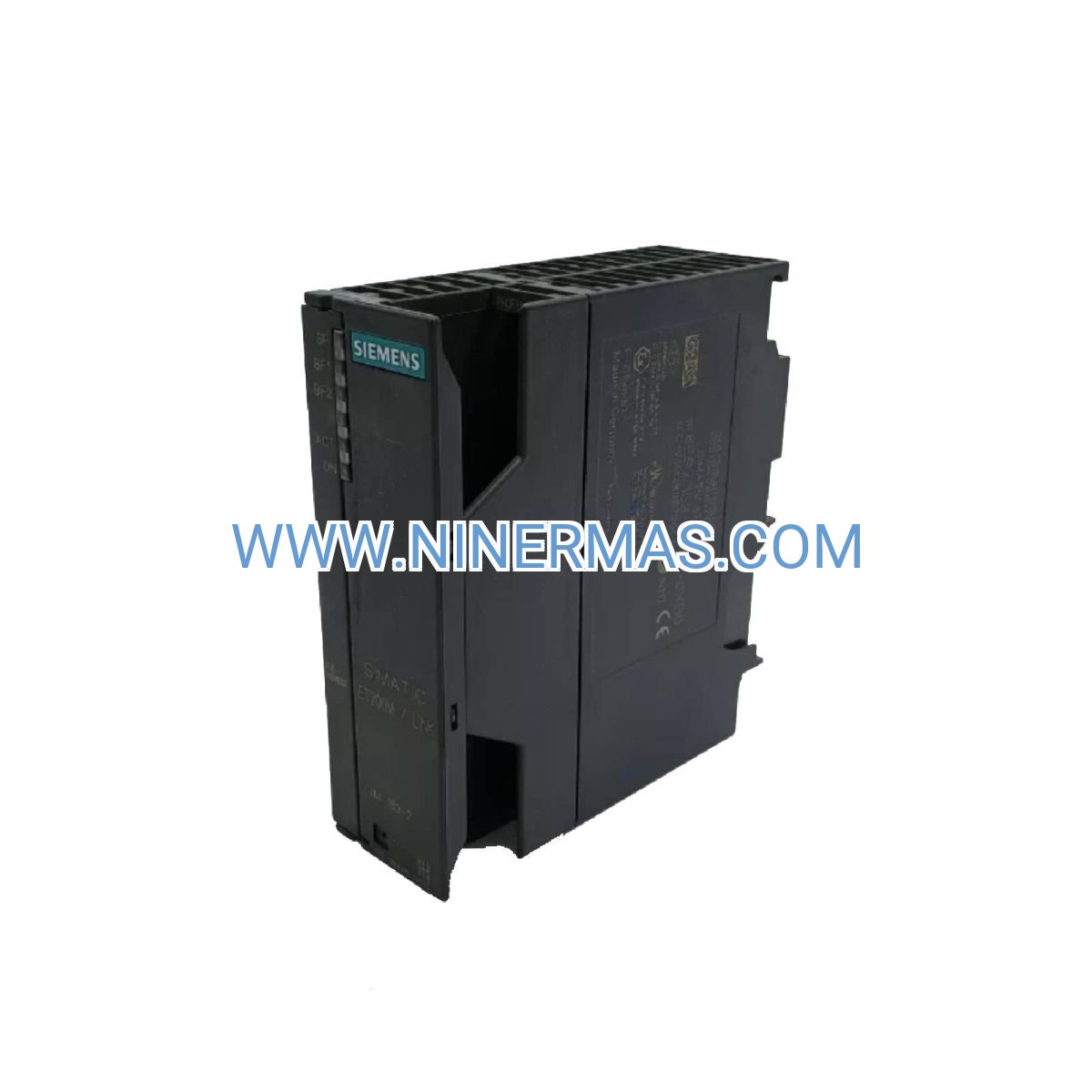

IM 153-2 PROFIBUS DP Interface Module (Industrial-Grade Communication Hub)

The Siemens 6ES7153-2BA01-0XB0 represents a proven solution for distributed I/O connectivity in process automation and discrete manufacturing environments. As a core component of the ET 200M modular system, this interface module establishes high-speed PROFIBUS DP communication between central S7-300/400 controllers and remote field devices, enabling scalable architecture for complex industrial networks.

Engineered for mission-critical applications, this module addresses the fundamental challenge of extending control system reach while maintaining deterministic response times. Plant engineers and system integrators rely on the IM 153-2 platform to reduce cabinet footprint, minimize wiring complexity, and achieve flexible zone-based control strategies across production lines, utility infrastructure, and material handling systems.

With support for up to 8 I/O modules per station and transmission rates reaching 12 Mbps, the 6ES7153-2BA01-0XB0 delivers the performance headroom required for demanding real-time applications. Integrated LED diagnostics and hot-swap capability ensure maximum uptime while simplifying maintenance workflows in 24/7 operational environments.

Core Features & Advantages

→ Deterministic PROFIBUS DP Protocol
Achieves cycle times under 10ms for time-critical process control, ensuring synchronized operation across distributed stations with guaranteed message delivery and built-in error detection mechanisms.

→ Flexible System Scalability
Accommodates up to 8 signal modules per interface station, allowing incremental capacity expansion without redesigning network topology or replacing existing infrastructure investments.

→ Comprehensive Fault Diagnostics
Multi-color LED indicators provide instant visibility into module status, bus communication health, and I/O channel faults, reducing mean time to repair by 40% compared to systems without integrated diagnostics.

✓ Hot-Swap Module Replacement
Enables live replacement of I/O modules during operation without halting production processes, supporting predictive maintenance strategies and eliminating costly scheduled downtime.

✓ Compact DIN Rail Mounting
Standard 40mm width profile optimizes control cabinet space utilization, reducing enclosure size requirements by up to 30% versus traditional terminal block wiring approaches.

✓ Extended Environmental Tolerance
Operates reliably across 0°C to +60°C ambient temperature range with IP20 protection, suitable for factory floor installations without climate-controlled enclosures.

Typical Application Scenarios

Chemical Process Automation
Distributed control of reactor vessels, distillation columns, and batch mixing systems where remote I/O stations monitor temperature, pressure, and flow parameters across multi-zone production facilities. Eliminates 200+ meters of point-to-point wiring while enabling centralized HMI visualization and recipe management.

Automotive Manufacturing Lines
Robotic welding cells and assembly stations requiring coordinated motion control with distributed safety I/O for light curtains, e-stops, and position sensors. Reduces installation time by 50% compared to conventional hardwired architectures while supporting flexible line reconfiguration.

Water & Wastewater Treatment
SCADA networks controlling pump stations, clarifiers, and filtration equipment distributed across treatment plant zones. Provides reliable communication over extended distances (up to 1,200m with repeaters) while maintaining real-time response for critical alarm conditions.

Packaging & Material Handling
Conveyor systems with distributed barcode scanners, weight scales, and diverter controls across warehouse automation networks. Supports dynamic routing logic and inventory tracking with sub-second response times for high-throughput operations.

Energy Distribution Monitoring
Substation automation systems collecting voltage, current, and power quality data from remote transformer yards and switchgear installations. Enables predictive maintenance analytics through continuous monitoring of electrical parameters.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IM 153-2 standard variant (6ES7153-2BA01-0XB0) for applications requiring up to 8 I/O modules per station with standard diagnostic capabilities. For systems demanding higher module density (up to 12 modules) or advanced features like isochronous mode, consider the IM 153-1 or IM 153-2 HF (High Feature) alternatives. Verify compatibility with your existing S7-300/400 CPU firmware version and ensure PROFIBUS baud rate matches network segment requirements.

Extended Functions

STEP 7 Integration: Seamless configuration through SIMATIC STEP 7 hardware catalog with automatic GSD file recognition. Supports online diagnostics, firmware updates, and parameter assignment without manual addressing.

Redundancy Preparation: While this standard module does not support redundant configurations, the ET 200M architecture allows future migration to redundant IM 153-2 HF variants without replacing I/O modules or field wiring.

Third-Party Interoperability: Complies with PROFIBUS DP V0/V1 specifications, enabling integration with non-Siemens field devices including drives, sensors, and actuators from major automation vendors.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom configurations with pre-assembled I/O racks available with 7-10 day lead time.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to certified Siemens automation specialists for installation guidance, network troubleshooting, and system optimization. Remote diagnostic assistance available during commissioning phase.

Documentation Package: Includes product manual, GSD configuration file, wiring diagrams, and dimensional drawings. STEP 7 sample projects available upon request for accelerated deployment.

Frequently Asked Questions

How does the IM 153-2 interface module differ from the IM 153-1 variant?
The IM 153-2 supports a maximum of 8 I/O modules per station with enhanced diagnostic capabilities and faster bus cycle times, while the IM 153-1 accommodates up to 12 modules with basic functionality. For applications prioritizing diagnostic depth and performance, the IM 153-2 is recommended; for maximum I/O density in cost-sensitive projects, the IM 153-1 may be suitable.

What is the maximum PROFIBUS network distance achievable with this interface?
Segment length depends on selected baud rate: 1,200 meters at 9.6-187.5 Kbps, 400 meters at 500 Kbps, 200 meters at 1.5 Mbps, and 100 meters at 12 Mbps. Deploy RS485 repeaters to extend total network reach beyond single-segment limits while maintaining signal integrity.

Can I mix analog and digital I/O modules on the same ET 200M station?
Yes, the IM 153-2 interface supports heterogeneous I/O configurations including digital input/output, analog input/output, and specialty modules (counters, encoders, temperature) within the 8-module limit. Ensure total backplane current consumption does not exceed power module capacity.

Is firmware update possible for installed IM 153-2 modules?
Firmware updates are performed via PROFIBUS using STEP 7 software without removing the module from the rack. Consult Siemens support portal for latest firmware versions and compatibility matrices before updating production systems.

Does this module support safety-rated I/O for machine guarding applications?
The standard IM 153-2 does not support PROFIsafe protocol required for SIL-rated safety functions. For safety-critical applications, use the IM 153-2 HF variant with certified PROFIsafe I/O modules and appropriate safety CPU.

What configuration software is required for initial setup?
SIMATIC STEP 7 V5.x (TIA Portal V13 or later for newer projects) is required for hardware configuration, parameter assignment, and network diagnostics. The module is auto-detected during hardware scan and configured via drag-and-drop interface.

Get Started with Your Distributed I/O Project

Ready to optimize your control system architecture? Contact our automation specialists for application-specific configuration guidance, system sizing calculations, and volume pricing. Request a technical consultation to evaluate ET 200M suitability for your process requirements.
