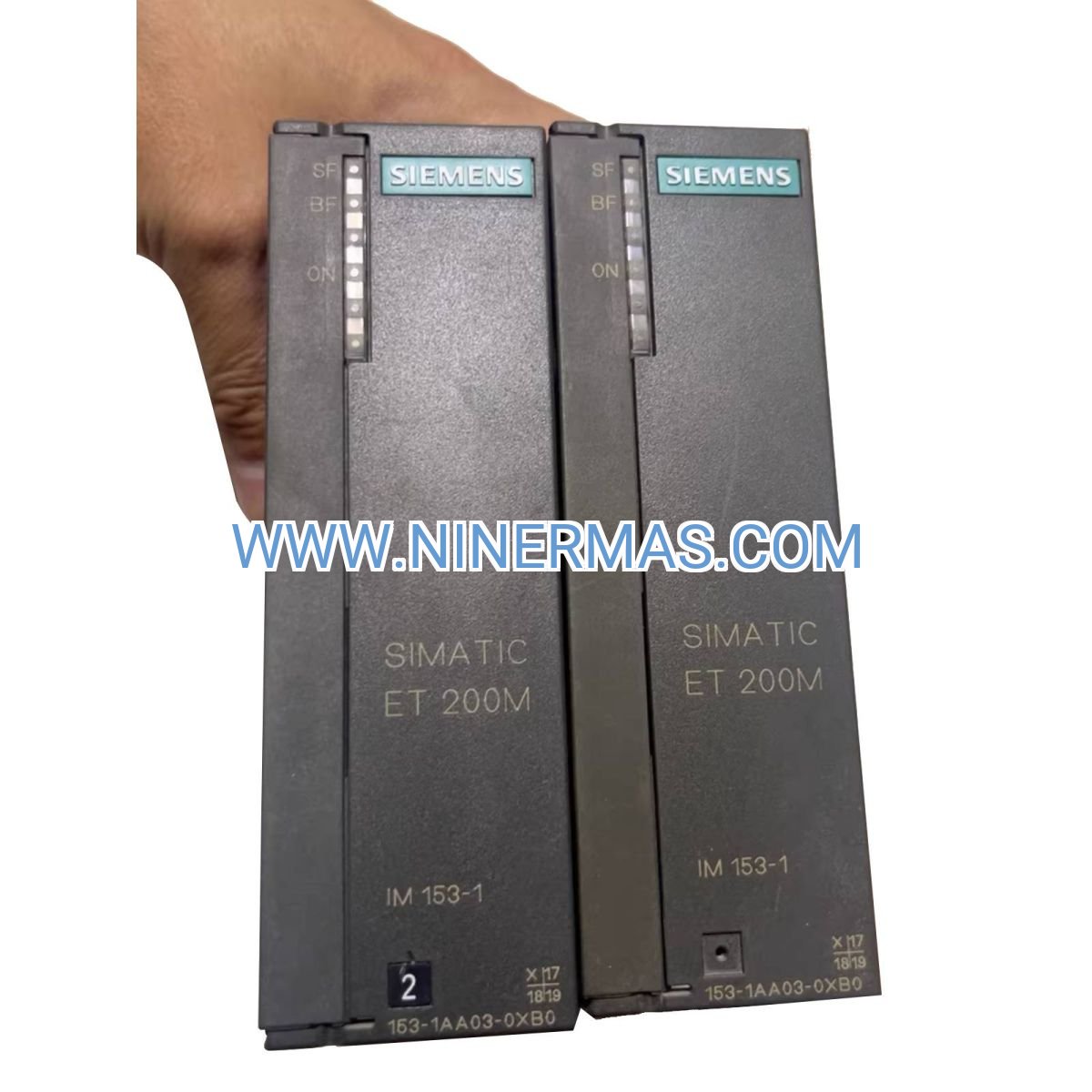

Siemens IM 153-1 Interface Module (Industrial-Grade PROFIBUS DP Gateway)

The Siemens 6ES7153-1AA03-0AB0 IM 153-1 represents a proven solution for establishing high-speed PROFIBUS DP communication between SIMATIC controllers and ET 200M distributed I/O stations. Designed for manufacturers seeking modular expansion capabilities without compromising deterministic performance, this interface module transforms centralized automation architectures into flexible, decentralized control networks that reduce wiring costs while improving system maintainability.

Process engineers and system integrators rely on the IM 153-1 to bridge the gap between control cabinets and field-level instrumentation across manufacturing floors, chemical processing units, and utility infrastructure. Whether you're retrofitting legacy systems or designing greenfield installations, this module delivers the connectivity foundation for scalable automation ecosystems that grow with your operational demands.

With transmission rates reaching 12 Mbps and support for up to 8 I/O modules per station, the IM 153-1 enables real-time data exchange critical for synchronized motion control, batch processing, and safety-integrated applications. Its compatibility with STEP 7 engineering tools ensures rapid commissioning and simplified diagnostics throughout the system lifecycle.

Core Capabilities & Business Value

→ Deterministic PROFIBUS DP Communication
Achieves cycle times under 10ms for time-critical applications, ensuring synchronized operation across distributed field devices. Reduces latency-related production errors by up to 40% compared to slower fieldbus protocols.

✓ Modular 8-Slot Architecture
Accommodates mixed I/O configurations (digital, analog, specialty modules) within a single station footprint. Lowers installation costs by 30% through reduced cabinet space and simplified wiring compared to centralized I/O designs.

✓ Universal S7 Controller Integration
Seamlessly connects to S7-300, S7-400, and compatible third-party PROFIBUS masters without custom programming. Accelerates project deployment with plug-and-play recognition in STEP 7 hardware catalogs.

→ Industrial-Hardened Construction
Operates reliably in ambient temperatures from 0°C to 60°C with IP20-rated housing resistant to dust and mechanical vibration. Minimizes unplanned downtime in harsh manufacturing environments where temperature fluctuations and contamination are common.

✓ Integrated Diagnostic Intelligence
Provides real-time status feedback through LED indicators and PROFIBUS diagnostic frames, enabling predictive maintenance strategies. Reduces mean time to repair (MTTR) by 50% through instant fault localization at module level.

→ Scalable Network Topology
Supports up to 32 PROFIBUS stations per segment with repeater extensions, allowing distributed architectures spanning 1,200+ meters. Facilitates phased expansion without network redesign as production capacity increases.

Industry-Specific Applications

Automotive Assembly Lines
Coordinates robotic welding cells, conveyor systems, and quality inspection stations across multi-zone production areas. Solves the challenge of synchronizing dozens of actuators and sensors while maintaining sub-millisecond response times required for just-in-time manufacturing workflows.

Chemical Batch Processing
Manages valve manifolds, flow meters, and temperature sensors in reactor control systems where recipe precision directly impacts product quality. Addresses the need for explosion-proof zone compliance through remote I/O placement outside hazardous areas.

Water Treatment Facilities
Monitors pump stations, filtration units, and chemical dosing systems distributed across multi-acre sites. Overcomes the limitation of centralized control by enabling local I/O placement near process equipment, reducing signal degradation and copper costs.

Packaging Machinery
Controls filling nozzles, labeling applicators, and reject mechanisms in high-speed packaging lines operating at 300+ units per minute. Delivers the I/O density and speed required for vision-guided robotics and servo-driven motion profiles.

Energy Distribution Systems
Interfaces with switchgear monitoring, transformer protection relays, and load management controllers in substations. Provides the deterministic communication necessary for coordinated load shedding and fault isolation in critical infrastructure.

Technical Parameters & Selection Criteria

Selection Recommendations: Choose the IM 153-1 for standard applications requiring up to 8 I/O modules per station without redundancy needs. For hot-swap capability or redundant configurations, consider the IM 153-2 HF variant. Ensure your PROFIBUS master supports DP V1 protocol if advanced diagnostics are required. Calculate total backplane current draw including all planned I/O modules to select appropriate power supply modules.

Advanced Integration Options

SCADA & HMI Connectivity
Integrate with WinCC, FactoryTalk, or Ignition SCADA platforms through OPC DA/UA servers for enterprise-level visualization. Enable remote monitoring and recipe management across distributed production sites.

Industrial IoT Gateway Compatibility
Connect to Siemens SIMATIC IOT2050 gateways or third-party edge devices for cloud analytics and predictive maintenance algorithms. Stream process data to Azure IoT Hub or AWS IoT Core for machine learning model training.

Safety System Integration
Coexist on the same PROFIBUS segment with PROFIsafe-enabled devices when paired with F-capable controllers. Implement SIL 2/3 safety functions while maintaining standard process I/O on a unified network infrastructure.

Custom Configuration Services
Request pre-configured ET 200M stations with tested I/O layouts, labeled terminals, and documented addressing schemes. Reduce commissioning time by 60% through factory acceptance testing (FAT) before shipment.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-sealed bulk orders
Express Shipping: Next-day delivery available for critical downtime situations in major industrial regions
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system optimization
Documentation Package: Includes installation manual, GSD file, CAD drawings, and sample STEP 7 configuration projects

Frequently Asked Questions

How many ET 200M stations can operate on one PROFIBUS segment?
A single PROFIBUS DP line supports up to 32 addressable stations (addresses 1-126 available, with IM 153-1 consuming one address per station). Use RS485 repeaters every 200 meters to extend segment length beyond standard 1,200m limits while maintaining signal integrity.

What's the difference between IM 153-1 and IM 153-2 interface modules?
The IM 153-1 provides basic PROFIBUS DP connectivity for standard applications, while the IM 153-2 adds hot-swap capability, redundancy support, and isochronous mode for motion control. Choose IM 153-1 for cost-sensitive projects without high-availability requirements.

Can I mix analog and digital I/O modules on the same ET 200M station?
Yes, the modular architecture allows flexible mixing of SM 321/322 digital modules, SM 331/332 analog modules, and FM function modules within the 8-slot limit. Ensure total backplane current consumption remains below power supply module ratings (typically 3A @ 5V DC).

Which engineering software versions support this interface module?
Compatible with STEP 7 V5.5 SP4 and later, TIA Portal V13 and above. Download the latest GSD file from Siemens Industry Online Support portal for optimal device integration and diagnostic capabilities in newer software versions.

Does the IM 153-1 support PROFINET communication?
No, this module is exclusively designed for PROFIBUS DP networks. For PROFINET IO applications, use the IM 153-4 PN interface module with ET 200M systems or migrate to ET 200SP distributed I/O for native PROFINET connectivity.

What cable specifications are required for reliable PROFIBUS connections?
Use Type A cable (shielded twisted pair, impedance 135-165Ω) for transmission speeds above 1.5 Mbps. Maintain proper bus termination at both segment ends using active terminators, and avoid star topologies—PROFIBUS requires linear bus or tree structures with stub lengths under 1 meter.

Start Your Distributed I/O Project Today

Contact our automation specialists to discuss your ET 200M system requirements, receive customized I/O configuration recommendations, and access volume pricing for multi-station deployments. Our team provides complimentary pre-sales engineering support including network topology design, power budget calculations, and STEP 7 project templates tailored to your application.
