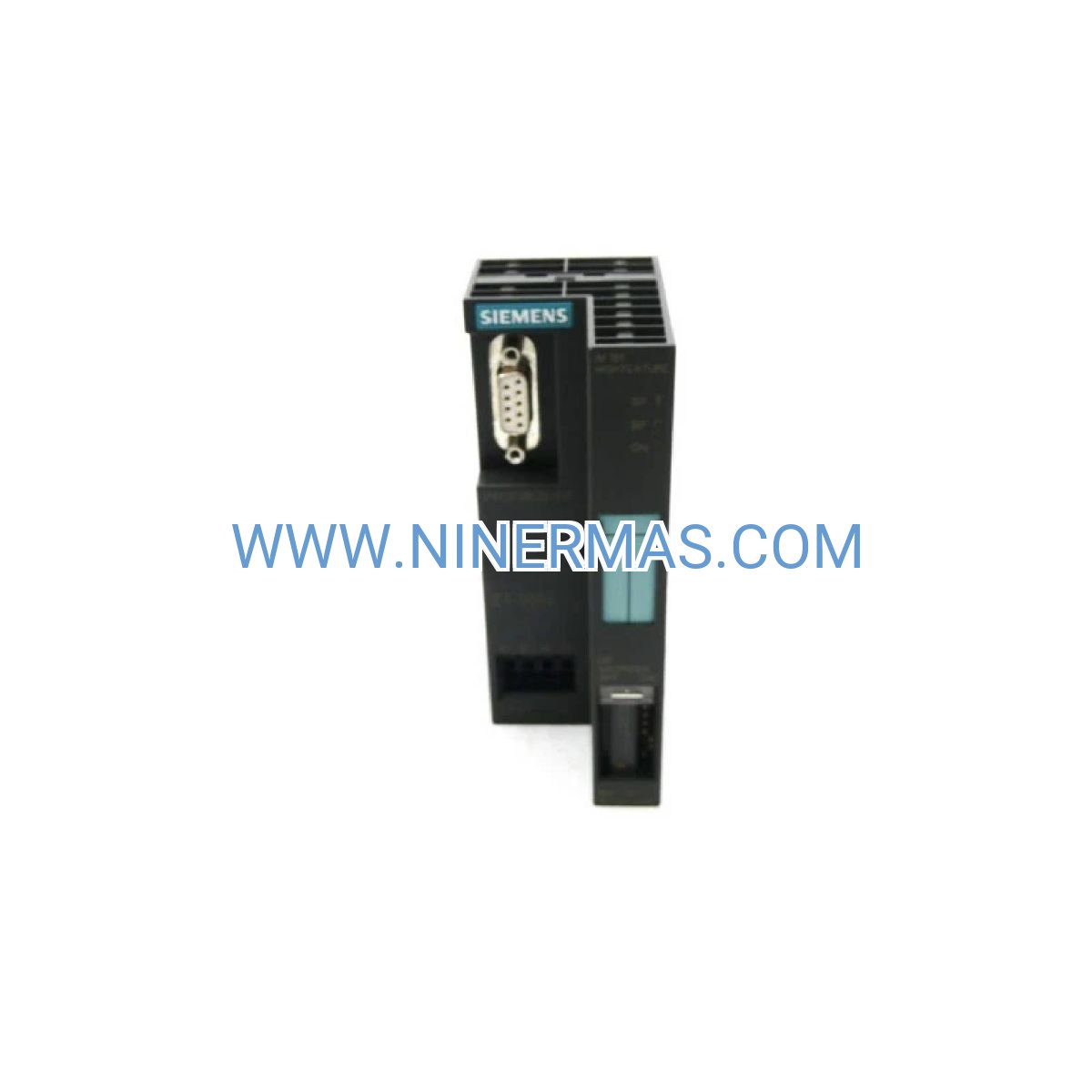

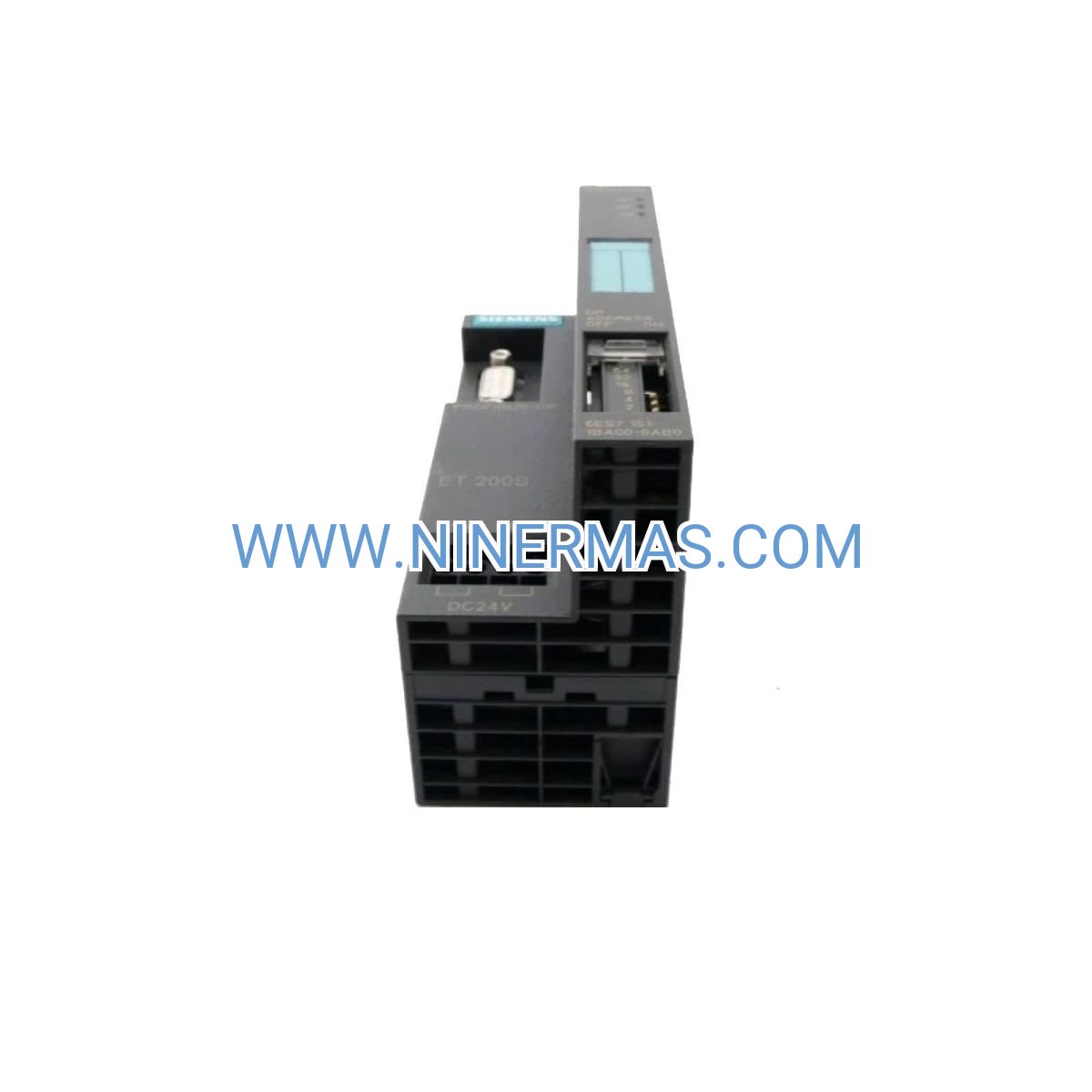

IM151-1 High Feature PROFIBUS DP Interface Module (Industrial-Grade Connectivity Solution)

The 6ES7151-1BA00-0AB0 IM151-1 interface module represents Siemens' advanced solution for establishing high-performance PROFIBUS DP communication between centralized controllers and distributed ET200S I/O stations. Designed for manufacturers and system integrators operating in process industries, discrete manufacturing, and infrastructure sectors, this interface module delivers deterministic data exchange with exceptional throughput and diagnostic intelligence.

Industrial facilities face mounting pressure to reduce installation costs while improving system flexibility and maintenance efficiency. Traditional centralized I/O architectures create cable congestion, limit scalability, and complicate troubleshooting. The IM151-1 addresses these challenges by enabling decentralized I/O placement directly at process equipment, reducing wiring expenses by up to 40% while providing modular expansion capabilities that adapt to evolving production requirements.

This PROFIBUS DP interface serves automation engineers, control system designers, and plant maintenance teams who demand reliable fieldbus connectivity with comprehensive diagnostic visibility. Whether you're modernizing legacy systems, designing new production lines, or expanding existing automation infrastructure, the IM151-1 provides the robust communication backbone essential for Industry 4.0-ready manufacturing operations.

Core Capabilities & Business Value

✓ High-Speed Deterministic Communication
Achieves transmission rates up to 12 Mbit/s across PROFIBUS DP networks, ensuring cycle times under 10ms for time-critical control loops. This performance level supports synchronized motion control, high-speed packaging operations, and real-time quality inspection systems where millisecond-level response determines production efficiency and product quality.

✓ Expanded Data Handling Capacity
Processes 244 bytes of input data and 244 bytes of output data per station, enabling complex automation architectures with mixed analog and digital signals. This capacity eliminates the need for multiple interface modules in medium-to-large I/O configurations, reducing hardware costs and simplifying network topology design.

✓ Scalable Modular Architecture
Supports up to 63 I/O modules per ET200S station, providing exceptional flexibility for system expansion without controller replacement. Add digital inputs, analog outputs, motor starters, and specialty modules as production requirements evolve, protecting your automation investment while maintaining consistent programming and diagnostic interfaces.

→ Integrated Diagnostic Intelligence
Features multi-color LED status indicators and comprehensive PROFIBUS DP diagnostic protocols that identify faults down to individual module level. Maintenance teams reduce troubleshooting time by 60% through precise fault localization, while predictive diagnostic buffers enable condition-based maintenance strategies that prevent unplanned downtime.

→ Hot-Swap Operational Continuity
Enables module replacement during system operation in properly configured applications, eliminating production stoppages for routine maintenance. This capability proves critical in continuous process industries where shutdown costs exceed $50,000 per hour, transforming maintenance windows from production liabilities into scheduled optimization opportunities.

→ Industrial-Hardened Construction
Operates reliably across -25°C to +60°C temperature range with vibration resistance meeting IEC 60068-2-6 standards. Conformal coating and robust connector design ensure consistent performance in environments with airborne contaminants, temperature cycling, and mechanical stress typical of foundries, chemical plants, and outdoor installations.

Industrial Application Scenarios

Chemical Processing & Batch Manufacturing
Distributed I/O architecture places signal conditioning and isolation directly at reactor vessels, mixing tanks, and filtration skids. The IM151-1's 244-byte data capacity accommodates complex recipes with dozens of analog process variables, while diagnostic capabilities identify sensor drift and valve positioning errors before they impact batch quality. Typical installations reduce control cabinet wiring by 35% and improve mean time to repair by 45%.

Automotive Assembly & Material Handling
High-speed PROFIBUS communication synchronizes conveyor systems, robotic work cells, and automated guided vehicles across multi-zone production lines. The 12 Mbit/s transmission rate supports sub-10ms update cycles essential for coordinated motion control, while the 63-module capacity enables comprehensive sensor integration for quality gates, barcode verification, and safety interlocks without network segmentation.

Water Treatment & Municipal Infrastructure
Remote pump stations, lift stations, and filtration plants benefit from decentralized I/O placement that minimizes expensive underground cable runs. The IM151-1's extended temperature rating and diagnostic capabilities support unmanned facilities with SCADA integration, while the modular architecture accommodates seasonal capacity additions and regulatory compliance upgrades without system redesign.

Food & Beverage Production
Meets hygiene requirements for washdown environments when installed in appropriate IP65-rated enclosures. The interface module's diagnostic intelligence tracks CIP (clean-in-place) cycle completion, valve position verification, and temperature monitoring across filling lines, pasteurization systems, and packaging equipment. Integration with recipe management systems enables rapid product changeovers while maintaining full traceability for regulatory compliance.

Energy & Utilities Distribution
Substation automation and renewable energy installations leverage the IM151-1's robust communication for distributed monitoring and control. The module's certification portfolio (CE, UL, cULus, FM, ATEX) supports deployment in hazardous locations when paired with appropriate safety barriers, while the diagnostic capabilities enable predictive maintenance strategies that reduce site visits by 30%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IM151-1 High Feature variant when your application requires more than 32 bytes of I/O data, more than 12 modules per station, or advanced diagnostic capabilities. For basic applications with limited I/O requirements, the IM151-1 Standard variant offers cost-effective connectivity. Evaluate total station current consumption to ensure your PM-E power module provides adequate capacity for the interface module plus all connected I/O modules.

Advanced Integration Capabilities

Controller Compatibility: The IM151-1 integrates seamlessly with SIMATIC S7-300 and S7-400 controller families through standard PROFIBUS DP protocol. Configuration occurs within STEP 7 Classic (V5.x) or TIA Portal (V13 and later) engineering environments using automatic hardware detection and GSD file import. The module supports both DP-V0 and DP-V1 protocol extensions, enabling acyclic data exchange for parameter assignment and diagnostic retrieval during runtime.

Redundancy Architecture: Deploy in redundant PROFIBUS configurations with dual controllers and Y-link network topology for mission-critical applications. The IM151-1 supports bumpless switchover when configured with appropriate redundant S7-400H controllers, maintaining process continuity during controller failures or maintenance activities. Typical switchover times remain under 100ms for most I/O configurations.

Safety Integration: Combine with PROFIsafe-enabled I/O modules to implement SIL 3 safety functions within the same ET200S station. The IM151-1 handles both standard process I/O and safety-related signals simultaneously, reducing hardware costs and simplifying cabinet layouts. Safety cycle times remain independent of standard I/O communication, ensuring deterministic emergency stop and safety interlock response.

IoT & Industry 4.0 Readiness: Access diagnostic data and process variables through PROFIBUS DP-V1 acyclic services for integration with MES, SCADA, and cloud analytics platforms. The module's comprehensive diagnostic buffers support predictive maintenance algorithms that analyze communication quality metrics, module health indicators, and environmental stress factors to forecast component failures before they impact production.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier with tracking. Typical delivery to major industrial centers occurs within 3-5 business days for domestic shipments, 7-10 business days for international destinations. All modules ship in original Siemens factory packaging with anti-static protection and handling documentation.

Custom Configuration Services: Pre-configured ET200S stations with tested I/O modules, power supplies, and terminal blocks available with 5-7 business day lead time. Our application engineers provide configuration file development, documentation packages, and factory acceptance testing to accelerate commissioning and reduce on-site startup time by up to 50%.

Warranty Coverage: Every IM151-1 interface module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes advance replacement shipping to minimize downtime, with typical turnaround under 48 hours for in-stock replacements. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to application engineering support for configuration assistance, network troubleshooting, and system optimization. Support services include STEP 7 program review, PROFIBUS network analysis, and diagnostic interpretation. Documentation packages include installation manuals, GSD files, CAD drawings, and certification documents in PDF format.

Frequently Asked Questions

How does the High Feature version differ from Standard IM151-1 modules?
The High Feature variant (6ES7151-1BA00-0AB0) provides 244 bytes of I/O data versus 32 bytes in Standard versions, supports 63 modules versus 12 modules, and includes enhanced diagnostic capabilities with detailed fault localization. High Feature modules also support DP-V1 acyclic services for parameter assignment and advanced diagnostic retrieval. Select High Feature for applications requiring extensive I/O capacity or sophisticated diagnostic integration with SCADA systems.

What PROFIBUS network topology options are supported?
The IM151-1 operates in standard line topology with RS485 electrical interface, supporting up to 32 stations per segment without repeaters. Network distances extend to 1200 meters at 9.6 kbit/s, reducing to 100 meters at 12 Mbit/s. Use RS485 repeaters to extend segment length or increase station count beyond 32 devices. Fiber optic variants available for applications requiring EMI immunity or extended distances beyond 15 kilometers.

Can I mix different I/O module types on the same ET200S station?
Yes, the IM151-1 supports heterogeneous I/O configurations combining digital inputs, digital outputs, analog inputs, analog outputs, motor starters, and specialty modules within the same station. Total I/O data must remain within the 244-byte input and 244-byte output limits. Use STEP 7 hardware configuration tools to verify data mapping and ensure proper module sequencing for optimal performance.

What diagnostic information is available for troubleshooting?
The interface module provides multi-level diagnostics including bus fault indication (red LED), module status (green LED), and communication activity (yellow LED). PROFIBUS DP diagnostics deliver module-level fault identification, I/O channel status, and parametrization errors accessible through STEP 7 diagnostic buffers. Advanced diagnostics include communication quality metrics, error counters, and environmental stress indicators for predictive maintenance applications.

How do I calculate power supply requirements for my ET200S station?
Sum the current consumption of the IM151-1 interface module (100 mA typical) plus all connected I/O modules from their respective datasheets. Add 20% safety margin to account for inrush current and aging. Select a PM-E power module with output current rating exceeding this total. For stations with high-power modules like motor starters, consider multiple power modules distributed across the station to balance load and improve thermal management.

Is this module suitable for hazardous area installations?
The IM151-1 carries ATEX and IECEx certifications for use in Zone 2/Division 2 hazardous locations when installed in appropriate enclosures with proper installation practices. For Zone 1/Division 1 applications, use intrinsically safe I/O modules with approved barriers or specify Ex-rated ET200S variants designed for direct hazardous area mounting. Consult local electrical codes and certification requirements for specific installation guidance.

Order Your IM151-1 Interface Module Today

Transform your automation infrastructure with the proven reliability and performance of Siemens SIMATIC ET200S distributed I/O. The 6ES7151-1BA00-0AB0 IM151-1 High Feature interface module delivers the robust PROFIBUS DP connectivity, diagnostic intelligence, and scalability essential for modern industrial automation systems.

Contact our application engineering team for configuration assistance, system design consultation, or technical specifications. We maintain extensive inventory of complementary ET200S components including power modules, I/O modules, terminal blocks, and network infrastructure for complete system integration. Request a quote today and experience the difference that premium industrial automation components make in production efficiency and system reliability.
