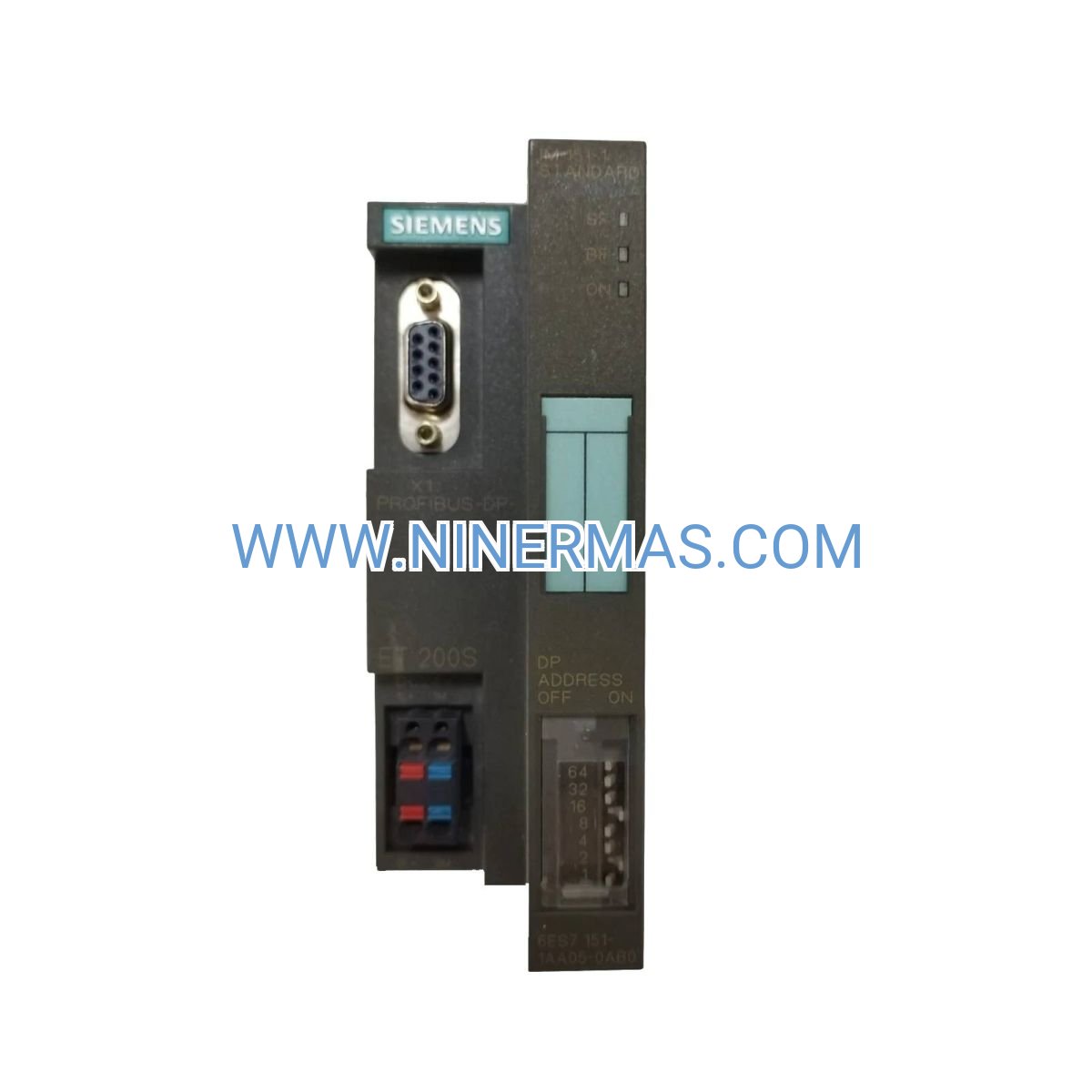

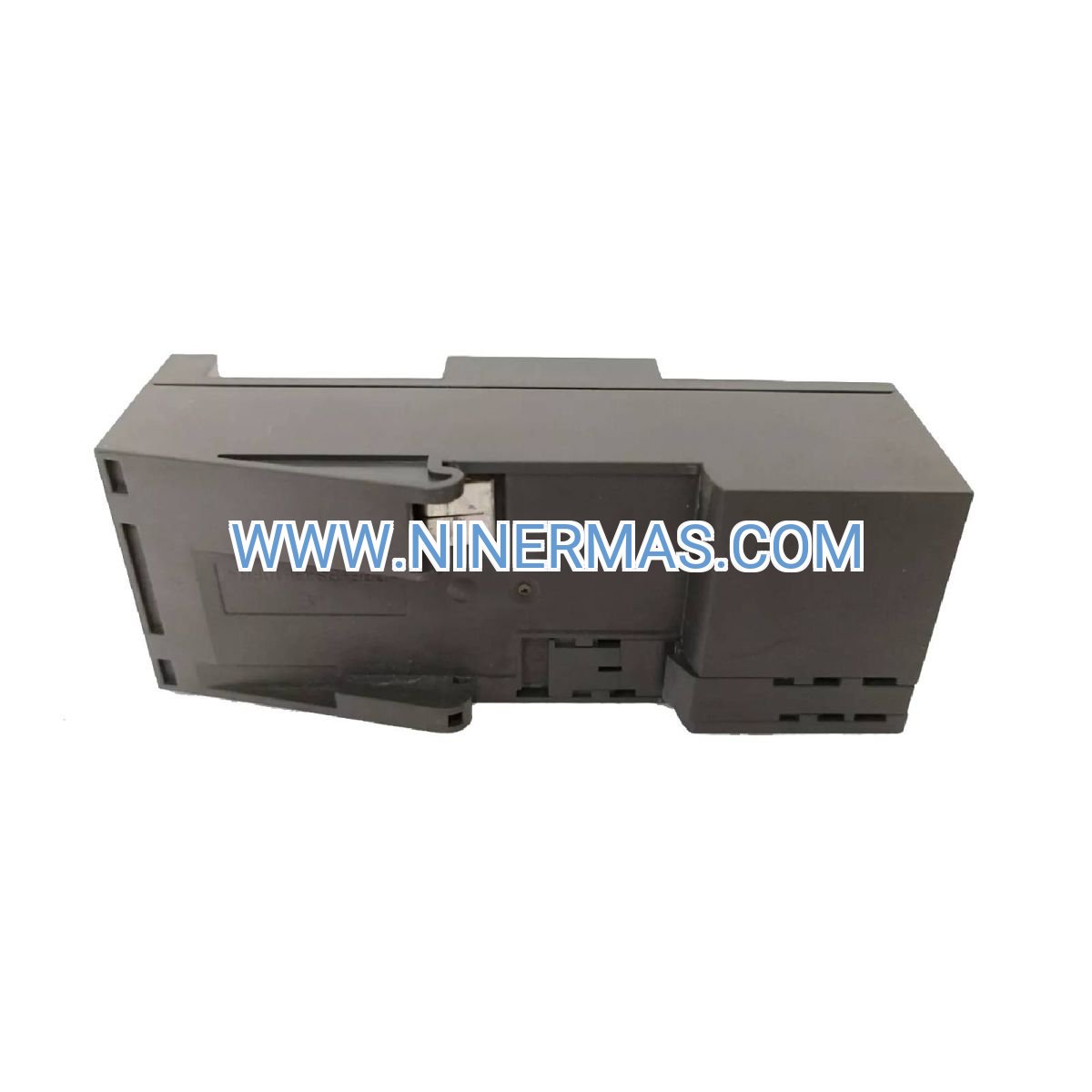

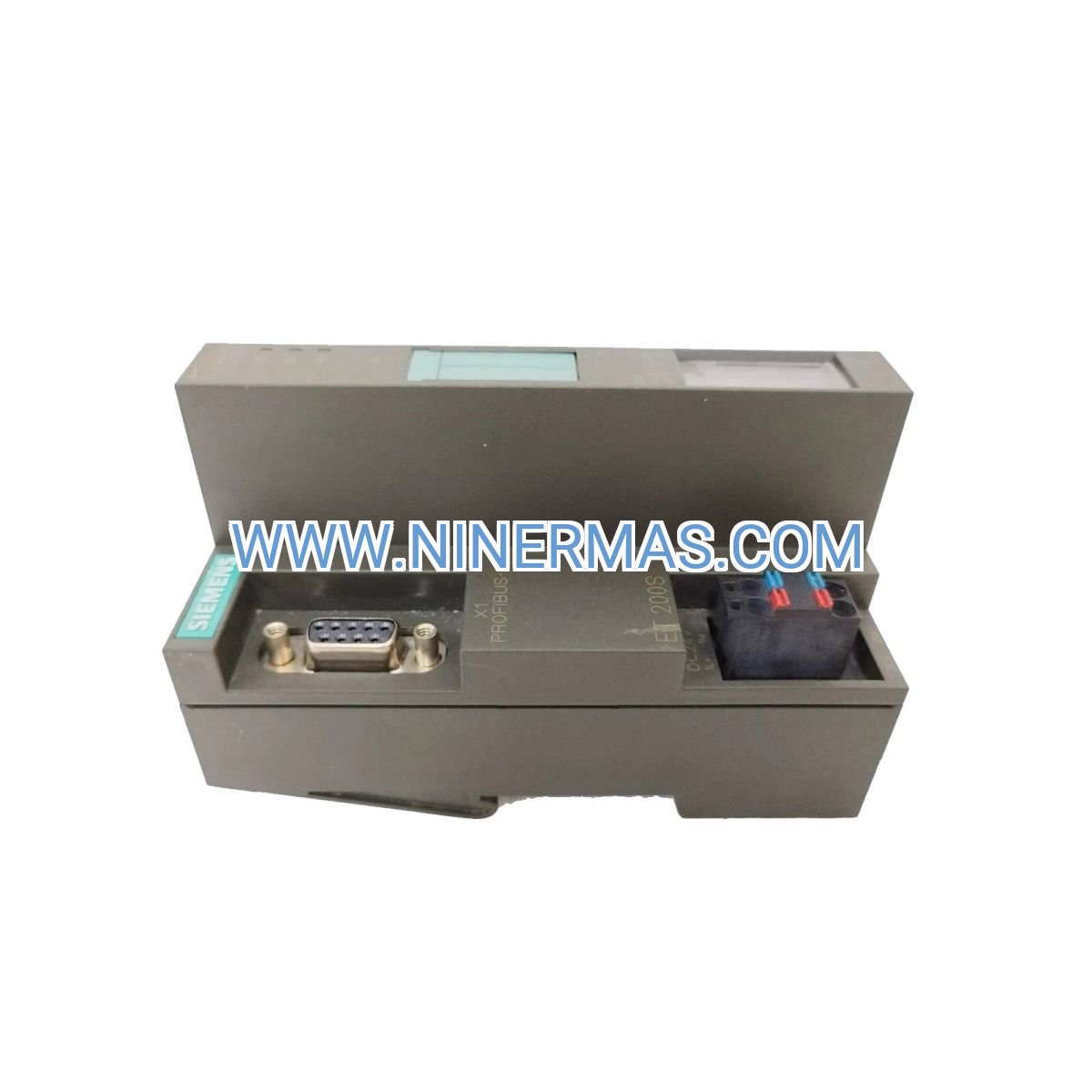

IM 151-1 Standard Interface Module (Industrial-Grade PROFIBUS Gateway)

The Siemens 6ES7151-1AA05-0AB0 represents a proven communication backbone for ET 200S distributed I/O architectures in mission-critical industrial environments. As the primary PROFIBUS DP gateway, this interface module bridges central PLCs with decentralized field devices, enabling deterministic data exchange at speeds reaching 12 Mbps across process automation, discrete manufacturing, and infrastructure control applications.

Designed for system integrators and plant engineers managing complex automation networks, the IM 151-1 Standard eliminates communication bottlenecks in multi-zone production facilities. Whether coordinating assembly line robotics, monitoring chemical batch processes, or controlling water treatment operations, this module delivers the reliability and scalability demanded by Industry 4.0 implementations.

Key advantages include hot-swappable I/O expansion without system shutdown, comprehensive diagnostic feedback through tri-color LED indicators, and seamless compatibility with Siemens S7-300/400/1500 controller families. The compact 15mm width conserves valuable control cabinet space while supporting up to 63 peripheral modules per station—ideal for phased expansion strategies.

Core Features & Business Value

→ High-Speed PROFIBUS DP V0/V1 Protocol
Achieves deterministic cycle times under 10ms for time-critical control loops, ensuring synchronized motion control and rapid fault response in automated production lines.

→ Scalable 63-Module Architecture
Supports incremental I/O expansion from pilot installations to enterprise-scale deployments, protecting initial capital investment while accommodating future growth without infrastructure redesign.

→ Hot-Swap Maintenance Capability
Enables module replacement during live operation when properly configured, reducing unplanned downtime costs by up to 40% in continuous process industries.

→ Integrated Diagnostic Intelligence
BF/SF/MAINT LED arrays provide instant visual fault identification, cutting troubleshooting time from hours to minutes and minimizing mean time to repair (MTTR).

→ Rugged Industrial Construction
0°C to +60°C operating range with IP20 protection withstands harsh factory floor conditions including vibration, electrical noise, and temperature fluctuations common in metal fabrication and chemical processing.

→ Universal Controller Compatibility
Direct integration with SIMATIC S7 PLC families eliminates protocol conversion overhead, simplifying engineering workflows and reducing commissioning timelines by 25-30%.

Typical Application Scenarios

Automotive Assembly Automation
Coordinates distributed I/O across welding robots, conveyor systems, and quality inspection stations in body-in-white production. Solves the challenge of centralized wiring complexity while enabling zone-based control architecture. Delivers 15-20% reduction in installation labor costs and improved fault isolation.

Chemical Batch Processing
Manages remote valve manifolds, temperature transmitters, and flow meters in reactor control systems. Addresses the need for explosion-proof area segregation while maintaining real-time process visibility. Provides deterministic response for safety-critical interlocks and recipe management.

Water & Wastewater Treatment
Links pump stations, clarifier controls, and chemical dosing systems across geographically dispersed treatment stages. Overcomes long-distance signal integrity issues inherent in centralized I/O designs. Enables predictive maintenance through continuous diagnostic monitoring.

Packaging Machinery Networks
Integrates filling stations, labeling units, and palletizing robots in high-speed consumer goods production. Resolves synchronization challenges in multi-machine lines operating at 200+ cycles per minute. Supports recipe changeovers without rewiring through software-configurable I/O mapping.

Power Generation Facilities
Connects turbine monitoring systems, cooling tower controls, and auxiliary equipment in combined-cycle plants. Meets stringent reliability requirements for 24/7/365 operation with redundant communication paths. Facilitates compliance with grid code regulations through precise timestamping.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IM 151-1 Standard when your application requires full 63-module expansion capability and standard DIN rail mounting. For space-constrained installations with fewer than 12 modules, consider the IM 151-1 COMPACT variant. When migrating to Ethernet-based networks, evaluate ET 200SP PROFINET alternatives for future-proof infrastructure.

Extended Functions

Advanced Diagnostic Capabilities: Integrated PROFIBUS diagnostics provide granular fault reporting down to individual I/O channel level, transmitting alarm data directly to SCADA systems for centralized monitoring. Supports S7 diagnostic buffers for historical fault analysis.

Redundancy Options: Compatible with redundant PROFIBUS configurations using Y-link couplers, ensuring continuous operation during cable failures or segment maintenance in high-availability applications.

IoT Gateway Integration: Pairs with Siemens SIMATIC IOT2050 edge devices to bridge legacy PROFIBUS networks with cloud analytics platforms, enabling predictive maintenance and remote monitoring without replacing existing infrastructure.

Customization Services: Factory pre-configuration available for volume orders, including pre-loaded GSD files, station addresses, and I/O mapping to accelerate multi-site rollouts and standardize deployment practices.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured stations require 2-3 weeks for factory programming and testing. Expedited delivery available for critical downtime situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for mission-critical installations requiring 3-5 year protection.

Technical Support: Multilingual engineering assistance via phone, email, and remote desktop support. Access to certified Siemens specialists for commissioning guidance, troubleshooting, and performance optimization.

Documentation Package: Includes installation manual, GSD configuration file, CAD drawings (DXF/STEP formats), and sample TIA Portal project for rapid integration. Compliance certificates (CE/UL) provided upon request.

Frequently Asked Questions

How many PROFIBUS DP slaves can connect to a single IM 151-1 Standard interface?
The module itself acts as one PROFIBUS slave on the network. It can host up to 63 ET 200S I/O modules internally, but the total number of PROFIBUS slaves per segment is limited by the master controller (typically 125 devices per DP master).

What cable specifications ensure reliable PROFIBUS communication at maximum 12 Mbps speed?
Use Type A shielded twisted-pair cable (Siemens 6XV1830 series or equivalent) with 120-ohm impedance, maintaining segment lengths under 100 meters at 12 Mbps. Install active repeaters (6ES7972-0AA02-0XA0) for extended distances.

Can I mix digital, analog, and specialty modules on the same IM 151-1 backplane?
Yes, the ET 200S architecture supports heterogeneous module combinations including DI/DO, AI/AO, motor starters, and communication processors. Total backplane current must not exceed power module capacity (verify PM-E ratings).

Does the interface module support isochronous mode for motion control applications?
The IM 151-1 Standard supports PROFIBUS DP V1 acyclic services but not isochronous real-time (IRT) mode. For synchronized multi-axis motion, upgrade to PROFINET-based ET 200SP systems with IRT capability.

What diagnostic tools help troubleshoot PROFIBUS communication errors?
Use Siemens STEP 7 online diagnostics, hardware configuration tools, or standalone PROFIBUS testers (e.g., ProfiTrace) to analyze bus traffic, identify faulty nodes, and verify termination resistors. LED patterns provide first-level fault indication.

How do I implement hot-swap functionality for I/O modules during operation?
Enable "Parameter assignment during RUN" in STEP 7 hardware configuration and use modules with hot-swap support (check individual module datasheets). Always verify backplane power budget before inserting modules under power.

Ready to Optimize Your Distributed I/O Architecture?

Contact our automation specialists for application-specific configuration guidance, volume pricing, or technical compatibility verification. Our team provides complimentary system design reviews to ensure optimal module selection for your unique requirements.
