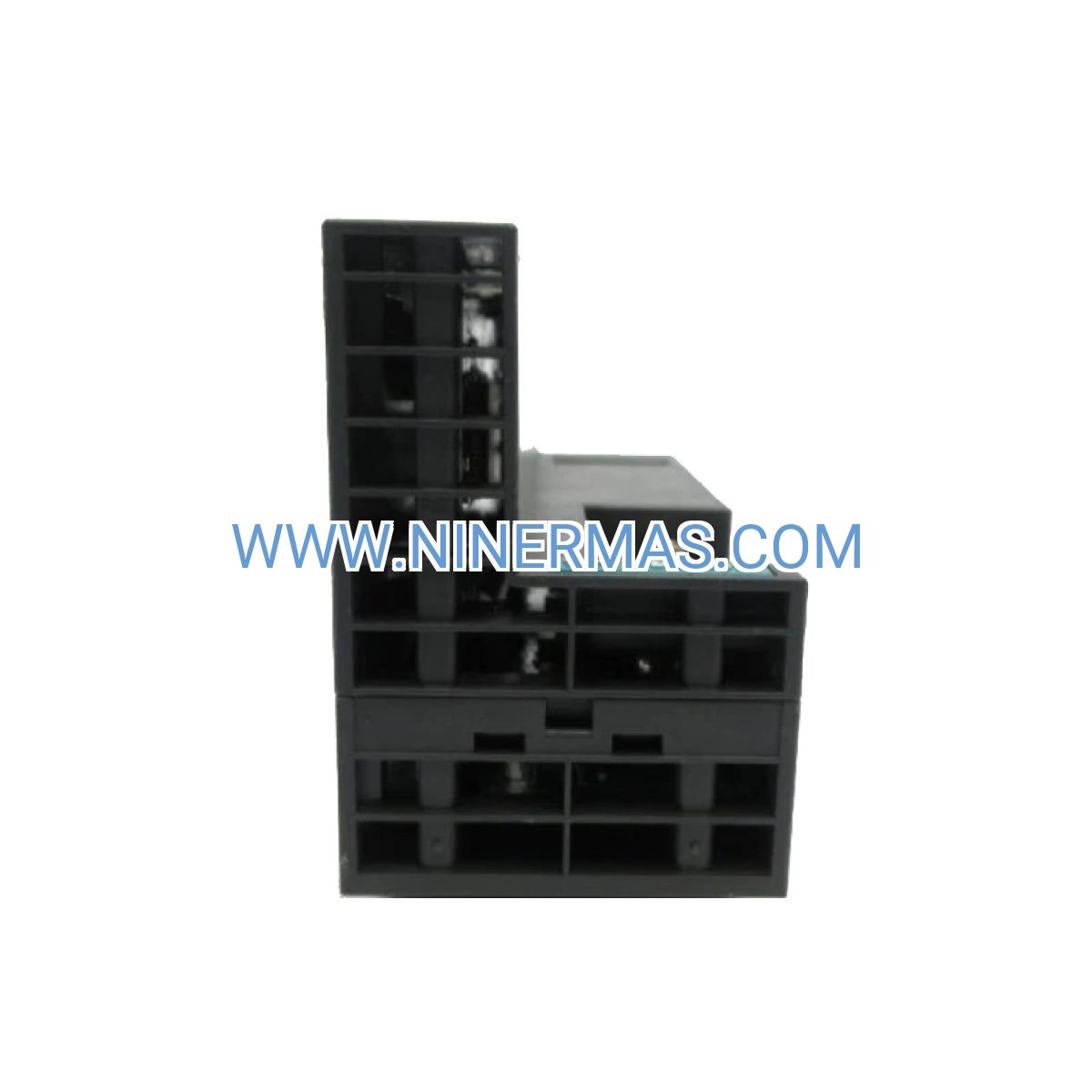

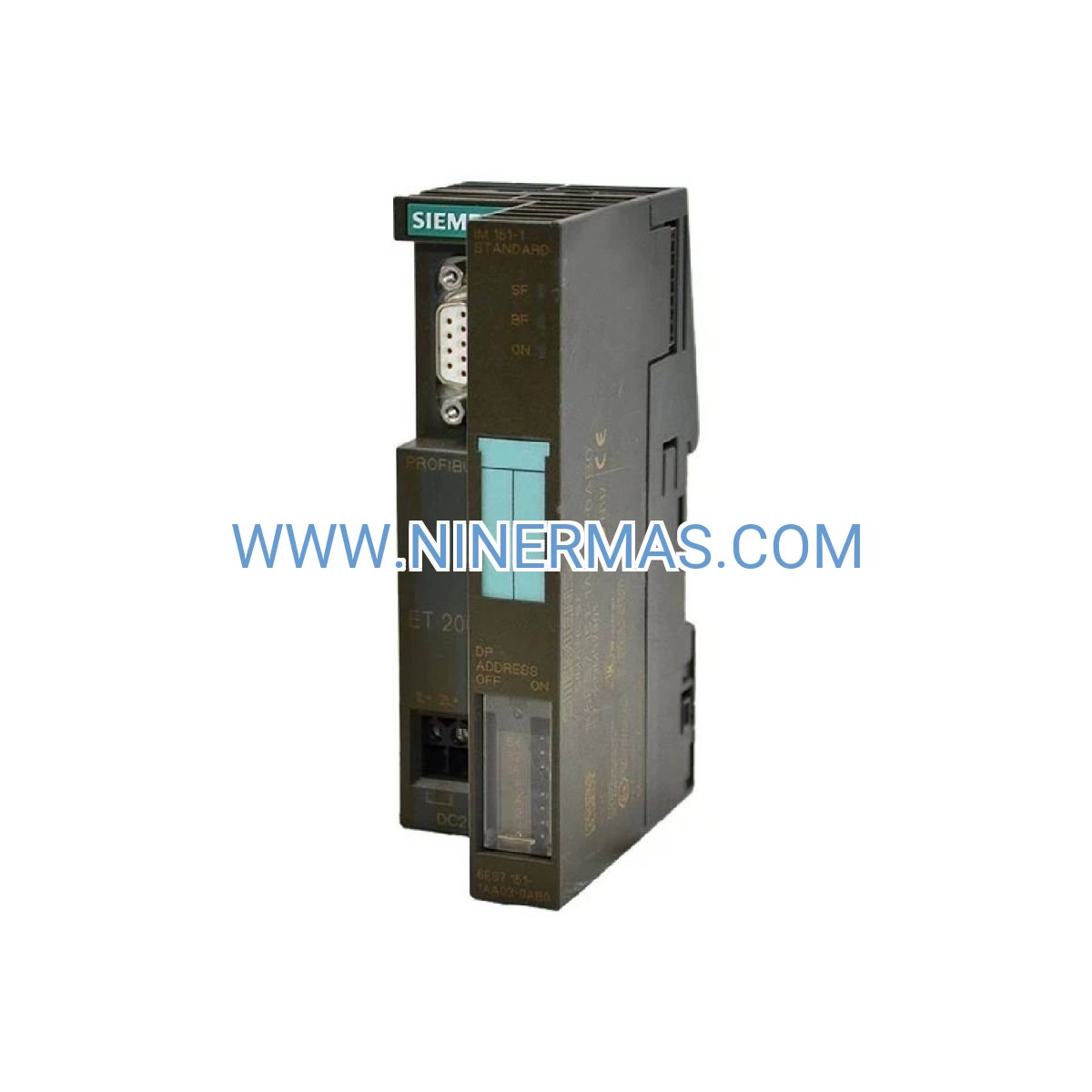

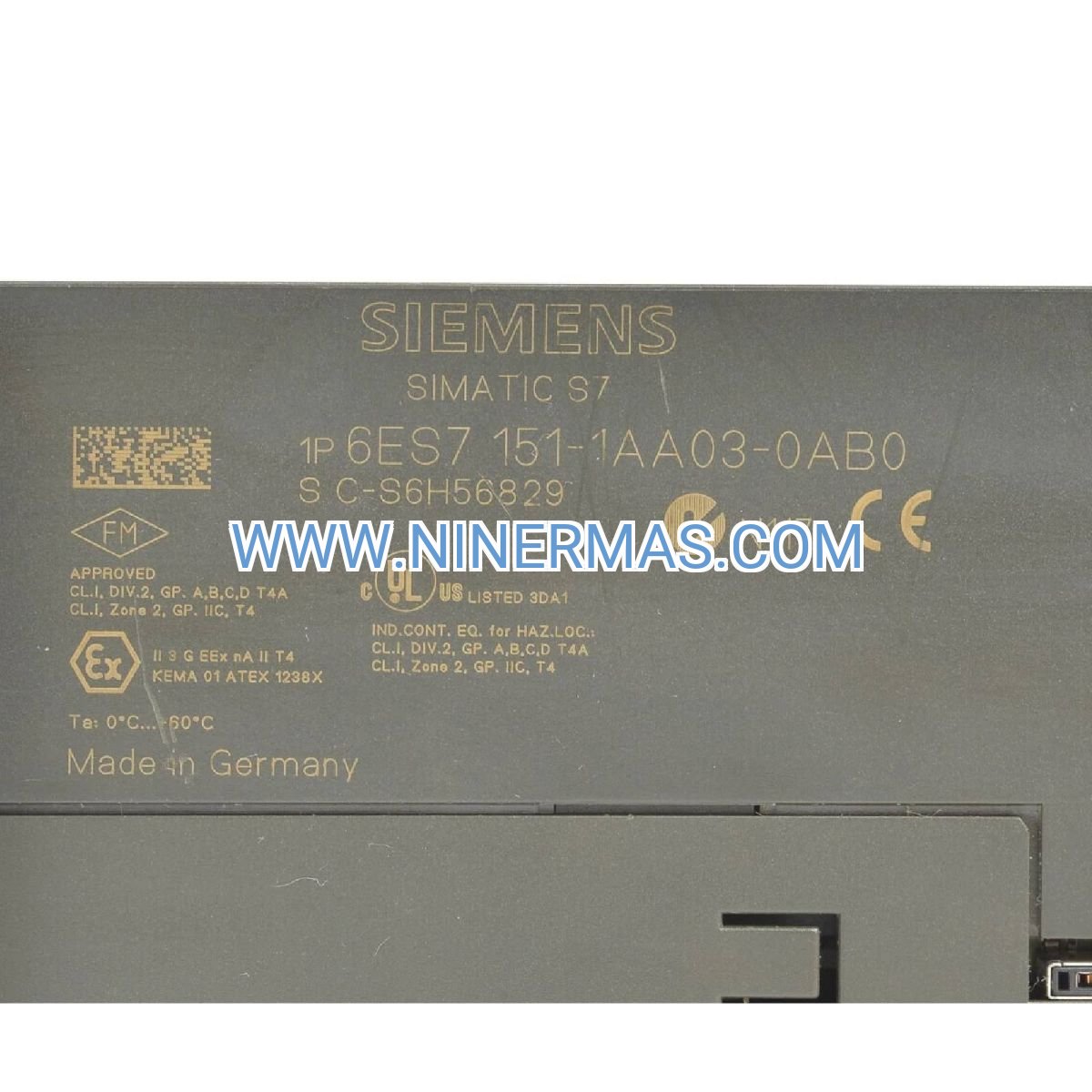

6ES7151-1AA03-0AB0 IM 153-1 Interface Module (Industrial-Grade PROFIBUS DP Gateway)

The 6ES7151-1AA03-0AB0 IM 153-1 represents a proven solution for establishing reliable PROFIBUS DP communication between central controllers and ET200S distributed I/O stations. Built to withstand the rigors of industrial environments, this compact interface module enables flexible system architectures while delivering deterministic data exchange at speeds up to 12 Mbps.

Designed for manufacturers, system integrators, and plant engineers who demand uncompromising reliability, the IM 153-1 solves the challenge of distributed control by bringing intelligence closer to field devices. Whether you're modernizing legacy systems or designing greenfield installations, this interface module provides the foundation for scalable, maintainable automation infrastructure.

With hot-swap capability, comprehensive diagnostics, and support for up to 63 I/O modules per station, the 6ES7151-1AA03-0AB0 delivers operational flexibility that adapts to evolving production requirements while minimizing total cost of ownership.

Core Capabilities & Business Value

→ Deterministic Communication Performance
Achieve cycle times as low as 1ms with PROFIBUS DP protocol operating at 12 Mbps, ensuring time-critical processes maintain synchronization across distributed I/O points. This performance level supports motion control, high-speed packaging, and safety-critical applications where timing precision directly impacts product quality and operational safety.

✓ Modular Expansion Without Limits
Scale your system from a handful of I/O points to 63 modules per interface station, accommodating 128 bytes of input and 128 bytes of output data. This flexibility eliminates the need for costly controller upgrades as production demands grow, protecting your automation investment over multi-year lifecycles.

✓ Zero-Downtime Module Replacement
Hot-swap functionality allows technicians to replace failed modules during operation without halting production lines. In industries where every minute of downtime costs thousands in lost revenue, this capability translates directly to improved OEE (Overall Equipment Effectiveness) and reduced maintenance windows.

✓ Space-Optimized Cabinet Design
At just 15mm width, the IM 153-1 maximizes usable cabinet space, allowing more I/O density per square meter of panel real estate. Compact dimensions reduce material costs for enclosures, wiring, and installation labor—particularly valuable in retrofit projects with limited physical space.

✓ Industrial-Hardened Construction
Operating reliably from 0°C to +60°C with IP20 protection, this module withstands temperature fluctuations, vibration, and electromagnetic interference common in factory environments. Robust design minimizes field failures and extends mean time between failures (MTBF) compared to commercial-grade alternatives.

✓ Intelligent Diagnostic Feedback
Multi-color LED indicators provide instant visual confirmation of power status, bus communication health, and module-level faults. Combined with TIA Portal integration, diagnostics reduce troubleshooting time from hours to minutes, lowering maintenance costs and improving first-time fix rates.

Industry Applications & Problem-Solving Scenarios

Chemical & Pharmaceutical Processing
In batch processing environments requiring precise recipe control, the IM 153-1 enables distributed I/O architecture that reduces wiring runs by up to 70% compared to centralized I/O. Deploy interface modules near reactor vessels, mixing tanks, and filling stations to minimize signal degradation while maintaining compliance with 21 CFR Part 11 audit trail requirements through integrated diagnostics.

Automotive Manufacturing & Assembly
Body shops and paint lines demand rapid I/O response for robot coordination and conveyor synchronization. The 12 Mbps communication speed ensures sub-millisecond latency between PLC and field devices, preventing collision risks and maintaining takt time precision. Hot-swap capability allows module replacement during shift changes without disrupting JIT (Just-In-Time) production schedules.

Water & Wastewater Treatment
Municipal treatment facilities spread across acres of infrastructure benefit from distributed I/O that places intelligence at pump stations, clarifiers, and chemical dosing points. The IM 153-1's extended temperature range handles outdoor installations in climate-controlled enclosures, while PROFIBUS DP's noise immunity ensures reliable communication despite high-voltage motor drives and VFDs operating nearby.

Food & Beverage Production
Packaging lines running 24/7 operations require I/O systems that support predictive maintenance strategies. The interface module's diagnostic capabilities detect communication anomalies before they cause line stoppages, enabling condition-based maintenance that reduces unplanned downtime by 40-60% compared to reactive maintenance approaches.

Building Automation & Energy Management
Commercial HVAC systems controlling hundreds of zones leverage the IM 153-1's modular architecture to distribute control logic across multiple floors or buildings. The compact footprint fits standard electrical rooms while supporting integration with BACnet gateways for enterprise-level energy monitoring and demand response programs.

Technical Parameters & Selection Criteria

Selection Criteria: Choose the IM 153-1 when your application requires standard PROFIBUS DP connectivity without redundancy. For safety-critical applications, pair with PROFIsafe-capable I/O modules. If your system demands failover protection, consider redundant interface modules for ET 200M platforms instead.

Advanced Integration & IoT Connectivity

TIA Portal Integration
Seamless configuration through Siemens TIA Portal V13 and later versions enables rapid commissioning with pre-built hardware catalogs, automatic address assignment, and graphical network topology views. GSD (General Station Description) files ensure compatibility with third-party PROFIBUS masters when integrating with non-Siemens control systems.

Cloud Connectivity Pathways
While the IM 153-1 operates at the field level, data collected through ET200S stations can be aggregated via SIMATIC S7 controllers and routed to cloud platforms using SIMATIC IOT2050 gateways. This architecture supports Industry 4.0 initiatives including predictive analytics, remote monitoring, and digital twin applications without compromising real-time control performance.

Customization & Special Configurations
For OEM applications requiring unique I/O configurations or specialized environmental protection, consult our engineering team for custom module assemblies, conformal coating options, and extended temperature variants. Minimum order quantities apply for customized solutions.

Delivery Timeline & Service Commitments

Standard Delivery: 5-7 business days for in-stock items shipped within continental regions. Express shipping available for urgent project requirements with 2-3 day delivery windows.

Custom Configurations: 3-4 weeks lead time for special orders including pre-configured I/O stations, tested assemblies, and application-specific module selections.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage periods.

Technical Support: Pre-sales application engineering assistance, configuration file review, and post-installation troubleshooting support included at no additional charge. On-site commissioning services available through our certified system integration partners.

Documentation Package: Each module ships with installation manual, wiring diagrams, GSD files, and TIA Portal configuration examples. Additional resources including application notes, white papers, and video tutorials accessible through our technical library.

Common Questions & Technical Clarifications

What cable specifications are required for reliable PROFIBUS DP communication?
Use Type A cable (IEC 61158-2 compliant) for standard installations up to 1200 meters at 12 Mbps. For electrically noisy environments with VFDs or welding equipment, specify Type A cable with additional shielding and ensure proper grounding at both ends. Cable impedance must be 135-165 ohms with capacitance below 30 pF/m.

Can I mix analog and digital I/O modules on the same ET200S station?
Yes, the IM 153-1 supports heterogeneous module configurations including digital inputs/outputs, analog I/O, motor starters, and specialty modules within the 63-module and 128-byte data limits. Configure module order in TIA Portal to optimize scan time and diagnostic clarity.

How does this interface compare to PROFINET-based alternatives?
PROFIBUS DP offers proven reliability in legacy installations and environments with existing PROFIBUS infrastructure. PROFINET provides higher bandwidth and Ethernet-based diagnostics but requires different cabling and switch infrastructure. For new S7-1500 installations, PROFINET is recommended; for S7-300/400 retrofits, PROFIBUS DP minimizes migration costs.

What diagnostic information is accessible during runtime?
The IM 153-1 provides module-level diagnostics including communication errors, power supply status, configuration mismatches, and individual I/O point faults. Access detailed diagnostics through TIA Portal's online device view or via PROFIBUS DP diagnostic telegrams for integration with SCADA systems.

Is redundant power supply configuration supported?
Yes, when paired with redundant PM-E power modules, the ET200S station maintains operation during single power supply failures. Configure redundancy settings in TIA Portal hardware configuration to enable automatic failover without process interruption.

What are the limitations for outdoor installations?
The IM 153-1 requires IP20-rated enclosure protection, making it unsuitable for direct outdoor exposure. For outdoor applications, specify NEMA 4X or IP65-rated enclosures with climate control to maintain the 0-60°C operating temperature range. Consider ET 200SP or ET 200eco product families for native outdoor-rated alternatives.

Request Technical Consultation

Unsure whether the 6ES7151-1AA03-0AB0 IM 153-1 interface module meets your specific application requirements? Our automation specialists provide complimentary pre-sales consultation including:

• I/O point calculation and module selection guidance
• Network topology design and cable length verification
• Power budget analysis and PM-E sizing recommendations
• Compatibility verification with existing control systems
• Migration planning from legacy I/O platforms

Contact our technical team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your project requirements. Include your application overview, I/O count estimates, and environmental conditions for fastest response.
