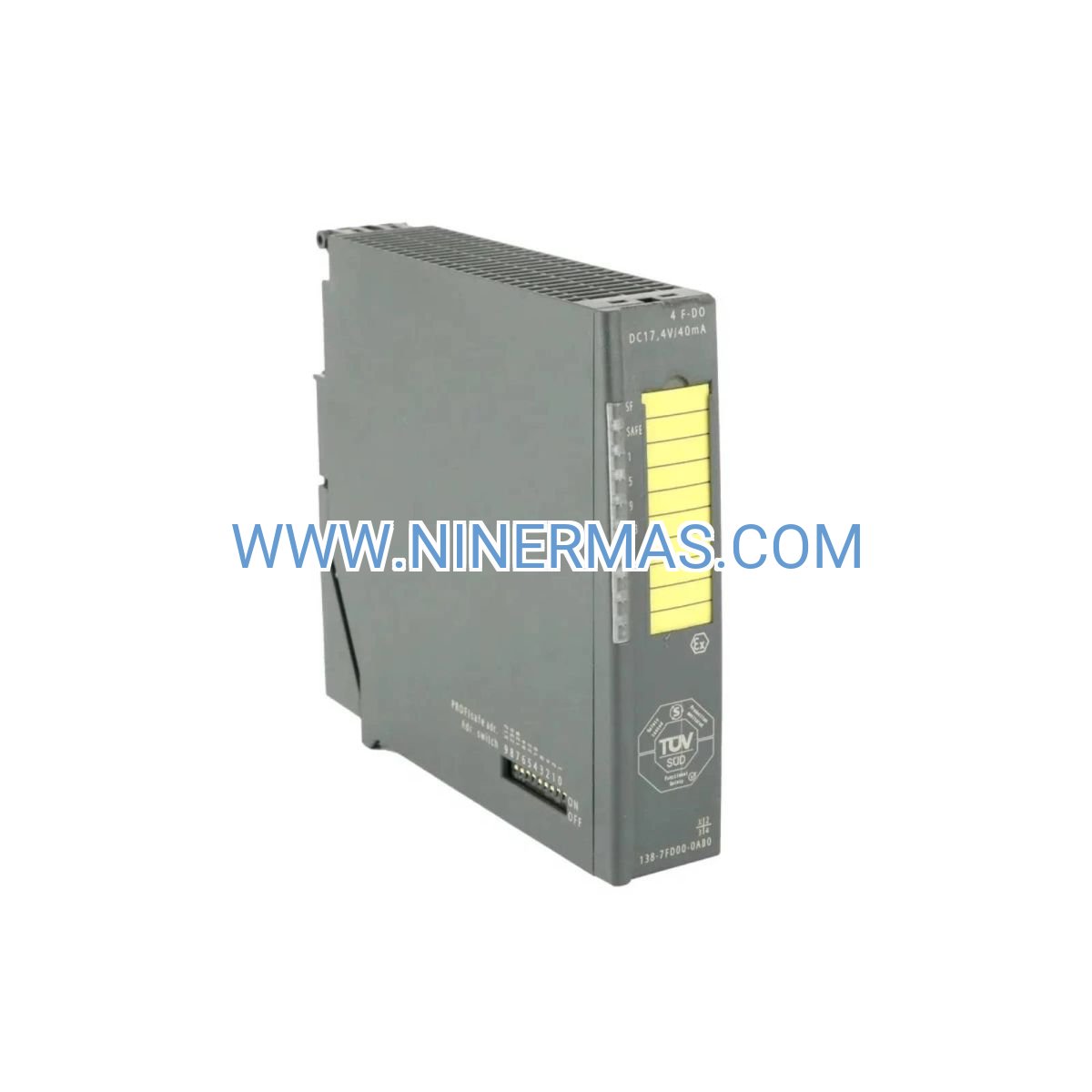

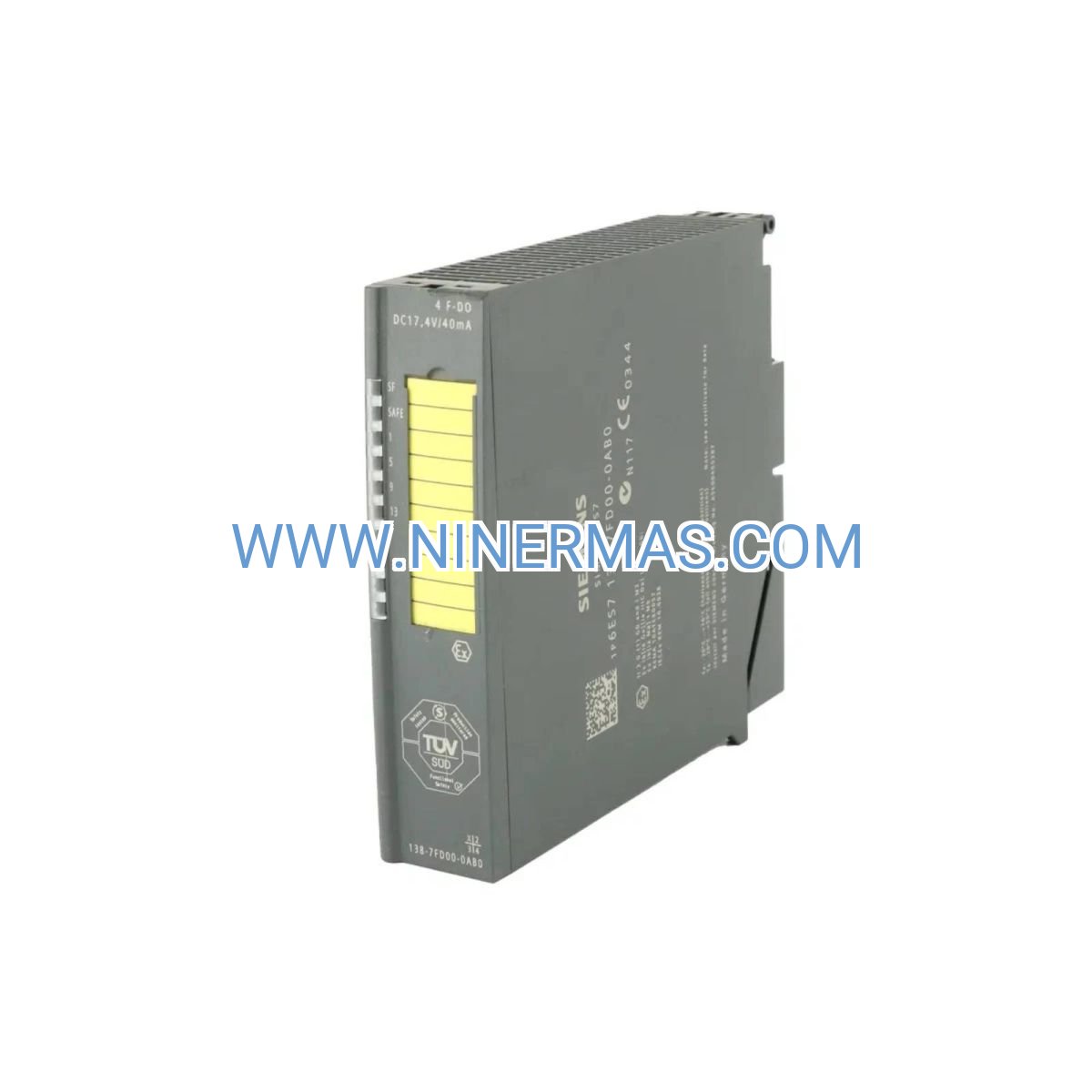

Siemens 6ES7138-7FD00-0AB0 – Industrial-Grade Fail-Safe Output Module for Explosive Atmospheres

The Siemens 6ES7138-7FD00-0AB0 represents a specialized fail-safe digital output solution within the ET200iSP distributed I/O family, specifically engineered for safety-critical control applications in hazardous industrial environments. This intrinsically safe module delivers four independent F-DO channels with Ex ib IIC T4 Gb certification, enabling reliable actuation of safety devices in Zone 1 and Zone 2 explosive atmospheres.

Designed for process industries where functional safety and explosion protection converge, this module addresses the complex challenge of maintaining SIL 3 safety integrity while operating in potentially explosive gas environments. Target users include safety system integrators, process automation engineers, and facility managers responsible for oil & gas installations, chemical plants, pharmaceutical facilities, and power generation sites requiring certified intrinsically safe control outputs.

What sets the 6ES7138-7FD00-0AB0 apart is its dual compliance with both functional safety standards (IEC 61508 SIL 3, ISO 13849-1 PL e) and explosion protection directives (ATEX, IECEx), combined with hot-swap capability and comprehensive diagnostics that reduce maintenance windows while maximizing system availability in mission-critical applications.

Core Capabilities & Technical Advantages

→ Certified Intrinsic Safety: Ex ib IIC T4 Gb approval enables deployment in Zone 1/2 hazardous locations with explosive gas groups IIA, IIB, and IIC, eliminating the need for costly explosion-proof enclosures while maintaining full safety functionality

→ Maximum Safety Integrity Level: Achieves SIL 3 per IEC 61508 and Performance Level e per ISO 13849-1, providing the highest commercially available safety rating for emergency shutdown systems, safety interlocks, and critical valve control applications

→ Modular Hot-Swap Architecture: Replace failed modules during live operation without system shutdown or safety function interruption, reducing mean time to repair (MTTR) by up to 75% compared to traditional fixed I/O systems

✓ Advanced Fault Detection: Channel-level diagnostics with wire break detection, short circuit monitoring, and output load verification transmitted via PROFIBUS DP or PROFINET for predictive maintenance strategies

✓ Extreme Environment Resilience: Operates continuously across -40°C to +60°C temperature range with IP20 protection, suitable for outdoor installations, unheated buildings, and harsh industrial zones

✓ Space-Optimized Footprint: Compact 15mm width delivers 4 safety outputs in minimal cabinet space, reducing panel costs by 30-40% versus traditional safety relay solutions

Industry-Specific Application Scenarios

Upstream Oil & Gas Production
Wellhead control systems and separator safety shutdowns require fail-safe valve actuation in classified Zone 1 areas. The 6ES7138-7FD00-0AB0 controls emergency isolation valves, blowdown systems, and flare ignition circuits while maintaining SIL 3 integrity for high-demand mode operations. Reduces installation costs by 50% versus traditional intrinsically safe barriers and relay logic, while providing superior diagnostic visibility for offshore platform applications.

Chemical Batch Processing
Reactor protection systems demand simultaneous control of multiple safety actuators—cooling water valves, nitrogen purge solenoids, agitator interlocks—within explosive atmospheres. This module enables centralized safety PLC architecture with distributed Ex ib outputs at reactor skids, eliminating hundreds of meters of intrinsically safe wiring. Achieves 99.7% safety availability through redundant channel configurations and hot-swap serviceability during production campaigns.

Pharmaceutical Cleanroom Automation
Sterile manufacturing zones require safety light curtain interfaces, emergency stop circuits, and containment system controls that meet both GMP validation requirements and functional safety standards. The module's comprehensive diagnostics support 21 CFR Part 11 audit trails while Ex certification accommodates solvent handling areas. Integration with SIMATIC Safety PLC enables validated safety logic with full electronic records.

Power Plant Turbine Protection
Steam and gas turbine emergency trip systems utilize fail-safe outputs for hydraulic trip valve control, lube oil pump interlocks, and fire suppression activation. The module's -40°C to +60°C rating suits outdoor turbine enclosures, while SIL 3 certification meets NERC CIP and IEC 61511 requirements for critical infrastructure protection. Supports 1oo2 and 2oo3 voting architectures for spurious trip reduction.

Mining Ventilation Safety Systems
Underground mine ventilation controls in methane-prone zones leverage Ex ib outputs for fan damper actuators, gas detection alarm beacons, and refuge chamber isolation valves. The module's ATEX/IECEx certification satisfies mining safety regulations across global jurisdictions, while PROFIBUS connectivity enables integration with mine-wide SCADA systems for real-time safety status monitoring.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 6ES7138-7FD00-0AB0 when your application requires (1) SIL 3 safety-rated digital outputs, (2) operation in Zone 1 or Zone 2 explosive gas atmospheres, (3) integration with SIMATIC S7-1500 or ET200SP safety controllers, and (4) hot-swap serviceability for high-availability processes. For fail-safe input requirements, pair with 6ES7138-7FN00-0AB0 (F-DI module). For standard (non-safety) intrinsically safe outputs, consider the ET200iSP AI/AO modules. Verify that connected field devices (solenoid valves, indicators) are certified for the same Ex zone and gas group.

Advanced Integration & IoT Connectivity

The ET200iSP architecture supports seamless integration with Industry 4.0 initiatives through PROFINET connectivity and OPC UA server functionality available in SIMATIC S7-1500 safety controllers. Safety output status, diagnostic data, and fault histories can be transmitted to cloud-based condition monitoring platforms for predictive maintenance analytics, reducing unplanned downtime by 35-50%.

When combined with SIMATIC Safety Matrix programming in TIA Portal, the 6ES7138-7FD00-0AB0 enables flexible safety logic modifications without hardware changes—critical for pharmaceutical facilities requiring frequent product changeovers with validated safety configurations. The module's electronic recordkeeping supports FDA 21 CFR Part 11 compliance through integrated audit trails and electronic signatures.

For brownfield retrofits, the module's PROFIBUS DP compatibility allows integration with legacy S7-300/400 safety systems, protecting existing infrastructure investments while upgrading to modern fail-safe I/O with superior diagnostics. Redundant PROFIBUS configurations (Y-link) provide fault-tolerant communication for SIL 3 applications requiring <1 hour mean time to dangerous failure.

Delivery Timeline & Comprehensive Support

Standard Lead Time: In-stock items ship within 1-2 business days via express courier (DHL/FedEx). Typical delivery to major industrial centers: North America 3-5 days, Europe 2-4 days, Asia-Pacific 4-7 days.

Custom Configuration: Pre-programmed modules with customer-specific safety logic and Ex documentation packages available with 7-10 business day lead time. Includes factory acceptance testing (FAT) protocols and calibration certificates.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical infrastructure applications.

Technical Support Package: Includes access to certified SIMATIC Safety engineers for application consultation, TIA Portal programming assistance, and Ex installation guidance. Remote commissioning support available via secure VPN connections. Complete documentation set provided: installation manual, Ex control drawings, safety manual, and STEP 7 hardware catalog files.

Training Resources: Online access to Siemens Safety Integrated training modules, ET200iSP configuration tutorials, and IEC 61511 compliance guides. On-site training available for safety system integrators and maintenance personnel.

Common Technical Questions

How does the 6ES7138-7FD00-0AB0 differ from standard ET200SP fail-safe modules?
The ET200iSP variant features intrinsic safety (Ex ib) certification for hazardous area installation, whereas ET200SP modules require installation in safe areas with intrinsically safe barriers for field connections. ET200iSP modules can be mounted in Zone 2 enclosures, reducing wiring costs by 40-60% in classified locations.

What is the maximum cable length for intrinsically safe field connections?
Maximum cable length depends on cable capacitance and inductance per the Ex control drawing (typically 1000-1500 meters for standard instrumentation cable). Use Siemens Ex-i calculation tool in TIA Portal to verify specific installations. Shielded twisted-pair cable with blue insulation per IEC 60079-14 is required.

Can I mix fail-safe and standard I/O modules on the same ET200iSP station?
Yes, ET200iSP supports mixed configurations of F-modules and standard modules on a single station. However, safety and non-safety networks must be logically separated in the safety program per IEC 61508 requirements. Use separate PROFIBUS/PROFINET segments for SIL 3 applications.

What programming software version is required for configuration?
TIA Portal V13 SP1 or later with Distributed Safety option is required. For full diagnostic functionality and Ex parameter management, TIA Portal V15.1 or later is recommended. Safety program compilation requires S7 Distributed Safety license.

Does the module support redundant controller configurations?
Yes, when used with S7-1500R redundant safety controllers, the module supports seamless failover with bumpless transfer. Redundant PROFIBUS/PROFINET communication via Y-link topology ensures <50ms switchover time for high-availability applications.

What field devices are compatible with the intrinsically safe outputs?
Compatible devices include Ex ib certified solenoid valves, indicator lights, alarm horns, and relay modules rated for the same gas group and temperature class. Verify that total connected load (voltage, current, capacitance, inductance) remains within Ex parameters specified in the control drawing.

Request Your Safety I/O Solution

Ready to enhance your hazardous area automation with certified fail-safe control? Contact our industrial automation specialists for application-specific guidance, system architecture consultation, and competitive quotations. We maintain strategic inventory of the complete ET200iSP safety I/O portfolio to support your project timelines.

For technical inquiries, Ex certification documentation, or volume pricing, reach out via email or phone. Our team provides same-day responses to specification questions and can arrange virtual demonstrations of TIA Portal safety programming workflows.
