SIL3-Certified HART Analog Input Module (Industrial-Grade Ex Protection)

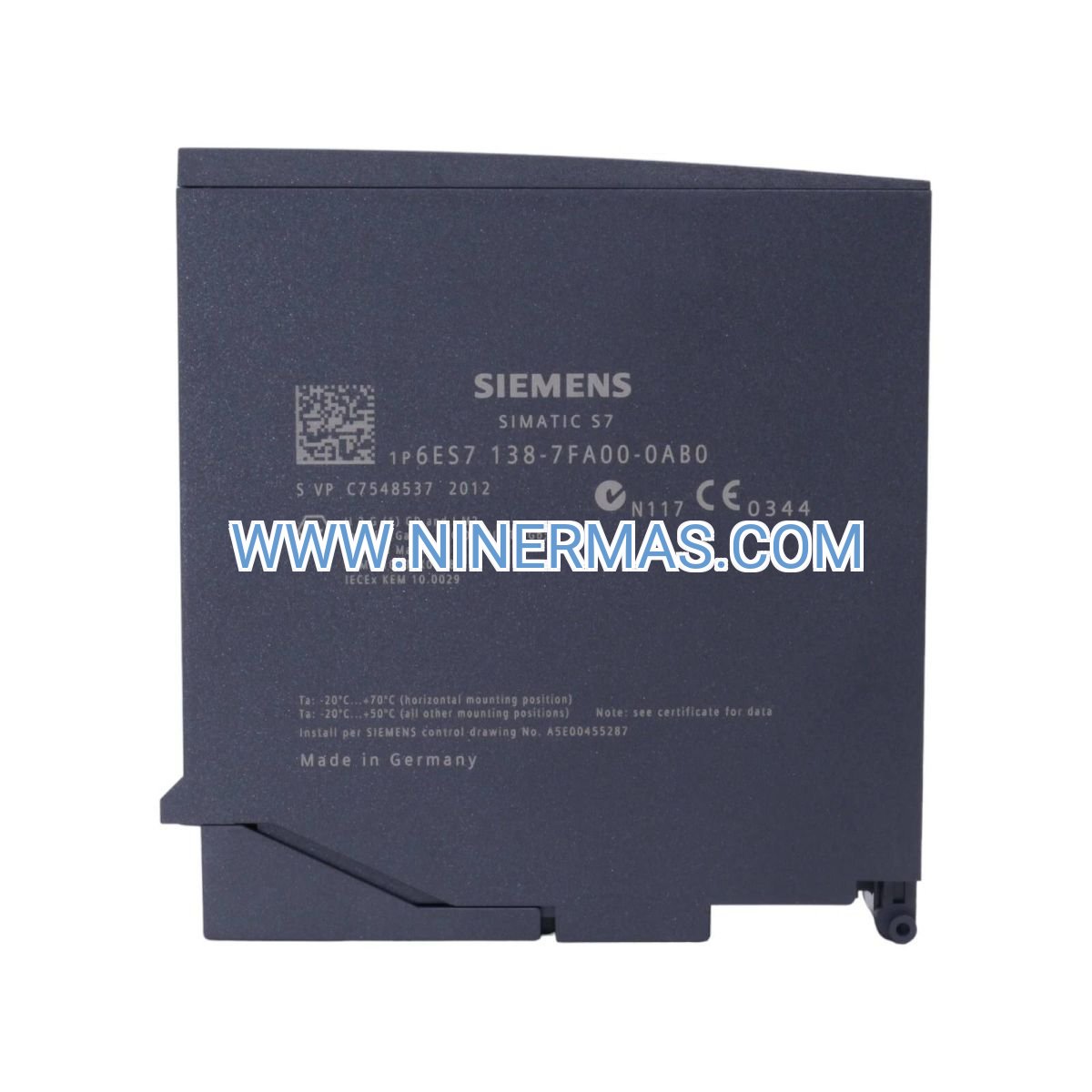

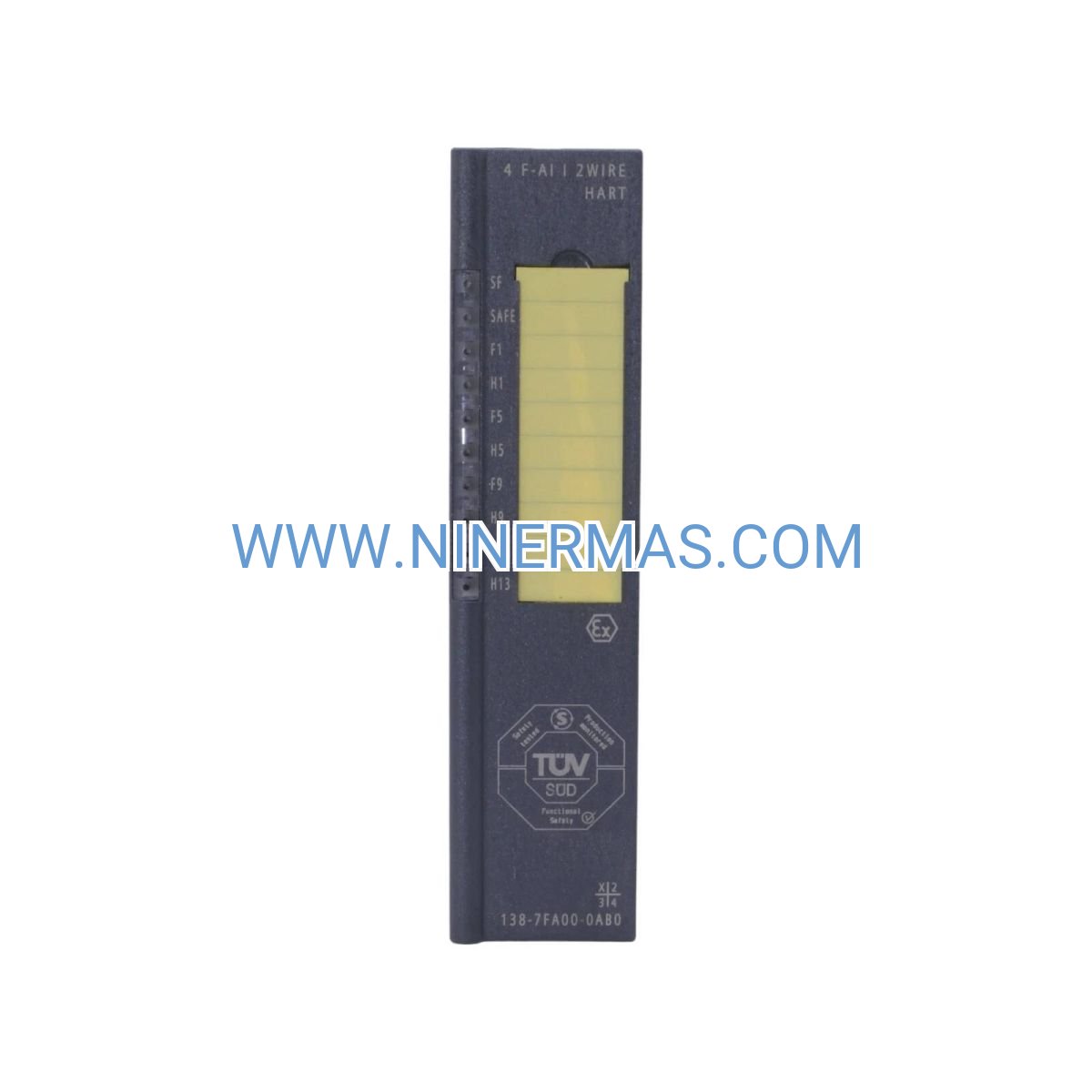

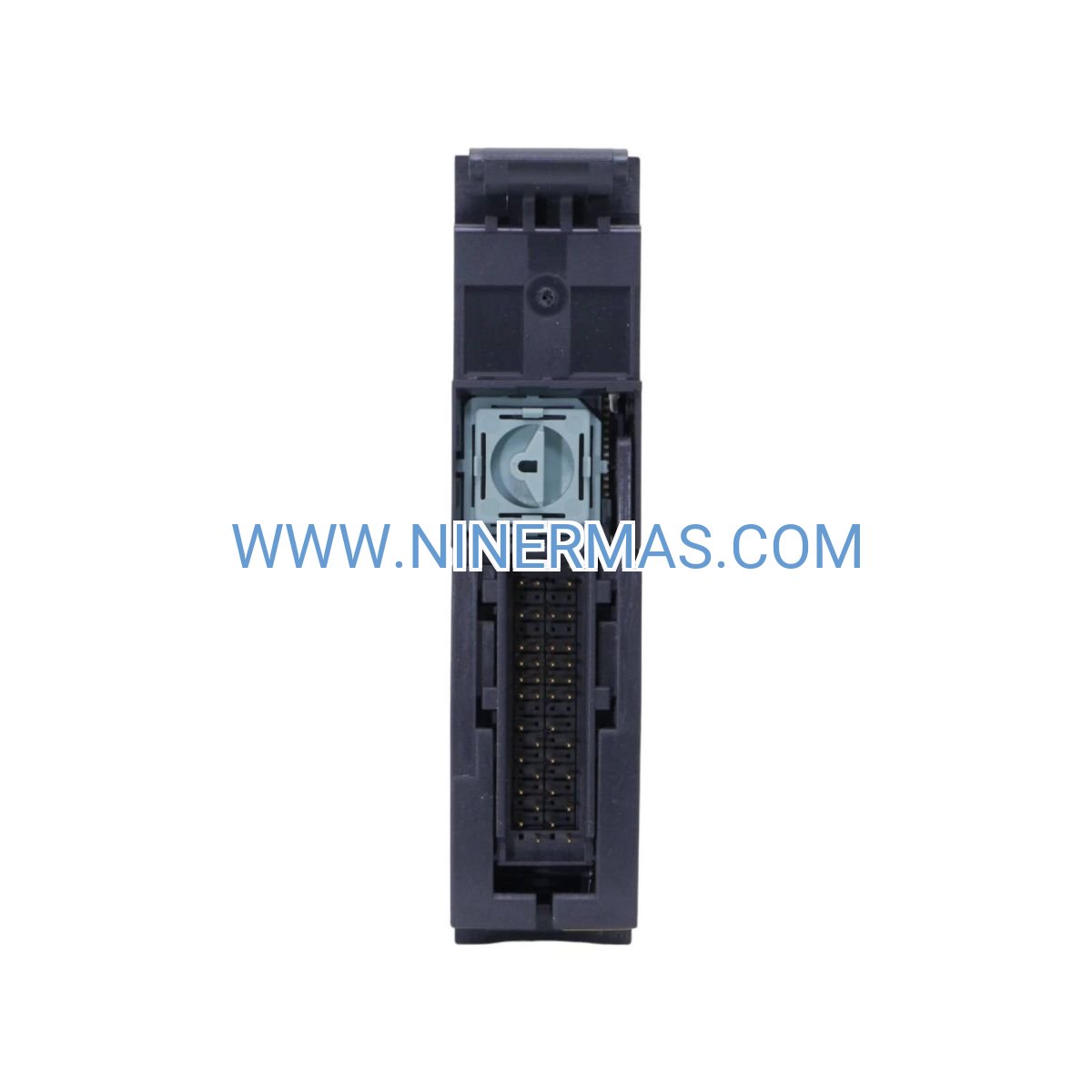

The Siemens 6ES7138-7FA00-0AB0 represents a critical safety component engineered for process industries operating in explosive atmospheres. This fail-safe electronic module integrates seamlessly into ET200iSP distributed I/O architectures, delivering four intrinsically safe analog input channels with native HART 7.0 communication capability. Designed to meet the most stringent functional safety standards—Category 4 per EN954-1, SIL3 per IEC 61508, and Performance Level e per ISO 13849—this module ensures reliable signal acquisition from field transmitters even under fault conditions. Industries facing dual challenges of hazardous zone compliance and safety-critical process control will find this solution indispensable for maintaining operational integrity while meeting regulatory mandates.

Core Capabilities & Technical Advantages

✓ Quadruple-Channel HART Integration: Simultaneously connects up to four 2-wire HART transmitters with full protocol version 7.0 support, enabling advanced diagnostics and device configuration without interrupting process measurements.

✓ Triple-Standard Safety Certification: Achieves the highest safety integrity levels across three international frameworks (Category 4/SIL3/PL e), providing legal compliance for safety instrumented systems in pharmaceutical, chemical, and oil & gas facilities.

✓ Multi-Zone Explosion Protection: Carries Ex ib [ia Ga] IIC T4 Gb and Ex ib [ia] I Mb approvals, permitting installation in Zone 1/2 gas environments and underground mining applications where conventional I/O modules cannot operate.

→ Galvanic Isolation Architecture: Each input channel features independent intrinsic safety barriers, preventing fault propagation between field circuits and protecting both personnel and equipment from energy transfer during abnormal events.

→ Hot-Swappable Design: Module replacement during system operation minimizes downtime, with automatic configuration restoration from the ET200iSP interface module ensuring rapid return to service.

→ Diagnostic Transparency: Real-time channel health monitoring through PROFINET/PROFIBUS integration detects wire breaks, short circuits, and transmitter failures, triggering predictive maintenance workflows before process disruptions occur.

Industry-Specific Application Scenarios

Offshore Oil & Gas Production Platforms:
Monitor pressure, temperature, and flow from subsea wellheads and topside separators in Zone 1 classified areas. The module's SIL3 rating satisfies API RP 14C requirements for emergency shutdown systems, while HART diagnostics enable remote asset health assessment without platform visits.

Chemical Reactor Safety Interlocks:
Implement independent protection layers (IPL) for exothermic reaction control by acquiring signals from redundant temperature and pressure transmitters. Meets IEC 61511 mandates for process safety management in batch pharmaceutical manufacturing.

Grain Elevator Dust Explosion Prevention:
Deploy in Zone 21/22 combustible dust environments to collect data from level transmitters and differential pressure sensors. Ex IIIC certification addresses agricultural industry hazards where traditional I/O creates ignition risks.

Underground Coal Mine Ventilation Control:
Acquire methane concentration and airflow measurements in Ex I Mb classified underground workings. Intrinsic safety barriers limit energy to levels incapable of igniting firedamp, protecting miners while maintaining continuous monitoring.

LNG Terminal Custody Transfer Metering:
Interface with Coriolis flowmeters and densitometers in cryogenic service areas. HART communication retrieves mass flow totalization and diagnostic parameters for fiscal measurement systems requiring SIL2/3 availability.

Technical Parameters & Selection Criteria

Selection Workflow: Begin by confirming your area classification (Zone 1/2 or Zone 21/22) and required SIL level from your safety instrumented function (SIF) design. Verify that field transmitters support HART protocol and operate within 4-20 mA loop-powered specifications. Ensure your ET200iSP system includes a fail-safe interface module (IM 153-4 PN/ST or DP variant) and that your controller supports F-I/O communication via PROFIsafe protocol.

Extended Functionality & Integration Options

PROFIsafe Protocol Integration: Transmits safety-relevant process values with black channel communication, allowing standard PROFINET infrastructure to carry both standard and fail-safe data without dedicated cabling.

Asset Management Connectivity: HART variables accessible through Siemens PDM (Process Device Manager) or third-party FDT/DTM frameworks enable centralized calibration, configuration, and predictive maintenance across distributed installations.

Redundancy Architectures: Supports 1oo2 (one-out-of-two) and 2oo3 voting configurations when paired with redundant controllers, achieving SIL3 capability for high-demand mode applications per IEC 61508.

Cybersecurity Hardening: When deployed with SCALANCE firewalls and TIA Portal security policies, creates defense-in-depth strategies protecting safety systems from unauthorized access and malware propagation.

Delivery Timeline & Service Commitments

Standard Lead Time: 1-3 business days for stock items | 4-6 weeks for factory-direct orders during high-demand periods

Warranty Coverage: 24-month manufacturer defect protection from shipment date, covering material and workmanship failures under normal operating conditions

Technical Support Access: Lifetime application engineering assistance via email/phone, including loop calculation verification, Ex certification interpretation, and TIA Portal configuration guidance

Documentation Package: Includes operating instructions (English/German), Ex certificate copies, material declarations (RoHS/REACH), and sample TIA Portal hardware configuration files

Frequently Asked Questions

Q: Can this module interface with non-HART 4-20mA transmitters in hazardous areas?
A: Yes, the module accepts standard 4-20 mA signals from any loop-powered transmitter. HART capability is optional—non-HART devices will function normally but without digital communication features. Intrinsic safety parameters remain valid for both transmitter types.

Q: What is the maximum cable length between the module and field transmitters?
A: Cable length depends on loop resistance and transmitter specifications. Typical installations support 1000-1500 meters with 1.5mm² cable. Consult the intrinsic safety certificate for entity parameters (Ui, Ii, Ci, Li) and perform loop calculations per IEC 60079-25 to verify compliance.

Q: Does this module reduce energy consumption compared to traditional zener barriers?
A: Electronic intrinsic safety barriers consume approximately 60% less power than passive zener barrier solutions. For a 4-channel system, expect 8-12W total dissipation versus 25-30W for equivalent galvanic isolators, reducing panel cooling requirements.

Q: How do I configure fail-safe behavior when a transmitter fails?
A: Use TIA Portal Safety Advanced software to define substitute values (high/low trip points) for each channel. During F-I/O configuration, specify whether sensor faults should trigger safe state (de-energize) or maintain last valid value, depending on your process hazard analysis.

Q: Is remote HART communication possible without field visits?
A: Yes, when integrated with Siemens PDM or third-party asset management systems. HART multiplexing through the ET200iSP interface module allows SCADA/DCS workstations to access all transmitter parameters, perform diagnostics, and adjust configurations remotely.

Q: What installation requirements apply for maintaining Ex certification?
A: Mount the module on approved ET200iSP base units within Zone 2 or safe area enclosures. Field wiring must use blue-insulated cables per IEC 60079-14, with proper cable gland sealing. Maintain separation distances from non-IS circuits as specified in the installation manual. Annual inspections per IEC 60079-17 recommended.

Secure Your Safety-Critical Infrastructure Today

Protect personnel and assets in explosive atmospheres with proven SIL3 technology. Contact our application engineers to discuss your specific hazardous area requirements, receive loop calculation assistance, or request certification documentation for your project submittal package.

Ready to specify? Email technical drawings and I/O lists to our team for complimentary system design review and competitive quotation within 24 hours.
