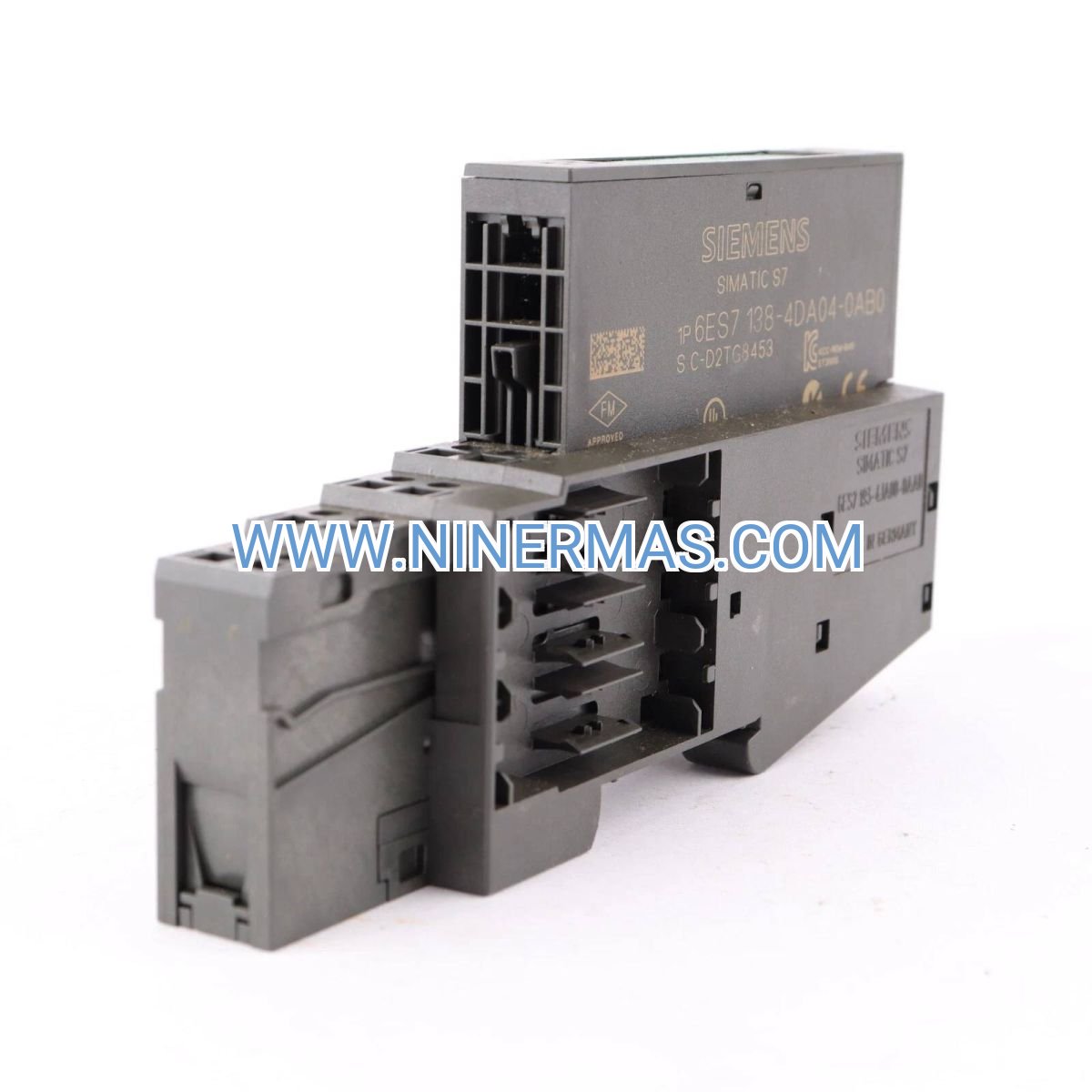

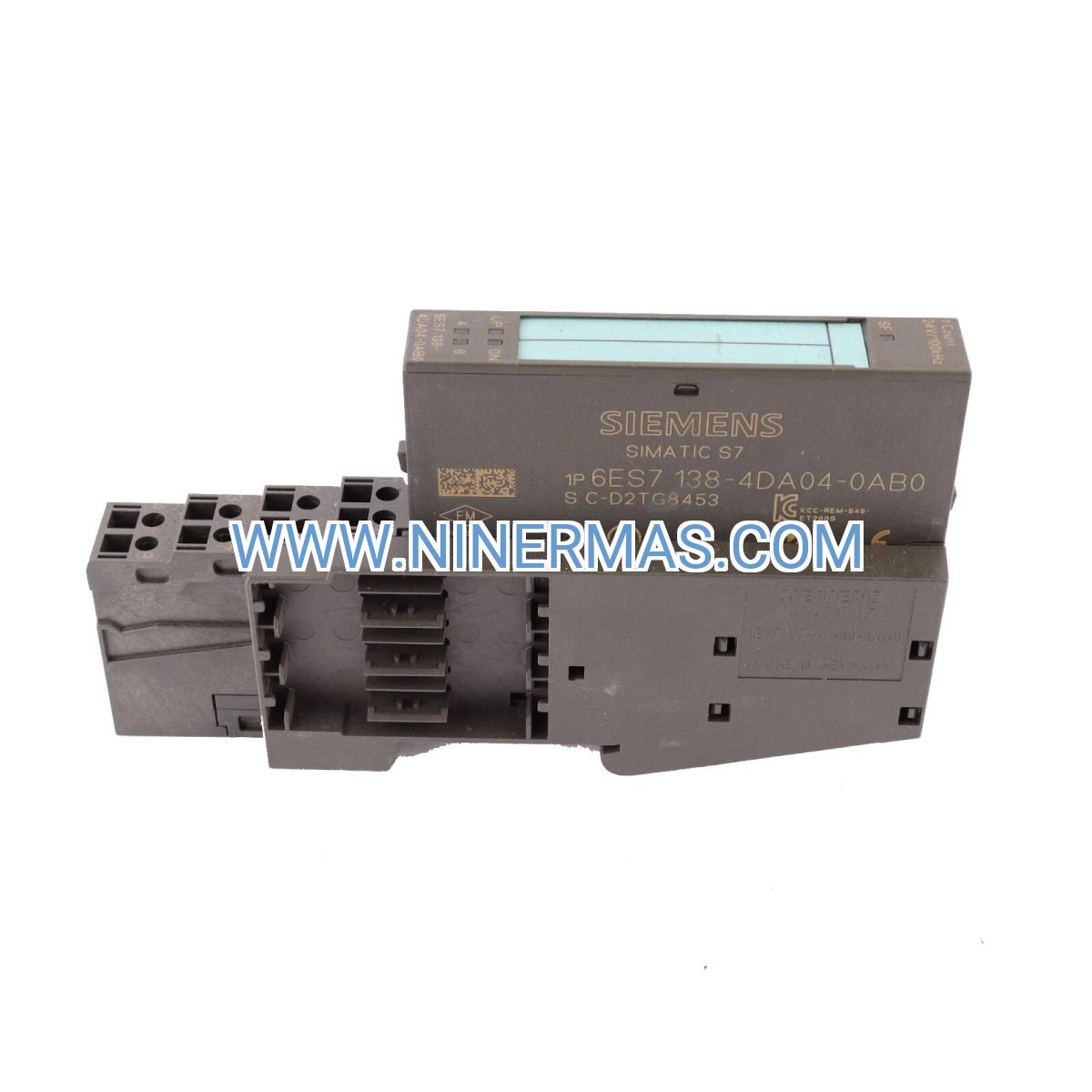

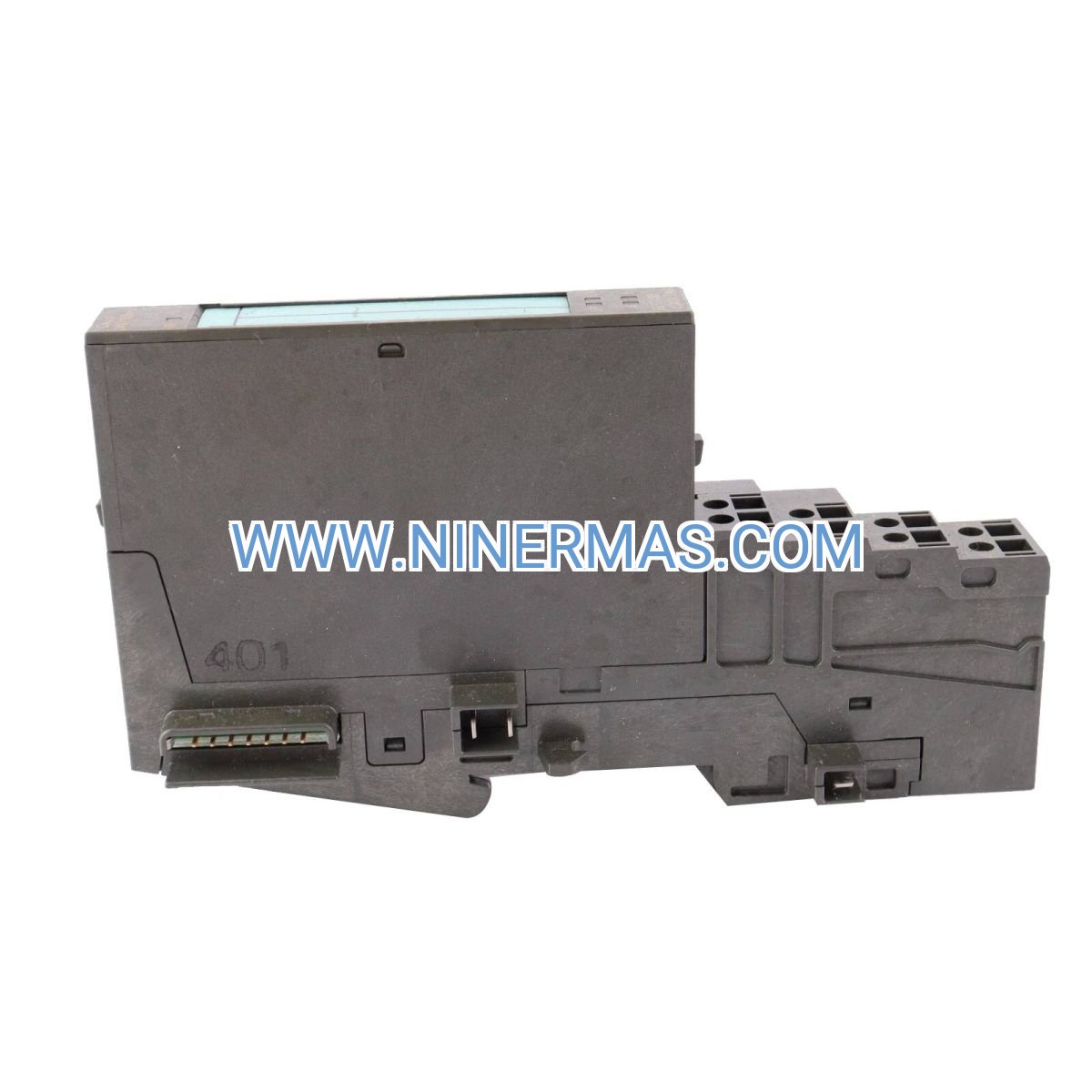

6ES7138-4DA04-0AB0 PM-E Power Module (Industrial-Grade 24V Distribution)

The Siemens 6ES7138-4DA04-0AB0 delivers regulated 24V DC power for ET200S distributed I/O architectures in process automation, manufacturing control, and infrastructure monitoring applications. This PM-E series module combines universal input voltage compatibility (24-48V DC / 24-230V AC) with advanced diagnostic intelligence and electronic protection circuitry, ensuring reliable operation across harsh industrial environments from -25°C to +60°C.

Designed for system integrators and automation engineers managing multi-site installations, this power module eliminates voltage-specific inventory requirements while providing real-time health monitoring through PROFIBUS DP communication and multi-color LED indicators. The compact 30mm width maximizes cabinet density without compromising thermal performance or serviceability.

Whether you're upgrading legacy control systems, expanding production capacity, or designing new automation infrastructure, the 6ES7138-4DA04-0AB0 provides the foundation for scalable, maintainable distributed I/O networks with proven reliability exceeding 500,000 hours MTBF.

Core Features & Business Value

→ Universal Input Voltage Range
Accepts 24-48V DC or 24-230V AC sources without configuration changes, reducing spare parts inventory by 60% and simplifying global deployment across regions with different power standards. Single SKU supports both North American and European installations.

→ Integrated Diagnostic Intelligence
Real-time monitoring via PROFIBUS DP interface enables predictive maintenance strategies, reducing unplanned downtime by up to 40%. Multi-color LED status indicators provide instant visual confirmation of power quality, load conditions, and fault states without requiring diagnostic tools.

→ Electronic Protection Without External Components
Sophisticated overload, short-circuit, and reverse polarity protection eliminates external fusing requirements, cutting installation time by 25% and reducing panel complexity. Automatic fault recovery restores operation once conditions normalize, minimizing manual intervention.

→ High-Density Modular Architecture
30mm width enables up to 12 I/O modules per standard 19-inch rack, maximizing point density while maintaining optimal convection cooling. Conformal-coated PCBs and industrial-grade capacitors ensure reliable performance in chemical processing, mining, and outdoor installations.

→ Hot-Swap Capability for Redundant Systems
Supports online replacement when configured with N+1 redundancy, maintaining continuous operation during maintenance activities. Load-sharing circuitry automatically balances current distribution across parallel modules without manual adjustment.

Typical Application Scenarios

Chemical & Petrochemical Processing
Distributed I/O power for reactor monitoring, pipeline control, and tank farm automation in hazardous area Zone 2 classifications. The module's ATEX certification and wide temperature range support outdoor installations and high-temperature process zones. Pair with IM 151-1 interface modules and analog input modules for complete measurement solutions in corrosive environments.

Automotive Manufacturing Lines
Power distribution for robotic work cells, conveyor systems, and quality inspection stations requiring fast fault detection and recovery. Integration with digital input modules and relay output modules enables safety-critical production sequences with deterministic response times under 10ms. The compact footprint optimizes space utilization in densely packed control cabinets.

Water & Wastewater Infrastructure
Remote pump stations, filtration systems, and chemical dosing applications where environmental conditions demand IP20-rated protection and extended temperature operation. Redundant power architectures using multiple PM-E modules ensure continuous operation for critical municipal services. PROFIBUS DP diagnostics enable remote monitoring of power quality across distributed sites.

Food & Beverage Production
Packaging lines, filling systems, and material handling equipment operating in both refrigerated (-25°C) and high-temperature (+60°C) processing zones. The module's conformal coating resists moisture and cleaning chemicals common in hygienic design applications. Universal input voltage simplifies equipment relocation between facilities with different power infrastructures.

Building Automation & HVAC Control
Distributed control of ventilation systems, lighting networks, and energy management equipment across commercial and industrial facilities. Low standby power consumption and high efficiency (>85%) reduce operational costs while supporting sustainability initiatives. Integration with analog modules enables precise temperature and pressure control for optimized energy usage.

Technical Parameters & Selection Guide

Selection Guidelines: For systems requiring more than 8A continuous current, deploy multiple PM-E modules in parallel or upgrade to higher-capacity SITOP power supplies for primary distribution. When ambient temperatures exceed 50°C, implement forced-air cooling or reduce load to 80% of rated capacity. For safety-rated applications, this module can supply both standard and fail-safe I/O within the same ET200S station when properly configured in STEP 7.

Extended Functions

PROFIBUS DP Diagnostic Integration: The module reports detailed status information including input voltage levels, output current consumption, and thermal conditions through the PROFIBUS DP interface. Configure diagnostic alarms in STEP 7 to trigger maintenance notifications before failures occur, enabling condition-based servicing strategies.

Redundant Power Architectures: Deploy multiple 6ES7138-4DA04-0AB0 modules in N+1 configurations for critical applications requiring zero downtime. Automatic load sharing distributes current evenly across parallel modules, and hot-swap capability allows online replacement without interrupting I/O operation.

IoT & Industry 4.0 Readiness: Power quality data accessible via PROFIBUS DP integrates with SCADA systems, cloud platforms, and analytics tools for energy monitoring and predictive maintenance applications. Export diagnostic logs to MES systems for production efficiency analysis and equipment OEE calculations.

Customization Options: While the standard module suits most applications, Siemens offers application-specific variants including conformal coating upgrades for extreme chemical exposure, extended temperature range versions for outdoor installations, and fiber-optic interface compatibility for electrically noisy environments.

Delivery & Service Assurance

✓ Lead Time: Standard stock items ship within 1-3 business days. Custom configurations or bulk orders (50+ units) require 2-4 weeks for factory fulfillment. Expedited shipping available for emergency replacements and critical project deadlines.

✓ Warranty Coverage: 12-month comprehensive warranty against manufacturing defects and premature component failure. Extended warranty programs available for OEM customers and system integrators managing multi-year projects.

✓ Technical Support: Expert application engineering assistance for system design, load calculations, redundancy configuration, and troubleshooting. Access to STEP 7 configuration examples, wiring diagrams, and integration guides for common automation platforms.

✓ Documentation Package: Each module includes installation manual, technical datasheet, CE/UL certification documents, and STEP 7 GSD file for automatic hardware detection. CAD models and 3D STEP files available for panel layout design.

✓ Genuine Siemens Quality: Factory-sealed products sourced directly from authorized distribution channels with full traceability documentation. Every unit undergoes rigorous quality testing including burn-in cycles, voltage stress testing, and thermal performance validation before shipment.

Frequently Asked Questions

How does the 6ES7138-4DA04-0AB0 differ from the 6ES7138-4CB11-0AB0 power module?
Both are PM-E series modules with similar electrical specifications, but the 4DA04 variant offers enhanced diagnostic capabilities including more detailed PROFIBUS DP status reporting and improved LED indication logic. The 4DA04 is the current-generation model recommended for new installations, while the 4CB11 remains available for retrofit projects requiring exact form-fit-function replacement.

What is the maximum number of I/O modules this power supply can support?
The 10A output capacity typically supports 8-12 standard digital I/O modules or 4-6 analog modules, depending on specific current requirements. Calculate total current draw by summing individual module consumption (typically 50-150mA for digital, 200-400mA for analog) plus field device supply current. Maintain 20% capacity margin for optimal thermal performance and future expansion.

Can I use this module in safety-rated SIL 2 or SIL 3 applications?
While the PM-E provides reliable power distribution, it is not safety-rated. However, it can supply both standard and fail-safe I/O modules within the same ET200S station. Safety-rated applications require fail-safe I/O modules (such as the ET 200S F-series) powered by this module, with safety logic implemented in fail-safe CPUs like the S7-300F or S7-1500F.

What maintenance procedures are recommended for long-term reliability?
Under normal operating conditions (≤40°C ambient, ≤80% load, clean environment), the module requires no scheduled maintenance. Monitor PROFIBUS DP diagnostic data quarterly for early warning indicators such as increasing output current or elevated temperatures. Inspect DIN rail mounting security and terminal connections annually. In harsh environments, clean ventilation openings semi-annually to maintain optimal cooling.

Is this power module compatible with ET200SP or ET200MP systems?
No, the 6ES7138-4DA04-0AB0 is specifically engineered for ET200S architecture with its unique mechanical and electrical interface. ET200SP systems require compact PM-E modules optimized for that platform's 15mm width design, while ET200MP uses different power distribution methods. Ensure compatibility by verifying the ET200 series designation before ordering.

How do I configure redundant power for critical applications?
Deploy two or more 6ES7138-4DA04-0AB0 modules on the same DIN rail, connecting outputs in parallel through diode-OR circuits or using modules with integrated load-sharing circuitry. Configure each module to supply 60% of total load for N+1 redundancy. Enable hot-swap functionality in STEP 7 hardware configuration to allow online replacement without interrupting I/O operation. Monitor individual module status via PROFIBUS DP diagnostics.

Ready to Optimize Your Distributed I/O Infrastructure?

The Siemens 6ES7138-4DA04-0AB0 PM-E Power Module delivers the reliability, flexibility, and diagnostic intelligence required for modern industrial automation systems. Whether you're designing new installations or upgrading existing ET200S networks, this module provides proven performance backed by Siemens' engineering excellence and Industrial Control Hub's commitment to customer success.

Order now to secure fast delivery, competitive pricing, and expert technical support for your automation project. Contact our application engineers for system design assistance, bulk pricing, or custom configuration requirements.
