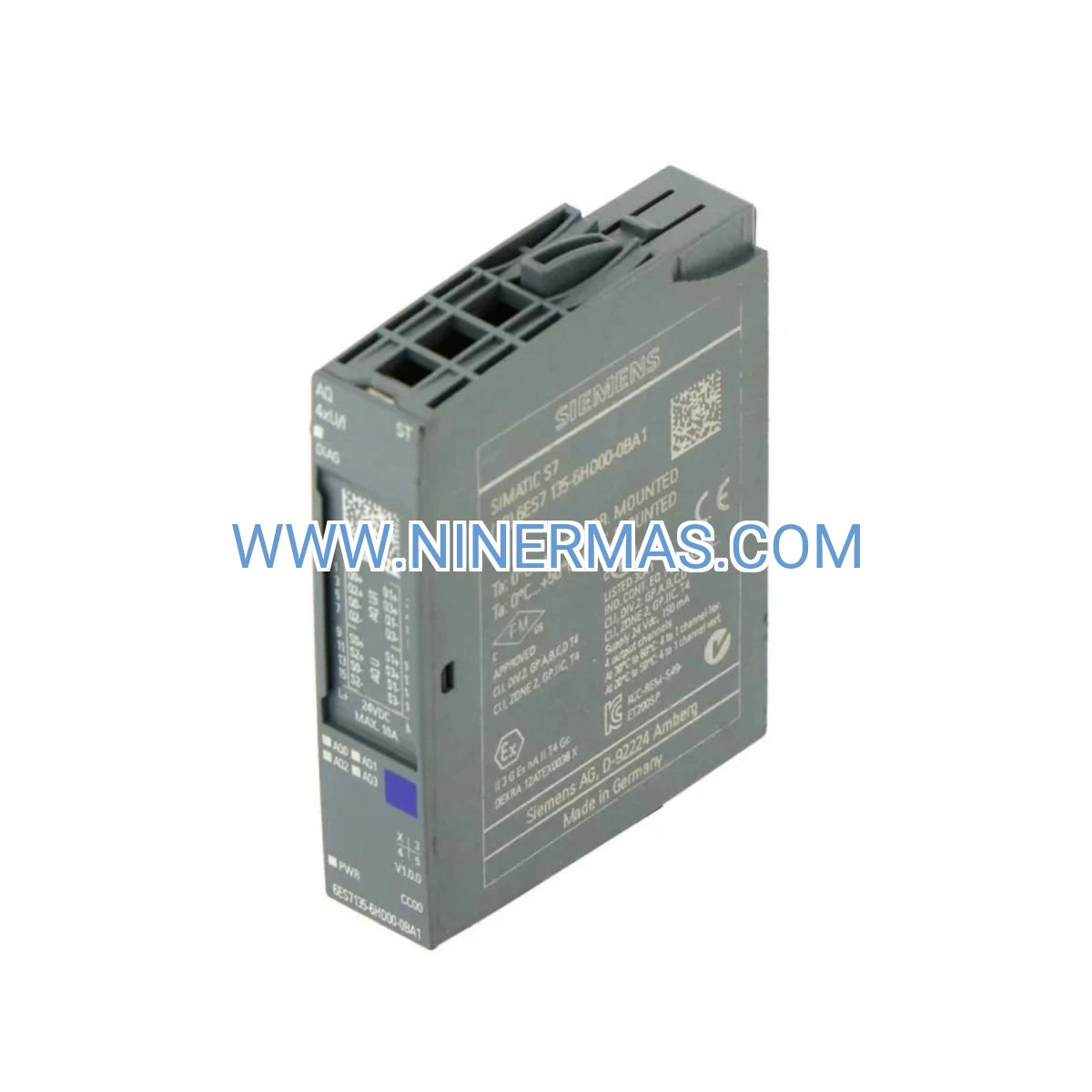

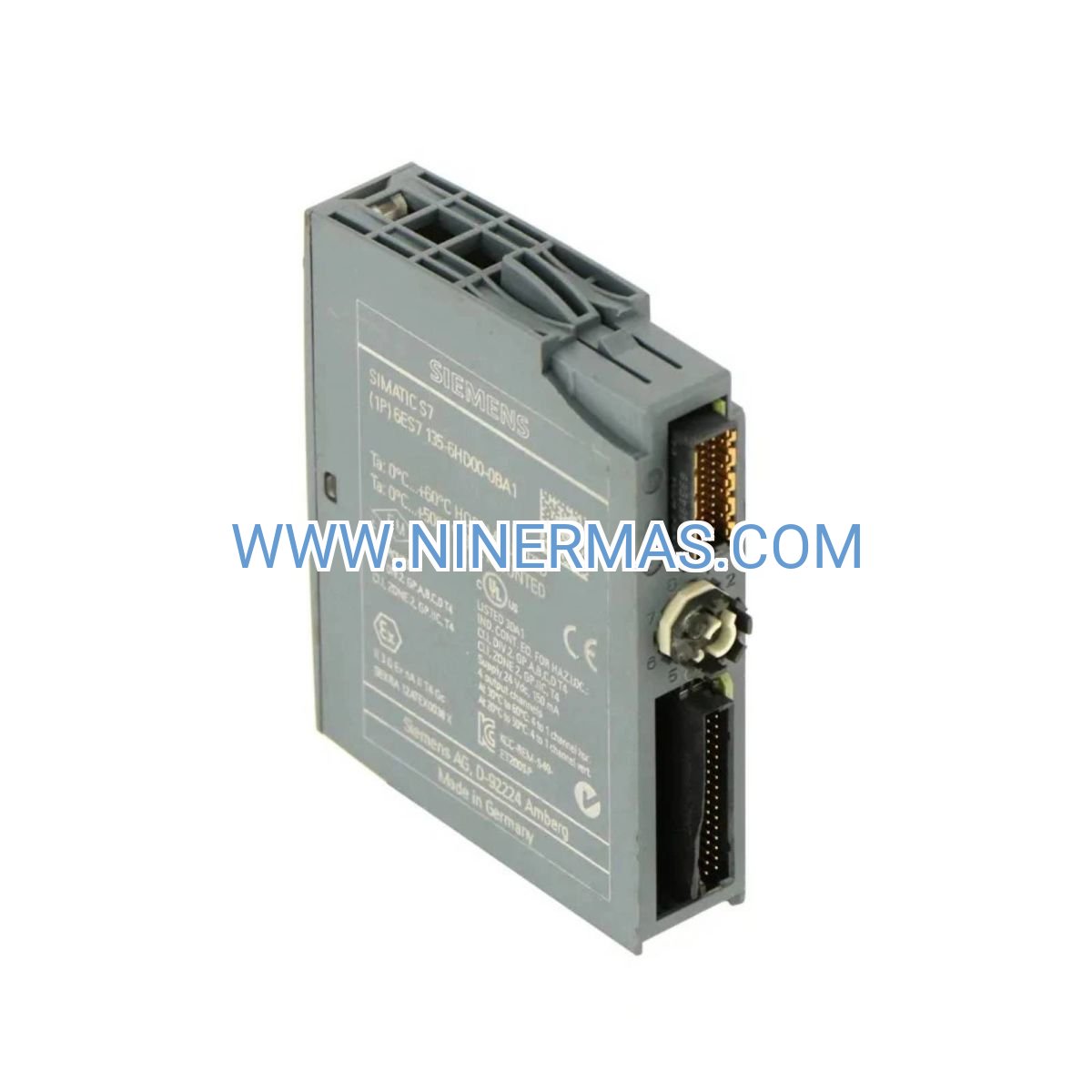

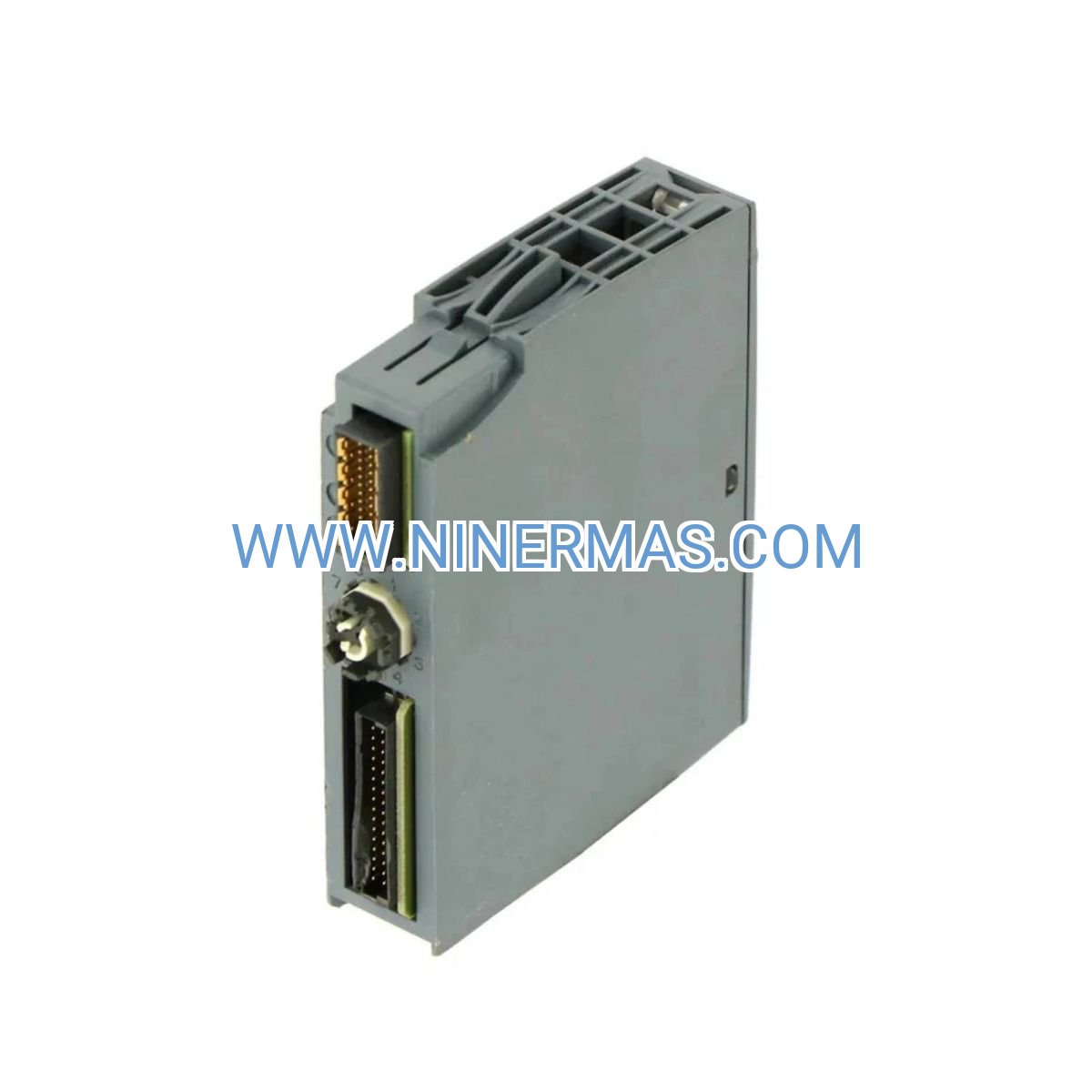

Siemens 6ES7135-6HD00-0BA1 – Industrial-Grade 4-Channel Analog Output Module

The Siemens 6ES7135-6HD00-0BA1 represents a precision-engineered analog output solution for ET 200S distributed I/O architectures. This compact module transforms digital control signals into accurate analog outputs across four independent channels, delivering 16-bit resolution with exceptional ±0.3% accuracy for demanding process control environments. Designed for seamless integration with PROFIBUS DP networks, it serves as the critical interface between your control logic and field instrumentation in chemical processing, pharmaceutical manufacturing, water treatment, and industrial HVAC applications.

Built to withstand harsh industrial conditions, this module operates reliably across -25°C to +60°C temperature ranges while maintaining signal integrity through 500V channel-to-backplane isolation. Whether you're regulating valve positions, controlling variable frequency drives, or managing proportional actuators, the 6ES7135-6HD00-0BA1 delivers the precision and reliability your critical processes demand.

With sub-millisecond conversion times and flexible output configurations supporting voltage (±10V, 0-10V) and current (4-20mA) signals, this module adapts to diverse instrumentation requirements while consuming minimal power at just 1.5W typical operation.

Core Features & Technical Advantages

✓ Quad-Channel Architecture – Four galvanically isolated analog outputs enable independent control of multiple process variables from a single compact module, reducing installation footprint and system complexity.

✓ Superior Signal Precision – 16-bit digital-to-analog conversion with ±0.3% accuracy ensures precise control of critical process parameters, minimizing deviation and improving product quality consistency.

✓ Versatile Output Formats – Software-configurable channels support industry-standard ±10V, 0-10V voltage signals and 4-20mA current loops, providing compatibility with virtually any field device without hardware modifications.

✓ Rapid Response Performance – Conversion time ≤1ms per channel enables real-time control of fast-changing processes, critical for applications requiring immediate response to setpoint adjustments.

✓ Robust Electrical Isolation – 500V channel-to-backplane isolation protects sensitive control electronics from ground loops, electrical noise, and potential damage from field-side faults.

✓ Comprehensive Diagnostics – Built-in monitoring detects wire breaks, short circuits, overload conditions, and channel-specific errors, transmitting detailed status information via PROFIBUS DP for proactive maintenance.

Industrial Application Scenarios

Chemical Process Control
In batch reactor systems, the module precisely controls dosing pump speeds and valve positions through 4-20mA signals, maintaining exact chemical ratios. The high resolution eliminates concentration variations that could compromise product specifications, while diagnostic capabilities alert operators to pump failures or valve malfunctions before batch quality is affected.

Pharmaceutical Manufacturing
Clean room environmental control systems utilize voltage outputs to regulate HEPA filter damper positions and variable air volume controllers. The ±0.3% accuracy ensures compliance with stringent FDA 21 CFR Part 11 requirements for environmental parameter control, while the module's compact 15mm width conserves valuable control cabinet space in space-constrained facilities.

Water & Wastewater Treatment
Municipal treatment plants deploy these modules to control chemical feed pumps for pH adjustment, chlorination, and coagulation processes. The 4-20mA current loop outputs maintain signal integrity across extended cable runs up to 600 meters, essential for large treatment facilities where field instrumentation is distributed across multiple process areas.

Industrial HVAC Systems
Building automation systems leverage the module's multi-format outputs to simultaneously control chiller capacity (0-10V), boiler firing rates (4-20mA), and variable frequency drives for circulation pumps. Fast conversion times enable rapid response to thermal load changes, optimizing energy efficiency while maintaining occupant comfort.

Material Handling & Conveyor Systems
Automated warehousing operations use analog outputs to regulate conveyor belt speeds and sortation gate positions based on real-time throughput demands. The module's hot-swap capability in ET 200S configurations minimizes downtime during maintenance, critical for 24/7 distribution center operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires precise analog control with moderate channel density. For applications needing 8+ outputs, consider deploying multiple modules or higher-density alternatives. Voltage outputs are ideal for short cable runs (<200m) to VFDs and positioners, while current outputs excel in noisy environments or long-distance transmission (up to 600m). Ensure your ET 200S power supply module provides adequate current budget – each 6ES7135-6HD00-0BA1 draws approximately 100mA from the backplane bus.

Extended Functionality & Integration

SCADA & HMI Integration: The module seamlessly exchanges data with WinCC, WinCC Flexible, and third-party SCADA platforms via standard PROFIBUS DP communication. Channel values, diagnostic status, and configuration parameters are accessible through symbolic addressing in TIA Portal, simplifying operator interface development.

Redundancy & High Availability: When deployed in S7-400H or ET 200S redundant configurations, the module supports bumpless switchover during controller failover events, maintaining continuous process control without output interruption – critical for safety-instrumented systems and continuous manufacturing processes.

Calibration & Maintenance: Factory calibration ensures specified accuracy across the full operating temperature range. Field recalibration is typically unnecessary, but TIA Portal provides software-based offset and gain adjustment capabilities for applications requiring periodic verification against reference standards.

Customization Options: While the standard module covers most applications, Siemens offers application-specific variants with enhanced features such as HART protocol support for smart transmitter integration, extended temperature ranges for extreme environments, and conformal coating for corrosive atmosphere protection.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier with full tracking. International orders typically arrive within 5-7 business days depending on customs clearance procedures.

Custom Configuration: Pre-configured modules with customer-specific parameter sets and firmware versions ship within 7-10 business days after order confirmation.

Warranty Coverage: Every 6ES7135-6HD00-0BA1 module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs up to 36 months are available for critical infrastructure applications.

Technical Support: Our certified Siemens automation specialists provide complimentary configuration assistance, troubleshooting guidance, and integration support via email, phone, and remote desktop sessions. Response time for technical inquiries: <4 hours during business hours.

Documentation Package: Each module ships with installation manual, technical specifications datasheet, GSD file for PROFIBUS configuration, and sample STEP 7/TIA Portal code blocks for common control algorithms.

Frequently Asked Questions

What controllers are compatible with the 6ES7135-6HD00-0BA1 analog output module?
This ET 200S module works with all Siemens S7-300, S7-400, and S7-1500 series controllers equipped with PROFIBUS DP master interfaces. It also integrates with S7-1200 controllers when using CM 1243-5 PROFIBUS DP communication modules. Third-party PROFIBUS DP masters supporting GSD file configuration can also communicate with this module.

How do I configure individual channels for different output signal types?
Channel configuration is performed entirely through software using STEP 7 or TIA Portal. In the hardware configuration tree, select the module and access the channel properties dialog. Each channel can be independently set to ±10V, 0-10V, or 4-20mA mode without physical jumpers or DIP switches. Configuration changes take effect immediately upon download to the controller.

What cable specifications are recommended for analog output connections?
For voltage outputs, use shielded twisted-pair cable with minimum 0.5mm² conductor cross-section, maximum length 200 meters. For current outputs, shielded cable up to 600 meters is acceptable with maximum loop resistance of 500Ω (including cable and load). Always connect shield to ground at one end only (typically at the module side) to prevent ground loops.

Can this module operate in hazardous area Zone 1 or Division 1 locations?
The standard 6ES7135-6HD00-0BA1 is certified for Zone 2 / Division 2 hazardous locations. For Zone 1 / Division 1 applications, use the intrinsically safe variant with appropriate barriers or consider the Ex i certified ET 200iSP system. Always consult local electrical codes and certification requirements before installation in classified areas.

What diagnostic information does the module provide to the controller?
The module reports comprehensive diagnostics including channel-specific wire break detection, short circuit conditions, overload status, and out-of-range errors. System-level diagnostics include backplane communication errors, power supply undervoltage, and module hardware faults. All diagnostic data is accessible via PROFIBUS DP cyclic and acyclic communication and can trigger controller alarms or HMI notifications.

Is hot-swapping supported during operation?
Yes, when used in ET 200S configurations with appropriate power supply modules (PM-E series), the 6ES7135-6HD00-0BA1 supports hot-swap replacement without powering down the entire I/O station. The controller automatically detects module removal and insertion, re-establishing communication within seconds. However, outputs will default to safe state (typically 0V/0mA) during the swap interval.

Ready to Optimize Your Process Control?

The Siemens 6ES7135-6HD00-0BA1 analog output module delivers the precision, reliability, and diagnostic capabilities your critical automation systems demand. Whether you're upgrading existing ET 200S installations or designing new distributed I/O architectures, this module provides proven performance backed by Siemens' industrial automation expertise.

Contact our automation specialists today for application-specific configuration guidance, volume pricing, or technical consultation on integrating this module into your control system. We're here to ensure your project success from specification through commissioning.
