ET200SP High-Speed Analog Output Module (Industrial-Grade Precision Control)

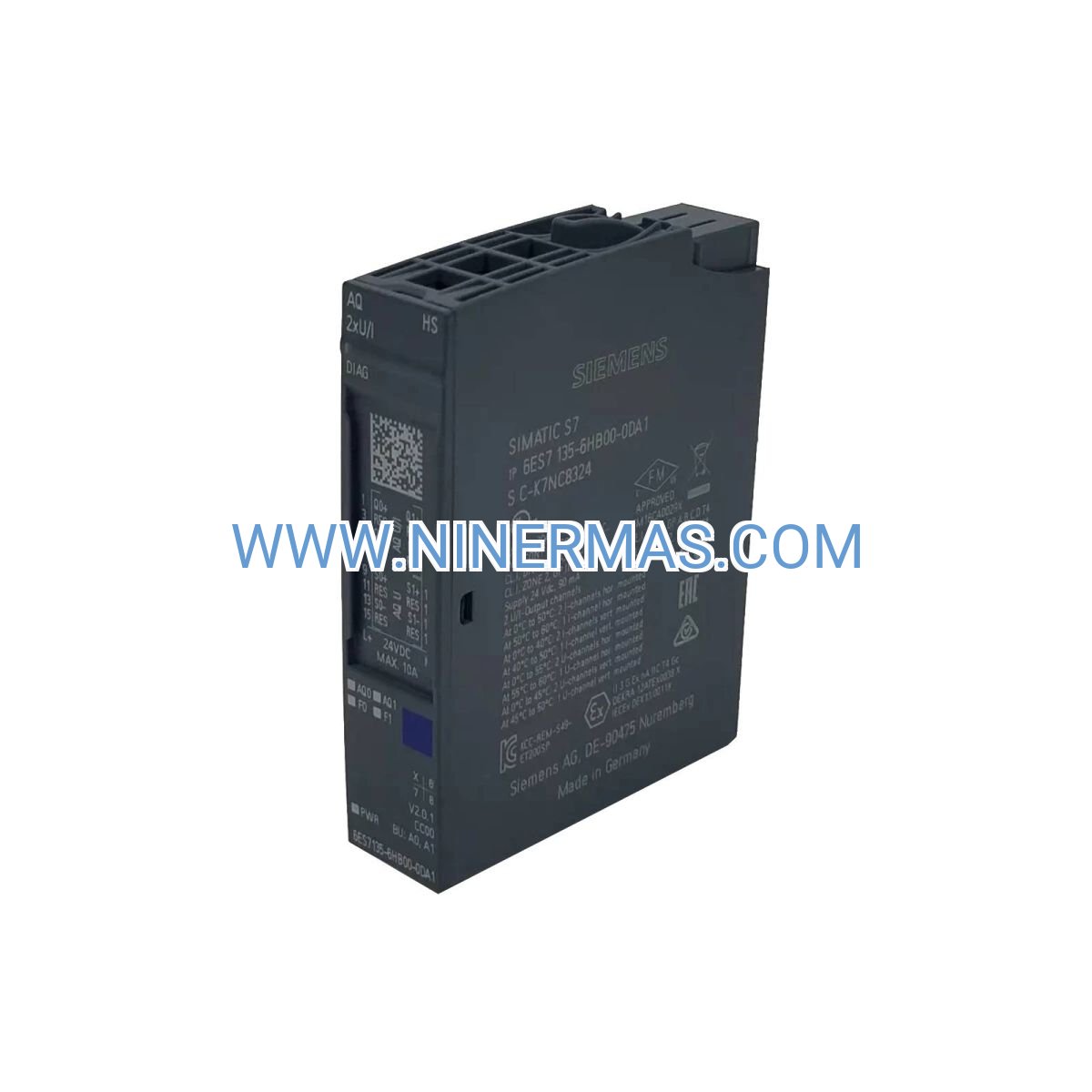

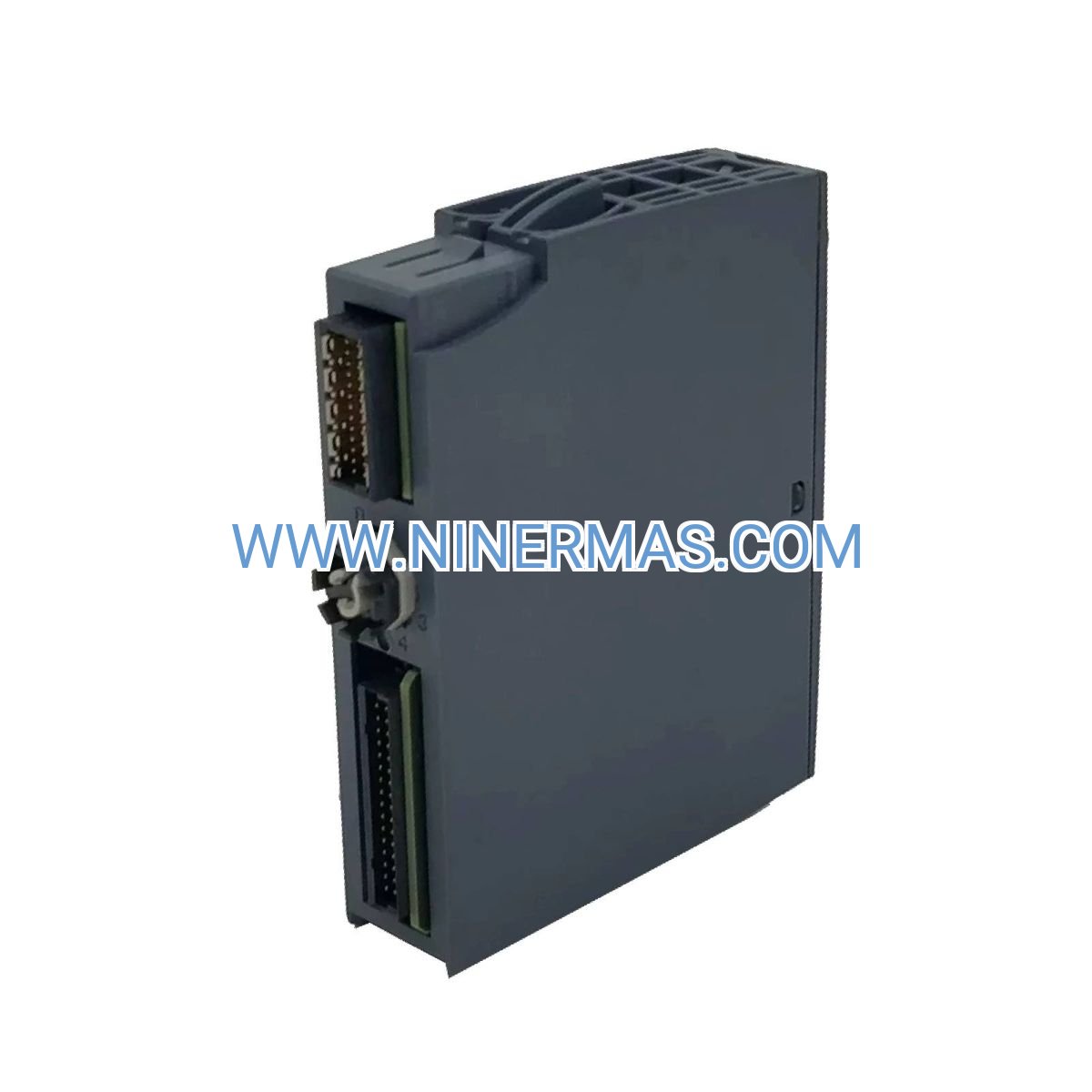

The Siemens 6ES7135-6HB00-0DA1 is a high-performance analog output module engineered for demanding industrial automation environments. Featuring dual-channel U/I output capability with 16-bit resolution and ±0.2% accuracy, this ET200SP component delivers precise signal conversion for process control, motion systems, and distributed I/O architectures. Designed for seamless integration with SIMATIC S7-1500 and ET200SP systems, it addresses the critical need for reliable, high-speed analog signal generation in manufacturing, energy, and infrastructure applications.

Industrial operators face constant pressure to maintain tight process tolerances while minimizing downtime. This module solves signal drift, calibration complexity, and diagnostic blind spots through built-in channel diagnostics and factory-calibrated accuracy. Whether you're managing chemical dosing systems, temperature control loops, or variable frequency drives, the 6ES7135-6HB00-0DA1 provides the precision and reliability your operations demand.

Key advantages include hot-swappable design for zero-downtime maintenance, compact DIN rail mounting for space-constrained panels, and full compatibility with TIA Portal for streamlined configuration. With RoHS compliance and WEEE take-back support, this module meets global environmental standards while delivering industrial-grade performance.

Core Features & Technical Advantages

✓ Dual-Channel U/I Output Architecture
Two independent channels support both voltage (0-10V) and current (0-20mA/4-20mA) output modes, eliminating the need for separate modules and reducing panel footprint by up to 40% compared to single-channel alternatives.

✓ 16-Bit Resolution with ±0.2% Accuracy
Delivers 65,536 discrete output steps for ultra-fine control granularity, critical for applications like pharmaceutical batching, precision temperature regulation, and servo positioning where signal stability directly impacts product quality.

✓ High-Speed Signal Processing
Optimized conversion cycle times enable real-time response to PLC commands, supporting fast-loop control applications such as pressure regulation in hydraulic systems or speed control in packaging lines.

✓ Integrated Channel Diagnostics
Automatic fault detection for wire breaks, short circuits, and out-of-range conditions with instant notification to the controller, reducing troubleshooting time by 60% and preventing costly process deviations.

✓ Hot-Swap Capability (BU Type A0/A1)
Replace modules during operation without system shutdown, maintaining production continuity during maintenance windows—a critical feature for 24/7 operations in food processing, water treatment, and continuous manufacturing.

✓ Compact ET200SP Form Factor
Only 7.7cm × 6.8cm × 2.4cm dimensions and 38g weight enable high-density I/O configurations, ideal for retrofits where panel space is limited or mobile equipment applications requiring lightweight components.

Application Scenarios & Industry Solutions

→ Process Industry Control Systems
Chemical plants, refineries, and pharmaceutical facilities use this module to regulate valve positioners, flow control devices, and analytical instruments. The ±0.2% accuracy ensures compliance with FDA 21 CFR Part 11 and batch record requirements, while channel diagnostics prevent costly batch rejections due to signal failures.

→ Building Automation & HVAC
Commercial buildings deploy these modules to control damper actuators, variable air volume (VAV) boxes, and chilled water valves. The dual-channel design allows one module to manage both supply and return air temperature loops, reducing installation costs by 30% while maintaining ±0.5°C setpoint accuracy.

→ Water & Wastewater Treatment
Municipal treatment plants leverage the module's current output mode (4-20mA) for long-distance signal transmission to chemical dosing pumps and aeration blowers. Built-in diagnostics detect sensor failures before they cause permit violations, while the hot-swap feature enables maintenance without bypassing critical treatment stages.

→ Manufacturing & Assembly Lines
Automotive and electronics manufacturers integrate this module into robotic welding cells, adhesive dispensing systems, and conveyor speed controls. The high-speed processing supports cycle times under 50ms, essential for synchronized multi-axis operations and just-in-time production workflows.

→ Energy & Utilities Infrastructure
Power generation facilities and district heating networks use the module to control turbine governors, boiler feedwater pumps, and heat exchanger bypass valves. The 16-bit resolution enables precise load following during peak demand periods, optimizing fuel efficiency and grid stability.

Technical Specifications & Selection Guide

Selection Criteria: Choose this module when you need dual-channel analog output with diagnostic capability in a compact form factor. For applications requiring more than 2 channels, consider parallel installation of multiple modules on the same ET200SP station. Ensure your BaseUnit supports Type A0/A1 configuration and verify that your TIA Portal version includes ET200SP library V2.0 or later for full diagnostic integration.

Extended Capabilities & System Integration

TIA Portal Integration: Full hardware catalog support enables drag-and-drop configuration with automatic address assignment. Parameter sets can be stored as templates for rapid deployment across multiple stations, reducing commissioning time by up to 50%.

PROFINET Diagnostics: Real-time channel status reporting via PROFINET allows predictive maintenance strategies. Integrate with SIMATIC PCS 7 or WinCC for centralized alarm management and historical trending of output signal quality metrics.

Redundancy Options: Deploy in redundant ET200SP configurations with automatic switchover for mission-critical applications. The module supports both 1:1 and N:1 redundancy architectures when paired with compatible BaseUnits and controllers.

Customization Services: Factory pre-configuration available for volume orders (MOQ 50 units). Custom parameter sets, firmware versions, and labeling can be specified to match your site standards and reduce field installation time.

Delivery, Warranty & Technical Support

Standard Lead Time: 1 business day for stock items (Product Class A). Express shipping available for urgent requirements with same-day dispatch for orders placed before 2 PM CST.

Custom Configuration Lead Time: 7-10 business days for factory-programmed modules with customer-specific parameter sets or firmware versions.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Unlimited email and phone support included with purchase. Our certified Siemens engineers provide configuration assistance, troubleshooting guidance, and TIA Portal integration support at no additional charge.

Documentation Package: Each module ships with installation manual, wiring diagrams, GSD file for PROFINET integration, and sample TIA Portal project. Additional resources including application notes and video tutorials available in our online knowledge base.

Return Policy: 30-day return window for unused modules in original packaging. Restocking fee waived for defective units or incorrect shipments.

Frequently Asked Questions

Q: Can this analog output module interface directly with legacy 4-20mA devices without signal conditioning?
A: Yes, the module natively supports 4-20mA current loop output with built-in loop power supply. Simply configure the channel for current mode in TIA Portal and connect your 2-wire or 3-wire transmitter. Maximum loop resistance is 600Ω, sufficient for cable runs up to 1,500 meters with standard 18 AWG wire.

Q: What is the maximum channel count per ET200SP station when using multiple analog output modules?
A: A single ET200SP station supports up to 32 BaseUnits, allowing a maximum of 64 analog output channels (32 modules × 2 channels). Practical limits depend on power budget and communication cycle time requirements—consult the ET200SP system manual for detailed power consumption calculations.

Q: How much energy savings can I expect compared to older analog output technologies?
A: The ET200SP architecture reduces power consumption by approximately 40% versus traditional S7-300 analog modules. At 0.8W typical power draw per channel, a 16-channel system consumes only 12.8W versus 21W for equivalent legacy hardware, translating to $15-25 annual savings per module in continuous operation.

Q: What installation requirements must be met for proper module operation and safety compliance?
A: Mount on standard 35mm DIN rail with minimum 25mm clearance above and below for convection cooling. Ambient temperature must remain within -25°C to +60°C for horizontal mounting (derate to +40°C for vertical orientation). Use shielded cable for analog signals with shield grounded at one end only to prevent ground loops. Observe PELV (Protective Extra-Low Voltage) wiring practices per IEC 61131-2.

Q: Does the module support remote monitoring and predictive maintenance through Industrial IoT platforms?
A: Yes, when integrated with SIMATIC S7-1500 controllers running firmware V2.5 or later, diagnostic data can be published to Siemens MindSphere, AWS IoT, or Azure IoT Hub via OPC UA. Channel health metrics, calibration drift trends, and output load conditions are available for cloud-based analytics and predictive maintenance algorithms.

Q: Can I hot-swap this module during operation without disrupting other I/O on the same ET200SP station?
A: Absolutely. The module is designed for hot-swap operation when installed on BU Type A0 or A1 BaseUnits. The ET200SP backplane maintains power and communication to adjacent modules during replacement. Best practice: place the affected channels in safe state via PLC program before physical removal to prevent process disturbances.

Ready to Optimize Your Analog Control System?

Contact our automation specialists today for application-specific configuration guidance, volume pricing, or technical consultation. We'll help you select the right ET200SP components for your project and provide complete system integration support from design through commissioning.

Request a Quote: Email your system requirements to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Mention reference code 6ES7135-6HB00-0DA1 for priority handling.
