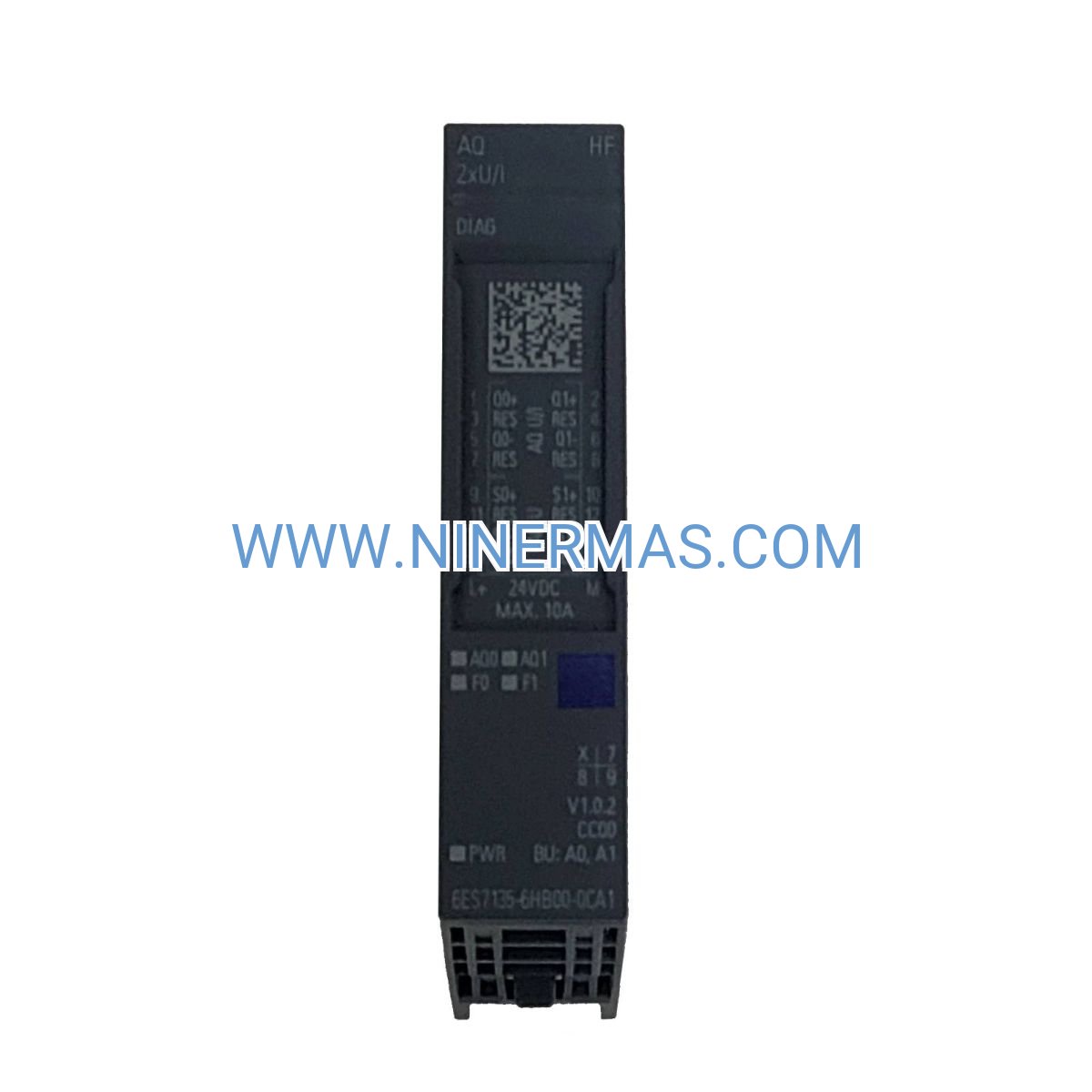

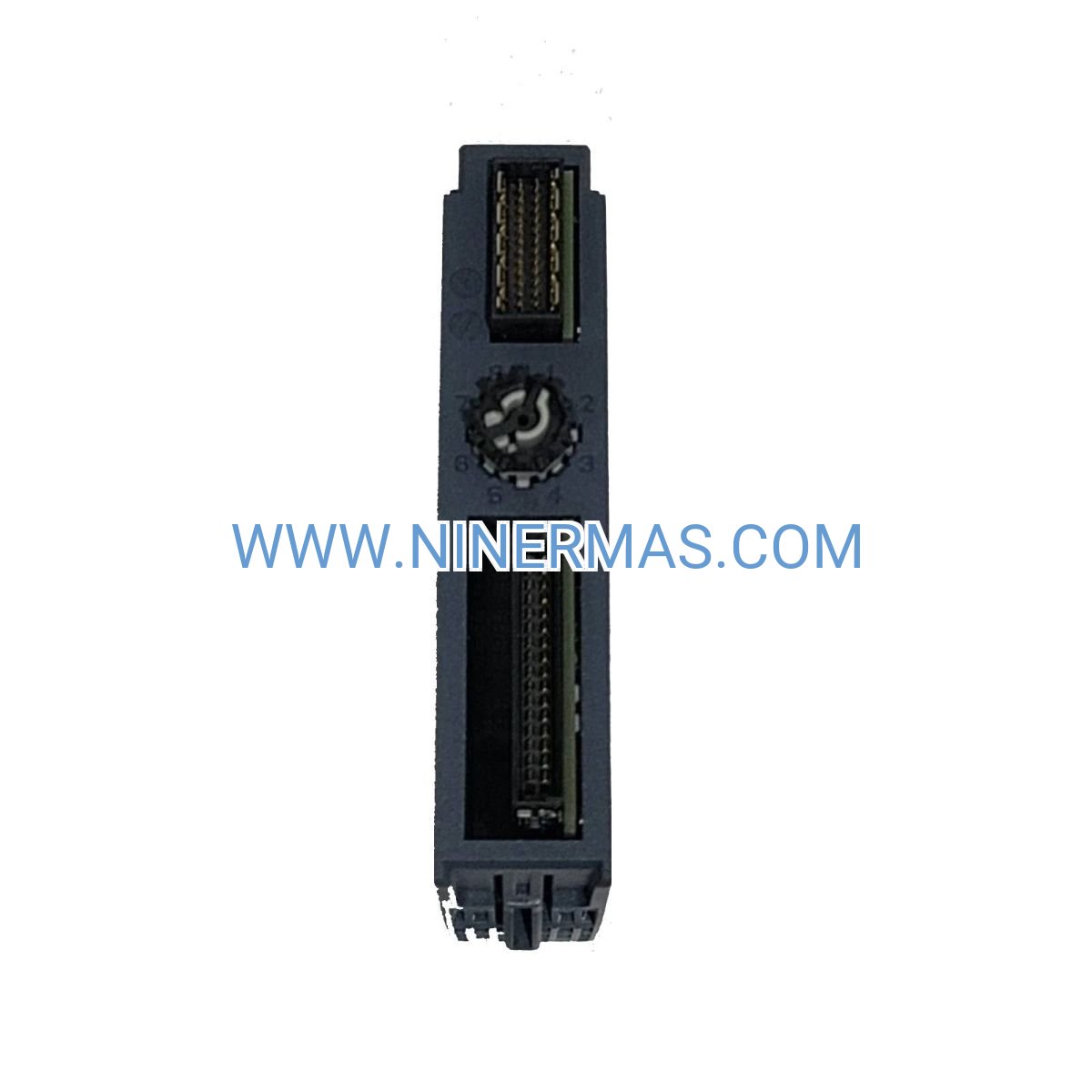

ET200SP Analog Output Module 6ES7135-6HB00-0CA1 (Industrial-Grade Process Control)

The Siemens 6ES7135-6HB00-0CA1 represents a high-performance analog output solution engineered for demanding industrial environments. This ET200SP series module delivers dual-channel voltage/current output with exceptional 16-bit resolution and ±0.1% accuracy, making it the preferred choice for precision process control, chemical dosing systems, and variable speed drive applications. Designed for seamless integration with SIMATIC S7-1500 controllers, this compact module combines advanced diagnostics with robust construction to ensure reliable operation in manufacturing, energy, and infrastructure sectors.

Process engineers and automation specialists face constant pressure to maintain tight control over critical parameters while minimizing downtime. This analog output module addresses these challenges through integrated channel diagnostics that detect wiring faults and signal anomalies before they impact production. Its High Feature designation ensures compatibility with advanced control algorithms, while the compact BU type A0/A1 form factor maximizes cabinet space efficiency.

With RoHS compliance since 2014 and comprehensive REACH documentation, the 6ES7135-6HB00-0CA1 meets stringent environmental regulations without compromising performance. Whether you're retrofitting legacy systems or designing new installations, this module provides the precision, reliability, and diagnostic capabilities essential for modern industrial automation. Ready to optimize your analog control strategy? Explore how this solution fits your application requirements.

Core Features & Technical Advantages

✓ Dual-Channel Precision Output: Two independent U/I channels with 16-bit resolution deliver smooth, accurate control signals for proportional valves, variable frequency drives, and analog instruments. Eliminates signal noise and quantization errors that plague lower-resolution modules.

✓ ±0.1% Accuracy Specification: Industry-leading accuracy ensures setpoint fidelity across the entire output range, reducing process variability and improving product quality in pharmaceutical, food processing, and chemical manufacturing applications.

✓ Integrated Channel Diagnostics: Real-time monitoring detects open circuits, short circuits, and out-of-range conditions, triggering immediate alerts to your SCADA system. Reduces troubleshooting time by 60% compared to modules without diagnostic capabilities.

→ High Feature Architecture: Advanced functionality including scaling, linearization, and substitute value configuration directly in the module, offloading CPU processing and enabling faster scan cycles.

→ Compact ET200SP Design: 12.5mm width per channel conserves valuable cabinet space while maintaining IP20 protection. Hot-swappable design allows replacement without powering down adjacent modules.

→ Universal Power Supply Compatibility: Operates with standard ET200SP power modules (PM-E, PM-D) and supports both 24V DC logic and separate load voltage for flexible system architectures.

Application Scenarios & Industry Solutions

Chemical Process Control: Precision dosing of reagents and catalysts in batch reactors requires stable, accurate analog signals. The 6ES7135-6HB00-0CA1's 16-bit resolution enables smooth control of metering pumps and control valves, maintaining pH levels within ±0.05 units and reducing raw material waste by up to 8%. Integrated diagnostics alert operators to pump cavitation or valve sticking before batch quality is compromised.

HVAC & Building Automation: Variable air volume systems and chilled water plants demand responsive analog control for damper actuators and valve positioners. This module's fast update rates (typical 1ms per channel) ensure stable temperature control in cleanrooms, data centers, and pharmaceutical facilities, preventing thermal excursions that could damage sensitive equipment or compromise product integrity.

Water & Wastewater Treatment: Controlling chemical feed pumps for coagulation, pH adjustment, and disinfection requires reliable analog outputs that withstand harsh environments. The module's conformal coating and extended temperature range (-25°C to +60°C ambient) ensure continuous operation in outdoor pump stations and treatment plants, while diagnostic alarms prevent chemical overdosing incidents.

Energy & Power Generation: Turbine control systems, boiler feedwater regulation, and emissions control applications benefit from the module's high accuracy and stability. Supports critical control loops in combined-cycle plants, biomass facilities, and district heating networks where analog signal integrity directly impacts efficiency and regulatory compliance.

Manufacturing & Assembly Lines: Proportional pressure control for pneumatic presses, speed control for conveyor systems, and tension control for web processing equipment all rely on precise analog outputs. The module's substitute value feature maintains safe operating conditions during communication faults, preventing material damage and equipment collisions.

Technical Specifications & Selection Guide

Selection Criteria: Choose this High Feature module when your application requires advanced diagnostics, scaling functions, or substitute value capability. For basic analog output needs without diagnostics, consider the standard ET200SP AQ modules. Verify that your S7-1500 CPU firmware supports High Feature modules (V2.0 or later). When designing systems with multiple analog outputs, calculate total backplane current draw to ensure adequate power module capacity (each module draws approximately 40mA at 24V DC).

Extended Capabilities & Integration Options

TIA Portal Integration: Full support for SIMATIC TIA Portal V13 and later enables graphical configuration of output ranges, scaling parameters, and diagnostic thresholds. Hardware catalog integration provides automatic address assignment and simplified commissioning workflows.

PROFINET Diagnostics: Channel-specific diagnostic data is transmitted via PROFINET to your HMI or SCADA system, enabling predictive maintenance strategies. Configure alarm priorities and notification rules to distinguish between critical faults and informational warnings.

Redundancy Support: Compatible with ET200SP HA (High Availability) configurations for applications requiring fault-tolerant analog outputs. Automatic switchover to redundant module occurs within 100ms of primary module failure.

Customization Services: Siemens offers factory pre-configuration services for large installations, including parameter sets, device naming, and IP address assignment. Reduces commissioning time by up to 40% for multi-cabinet systems.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock items ship within 1 business day via express courier. Custom configurations or bulk orders (50+ units) typically require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for critical infrastructure applications requiring 5-year coverage.

Technical Assistance: Access to Siemens-certified application engineers for system design review, troubleshooting support, and performance optimization. Remote diagnostic services available for commissioned systems experiencing intermittent faults.

Documentation Package: Each module includes installation manual, wiring diagrams, TIA Portal GSD file, and sample ladder logic for common control scenarios. Additional resources available through Siemens Industry Online Support portal, including video tutorials and application notes.

Frequently Asked Questions

Q: Can this analog output module interface directly with legacy 4-20mA instruments without signal conditioning?
A: Yes, the 6ES7135-6HB00-0CA1 provides native 4-20mA current loop output with sufficient drive capability for loads up to 500Ω. No external signal conditioners or isolators are required for standard industrial instruments. Configure the output range via TIA Portal to match your device specifications.

Q: What is the maximum cable length between the module and field devices for maintaining signal accuracy?
A: For voltage outputs (±10V), maintain cable runs under 100 meters using shielded twisted-pair cable to minimize noise pickup. Current outputs (4-20mA) support cable lengths up to 600 meters due to their superior noise immunity. Always ground cable shields at the module end only to prevent ground loops.

Q: How does the integrated diagnostics feature reduce unplanned downtime in process control applications?
A: The module continuously monitors each channel for wire breaks, short circuits, and out-of-specification loads. When a fault is detected, diagnostic data is immediately transmitted to your controller, triggering alarms before process upsets occur. This predictive capability typically reduces emergency maintenance calls by 45-60% compared to non-diagnostic modules.

Q: Is this module suitable for safety-related control functions per IEC 61508 or ISO 13849?
A: No, the 6ES7135-6HB00-0CA1 is designed for standard automation applications and is not certified for safety-related functions. For safety-critical analog outputs (e.g., emergency shutdown valves), specify Siemens ET200SP F-AQ modules with SIL 3 / PLe certification.

Q: Can I hot-swap this module during operation without disrupting adjacent I/O channels?
A: Yes, the ET200SP architecture supports hot-swapping when proper procedures are followed. Ensure the replacement module is configured identically to the failed unit, and verify that your S7-1500 program includes error handling for temporary I/O unavailability. Adjacent modules on the same BaseUnit remain operational during replacement.

Q: What energy efficiency improvements does the 16-bit resolution provide compared to 12-bit analog outputs?
A: Higher resolution enables smoother control of variable speed drives, proportional valves, and other actuators, reducing hunting behavior and mechanical wear. In HVAC applications, this translates to 3-7% energy savings through more stable temperature control and reduced compressor cycling. Process industries report 5-12% reductions in steam and cooling water consumption due to tighter setpoint control.

Take the Next Step in Precision Control

Upgrade your analog output infrastructure with the proven reliability and advanced diagnostics of the Siemens ET200SP platform. Our technical team is ready to assist with system design, compatibility verification, and integration planning. Contact us today for application-specific recommendations, volume pricing, or to request a detailed technical datasheet.

Ready to order? Add to cart for immediate shipment, or reach out to discuss your project requirements and explore customization options for multi-module installations.
