ET200S 2-Channel Analog Output Module (Industrial-Grade Process Control)

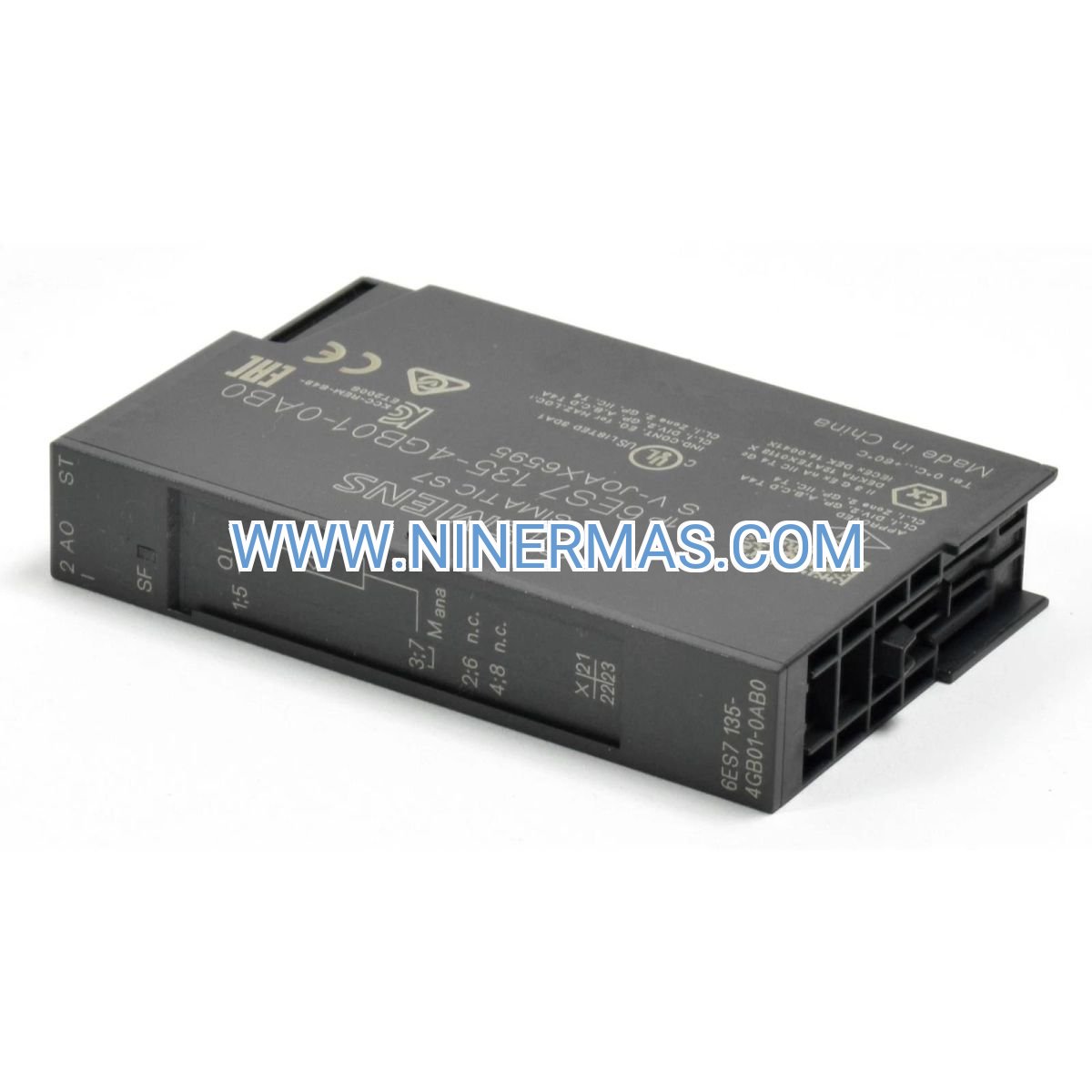

The Siemens 6ES7135-4GB01-0AB0 is a compact 2-channel analog output module engineered for the ET200S distributed I/O system. Delivering 13-bit resolution with ±20 mA or 4–20 mA output capability, this 15 mm-wide module enables precise control of actuators, valves, and variable frequency drives in demanding industrial environments. Designed for manufacturers seeking reliable signal conversion in process automation, chemical plants, and manufacturing execution systems, it combines ultra-fast cycle times under 1 millisecond per channel with integrated fault diagnostics via SF LED indicators.

Built to withstand harsh factory conditions, the 6ES7135-4GB01-0AB0 solves critical challenges in analog signal distribution—eliminating wiring complexity through modular ET200S architecture while maintaining signal integrity across extended distances. Target users include automation engineers, system integrators, and plant maintenance teams managing SIMATIC S7 ecosystems. Key advantages include space-saving design (15 mm width), hot-swappable installation without system shutdown, and seamless integration with TIA Portal for streamlined commissioning and diagnostics.

Core Features & Benefits

✓ Dual-Channel Precision Output
Two independent analog channels support simultaneous control of multiple field devices, reducing module count and cabinet footprint while maintaining 13-bit + sign resolution for accurate process variable manipulation.

✓ Ultra-Fast Response Time
Sub-millisecond cycle time (<1 ms per channel) ensures real-time control in high-speed production lines, minimizing lag in closed-loop systems and improving product quality consistency.

✓ Flexible Current Output Ranges
Configurable ±20 mA or 4–20 mA output modes accommodate diverse actuator specifications, from proportional valves to analog positioners, without external signal conditioning.

✓ Integrated Diagnostics
Built-in SF (group fault) LED provides instant visual feedback on channel status, accelerating troubleshooting and reducing mean time to repair (MTTR) by up to 40%.

✓ Compact Modular Design
15 mm width allows high-density I/O configurations in space-constrained control cabinets, supporting up to 63 modules per ET200S station for scalable system expansion.

✓ Hot-Swap Capability
Replace modules during operation without halting production processes, maximizing uptime in 24/7 manufacturing environments and reducing scheduled maintenance windows.

Application Scenarios

→ Chemical Process Control
Regulate flow rates and pressure in reactor vessels through precise valve positioning. The module's 13-bit resolution enables fine-tuned control of dosing pumps, preventing batch inconsistencies and material waste in pharmaceutical and specialty chemical production.

→ HVAC System Optimization
Control damper actuators and variable air volume (VAV) boxes in building automation systems. Fast cycle times ensure responsive climate control, reducing energy consumption by 15–25% while maintaining occupant comfort in commercial facilities.

→ Water Treatment Plants
Manage chemical dosing pumps and motorized valves in filtration and disinfection stages. The 4–20 mA output standard ensures compatibility with legacy instrumentation, simplifying retrofits in municipal water infrastructure.

→ Automotive Manufacturing
Drive proportional pressure regulators in pneumatic assembly tools and robotic welding systems. Sub-millisecond response times synchronize with high-speed production cycles, improving weld quality and reducing rework rates.

→ Food & Beverage Processing
Control temperature and mixing speed in pasteurization and blending operations. RoHS compliance and WEEE take-back eligibility meet stringent food safety regulations while supporting sustainability initiatives.

Technical Parameters & Selection Guide

Selection Criteria:
Choose this module when your application requires 2 analog outputs with standard industrial current ranges. For voltage output needs (0–10V), consider the 6ES7135-4LB02-0AB0 variant. Systems demanding higher channel density should evaluate the 4-channel 6ES7135-4MB02-0AB0 model. Verify compatibility with your ET200S interface module (IM151 series) and ensure adequate power budget allocation (typical 1.5W per module).

Extended Functions

TIA Portal Integration: Full parametrization through STEP 7 V5.5+ and TIA Portal V13 or later enables graphical configuration of output ranges, scaling factors, and diagnostic thresholds without manual DIP switch adjustments.

PROFIBUS DP Connectivity: Seamless data exchange over PROFIBUS DP networks at speeds up to 12 Mbps, supporting distributed control architectures with centralized HMI monitoring and recipe management.

Redundancy Support: Compatible with ET200S redundant configurations (R-modules) for mission-critical applications requiring failover protection, such as emergency shutdown systems and continuous process industries.

Customization Options: Factory pre-configuration services available for volume orders—modules can be shipped with customer-specific parameter sets pre-loaded, reducing commissioning time by 60% in multi-site deployments.

Delivery & Service Assurance

Lead Time:
Standard delivery: 3–5 business days for stock items
Custom configurations: 10–15 business days

Warranty Coverage:
24-month manufacturer warranty covering material defects and workmanship. Extended warranty plans available for critical infrastructure applications.

Technical Support:
Lifetime access to Siemens technical documentation, including CAD drawings, EPLAN macros, and GSD files. Email and phone support available Monday–Friday, 8 AM–6 PM CST with 4-hour response SLA for registered customers.

Documentation Included:
• Quick start guide with wiring diagrams
• TIA Portal hardware catalog entry
• Compliance certificates (RoHS, REACH, CE)
• Dimensional drawings (PDF + DXF formats)

Frequently Asked Questions

Q: How do I connect this analog output module to my existing SIMATIC S7-300 PLC?
A: The 6ES7135-4GB01-0AB0 requires an ET200S interface module (IM151-1 or IM151-8) connected via PROFIBUS DP to your S7-300 CPU. Use the IM151-1 STANDARD (6ES7151-1AA06-0AB0) for basic applications or IM151-8 PN/DP PRO (6ES7151-8AB01-0AB0) for PROFINET integration. Configuration is performed through STEP 7 hardware catalog—simply drag the module into your ET200S station layout.

Q: What is the maximum cable length for 4–20 mA output signals?
A: With shielded twisted-pair cable (0.5 mm² cross-section), you can achieve up to 600 meters for 4–20 mA signals while maintaining signal integrity. For ±20 mA outputs, limit cable runs to 300 meters to prevent voltage drop issues. Always use grounded shields and avoid routing near high-voltage power cables.

Q: Can this module achieve energy savings in variable speed drive applications?
A: Yes—when controlling VFD analog inputs for motor speed regulation, the module's precise 13-bit resolution enables fine-grained speed adjustments (0.012% steps). This allows optimization of pump and fan speeds to match actual demand, typically reducing energy consumption by 20–35% compared to fixed-speed operation in HVAC and water distribution systems.

Q: What are the installation requirements for hot-swapping this module?
A: Hot-swap capability requires ET200S firmware version V2.0 or higher on your interface module. Before removal, use TIA Portal to disable the module in the hardware configuration (no need to stop the CPU). After physical replacement, re-enable the module—the system will automatically download parameters. Ensure the replacement module has identical part number and firmware revision to avoid compatibility issues.

Q: Does this analog output module support remote monitoring via Industrial IoT platforms?
A: Indirect support is available through the ET200S interface module. When using an IM151-8 PN/DP PRO with integrated web server, you can access diagnostic data (channel status, fault counters) via standard web browsers. For advanced IoT integration, pair with SIMATIC IOT2050 gateway to stream output values and diagnostics to cloud platforms like MindSphere or third-party SCADA systems via OPC UA or MQTT protocols.

Q: How do I verify proper output calibration after installation?
A: Connect a precision multimeter (0.1% accuracy or better) in series with the output loop. Use TIA Portal's "Force" function to set the output to known values (0%, 50%, 100% of range). For 4–20 mA mode, verify readings of 4.00 mA, 12.00 mA, and 20.00 mA respectively. Factory calibration is typically within ±0.3% of full scale—recalibration is rarely needed unless the module has been subjected to electrical overstress.

Get Started Today

Upgrade your process control accuracy with the Siemens 6ES7135-4GB01-0AB0 analog output module. Contact our automation specialists for application-specific guidance, volume pricing, or technical integration support. Request a quote now or download the complete datasheet to evaluate compatibility with your existing SIMATIC infrastructure.
