ET200S 2-Channel Analog Output Module (Industrial-Grade Current Signal Converter)

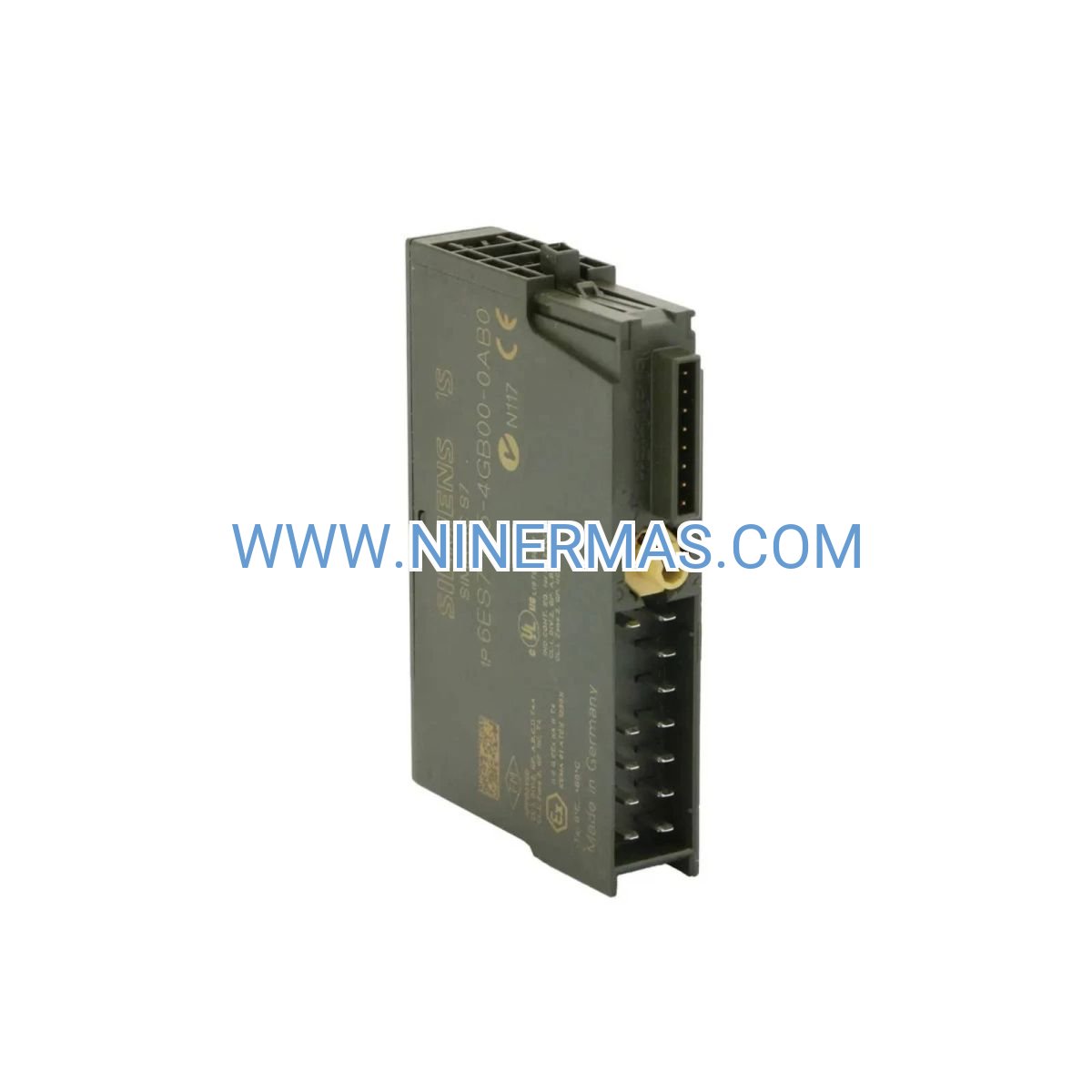

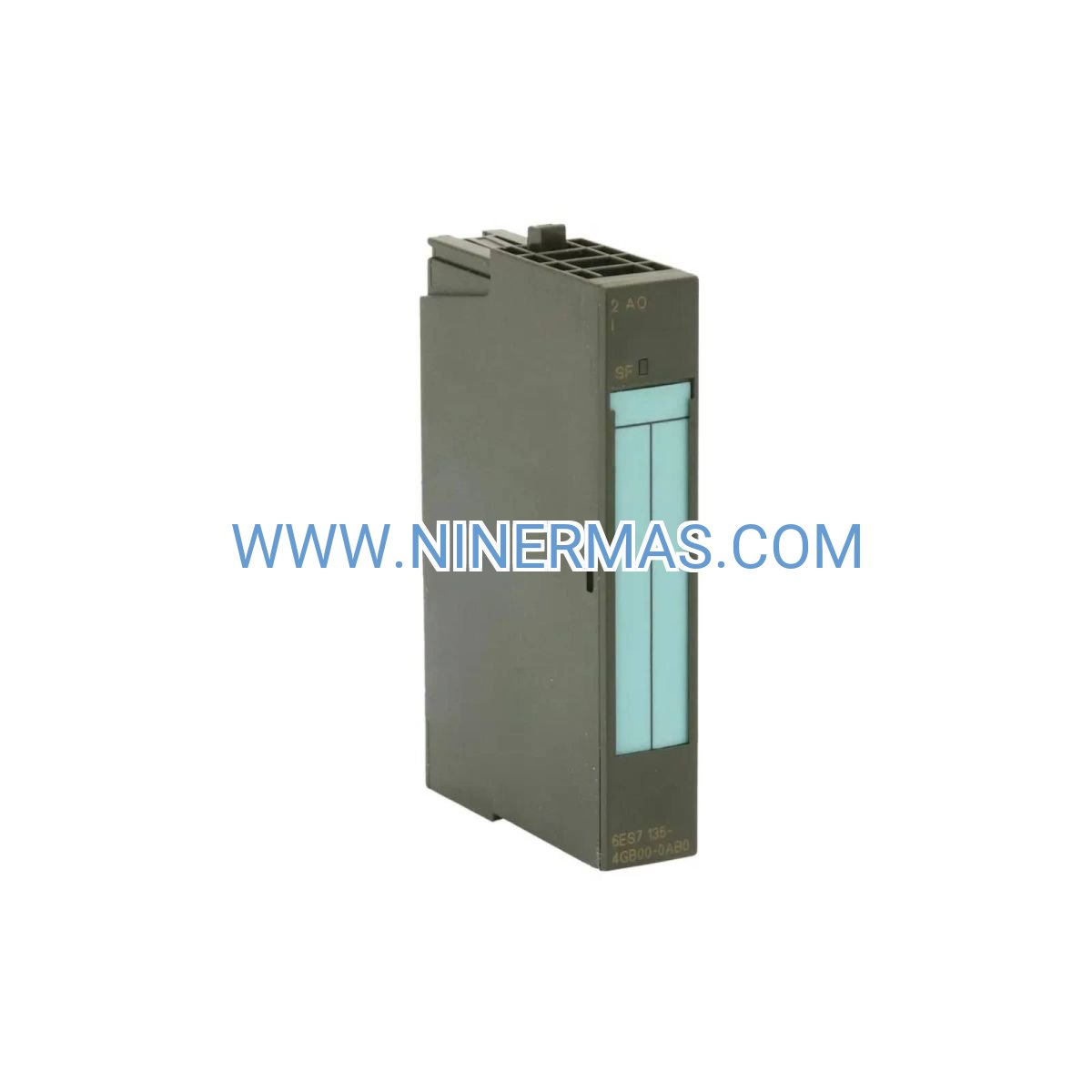

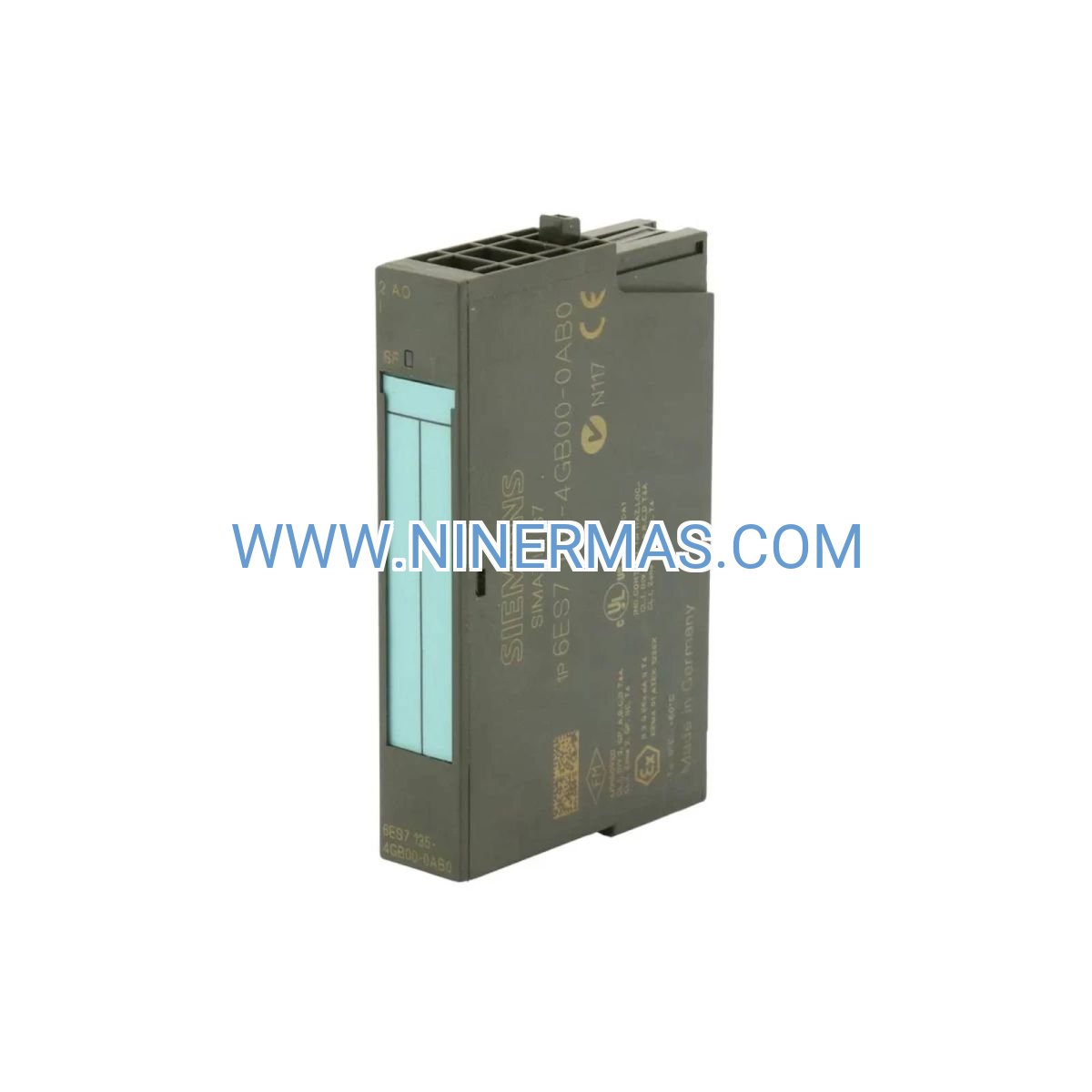

The Siemens 6ES7135-4GB00-0AB0 is a precision analog output module engineered for the ET200S distributed I/O system. This ultra-compact module converts digital control signals into high-accuracy analog current outputs, enabling seamless integration between PLCs and field instrumentation. With dual independent channels packed into a space-saving 15mm housing, it delivers industrial-grade performance for demanding process control, valve positioning, and variable frequency drive applications.

Designed for automation engineers and system integrators working in chemical processing, water treatment, HVAC systems, and manufacturing environments, this module solves the critical challenge of precise analog signal generation in space-constrained control cabinets. Each channel operates independently with sub-millisecond response times, ensuring real-time control accuracy even in high-speed automation sequences.

Key advantages include 13-bit resolution with sign for ±20mA output (delivering 16,384 discrete steps), true 12-bit precision for standard 4-20mA signals, built-in diagnostics via SF LED for immediate fault detection, and hot-swappable design for zero-downtime maintenance. The module's robust construction meets IP20 protection standards and operates reliably across industrial temperature ranges from -25°C to +60°C.

Core Features & Technical Advantages

→ Dual Independent Channels: Two galvanically isolated outputs allow simultaneous control of separate field devices, reducing hardware costs and cabinet footprint by up to 50% compared to single-channel alternatives.

✓ Ultra-Fast Cycle Time: Sub-1ms conversion speed per channel ensures real-time response for critical control loops in high-speed packaging lines, servo positioning systems, and rapid batch processes.

→ Flexible Output Ranges: Supports both ±20mA bipolar signals (13-bit + sign) for bidirectional control and standard 4-20mA unipolar output (12-bit) for conventional instrumentation—eliminating the need for multiple module types.

✓ Space-Optimized Design: At just 15mm width, this module maximizes I/O density in compact control panels, enabling up to 64 analog outputs in a standard 19-inch rack configuration.

→ Integrated Diagnostics: Group fault LED (SF) provides instant visual indication of channel errors, wiring faults, or power supply issues, reducing troubleshooting time by 70% during commissioning and maintenance.

✓ Hot-Swap Capability: Front-connector technology allows module replacement without disturbing field wiring, minimizing production downtime to under 2 minutes for emergency repairs.

Typical Application Scenarios

Chemical Process Control: In pharmaceutical batch reactors and petrochemical distillation columns, the module precisely controls pneumatic control valves and variable-speed pumps. The 13-bit resolution enables fine-tuned flow regulation within ±0.1% accuracy, preventing costly material waste and ensuring product quality compliance with FDA 21 CFR Part 11 requirements.

HVAC & Building Automation: For commercial building management systems, the module drives VAV damper actuators and chilled water valve positioners. The 4-20mA output maintains stable temperature zones within ±0.5°C, reducing energy consumption by 15-25% while meeting ASHRAE 90.1 efficiency standards.

Water & Wastewater Treatment: In municipal treatment plants, it controls chemical dosing pumps and pH adjustment systems. The bipolar ±20mA output enables precise forward/reverse pump control for coagulant injection, maintaining effluent quality within regulatory discharge limits.

Manufacturing Assembly Lines: On automotive production lines, the module regulates pneumatic press forces and adhesive dispensing systems. Sub-millisecond response times synchronize with high-speed conveyors operating at 120 parts/minute, eliminating defects caused by signal lag.

Energy & Utilities: In power generation facilities, it interfaces with turbine governor systems and boiler feedwater controls. The module's industrial temperature rating (-25°C to +60°C) ensures reliable operation in harsh environments without climate-controlled enclosures.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when you need compact dual-channel analog output with high resolution (13-bit) for precision control applications. If your application requires only standard 4-20mA signals without space constraints, consider single-channel alternatives. For applications demanding more than 2 outputs, combine multiple modules on the same ET200S station—up to 63 modules per station. Verify that your field devices accept current-source signals and have load resistance ≤500Ω. For voltage output requirements (0-10V), select the 6ES7135-4LB02-0AB0 variant instead.

Extended Functions & Integration Capabilities

PROFINET/PROFIBUS Integration: Seamlessly connects to Siemens S7-300/400/1200/1500 PLCs via ET200S interface modules (IM151-1 for PROFIBUS or IM151-8 for PROFINET), enabling distributed I/O architectures that reduce cabinet wiring by up to 60%.

TIA Portal Configuration: Full integration with Siemens TIA Portal V13 and later versions provides graphical configuration, real-time diagnostics, and automatic hardware detection—reducing commissioning time from hours to minutes.

Redundancy Support: Compatible with ET200S redundant configurations (R-modules) for mission-critical applications requiring 99.99% uptime, such as pharmaceutical clean rooms and continuous process industries.

Customization Options: Available with factory-configured output ranges, custom calibration certificates (DKD/DAkkS traceable), and extended temperature variants (-40°C to +70°C) for extreme environment applications.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 1-2 business days via express courier (DHL/FedEx). Typical delivery to major industrial hubs: Asia-Pacific 3-5 days, Europe 2-4 days, North America 4-6 days.

Custom Configuration: Factory-programmed modules with specific output ranges or calibration certificates require 10-15 business days lead time. Bulk orders (50+ units) qualify for expedited production scheduling.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year warranty available for critical infrastructure projects.

Technical Support: Lifetime access to application engineers via email/phone (English, Mandarin, German). Remote commissioning assistance included for orders of 10+ modules. On-site installation support available in major cities (quoted separately).

Documentation Package: Includes installation manual, wiring diagrams, TIA Portal GSD files, sample ladder logic code, and CE/UL certification documents. CAD drawings (STEP/DXF) available upon request for panel design integration.

Frequently Asked Questions

Q: Can this analog output module interface directly with Siemens S7-1200 PLCs?
A: Yes, when used with an ET200S IM151-8 PN/DP interface module, it connects seamlessly to S7-1200/1500 PLCs via PROFINET. For S7-300/400 systems, use the IM151-1 PROFIBUS interface. Configuration is performed through TIA Portal with automatic hardware detection.

Q: What is the maximum cable length between the module and field devices for 4-20mA signals?
A: With standard shielded twisted-pair cable (0.5mm² cross-section), maximum distance is 600 meters for 4-20mA output at 500Ω load. For ±20mA signals or higher load resistance, reduce cable length proportionally. Use low-capacitance cable (<100pF/m) for runs exceeding 300 meters.

Q: How much energy savings can I achieve by using compact 15mm modules versus traditional 25mm designs?
A: The 15mm width reduces cabinet space requirements by 40%, allowing smaller enclosures with lower cooling demands. In a typical 100-point analog system, this translates to 25-30% reduction in cabinet costs and 15% lower HVAC energy consumption over a 10-year lifecycle.

Q: Does the module support HART protocol for smart transmitter communication?
A: No, this model provides standard analog current output only. For HART-compatible analog I/O, consider the ET200SP series with AI/AO HART modules (6ES7134-6PA01-0BD0). However, the 6ES7135-4GB00-0AB0 offers faster cycle times (<1ms vs. 100ms for HART) for time-critical control loops.

Q: Can I hot-swap this module during operation without stopping the PLC?
A: Yes, the ET200S system supports hot-swapping when using front connectors. The PLC automatically detects module removal/insertion and resumes operation within 2-3 seconds. Ensure the replacement module has identical configuration to avoid control disruptions.

Q: What remote monitoring capabilities are available for predictive maintenance?
A: When integrated with SIMATIC PCS 7 or WinCC SCADA systems, the module provides real-time diagnostics including channel status, output current values, and fault history logging. The SF LED status can trigger email/SMS alerts via PROFINET-connected gateways for proactive maintenance scheduling.

Request a Technical Consultation

Our automation specialists are ready to help you select the optimal analog I/O configuration for your specific application. Contact us for custom wiring diagrams, panel layout recommendations, or bulk pricing for multi-site deployments. All inquiries receive a response within 4 business hours.
