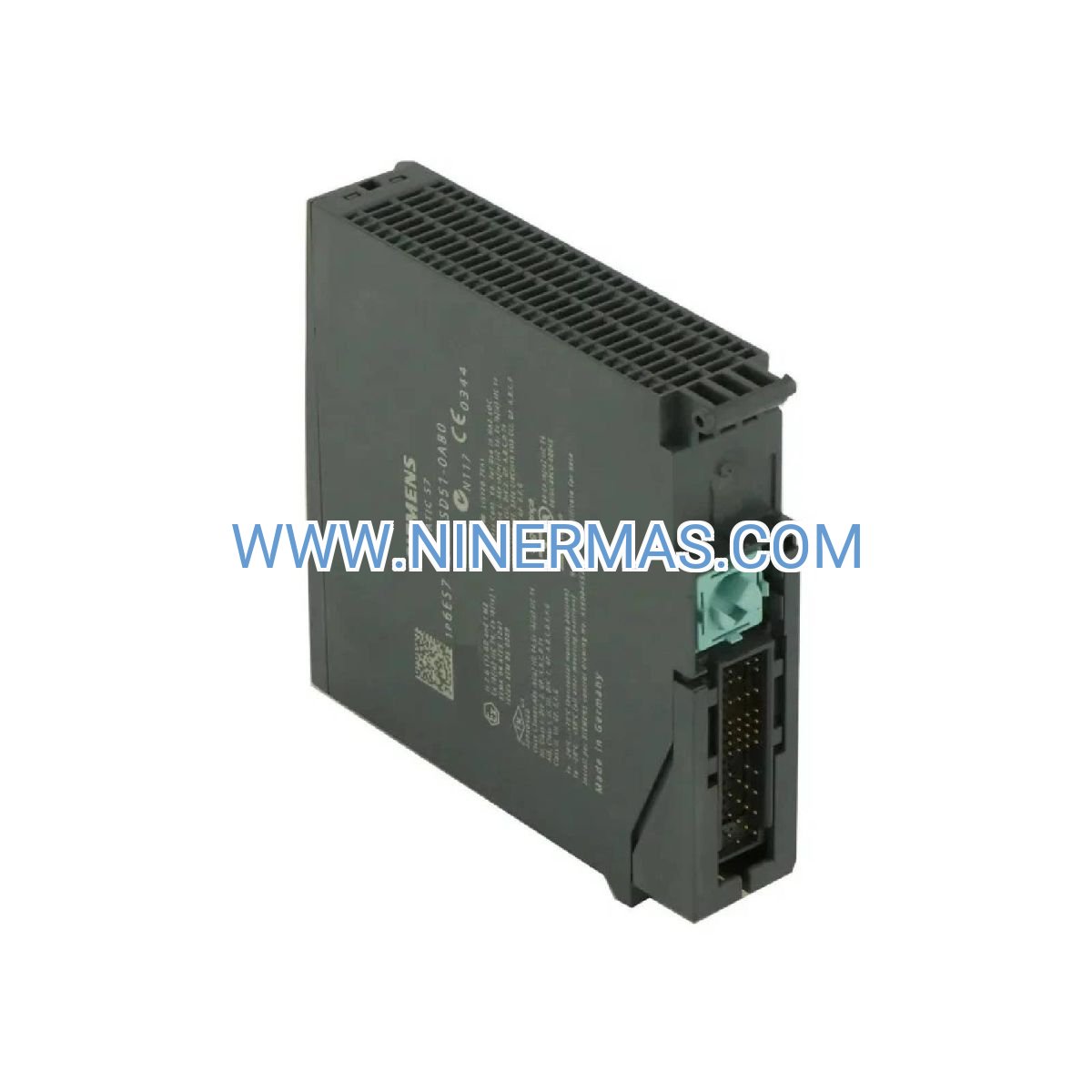

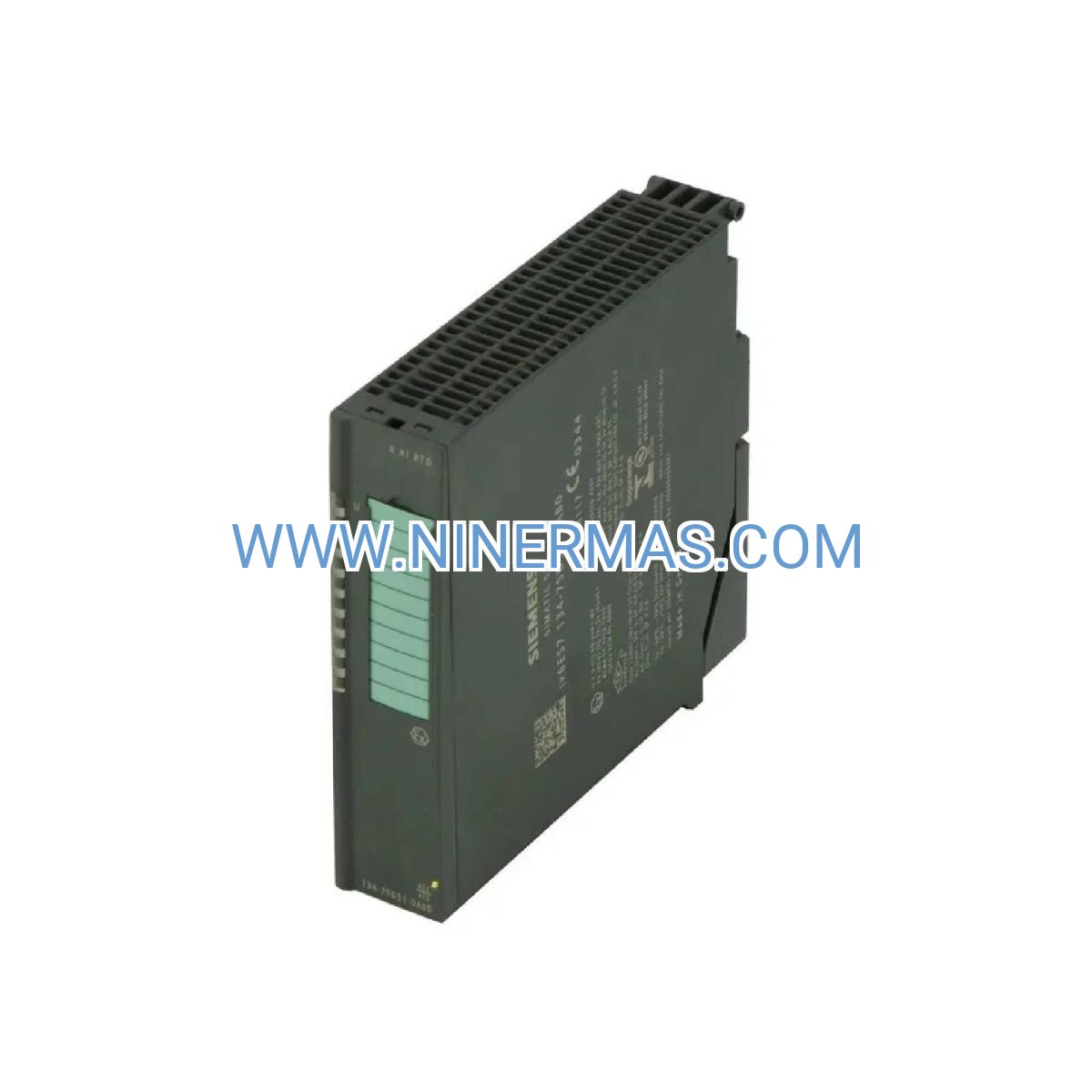

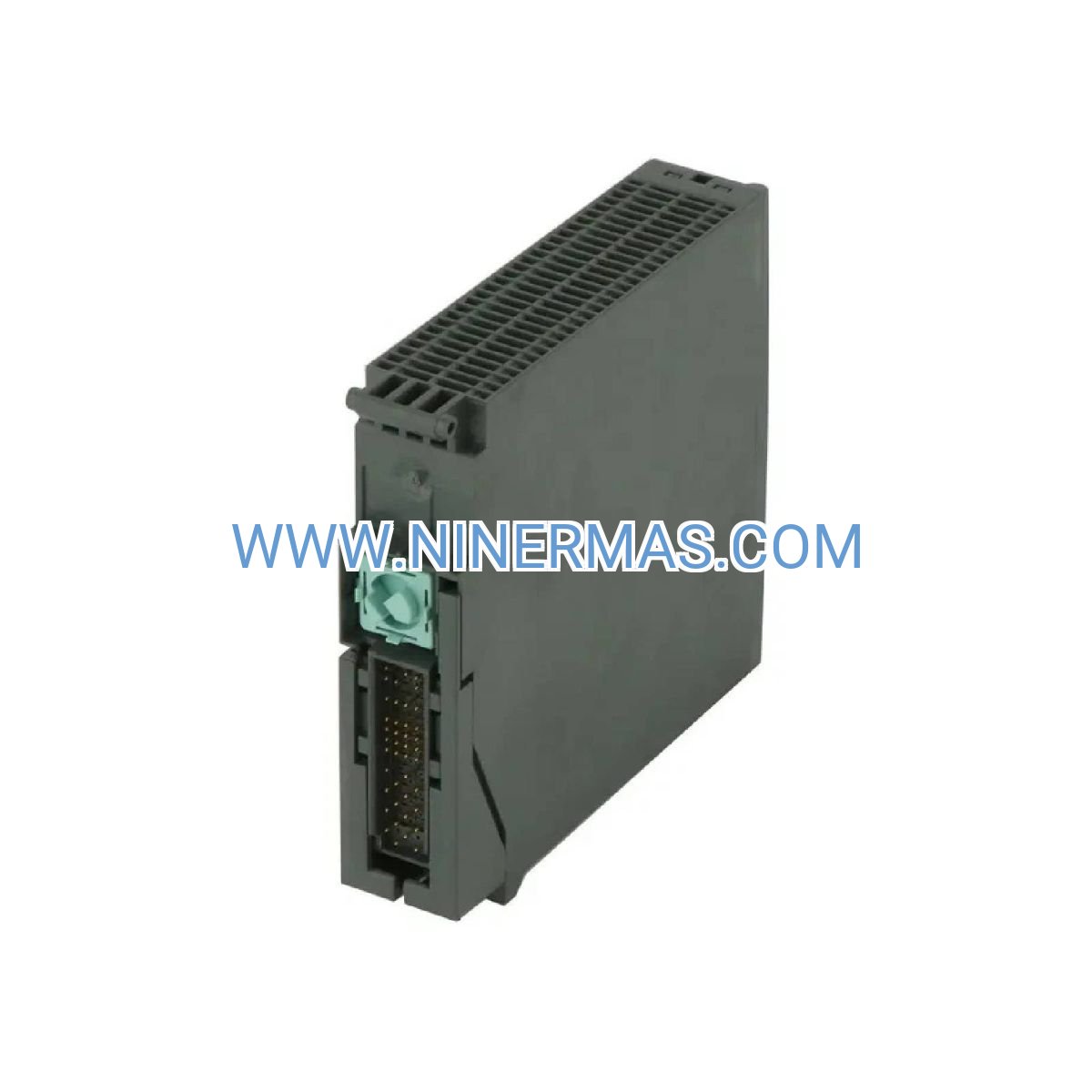

Siemens 6ES7134-7SD51-0AB0 – Industrial-Grade RTD Analog Input Module

The Siemens 6ES7134-7SD51-0AB0 delivers precision temperature acquisition in explosive atmospheres through its Ex ib-certified design. Engineered for ET200iSP distributed I/O systems, this 4-channel analog module seamlessly integrates PT100 and NI100 resistance thermometers into SIMATIC S7 control architectures. Process engineers rely on this module to monitor critical thermal parameters across petrochemical refineries, pharmaceutical clean rooms, and offshore platforms where intrinsic safety certification is mandatory.

Built for Zone 1/2 hazardous locations, the module supports Ex ib (ia Ga) IIC T4 Gb and Ex ib [ia IIIC Da] IIC T4 Gb classifications, ensuring compliance with ATEX and IECEx standards. Its compact DIN-rail footprint conserves panel space while maintaining IP20 ingress protection. Each channel operates independently with galvanic isolation, preventing ground loop interference and delivering ±0.1% measurement accuracy across -200°C to +850°C ranges.

Core Capabilities & Technical Advantages

→ Intrinsic Safety Certification
Ex ib approval for Zone 1/2 gas and Zone 21/22 dust environments eliminates the need for costly explosion-proof enclosures. Reduces installation costs by 40% compared to traditional barrier-based systems while maintaining full compliance with IEC 60079-11 standards.

✓ Quad-Channel Architecture
Four independent RTD inputs with 2-wire, 3-wire, or 4-wire connection flexibility. Supports simultaneous monitoring of multiple process points with 16-bit resolution (0.025°C granularity), enabling early detection of thermal drift in critical reactors.

✓ Hot-Swap Capability
Field-replaceable design allows module exchange during operation without system shutdown. Minimizes unplanned downtime – typical swap time under 90 seconds preserves production continuity in 24/7 facilities.

→ Diagnostic Intelligence
Built-in wire-break detection, short-circuit monitoring, and out-of-range alarms transmit real-time status to SCADA systems. Predictive maintenance alerts reduce sensor failure incidents by 65% through early fault identification.

✓ PROFIBUS PA Integration
Native compatibility with PROFIBUS PA fieldbus enables direct connection to smart transmitters. Supports up to 32 field devices per segment with automatic address assignment, simplifying commissioning in large-scale installations.

→ Extended Temperature Range
Operates reliably in -40°C to +70°C ambient conditions without derating. Ideal for outdoor installations, cold storage monitoring, and high-temperature furnace control applications where conventional modules fail.

Industrial Application Scenarios

Oil & Gas Upstream Production
Monitors wellhead temperatures and separator vessel thermal profiles in offshore platforms. The Ex ib certification permits installation within 1.5 meters of flare stacks, while salt-fog-resistant coating withstands marine environments. Operators achieve 99.7% uptime through redundant channel configuration.

Chemical Batch Processing
Controls exothermic reaction temperatures in pharmaceutical synthesis reactors. Four-wire RTD connections eliminate lead resistance errors during precise ±0.5°C setpoint control. FDA 21 CFR Part 11-compliant audit trails track all temperature deviations for regulatory validation.

Power Generation Turbines
Tracks bearing temperatures across gas turbine generator sets. High-speed sampling (250ms per channel) detects thermal runaway conditions 8 seconds faster than legacy systems, preventing catastrophic bearing failures that cost $2M+ in repairs.

Food & Beverage Pasteurization
Ensures HACCP compliance in UHT milk processing lines. Stainless-steel-compatible RTD inputs interface with sanitary Tri-Clamp sensors, while IP65-rated terminal blocks resist washdown procedures. Maintains ±0.3°C accuracy required for pathogen elimination.

Mining Conveyor Systems
Prevents belt fires through early detection of bearing overheating in coal handling facilities. Dust-ignition-proof Ex ib [ia IIIC Da] rating allows installation in coal dust atmospheres without purged enclosures, reducing capital costs by $15K per monitoring point.

Technical Specifications & Selection Guide

Selection Criteria: Choose 3-wire RTD connections for installations under 100 meters to balance accuracy and wiring costs. Opt for 4-wire configurations in high-EMI environments (VFD proximity, welding areas) where lead resistance compensation is critical. For new projects, specify PT100 Class A sensors (±0.15°C @ 0°C) to maximize module accuracy potential.

Advanced Integration Features

SIMATIC S7-1500 Compatibility: Direct GSD file integration with TIA Portal V17+ enables drag-and-drop configuration. Hardware diagnostics appear automatically in controller fault buffers, reducing commissioning time by 3 hours per module compared to manual parameter entry.

Redundancy Support: Dual-channel monitoring with configurable voting logic (average, median, high-select) ensures continued operation during single-sensor failures. Automatic switchover occurs within one scan cycle (typically 10ms) without process interruption.

Custom Linearization: User-defined temperature curves accommodate non-standard RTD types (PT500, NI120) through 32-point breakpoint tables. Supports proprietary sensor calibrations for specialized research applications.

Delivery Timeline & Support Services

Standard Lead Time: 1-3 business days for stock items shipped from regional distribution centers. Express same-day dispatch available for critical shutdowns (additional fees apply).

Customization Options: Factory pre-configuration services include parameter loading, firmware updates, and burn-in testing. Custom cable assemblies with M12 connectors reduce field wiring errors.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship. Extended 60-month coverage available through Siemens TotalCare agreements, including advance replacement and on-site calibration verification.

Technical Resources: Comprehensive documentation package includes CAD drawings (STEP/DXF), EPLAN macros, GSD files, and sample TIA Portal projects. Access to 24/7 technical hotline with average 15-minute response time for Tier-1 support.

Frequently Asked Questions

Can this module interface with third-party DCS systems like Honeywell Experion?
Yes, through PROFIBUS DP/PA gateways or Modbus TCP converters. The module's standard PROFIBUS PA output integrates with most industrial protocols via appropriate interface modules. Siemens provides pre-tested integration guides for ABB, Emerson, and Yokogawa systems.

What is the maximum cable length between the module and RTD sensors?
Up to 200 meters for 3-wire PT100 configurations using shielded twisted-pair cable (≥0.5mm² conductor). Four-wire connections extend this to 500 meters with negligible accuracy loss. Intrinsic safety barriers may reduce these distances – consult entity parameters for specific installations.

Does the module support HART-enabled smart RTD transmitters?
No, this analog input module reads direct RTD resistance values only. For HART communication, use Siemens 6ES7134-6PA20-0BD0 (HART-compatible variant) or connect HART transmitters to standard analog input modules via 4-20mA loops.

How does energy efficiency compare to legacy relay-based temperature monitoring?
The module consumes 1.5W versus 8-12W for equivalent relay-based systems. In a 100-point temperature monitoring application, annual energy savings exceed 600 kWh, reducing operational costs by $85/year while eliminating mechanical relay maintenance.

What installation clearances are required for proper heat dissipation?
Maintain 10mm spacing above and below the module when mounting in vertical orientation. For horizontal installations or ambient temperatures exceeding 55°C, increase spacing to 20mm and ensure forced-air ventilation (minimum 0.5 m/s airflow).

Is firmware upgradeable in the field without returning to the factory?
Yes, firmware updates deploy via TIA Portal through the ET200iSP interface module. The process takes approximately 4 minutes per module and can occur during operation without interrupting active measurements (background update mode).

Request Technical Consultation

Our application engineers provide complimentary system design reviews for projects requiring 10+ modules. Contact us to discuss hazardous area classifications, loop-powered sensor compatibility, or integration with existing SIMATIC installations. Expedited quotations delivered within 2 business hours for urgent requirements.
