4-Channel HART Analog Input Module (Industrial-Grade Process Control)

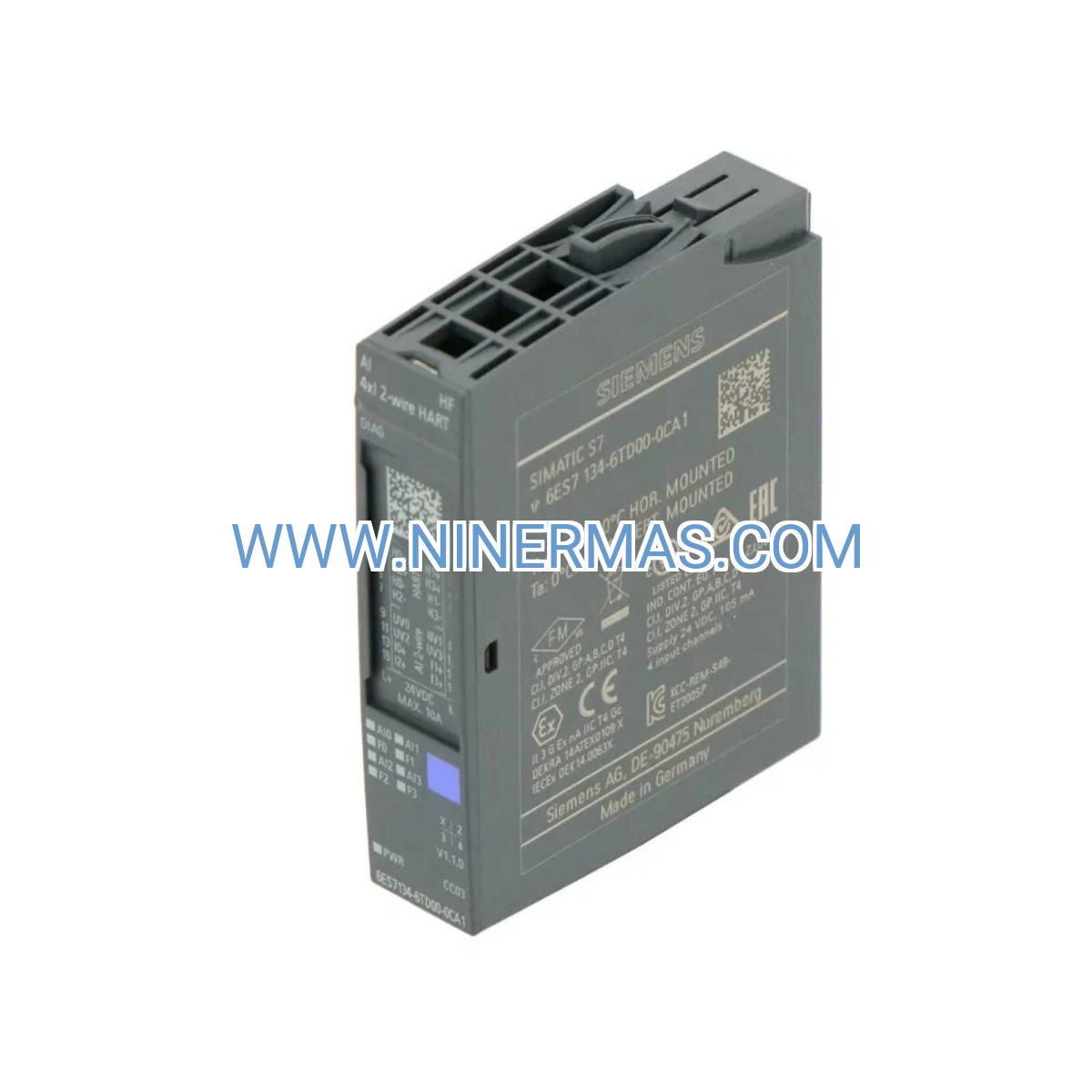

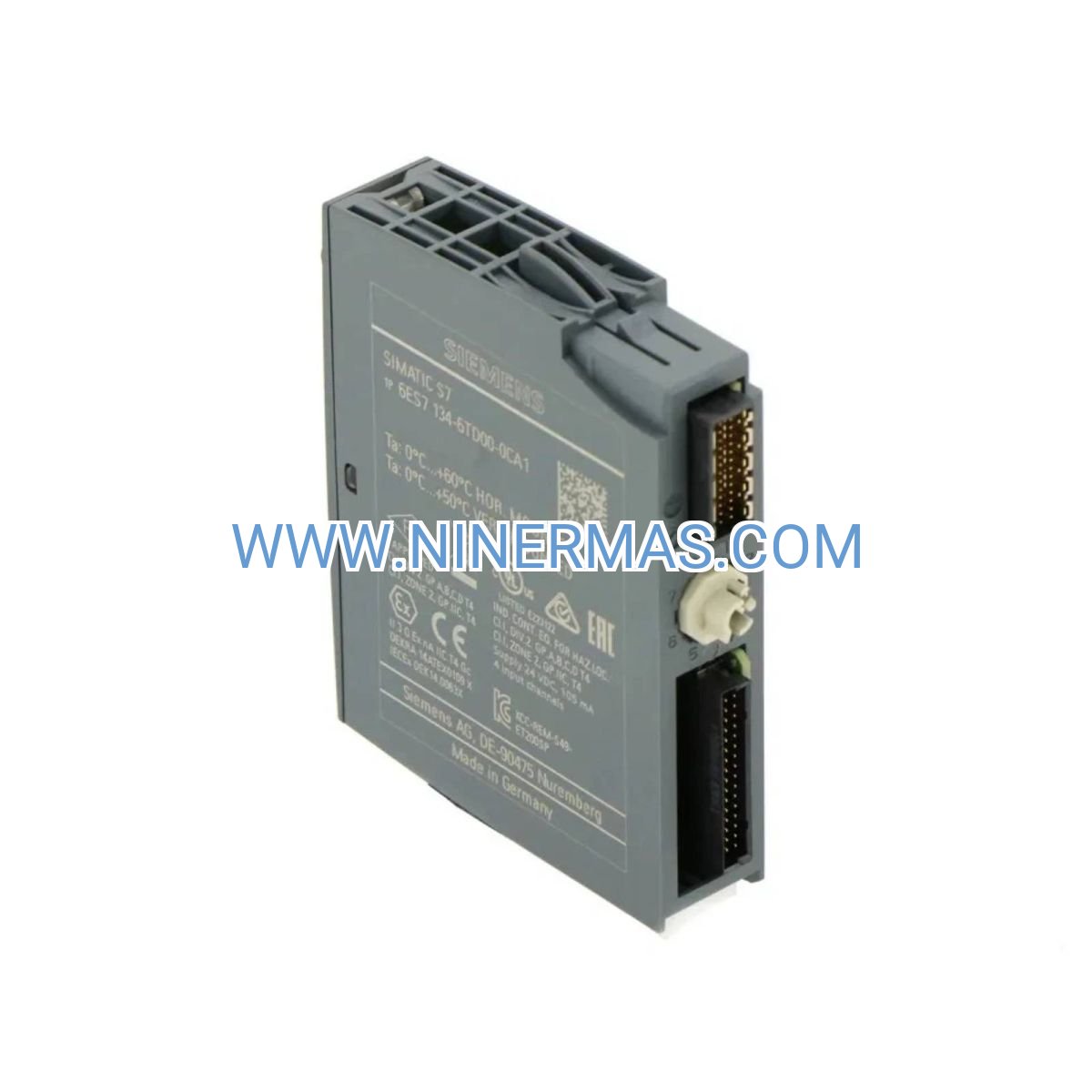

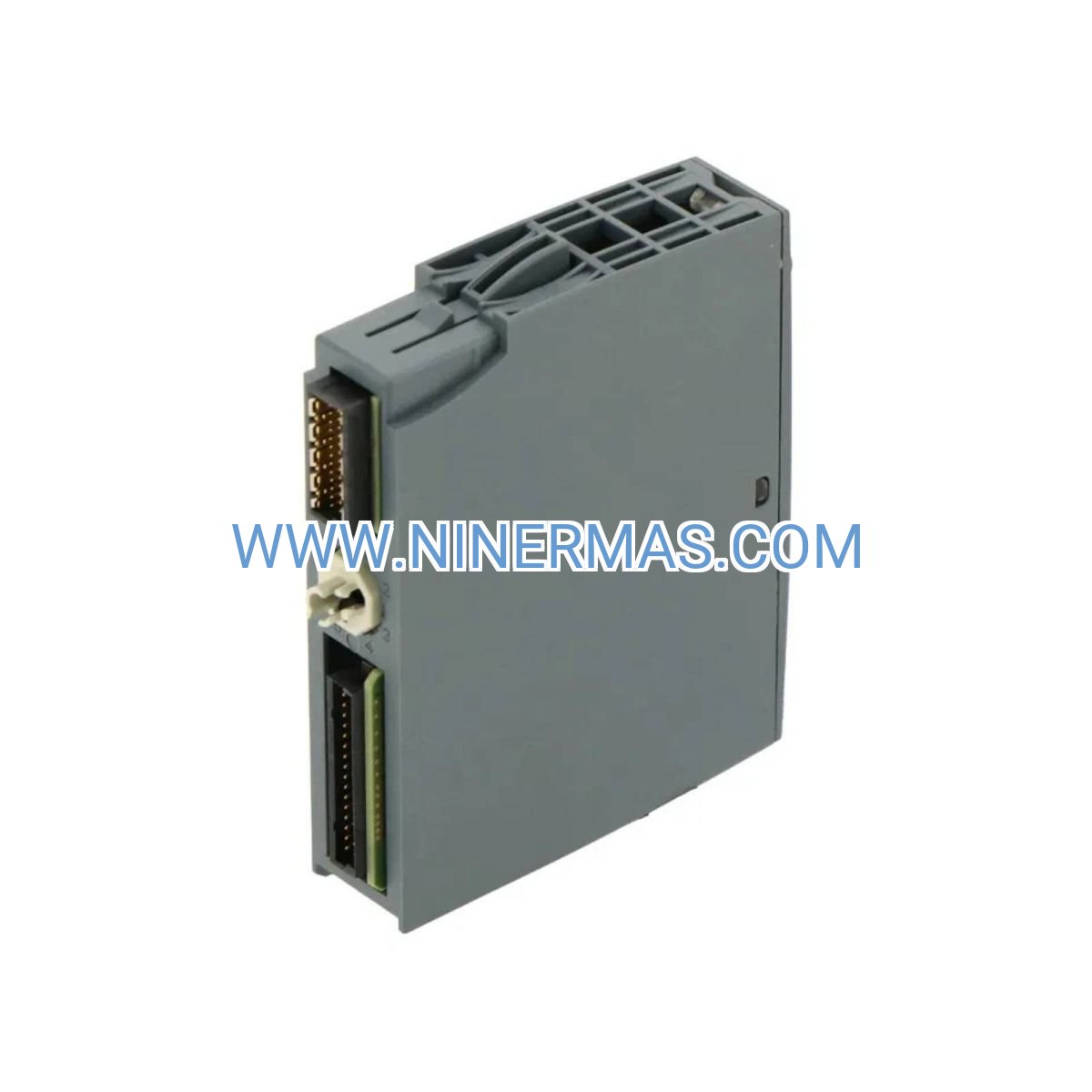

The Siemens 6ES7134-6TD00-0CA1 is a precision-engineered analog input module designed for demanding industrial environments where accurate signal acquisition is mission-critical. Built on the ET 200SP distributed I/O platform, this 4-channel HART-compatible module delivers 16-bit resolution with ±0.3% accuracy, ensuring reliable data collection from field transmitters in process automation, chemical manufacturing, and energy management systems.

Process engineers and automation specialists choose this module when they need seamless integration with HART-enabled sensors while maintaining compatibility with legacy 4-20mA systems. The 2-wire connection architecture simplifies installation, reduces wiring costs, and supports both analog measurement and digital HART communication on the same pair of wires. With built-in channel diagnostics and support for BU types A0 and A1, this module provides the foundation for predictive maintenance strategies and real-time process optimization.

Whether you're upgrading existing control systems or designing new installations, the 6ES7134-6TD00-0CA1 combines Siemens' proven reliability with advanced diagnostic capabilities. Each channel operates independently, allowing mixed sensor types and measurement ranges within a single module while maintaining galvanic isolation for superior noise immunity in electrically harsh environments.

Core Features & Technical Advantages

✓ Dual-Protocol Intelligence: Simultaneously handles traditional 4-20mA analog signals and HART digital communication, enabling remote sensor configuration and advanced diagnostics without additional wiring infrastructure.

✓ High-Fidelity Signal Processing: 16-bit A/D conversion delivers 65,536 discrete measurement steps with ±0.3% accuracy across the full scale, ensuring precise control in critical applications like pharmaceutical batching and petrochemical processing.

✓ Proactive Diagnostics: Integrated channel-level monitoring detects wire breaks, short circuits, and sensor malfunctions before they impact production, reducing unplanned downtime by up to 40% compared to non-diagnostic modules.

✓ Compact Modular Design: ET 200SP architecture reduces cabinet space requirements by 60% versus traditional I/O systems while supporting hot-swapping for maintenance without system shutdown.

✓ Universal Sensor Compatibility: Accepts inputs from pressure transmitters, temperature sensors, flow meters, and level instruments with configurable ranges (0-20mA, 4-20mA, ±10V) per channel.

✓ Industrial-Hardened Construction: Operates reliably in -25°C to +60°C ambient temperatures with conformal coating protection against moisture, dust, and chemical vapors common in industrial settings.

Typical Application Scenarios

→ Chemical Process Monitoring: In batch reactors and continuous distillation columns, the module acquires temperature, pressure, and flow data from HART transmitters while providing real-time diagnostics on sensor health. This prevents quality deviations caused by sensor drift and enables condition-based calibration scheduling, reducing maintenance costs by 25-35%.

→ Water & Wastewater Treatment: Municipal treatment facilities use the module to monitor pH, turbidity, dissolved oxygen, and chlorine levels across multiple treatment stages. The HART capability allows operators to remotely adjust sensor damping and zero/span settings without field visits, cutting commissioning time by 50%.

→ Oil & Gas Production: Offshore platforms and remote wellhead installations leverage the module's 2-wire design to minimize cable runs while maintaining HART communication for predictive maintenance. The diagnostic features detect sensor failures before they trigger false alarms or emergency shutdowns.

→ Food & Beverage Manufacturing: Dairy processing and brewing operations require precise temperature and pressure control during pasteurization and fermentation. The module's high resolution ensures compliance with HACCP requirements while the compact design fits into space-constrained control panels.

→ Energy Management Systems: Building automation and district heating networks use the module to collect data from steam flow meters, BTU meters, and pressure sensors. The HART protocol enables centralized configuration management across distributed installations spanning multiple buildings.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when you need HART communication for advanced diagnostics and remote configuration. For applications requiring only basic 4-20mA inputs without HART, consider the 6ES7134-6GB00-0BA1 standard analog input module. If your process demands higher channel density, the 8-channel variant (6ES7134-6TD00-0CA1) offers similar specifications in a slightly larger footprint. Ensure your base unit (BU) type matches the module's A0/A1 compatibility for proper mechanical and electrical connection.

Extended Functions & Integration Capabilities

HART Asset Management: Integrate with Siemens PCS 7 or SIMATIC PDM for centralized device configuration, calibration records, and predictive maintenance scheduling across your entire HART instrument network.

OPC UA Connectivity: Export HART diagnostic data to cloud-based analytics platforms via OPC UA gateways, enabling machine learning models to predict sensor failures 2-4 weeks before occurrence.

Redundancy Options: Deploy in redundant ET 200SP configurations with automatic failover for safety-critical applications requiring 99.99% uptime, such as emergency shutdown systems and fire & gas detection.

Custom Scaling & Linearization: Configure non-linear sensor curves (square root extraction for flow, custom polynomial functions) directly in the module to reduce PLC processing overhead and improve scan cycle performance.

Delivery Timeline & Service Guarantee

Standard Delivery: 5-7 business days for stock items shipped from our regional distribution centers. Expedited 2-3 day delivery available for urgent project requirements.

Custom Configuration: Pre-programmed modules with your specific channel settings and HART device descriptors ship within 10-12 business days, reducing on-site commissioning time by 60%.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year warranty packages available for critical infrastructure applications.

Technical Support: Unlimited access to our application engineering team for integration assistance, troubleshooting, and optimization recommendations. Average response time: 4 hours for critical issues.

Documentation Package: Each module includes installation manual, HART device descriptor (DD) files, GSD configuration files for TIA Portal, and sample ladder logic for common measurement scenarios.

Frequently Asked Questions

Q: Can I use this module with non-HART 4-20mA transmitters?
A: Yes, the module is fully backward compatible with standard 4-20mA sensors. You'll receive accurate analog measurements, but HART diagnostic features will not be available for non-HART devices. Mixed configurations (HART and non-HART sensors on different channels) are fully supported.

Q: What is the maximum cable length between the module and field transmitters?
A: For reliable HART communication, limit cable runs to 1,500 meters (4,920 feet) using shielded twisted-pair cable with capacitance ≤200 pF/m. Longer distances up to 3,000 meters are possible for analog-only operation without HART functionality.

Q: How much energy savings can I expect compared to traditional I/O systems?
A: The ET 200SP platform reduces power consumption by approximately 40% versus conventional I/O racks due to efficient 2-wire sensor powering and optimized electronics. A typical 64-channel system saves 150-200W, translating to $120-160 annually in energy costs.

Q: Does the module require special installation procedures or certifications?
A: Installation follows standard DIN rail mounting procedures. For hazardous area installations (ATEX/IECEx zones), ensure proper grounding and use approved base units with intrinsic safety barriers. Consult the installation manual section 4.2 for zone-specific requirements.

Q: Can I monitor HART diagnostics remotely without visiting the control cabinet?
A: Absolutely. When integrated with SIMATIC PDM or third-party HART multiplexers, all diagnostic data (sensor status, process variables, configuration parameters) is accessible via Ethernet/IP, PROFINET, or OPC UA from any authorized workstation or mobile device.

Q: What happens if one channel fails—will it affect the other three channels?
A: No. Each channel operates independently with separate A/D converters and diagnostic circuits. A fault on one channel (sensor failure, wiring issue) will not impact the remaining channels, ensuring partial system operation during troubleshooting.

Ready to Optimize Your Process Control System?

Contact our automation specialists today for application-specific recommendations, volume pricing, and integration support. We'll help you design a reliable, future-proof I/O architecture that reduces total cost of ownership while improving process visibility.

Request a Quote: Email your project requirements to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
