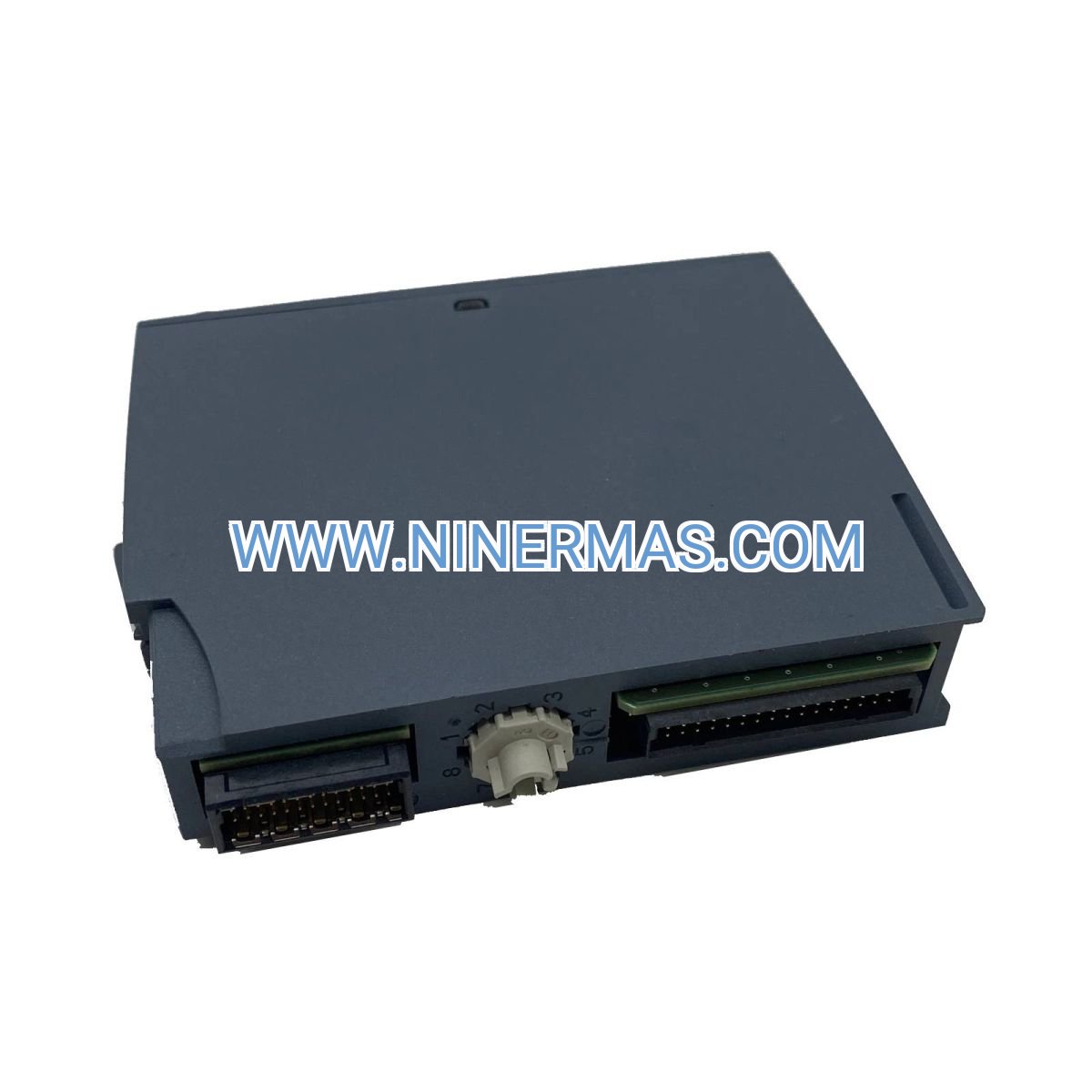

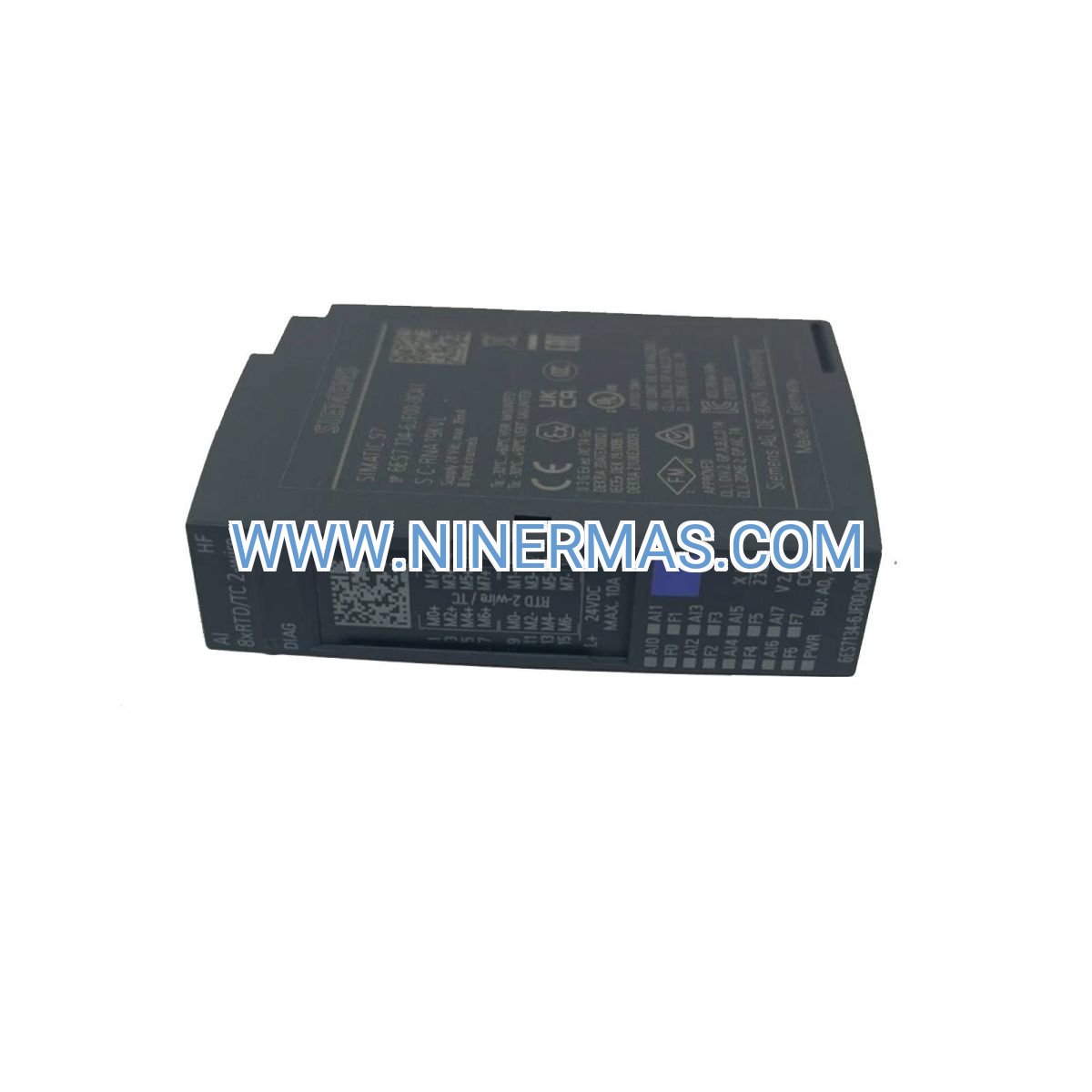

8-Channel RTD/Thermocouple Analog Input Module (Industrial-Grade Temperature Acquisition)

The Siemens 6ES7134-6JF00-0CA1 is a high-performance analog input module engineered for precision temperature measurement in demanding industrial environments. Featuring 8 independent channels with 16-bit resolution and ±0.1% accuracy, this ET 200SP series module delivers reliable RTD and thermocouple signal processing for process automation, manufacturing control systems, and critical infrastructure monitoring.

Designed for engineers and system integrators who demand uncompromising measurement quality, this module solves the challenge of multi-point temperature monitoring in space-constrained control cabinets. Its compact DIN rail design and 2-wire connection technology reduce installation complexity while built-in channel diagnostics ensure continuous operational visibility.

Whether you're upgrading legacy temperature monitoring systems or designing new distributed I/O architectures, the 6ES7134-6JF00-0CA1 combines Siemens' proven reliability with advanced diagnostic capabilities to minimize downtime and maximize process control accuracy.

Core Features & Technical Advantages

→ High-Resolution Signal Processing: 16-bit A/D conversion delivers 0.0015°C resolution for RTD inputs, enabling precise thermal profiling in pharmaceutical reactors, heat treatment furnaces, and climate-controlled storage facilities.

→ Universal Sensor Compatibility: Supports Pt100, Pt1000, Ni100, Type J/K/T/E/R/S/N thermocouples without external signal conditioning, reducing BOM costs by 30-40% compared to multi-module solutions.

→ Integrated Channel Diagnostics: Real-time wire-break detection, short-circuit monitoring, and out-of-range alerts trigger immediate PLC notifications, cutting troubleshooting time from hours to minutes.

→ Compact Modular Architecture: 12.5mm width per module conserves valuable cabinet space—install up to 64 channels in a standard 19-inch rack versus 32 channels with conventional terminal blocks.

✓ Hot-Swappable Design: Replace modules during operation without system shutdown, maintaining production continuity in 24/7 manufacturing environments.

✓ Industrial-Grade EMC Protection: Meets EN 61000-6-2/4 standards for immunity to electrical fast transients, surge voltages, and radiated interference—proven reliable in steel mills and power generation facilities.

Typical Application Scenarios

Chemical Process Temperature Profiling
Monitor reactor vessel temperatures across 8 zones simultaneously. The module's ±0.1% accuracy ensures compliance with FDA 21 CFR Part 11 validation requirements while integrated diagnostics detect sensor drift before batch quality is compromised. Reduces temperature-related batch rejections by up to 15%.

HVAC System Optimization
Track supply/return air temperatures, chilled water loops, and outdoor ambient conditions through a single module. 2-wire connection simplifies retrofit installations in existing BMS networks, cutting commissioning time by 40% compared to 4-wire systems.

Food & Beverage Pasteurization Control
Ensure uniform heat distribution in tunnel pasteurizers with multi-point RTD monitoring. The module's fast 100ms sampling rate captures thermal transients during product changeovers, preventing under-pasteurization incidents that could trigger costly product recalls.

Power Plant Turbine Monitoring
Acquire bearing temperatures, steam line conditions, and cooling system performance data. Hot-swap capability allows sensor maintenance without turbine shutdown, avoiding $50,000+ hourly revenue losses during unplanned outages.

Pharmaceutical Clean Room Environmental Control
Maintain ISO 14644 Class 5 cleanroom conditions through continuous temperature mapping. Built-in linearization for Pt100 sensors eliminates manual calibration tables, reducing validation documentation by 60%.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when you need 8 or fewer temperature inputs with high accuracy requirements. For applications requiring 4-20mA current loop inputs, consider the 6ES7134-6HD00 variant. If cold junction compensation is critical for thermocouple accuracy, verify ambient temperature stability or add external CJC modules.

Extended Functions & Integration Capabilities

PROFINET Integration: Seamless connectivity to SIMATIC S7-1500/1200 controllers via ET 200SP interface module. Supports IRT (Isochronous Real-Time) communication for synchronized motion control applications requiring <1ms jitter.

TIA Portal Configuration: Drag-and-drop hardware setup in STEP 7 V14+ with automatic GSD file recognition. Pre-configured function blocks for scaling, alarming, and trending reduce programming time by 50%.

Redundancy Options: Compatible with ET 200SP HA (High Availability) systems for fault-tolerant architectures. Automatic switchover to backup module within 100ms maintains process continuity during component failures.

Cloud Connectivity: Export temperature data to SIMATIC MindSphere via SIMATIC S7 connectors for predictive maintenance analytics. Machine learning algorithms detect sensor degradation patterns 2-3 weeks before failure.

Custom Linearization: Upload user-defined sensor curves for non-standard RTD/TC types. Supports polynomial equations up to 5th order for specialty aerospace and research applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-2 business days. Custom-configured modules (special sensor ranges, extended temperature ratings) require 3-4 weeks factory lead time.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year coverage available through Siemens Service Agreements.

Technical Support: Access to Siemens Industry Online Support (SIOS) portal with 24/7 ticket submission. Phone support available 8AM-6PM EST with <4-hour response time for critical production issues.

Documentation Package: Includes installation manual, GSD file, TIA Portal library, CAD drawings (STEP/DXF), and UL/CE certificates. Wiring diagrams and sample PLC code available for download.

Frequently Asked Questions

Q: Can this module interface directly with SIMATIC S7-300 controllers?
A: Yes, via ET 200SP IM 155-6 PN interface module. Requires TIA Portal V13 SP1 or later for configuration. Legacy STEP 7 V5.5 users must upgrade to TIA Portal for full diagnostic functionality.

Q: What is the maximum cable length for RTD sensors?
A: Up to 200 meters with shielded twisted-pair cable (0.5mm² cross-section). For runs exceeding 100m, use 4-wire RTD connection to eliminate lead resistance errors. Thermocouple extensions limited to 50m due to noise susceptibility.

Q: How much energy savings can I expect versus older analog modules?
A: The 6ES7134-6JF00-0CA1 consumes 1.5W versus 3.5W for legacy S7-300 SM331 modules—a 57% reduction. In a 100-module installation, this saves approximately 175W continuous load, reducing annual energy costs by $150-200.

Q: Does the module require external power supply for sensor excitation?
A: No, RTD excitation current (0.5mA typical) is provided internally. Thermocouple inputs are passive and require no external power. The module draws power exclusively from the ET 200SP backplane.

Q: Can I monitor module health remotely without visiting the control cabinet?
A: Absolutely. Channel diagnostics, module temperature, and power supply status are accessible via PROFINET web server or SCADA HMI. Email/SMS alerts can be configured through SIMATIC WinCC or third-party notification gateways.

Q: What installation tools are required for DIN rail mounting?
A: Only a flathead screwdriver for terminal connections. The module snaps onto standard 35mm DIN rail without tools. Removal requires pressing the orange release tab—no special extraction tools needed.

Get Precision Temperature Control Today

Upgrade your temperature monitoring infrastructure with proven Siemens engineering. Request a technical datasheet, discuss custom configurations, or place your order now. Our application engineers are ready to help you select the optimal analog input solution for your specific process requirements.
