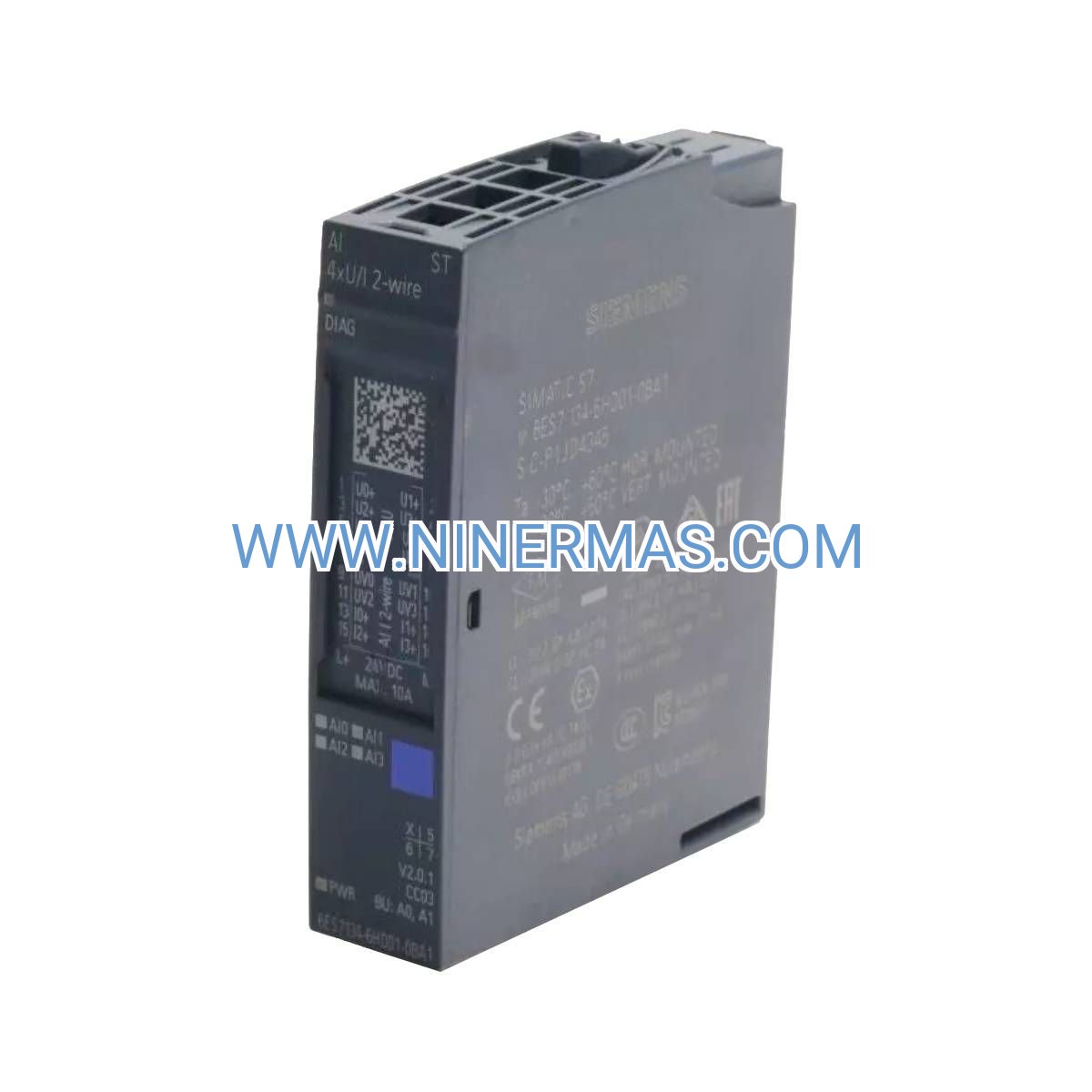

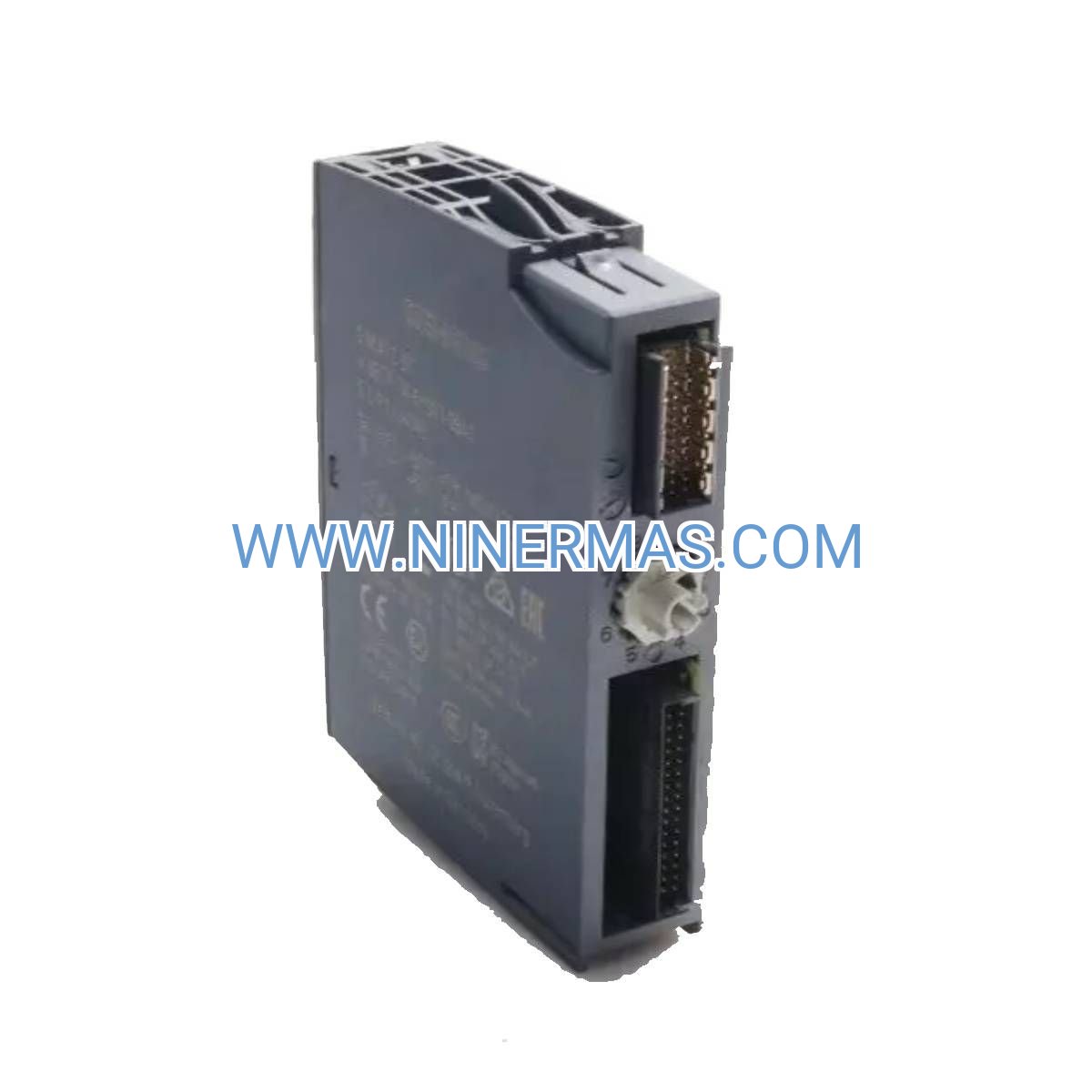

Siemens 6ES7134-6HD01-0BA1 – Industrial-Grade HART-Enabled Analog Acquisition

The Siemens 6ES7134-6HD01-0BA1 delivers precision analog signal acquisition for demanding industrial environments. Engineered as part of the ET 200SP distributed I/O platform, this 4-channel high-feature module integrates HART communication, universal input flexibility, and channel-level isolation to ensure reliable data collection in process automation, pharmaceutical manufacturing, and energy management systems.

Designed for engineers who demand measurement integrity, the 6HD01-0BA1 supports voltage, current, RTD, and thermocouple inputs with 16-bit resolution and ±0.3% accuracy. HART protocol transparency enables direct access to smart transmitter diagnostics without additional infrastructure, reducing total cost of ownership while enhancing predictive maintenance capabilities.

Whether you're upgrading legacy DCS systems or designing greenfield automation projects, this module provides the technical foundation for scalable, future-proof control architectures. Compact 35mm width conserves panel space, while hot-swap capability minimizes downtime during maintenance operations.

Key Technical Advantages

→ HART Protocol Integration
Native HART support on all four channels eliminates the need for external multiplexers or gateways. Access primary variables, secondary measurements, and device diagnostics directly through PROFINET communication, enabling asset management strategies that reduce unplanned downtime by up to 40%.

→ Universal Signal Compatibility
Auto-detection technology recognizes voltage (±10V, 1-5V), current (0-20mA, 4-20mA), resistance, thermocouples (J/K/E/N/S/R/T/B/C), and RTDs (Pt100/200/500/1000, Ni100/1000). Single module type simplifies spare parts inventory and reduces engineering complexity across multi-discipline projects.

→ Channel-to-Channel Isolation
Galvanic isolation up to 500V AC prevents ground loops and cross-channel interference in electrically noisy environments. Critical for applications where sensor grounds differ or where EMI from VFDs and welding equipment could compromise measurement accuracy.

→ Advanced Diagnostic Intelligence
Continuous monitoring detects wire breaks, short circuits, sensor drift, and out-of-range conditions. Diagnostic data integrates with TIA Portal for centralized alarm management, enabling condition-based maintenance workflows that extend sensor lifespan by 25-35%.

→ Configurable Conversion Speed
Adjustable sampling rates from 2.5ms to 100ms per channel balance response time against noise rejection. Fast modes suit dynamic process control; slower rates with oversampling deliver laboratory-grade accuracy for quality assurance applications.

→ Hot-Swap Serviceability
Replace modules during live operation without disrupting adjacent I/O or halting production. Color-coded BaseUnit connectors prevent installation errors, while automatic parameter restoration eliminates manual reconfiguration after replacement.

Industrial Application Scenarios

✓ Pharmaceutical Batch Processing
Monitor reactor temperatures, pressure transmitters, and pH sensors with validated measurement chains that meet FDA 21 CFR Part 11 requirements. HART diagnostics provide electronic batch records for regulatory compliance, while channel isolation ensures signal integrity in multi-product facilities where cleaning validation is critical.

✓ Chemical Plant Optimization
Interface with smart HART transmitters measuring flow, level, and analytical parameters across distillation columns and reaction vessels. Real-time access to transmitter health data enables predictive calibration scheduling, reducing process variability and improving yield consistency by 3-7%.

✓ Water Treatment SCADA Systems
Acquire data from turbidity analyzers, chlorine residual sensors, and flow meters in municipal treatment plants. Extended temperature range (-40°C to +70°C) and IP20 protection suit outdoor kiosk installations, while HART support simplifies integration with existing Rosemount and Endress+Hauser instrumentation.

✓ Food & Beverage CIP Monitoring
Track conductivity, temperature, and flow during clean-in-place cycles to ensure sanitation effectiveness. Universal input capability handles diverse sensor types across pasteurization, fermentation, and packaging lines, while diagnostic alarms prevent product contamination from sensor failures.

✓ Power Generation Turbine Control
Measure vibration sensors, bearing temperatures, and steam pressure in combined-cycle plants. High-speed conversion (2.5ms) supports protective relay functions, while galvanic isolation protects control systems from electrical transients during grid disturbances or lightning strikes.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 6HD01-0BA1 when your application requires HART communication, multiple signal types per module, or channel isolation. For basic voltage/current measurement without HART, consider the 6GF00-0AA1 standard analog input module. For RTD-only applications with higher channel density, evaluate the 6GD00-0BA1 8-channel RTD module.

System Integration & Compatibility

The 6ES7134-6HD01-0BA1 operates within the ET 200SP distributed I/O ecosystem, communicating via PROFINET to SIMATIC S7-1500 and S7-1200 controllers. Engineering is performed through TIA Portal V13 SP1 or later, where drag-and-drop configuration assigns signal types, scaling parameters, and diagnostic thresholds.

Required Components:

• ET 200SP BaseUnit BU Type A0 or A1 (color-coded for analog modules)
• SIMATIC S7-1500 CPU or S7-1200 CPU 1211C and higher
• TIA Portal V13 SP1 minimum (V17 recommended for full HART functionality)
• SIMATIC PDM (optional, for advanced HART device management)

Installation Notes: Mount module on BaseUnit with appropriate terminal blocks. Use shielded twisted-pair cables with shield connections at both ends for optimal noise immunity. Maximum cable lengths: 200m (voltage), 600m (current), 500m (HART). Power is supplied via ET 200SP backplane; no external 24V DC required for module operation.

Extended Capabilities

IoT & Cloud Integration
Combine with SIMATIC S7-1500 CPUs featuring OPC UA server functionality to publish HART diagnostic data to cloud platforms like MindSphere or AWS IoT. Enable remote condition monitoring and machine learning-based anomaly detection for enterprise-wide asset optimization.

Redundancy Support
Compatible with S7-1500R redundant controller configurations. Maintains measurement continuity during controller switchover events with bumpless transfer, ensuring zero data loss in safety-critical applications.

Customization Options
Factory pre-configuration services available for volume orders. We can pre-load channel assignments, scaling parameters, and diagnostic limits to reduce commissioning time by 60-70% on large projects.

Delivery & Service Commitment

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 2-3 weeks for factory programming and testing.

Warranty: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty programs available for critical infrastructure applications.

Technical Support: Pre-sales application engineering assistance included. Post-sales support via email, phone, and remote desktop sessions for troubleshooting and optimization.

Documentation: Each module ships with installation manual, wiring diagrams, and TIA Portal GSD file. Calibration certificates and material traceability documents available upon request for regulated industries.

Frequently Asked Questions

How does HART communication work with this module?
The module acts as a HART master, communicating with field devices using the 4-20mA signal as a carrier. HART data (process variables, diagnostics, configuration) is transmitted to the PLC via PROFINET and accessed through TIA Portal function blocks or SIMATIC PDM software.

Can I mix different sensor types on the same module?
Yes, each of the four channels can be independently configured for voltage, current, RTD, thermocouple, or resistance measurement. The module automatically adjusts internal circuitry based on your TIA Portal configuration.

What is the maximum distance for analog sensors?
Shielded cable limits: 200 meters for voltage signals, 600 meters for 4-20mA current loops, 200 meters for RTD sensors. HART communication functions reliably up to 500 meters with proper cable selection (low capacitance, <200pF/m).

Does this module support redundant power supplies?
Yes, when used with ET 200SP redundant power modules (PM-E series), the system maintains operation during single power supply failures. Module continues data acquisition without interruption.

Can I use this in hazardous area applications?
This module is rated for Zone 2 or safe area installation. For Zone 0/1 applications, use ET 200SP HA (High Availability) modules with certified intrinsic safety barriers like the Pepperl+Fuchs KFD2 series.

How do I calibrate the analog inputs?
Factory calibration is valid for the module's lifetime under normal operating conditions. Field calibration is not required or recommended. If accuracy verification is needed, use a precision calibrator (Fluke 754 or equivalent) to inject known signals and compare against PLC readings.

Request a Quote Today

Ready to enhance your process control accuracy? Contact our application engineers for system design assistance, volume pricing, or technical specifications tailored to your project requirements. We support integrators, OEMs, and end users across pharmaceutical, chemical, food & beverage, water treatment, and energy sectors.

Next Steps: Email your bill of materials to sale@ninermas.com or call +0086 187 5021 5667 for same-day quotations. Mention reference code "6HD01-HART" for priority processing.
