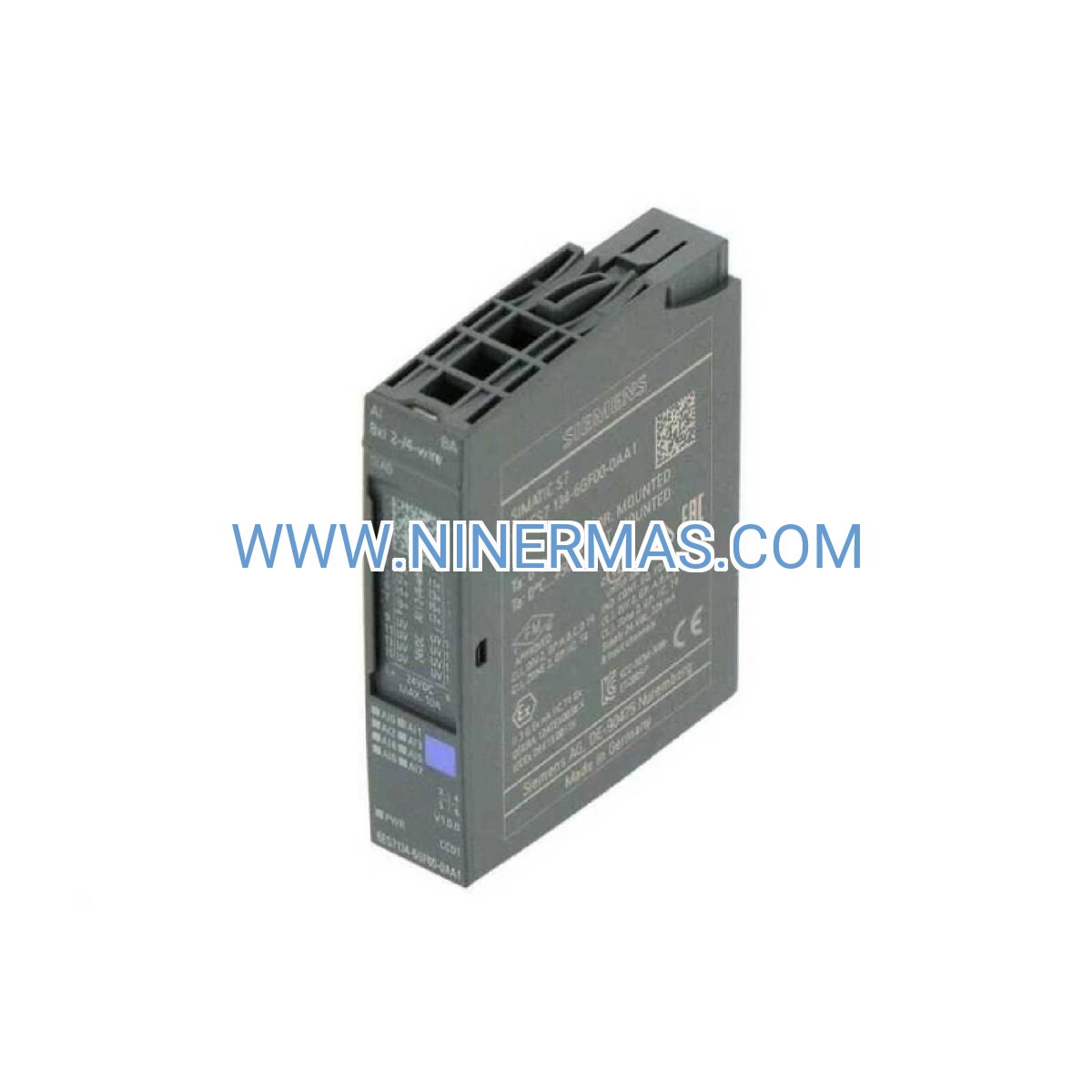

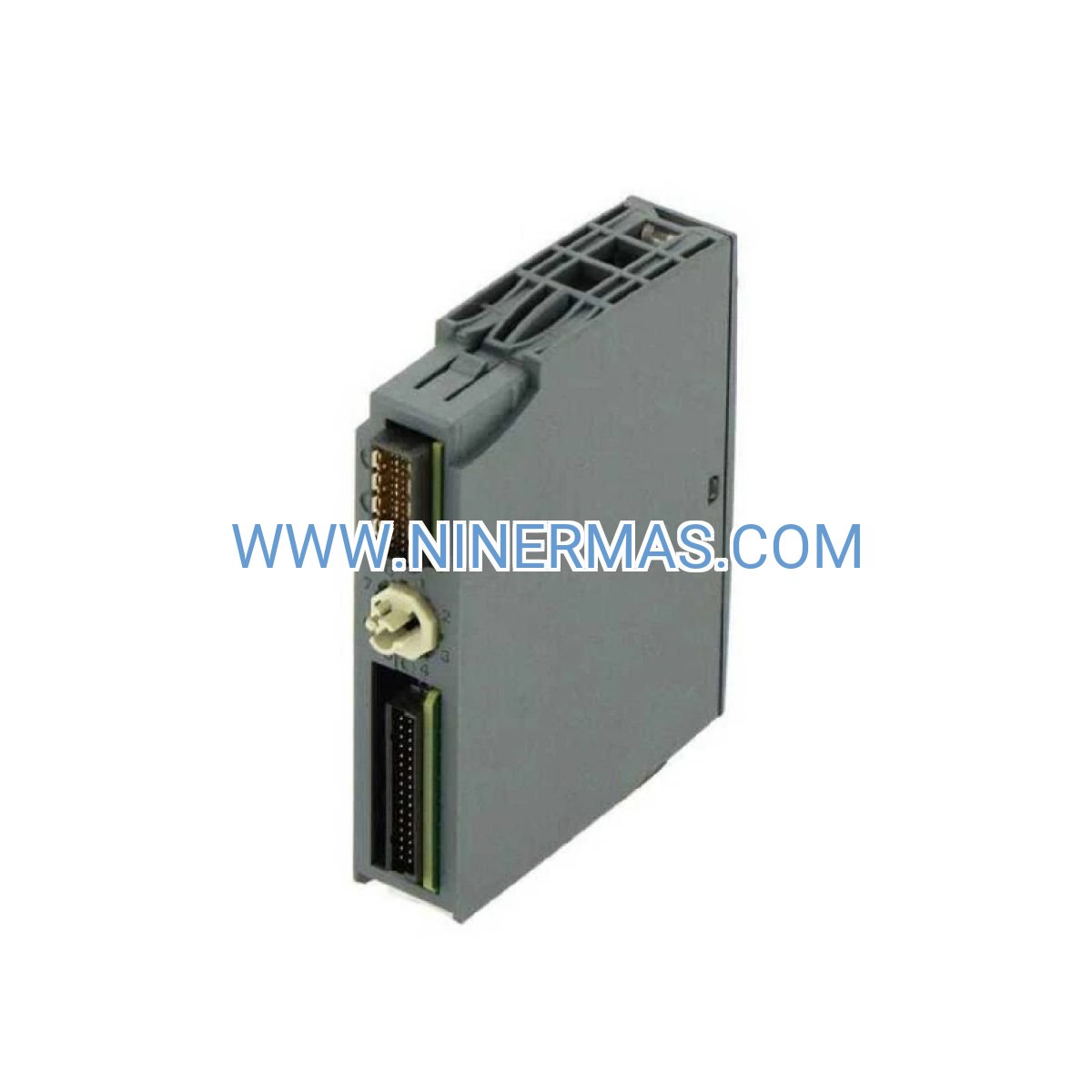

Siemens 6ES7134-6GF00-0AA1 (Industrial-Grade 8-Channel Analog Acquisition Module)

The Siemens 6ES7134-6GF00-0AA1 represents a professional-tier analog signal acquisition solution engineered specifically for the ET 200SP distributed I/O architecture. This 8-channel input module combines 16-bit measurement precision with versatile sensor connectivity, delivering dependable performance across temperature extremes from -40°C to +70°C. Designed for integration with SIMATIC S7-1500 and S7-1200 controller families, it serves as a critical interface between field instrumentation and your automation backbone.

Industrial facilities requiring accurate process variable monitoring—from chemical reactors to power distribution networks—rely on this module's ability to handle voltage, current, resistance, and thermocouple signals through unified hardware. Whether you're retrofitting legacy systems or designing greenfield installations, the 6ES7134-6GF00-0AA1 addresses the dual challenge of measurement fidelity and operational continuity through hot-swap capability and integrated diagnostics.

Key advantages include space-efficient DIN rail mounting within the compact ET 200SP footprint, real-time health monitoring that preempts costly downtime, and seamless TIA Portal configuration workflows. For automation engineers and plant managers seeking to optimize cabinet space while maintaining measurement integrity, this module delivers proven Siemens reliability with the flexibility modern manufacturing demands.

Core Features & Benefits

→ Precision Measurement Architecture
16-bit resolution (±15 bits + sign) ensures sub-0.01% accuracy for critical process variables, enabling tighter control loops and improved product quality in pharmaceutical batching, food processing, and semiconductor fabrication environments.

→ Universal Sensor Compatibility
Supports 2-wire and 4-wire sensor technologies across voltage (±10V), current (4-20mA), resistance (RTD PT100/PT1000), and thermocouple (Type J/K/T) signal types—eliminating the need for multiple module variants and simplifying spare parts inventory.

→ Predictive Diagnostics Integration
Module-level health monitoring with LED status indicators and PROFINET diagnostic messaging allows maintenance teams to identify wire breaks, sensor failures, and out-of-range conditions before they impact production throughput.

→ Hot-Swap Serviceability
Replace failed modules during live operation without halting the entire I/O station or disrupting adjacent channels—critical for 24/7 continuous process industries where unplanned shutdowns cost thousands per hour.

✓ Compact Footprint Optimization
ET 200SP's 25mm-wide module design reduces control cabinet width by up to 40% compared to traditional I/O systems, lowering enclosure costs and improving thermal management in space-constrained installations.

✓ Extended Environmental Tolerance
Operates reliably across -40°C to +70°C ambient temperatures with IP20 protection, making it suitable for harsh factory floors, outdoor enclosures with climate control, and mobile machinery applications.

Typical Application Scenarios

Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation column pressures, and flow rates with 16-bit precision. The module's thermocouple support enables direct connection to high-temperature sensors (up to 1200°C with Type K), while diagnostic alerts prevent batch contamination from sensor drift. Typical deployment: 8-12 modules per reactor skid handling 64-96 analog points.

Power Generation & Distribution
Track transformer temperatures, generator bearing vibrations (via 4-20mA transducers), and substation voltage levels. The wide operating temperature range supports outdoor switchgear installations, while hot-swap capability allows maintenance during peak demand periods without load shedding.

Building Automation & HVAC
Acquire chiller temperatures, VAV damper positions, and CO₂ levels for intelligent climate control. Integration with S7-1200 controllers enables energy-optimized setpoint adjustments, reducing HVAC operating costs by 15-25% through precise zone monitoring across commercial and institutional facilities.

Water & Wastewater Treatment
Measure pH levels, dissolved oxygen, turbidity, and flow rates in treatment processes. The module's resistance measurement capability supports direct RTD sensor connection for temperature compensation, ensuring regulatory compliance in discharge monitoring and chemical dosing applications.

Food & Beverage Manufacturing
Control pasteurization temperatures, fermentation vessel pressures, and CIP (clean-in-place) flow rates with FDA-compliant traceability. The 4-wire sensor option eliminates lead resistance errors in long cable runs common in dairy plants and breweries, maintaining ±0.1°C temperature accuracy.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES7134-6GF00-0AA1 when you need 8 analog inputs with standard accuracy (±0.1%) and mixed signal types. For higher channel density, consider the 16-channel variant 6ES7134-6JD00-0CA1. If your application requires ±0.05% accuracy or HART communication, upgrade to the 6ES7134-6HD01-0BA1 high-feature module. Ensure your ET 200SP station includes compatible BaseUnits (6ES7193-6BP00-series) and appropriate terminal blocks for your sensor wiring method.

Extended Functions

PROFINET Integration: The module communicates via the ET 200SP interface module using PROFINET IRT (Isochronous Real-Time) protocol, supporting update rates down to 1ms for motion control applications. Diagnostic data transmits automatically to the S7 controller, populating system diagnostic buffers for SCADA visualization.

TIA Portal Configuration: Hardware catalog integration allows drag-and-drop module placement in your project topology. Parameter assignment includes signal type selection, measurement range, filter time constants, and alarm limit configuration—all managed through the unified TIA Portal engineering environment (V13 SP1 or higher recommended).

Customization Options: While the module ships with standard firmware, Siemens offers application-specific parameter sets for common industries. Contact our technical team for pre-configured GSD files optimized for pharmaceutical validation (21 CFR Part 11), energy metering (IEC 61850), or automotive production (VDA standards).

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx Express. Custom configurations (special firmware, extended temperature testing) require 3-4 weeks factory lead time. Expedited processing available for emergency shutdowns—contact our 24/7 support line for same-day quotes.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes free firmware updates, technical support via phone/email, and advance replacement for failed units (subject to failure analysis). Extended 36-month coverage available for critical infrastructure projects.

Technical Support: Our automation specialists provide pre-sales application engineering (sensor selection, wiring diagrams, I/O point allocation) and post-sales commissioning assistance (TIA Portal configuration, PROFINET diagnostics, troubleshooting). Remote support sessions available via TeamViewer or Zoom screen sharing.

Documentation Package: Each module includes printed quick-start guide, CE/UL certification documents, and calibration certificate. Download comprehensive manuals, CAD drawings (EPLAN/AutoCAD), and GSD files from our technical library at www.indctrlhub.com/resources or request USB drive with complete documentation set.

Frequently Asked Questions

What sensor connection methods does the 6ES7134-6GF00-0AA1 support for RTD temperature measurement?
The module accommodates both 2-wire and 4-wire RTD connections. For maximum accuracy (±0.1°C), use 4-wire configuration which eliminates lead resistance errors—essential for cable runs exceeding 10 meters. 2-wire mode suits short connections where ±0.5°C tolerance is acceptable. Configure the connection type in TIA Portal under the channel's hardware properties.

Can I mix different signal types across the 8 input channels on a single module?
Absolutely. Each channel configures independently, allowing simultaneous use of voltage (Channel 0-1), current (Channel 2-4), and thermocouple (Channel 5-7) inputs on the same module. This flexibility reduces module count and cabinet space compared to signal-specific I/O cards. Note that all channels share a common ground reference.

What is the maximum distance between the ET 200SP station and field sensors for reliable 4-20mA signals?
Shielded twisted-pair cable supports up to 600 meters for current loop signals without signal degradation. Voltage inputs limit to 200 meters due to noise susceptibility. For longer distances, consider installing local ET 200SP stations closer to sensors and linking via PROFINET fiber optics—our engineering team can design distributed architectures for facilities exceeding 1km sensor-to-controller distances.

Does the module require external power supplies for sensor excitation or loop power?
No external power needed. The module draws 1.5W from the ET 200SP backplane (supplied by the interface module's 24V DC input). For 2-wire transmitters requiring loop power, the module provides internal excitation. 4-wire transmitters need separate 24V DC field power—budget approximately 50mA per active transmitter when sizing your field power supply.

How do I enable predictive maintenance alerts for sensor failures or wiring issues?
Activate diagnostic monitoring in TIA Portal by setting alarm thresholds for each channel (high/low limits, wire break detection, sensor short-circuit). The module generates PROFINET diagnostic alarms that appear in the S7 controller's diagnostic buffer and can trigger email/SMS notifications via SCADA systems. LED indicators on the module provide local fault indication for maintenance technicians.

Is this analog input module compatible with safety-rated applications or SIL-certified systems?
The 6ES7134-6GF00-0AA1 is a standard I/O module without safety certification. For SIL 2/SIL 3 applications (emergency shutdown systems, burner management), specify the ET 200SP F-series fail-safe modules (6ES7136-6RA00-0BF0). Standard and F-modules can coexist on the same ET 200SP station, allowing mixed safety/non-safety I/O in a single enclosure.

Ready to Optimize Your Process Control?

Contact our automation specialists today for application-specific recommendations, volume pricing, or technical consultation. Whether you're upgrading existing Siemens infrastructure or designing new installations, we'll help you select the right ET 200SP configuration for your operational requirements.

Request a Quote: Email your I/O list and project timeline to sale@ninermas.com
Technical Questions: Call +0086 187 5021 5667 (English/Mandarin support, Mon-Fri 8AM-6PM CST)
Bulk Orders: Volume discounts available for 10+ modules—contact our sales team for custom pricing
