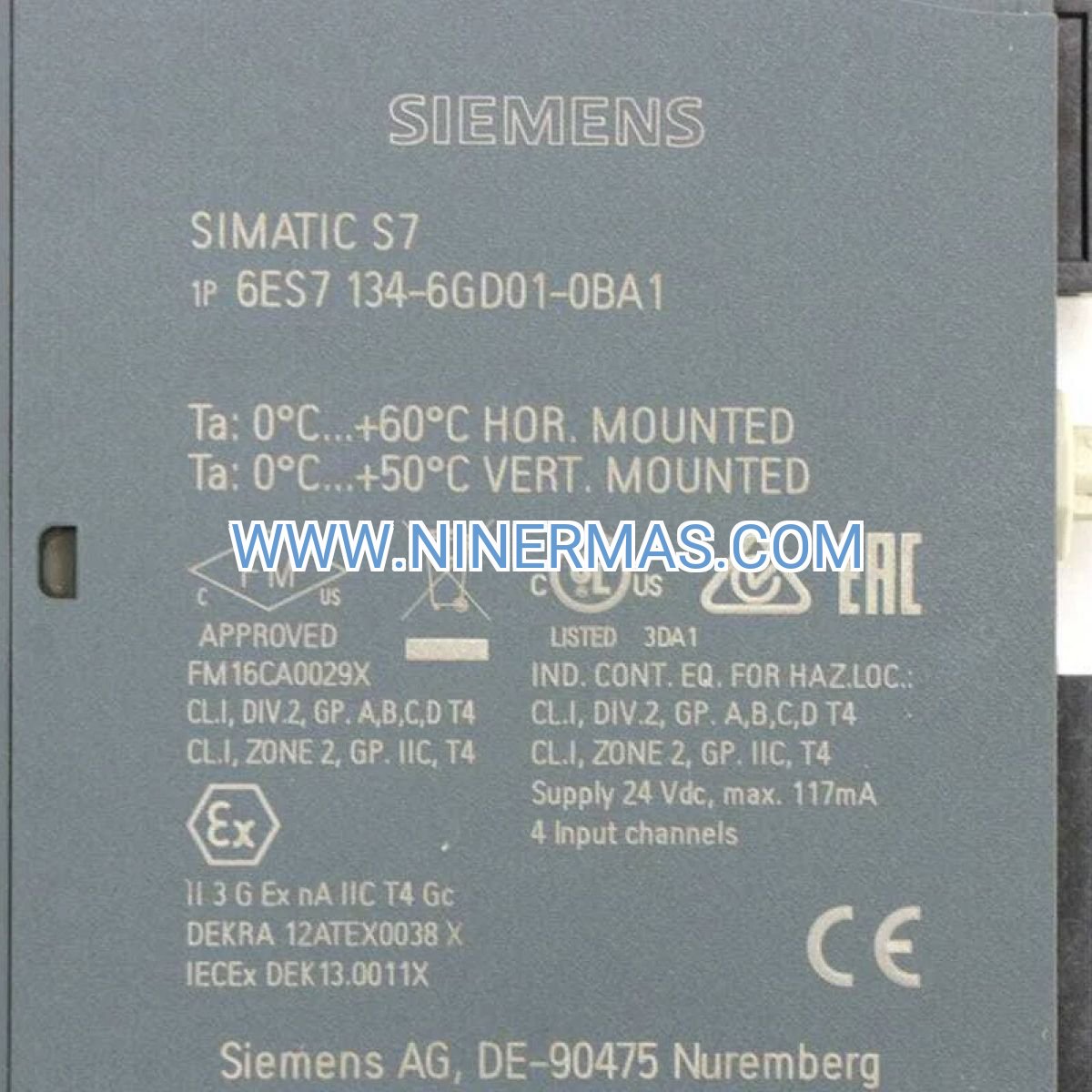

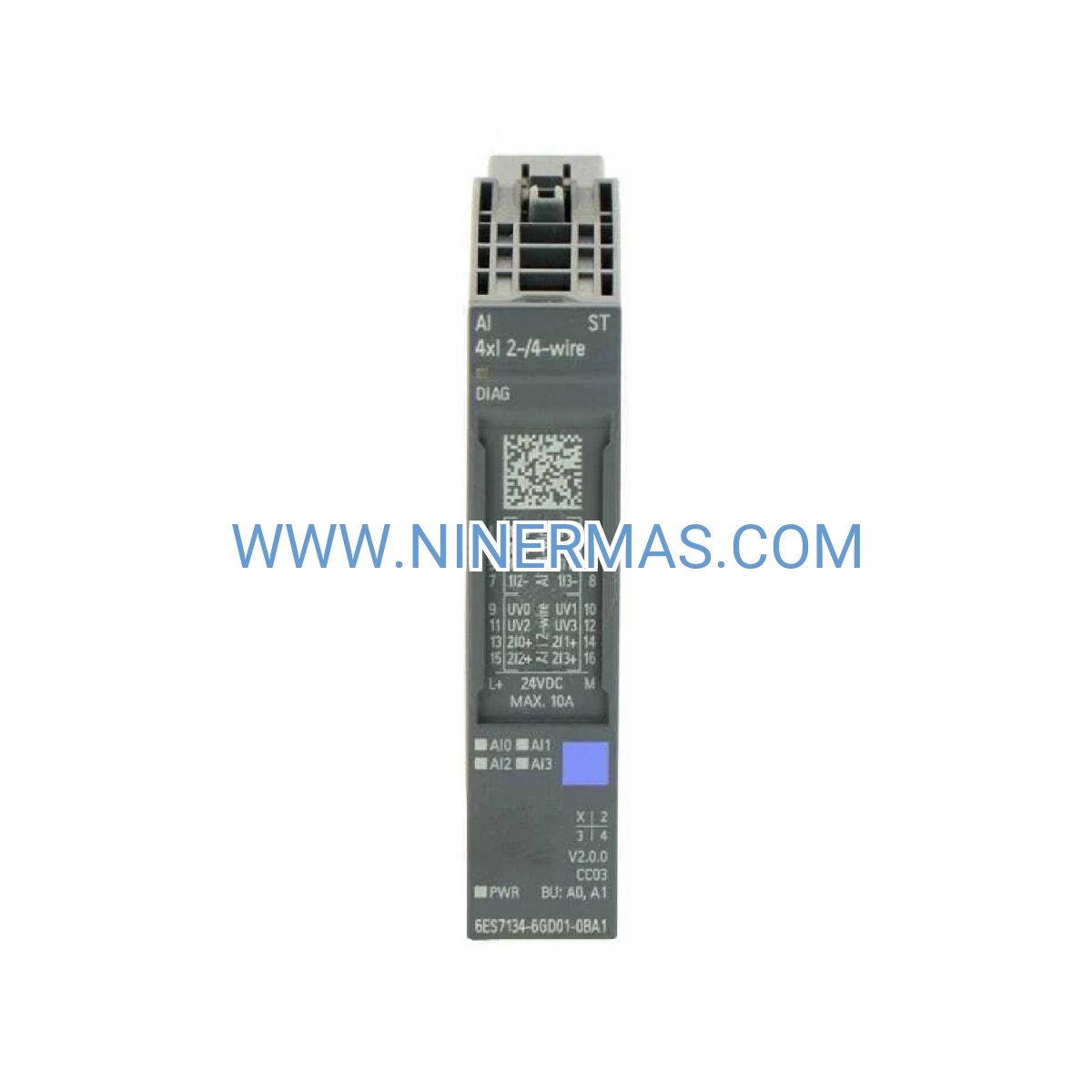

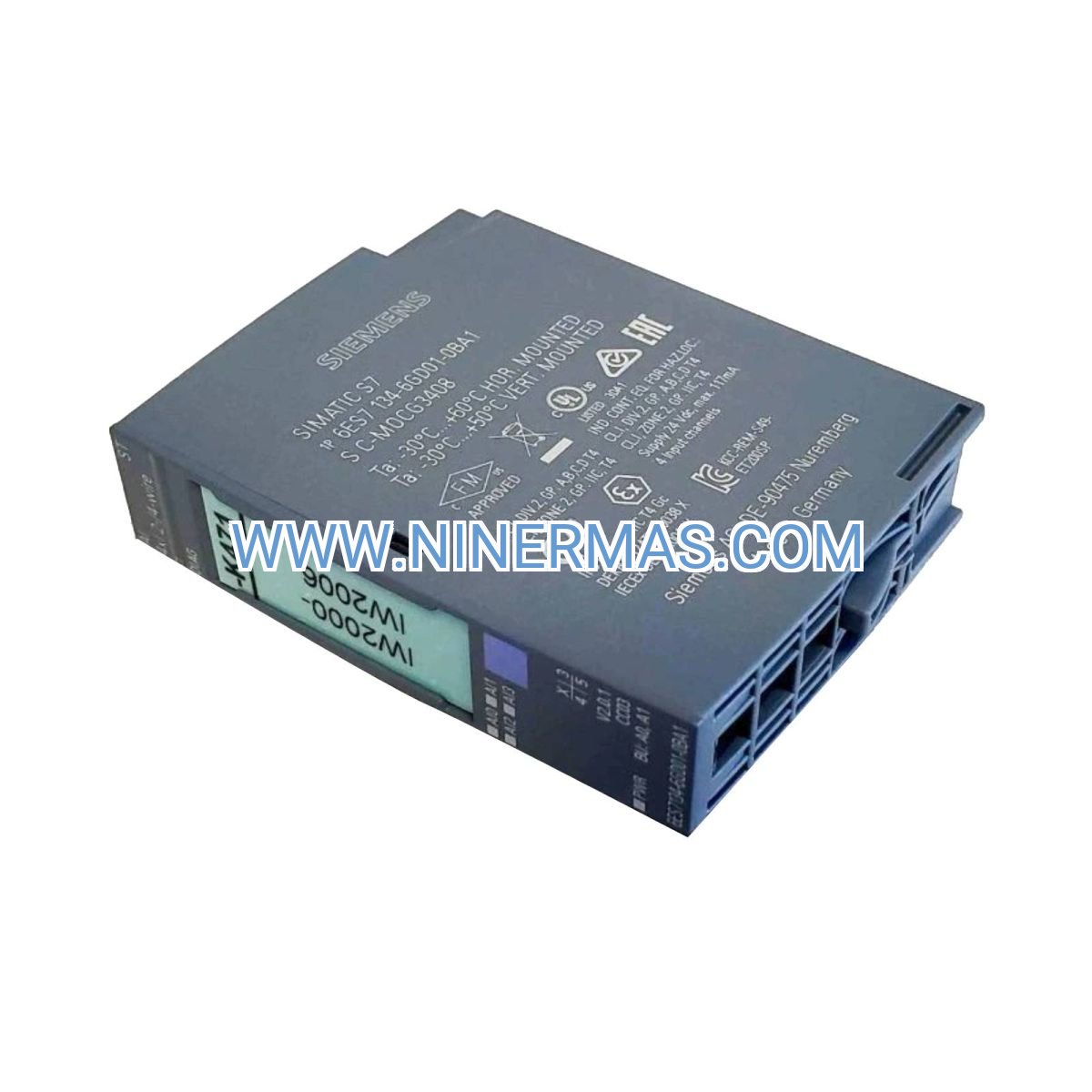

Siemens 6ES7134-6GD01-0BA1 (Industrial-Grade Analog Signal Processor)

The Siemens 6ES7134-6GD01-0BA1 represents a professional-grade analog input solution engineered for the ET 200SP distributed I/O platform. This 4-channel module transforms real-world process signals into high-fidelity digital data, enabling precise monitoring and control across manufacturing, process industries, and building automation systems.

Designed for system integrators and automation engineers who demand reliability in mission-critical environments, this module addresses the challenge of accurate signal acquisition in electrically noisy industrial settings. Whether you're retrofitting legacy systems or designing greenfield installations, the 6GD01-0BA1 delivers consistent performance across temperature extremes and harsh operating conditions.

With 16-bit resolution and ±0.3% accuracy specifications, this module ensures your control algorithms receive the data integrity required for optimal process outcomes. Hot-swappable architecture and integrated diagnostics minimize unplanned downtime while simplifying maintenance workflows.

Core Capabilities & Technical Advantages

→ Quad-Channel Architecture
Four independently configurable analog inputs support simultaneous monitoring of multiple process variables. Each channel accepts voltage (±10V, 1-5V) or current (0-20mA, 4-20mA) signals, eliminating the need for external signal conditioning in most applications. This flexibility reduces BOM costs and cabinet footprint.

→ 16-Bit Precision Conversion
High-resolution ADC technology captures subtle process variations that 12-bit modules miss. Critical for applications requiring tight tolerance control—pharmaceutical batching, semiconductor manufacturing, or precision temperature regulation where 0.1°C accuracy matters.

→ Advanced Noise Immunity
Integrated digital filtering and galvanic isolation protect signal integrity in VFD-heavy environments. Tested to withstand EMI levels exceeding IEC 61000-6-2 industrial immunity standards, ensuring reliable operation near motor drives, welding equipment, and RF sources.

✓ Hot-Swap Capability
Replace modules during operation without system shutdown. Automatic configuration download from the controller restores operational parameters within seconds, reducing MTTR by up to 75% compared to traditional I/O systems.

✓ Comprehensive Diagnostics
Real-time fault detection identifies wire breaks, short circuits, and out-of-range conditions. PROFINET-integrated alarms trigger maintenance notifications before process disruptions occur, supporting predictive maintenance strategies.

✓ Compact DIN Rail Design
Occupies just 15mm width per module—install up to 32 modules in a standard 19-inch rack. Space-efficient design reduces panel costs and simplifies cable management in dense I/O configurations.

Industrial Application Scenarios

Chemical Process Control
Monitor reactor temperatures, pressure transmitters, and flow meters in batch and continuous processes. The module's ±0.3% accuracy ensures compliance with FDA 21 CFR Part 11 data integrity requirements for pharmaceutical manufacturing. Typical deployment: 4-20mA signals from Rosemount or Endress+Hauser field instruments.

Water & Wastewater Treatment
Acquire pH, turbidity, dissolved oxygen, and level sensor data for municipal treatment plants. Galvanic isolation prevents ground loop issues common in distributed pump stations. Supports SCADA integration via PROFINET for centralized monitoring across multiple sites.

HVAC & Building Automation
Interface with temperature sensors, humidity transmitters, and pressure transducers in commercial buildings. Low power consumption (typ. 1.5W) and -25°C to +60°C operating range suit mechanical room installations. Ideal for VAV box control and chiller optimization systems.

Food & Beverage Production
Track pasteurization temperatures, CIP system pressures, and tank levels with washdown-rated sensor compatibility. Stainless steel sensor signals maintain accuracy in high-humidity environments. Meets EHEDG hygienic design guidelines when paired with appropriate field devices.

Energy Management Systems
Collect data from power meters, gas flow sensors, and steam pressure transmitters for ISO 50001 energy monitoring. High sample rates (up to 1kHz) capture transient events in power quality analysis applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires simultaneous acquisition of 4 or fewer analog signals with standard industrial ranges. For applications needing thermocouple or RTD inputs, consider the 6ES7134-6PA01-0BD0 variant. If channel count exceeds 4, deploy multiple modules on the same BaseUnit for cost-effective scaling.

Extended Integration Capabilities

PROFINET Integration: Native support for PROFINET RT and IRT communication protocols enables deterministic data exchange with S7-1500 controllers. Typical cycle times of 1-4ms suit fast-loop control applications. OPC UA server functionality in the controller provides seamless MES/ERP connectivity.

TIA Portal Configuration: Drag-and-drop hardware configuration in STEP 7 V14 or later. Pre-configured function blocks accelerate programming—scaling, alarming, and trending functions reduce commissioning time by 40% versus custom code development.

Redundancy Options: Deploy in S7-1500R redundant controller systems for high-availability applications. Automatic switchover maintains process continuity during controller failures with bumpless transfer.

Customization Services: Factory pre-configuration available for volume orders (MOQ 50 units). Custom labeling, firmware versions, and quality documentation packages support OEM integration requirements.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for stock items via DHL/FedEx Express. Real-time inventory visibility ensures accurate lead time quotes.

Custom Orders: 2-3 weeks for factory-sealed units with specific firmware revisions or certification documentation. Expedited processing available for critical projects.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and performance deviations from published specifications. Advanced replacement program minimizes downtime—RMA processed within 24 hours.

Technical Support: Application engineering assistance via email/phone during business hours (GMT+8). Remote diagnostics support for commissioning and troubleshooting. Access to GSD files, CAD drawings, and sample code libraries.

Documentation Package: Includes operating manual, wiring diagrams, TIA Portal hardware catalog entry, and calibration certificate. EPLAN macros and AutoCAD DXF files available on request.

Frequently Asked Questions

What controller platforms support the 6ES7134-6GD01-0BA1 analog input module?
This module operates exclusively with SIMATIC S7-1500 controllers and ET 200SP CPU variants via the ET 200SP BaseUnit system. It is not backward-compatible with S7-300/400 systems. Verify your controller firmware is V2.0 or later for full feature support.

Can I connect 2-wire transmitters directly to this module?
Yes, the module supports 2-wire 4-20mA transmitters when configured for current input mode. The BaseUnit provides loop power (24V DC) through the appropriate power module. Ensure total loop resistance (transmitter + wiring) does not exceed 600Ω.

How does this module perform in high-vibration environments?
The module meets IEC 60068-2-6 vibration resistance specifications (5-150Hz, 1g amplitude). Secure BaseUnit mounting with locking clips and use shielded cables with strain relief for mobile equipment or high-vibration installations such as offshore platforms.

What diagnostic capabilities help reduce troubleshooting time?
Integrated diagnostics detect wire breaks, short circuits, measurement range overflows, and module hardware faults. LED indicators provide local status visibility, while PROFINET alarms push fault notifications to HMI/SCADA systems. Diagnostic buffer logs facilitate root cause analysis.

Is this module suitable for hazardous area installations?
The module carries ATEX Zone 2 certification for installation in non-hazardous areas of classified plants. For Zone 1/Division 1 applications, use intrinsically safe barriers with the 6ES7134-6PA20-0BC0 variant designed for Ex i installations.

How do I achieve maximum measurement accuracy?
Use shielded twisted-pair cables with shields grounded at one end only (typically at the module). Perform zero/span calibration via TIA Portal after installation. Maintain ambient temperature between 0-55°C and allow 30-minute warm-up period after power-on for thermal stabilization.

Take the Next Step

Ready to enhance your process control accuracy? Contact our automation specialists for application-specific recommendations, volume pricing, or technical consultation. We provide pre-sales engineering support to ensure optimal module selection for your project requirements.

Request a Quote: Email your bill of materials to sale@ninermas.com for competitive pricing on single units or project quantities. Include your delivery timeline and any special documentation requirements.

Technical Inquiry: Reach our engineering team at +0086 187 5021 5667 (WhatsApp available) for wiring diagrams, compatibility verification, or integration guidance.
