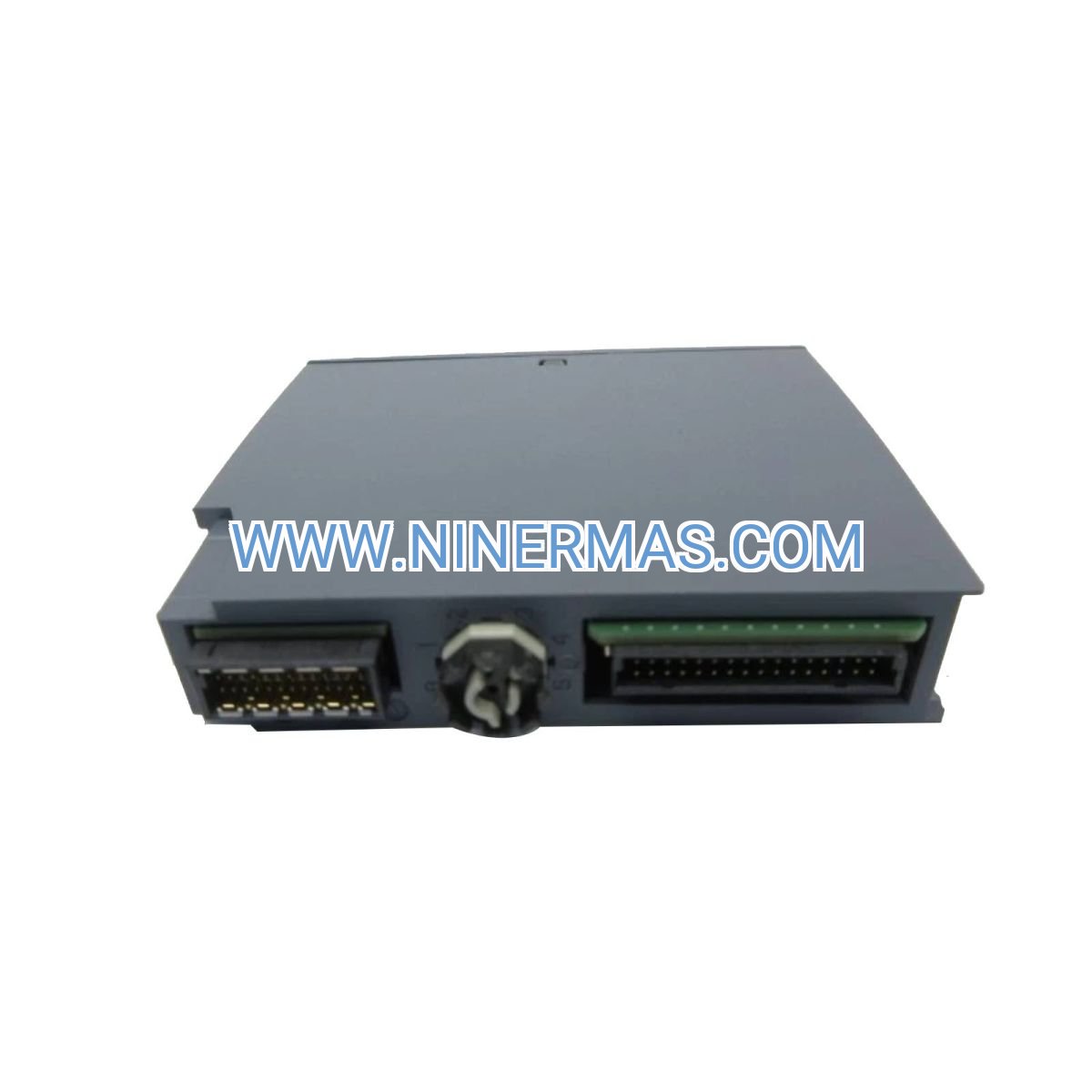

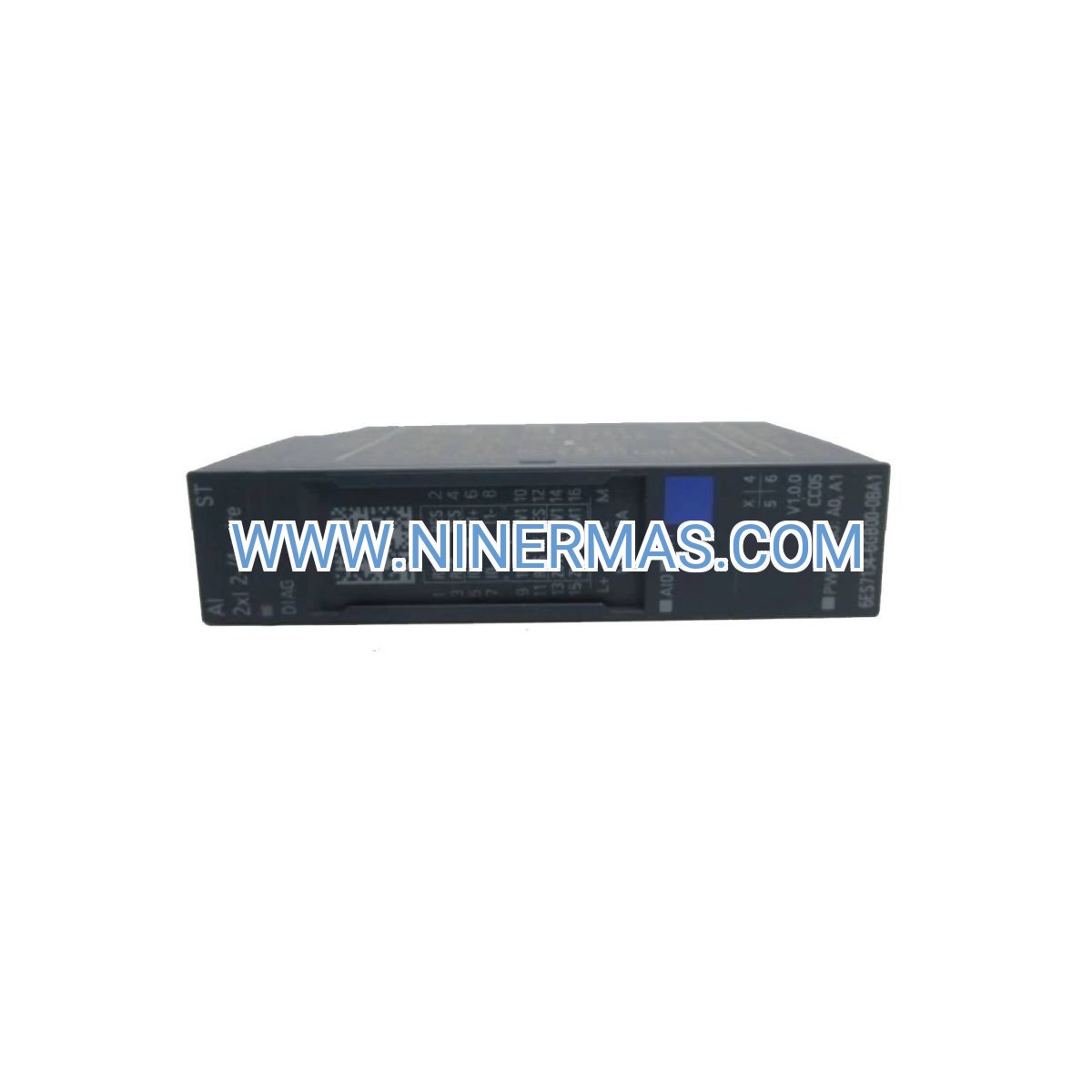

6ES7134-4JB51-0AB0 RTD Analog Input Module (Industrial-Grade Temperature Acquisition)

The Siemens 6ES7134-4JB51-0AB0 represents a professional-grade analog input solution engineered for precision temperature measurement in distributed I/O architectures. Featuring 2 or 4 configurable RTD channels with 15-bit resolution plus sign, this compact electronics module transforms resistance-based temperature signals into high-fidelity digital data for SIMATIC S7 control systems.

Designed for industries where thermal accuracy directly impacts product quality and process safety, this module addresses the critical challenge of reliable multi-point temperature monitoring in space-constrained control cabinets. Target users include automation engineers, system integrators, and plant operators managing chemical reactors, pharmaceutical cleanrooms, food processing lines, and HVAC installations requiring validated temperature control.

Key advantages include hot-swap capability for zero-downtime maintenance, universal RTD sensor compatibility (Pt100/200/500/1000, Ni100/1000, Cu10, LG-Ni1000), galvanic isolation for noise immunity, and seamless PROFIBUS DP integration with S7-300/400 controllers. The 15 mm ultra-slim profile maximizes I/O density while built-in diagnostics detect wire breaks and sensor faults before they compromise process integrity.

Core Features & Benefits

→ Multi-Sensor Versatility + Cost Efficiency
Supports eight RTD sensor types plus direct resistance measurement (0-6kΩ), eliminating the need for multiple module variants and reducing spare parts inventory by up to 40%.

✓ Hot-Swap Architecture + Operational Continuity
Replace modules during live operation without halting production processes, achieving 99.9% system availability in mission-critical applications.

✓ 15-Bit Resolution + Measurement Precision
Delivers ±0.3% full-scale accuracy with 0.025°C temperature discrimination, meeting pharmaceutical GMP and ISO 9001 quality standards.

✓ Configurable Conversion Speed + Response Optimization
Adjustable sampling rates from 2.5 ms to 100 ms per channel balance noise filtering against control loop speed requirements.

✓ Galvanic Isolation + Signal Integrity
500V channel-to-bus isolation eliminates ground loop interference in electrically noisy industrial environments, reducing false alarms by 60%.

✓ Compact 15 mm Design + Cabinet Space Savings
High-density mounting enables 20+ I/O points per meter of DIN rail, cutting panel footprint and enclosure costs by 30%.

Typical Application Scenarios

Chemical Batch Reactors
Monitor exothermic reaction temperatures across multiple zones with 4-wire Pt100 sensors. The module's fast conversion time enables real-time thermal runaway detection, while wire-break diagnostics prevent undetected sensor failures that could lead to batch losses exceeding $50,000.

Pharmaceutical Freeze Dryers
Track shelf temperatures during lyophilization cycles with validated ±0.1°C accuracy. Galvanic isolation ensures compliance with FDA 21 CFR Part 11 data integrity requirements, supporting audit-ready temperature records.

Food Pasteurization Lines
Control HTST (High-Temperature Short-Time) processes with sub-second temperature response. Hot-swap capability allows sensor maintenance during CIP (Clean-In-Place) cycles without production line shutdown.

Data Center Cooling Systems
Optimize CRAC unit performance by monitoring supply/return air temperatures with Ni1000 sensors. The module's low power consumption (1.5W typical) supports green building certifications.

Petrochemical Distillation Columns
Measure tray temperatures from -50°C to +400°C using Pt100 sensors in 3-wire configuration. Built-in linearization eliminates the need for external signal conditioning, reducing installation costs by 25%.

Technical Parameters & Selection Guide

Selection Criteria: Choose 2-channel configuration for simple temperature monitoring applications with <4 measurement points per cabinet section. Opt for 4-channel variant in high-density installations where cabinet space costs exceed $200/dm³. Use 4-wire connections when lead lengths exceed 10 meters or accuracy requirements are ≤±0.1°C. Select 3-wire for standard industrial applications balancing cost and performance.

Extended Functions

IoT Integration via PROFIBUS-to-Ethernet Gateways: Connect to SCADA systems, cloud historians (AWS IoT, Azure IoT Hub), or MES platforms for real-time temperature analytics and predictive maintenance. The module's diagnostic data enables condition-based sensor replacement, reducing unplanned downtime by 35%.

Advanced Diagnostics: Built-in self-test routines detect open circuits, short circuits, sensor drift, and out-of-range conditions. Diagnostic bits map directly to STEP 7 OB82 interrupt handlers for automated alarm generation and event logging.

Customization Options: Factory calibration certificates (DKD/DAkkS traceable) available for regulated industries. Custom firmware configurations support non-standard RTD curves or application-specific linearization tables.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules (calibration certificates, special firmware) require 10-15 business days. Expedited 24-hour shipping available for critical downtime situations.

Warranty: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month warranty available for high-reliability applications.

Technical Support: Multilingual engineering support (English/Chinese) via email, phone, and remote desktop assistance. Average response time <4 hours during business hours. STEP 7 configuration file templates and wiring diagrams provided with every order.

Documentation Package: Includes product manual (PDF), CAD drawings (DXF/STEP), STEP 7 GSD file, sample ladder logic, and calibration certificate (if ordered). All documents comply with CE, UL, and EAC certification requirements.

Frequently Asked Questions

How do I configure different RTD types on each channel?
Use STEP 7 hardware configuration to assign sensor types per channel. Navigate to the module properties, select each channel individually, and choose from the dropdown menu of supported RTD types. Configuration downloads to the module during PLC startup.

What wire gauge should I use for RTD connections?
Recommend 18-22 AWG (0.75-1.5 mm²) shielded twisted-pair cable for lead lengths up to 100 meters. For 4-wire connections, use quad-conductor cable with individual shields. Maintain <0.1Ω lead resistance per wire for optimal accuracy.

Can this module achieve ±0.1°C accuracy in pharmaceutical applications?
Yes, when using 4-wire Pt100 Class A sensors, factory calibration, and 100 ms conversion time with maximum filtering. Accuracy improves to ±0.05% FSR (approximately ±0.04°C over 0-100°C range) under controlled conditions.

Does the module support remote sensor power supply monitoring?
The module detects open circuits and short circuits but does not measure loop resistance directly. For applications requiring cable integrity monitoring, consider adding external loop-powered isolators with diagnostics.

What's the maximum PROFIBUS DP cycle time impact?
Each module adds approximately 1-2 ms to the DP cycle depending on baud rate (1.5 Mbps recommended). With 10 ms conversion time setting, total loop time remains <15 ms, suitable for most process control applications.

Is this module compatible with S7-1500 controllers?
The ET 200S system uses PROFIBUS DP, which S7-1500 supports via CM 1542-5 communication module. For native PROFINET integration, consider the ET 200SP equivalent (6ES7134-6JD00-0CA1) with identical RTD functionality.

Take the Next Step

Ready to enhance your temperature monitoring system with industrial-grade precision? Contact our automation specialists for application-specific configuration guidance, volume pricing, or technical feasibility assessment. Request a detailed quotation including module, accessories, and commissioning support tailored to your project requirements.
